Phoenix Contact overvoltage protection DC, types I+II, 1 MPP, terminals, 3 x IN/OUT
| Type of manufacturer: | SOL-SC-3ST-0-DC-1MPPT-1005EQ |
|---|---|
| Manufacturer Art. No.: | 1197151 |
| Art. Nr.: | 5045 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
5045
Description

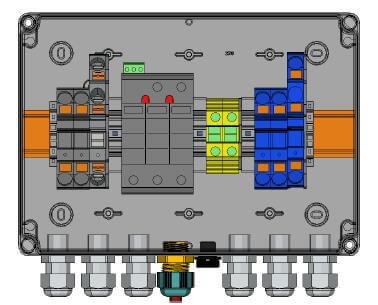

Phoenix Contact overvoltage box DC, types I+II, 1 MPP, 3 x IN/OUT
Area of application: according to VDE 0100-443 and 0100-534, building with and without external lightning arrester.
Compact and pre-fabricated box with types I+II surge arresters for the DC side. Suitable for INV with only 1 MPP up to 1000 V DC voltage. Maintenance-friendly, pluggable arrester elements with mechanical function display. Connection of the DC lines via 3 x IN / OUT terminals each up to 16 mm².
Product benefits:
- Ideally suitable for all SolarEdge inverters
- No loss of power due to equal number of input and output lines
Product features:
- Arrester element of types I+II for 1 MPP tracker
- each 3 terminals for input and output lines (max. 16 mm²)
- Current rating 25 A per string
- Max. system voltage: 1000 V DC
- Pre-mounted cable glands M16 / M20
- Use for pressure compensation
- Protection type: IP65
- Dimensions: 254 x 180 x 111 mm
