Phoenix Contact overvoltage protection DC, type II, 1 MPP, terminals
| Type of manufacturer: | SOL-SC-2ST-0-DC-1MPPT-2005 |
|---|---|
| Manufacturer Art. No.: | 1197141 |
| Art. Nr.: | 5041 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
5041
Description
Phoenix Contact DC overvoltage protection, type II for 1 MPP with connecting terminals
Area of application: according to VDE 0100-443 and 0100-534, building without external lightning arrester

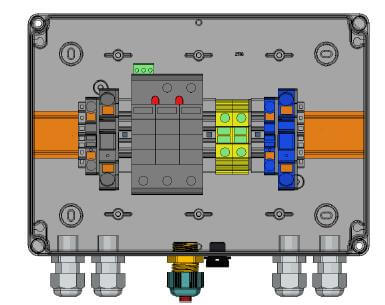

Compact and pre-fabricated box with type II surge arrester for the DC side. Suitable for INV with only 1 MPP up to 1000 V DC voltage. Maintenance-friendly pluggable arrester elements with mechanical function display. Connection of the DC lines with connecting terminals.
Product features:
- Arrester element of type II for 1 MPP tracker
- each 2 terminals for string cables 6 mm², each 1 terminal output for INV 16 mm²
- Current rating 20.5 A per string
- Max. system voltage: 1000 V DC
- Pre-mounted cable glands M16 / M20
- Use for pressure compensation
- Protection type: IP65
- Dimensions: 254 x 180 x 111 mm
-
