Phoenix Contact overvoltage protection DC, type II, 1 MPP, SunClix
| Type of manufacturer: | SOL-SC-1ST-0-DC-1MPPT-2001 |
|---|---|
| Manufacturer Art. No.: | 2403338 |
| Art. Nr.: | 6605 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
6605
Description

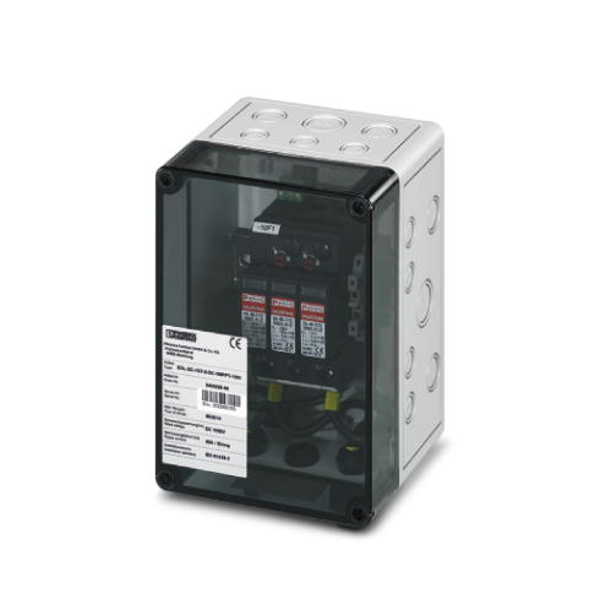

Phoenix Contact DC overvoltage box, type II for 1 MPP with SunClix connectors
Application area: according to VDE 0100-443 and 0100-534, buildings without external lightning protection
Compact and pre-assembled box with 2 x type II surge arresters on the DC side. Suitable for inverters with just 1 MPP and up to 1000 V DC voltage. Maintenance-friendly, pluggable arrester elements with a mechanical display functionality. Connection of the DC cables via Phoenix SunClix connector (included in the scope of delivery).
Technical specifications:
- Arrester elements of type II for 1 MPP tracker
- Phoenix SunClix connectors for inlet and outlet (2.5 - 6 mm²)
- All cable connections pre-assembled
- Current carrying capacity 40A
- Protection class: IP 65
- Dimensions: 130 x 180 x 111 mm
-
Matching accessories
-

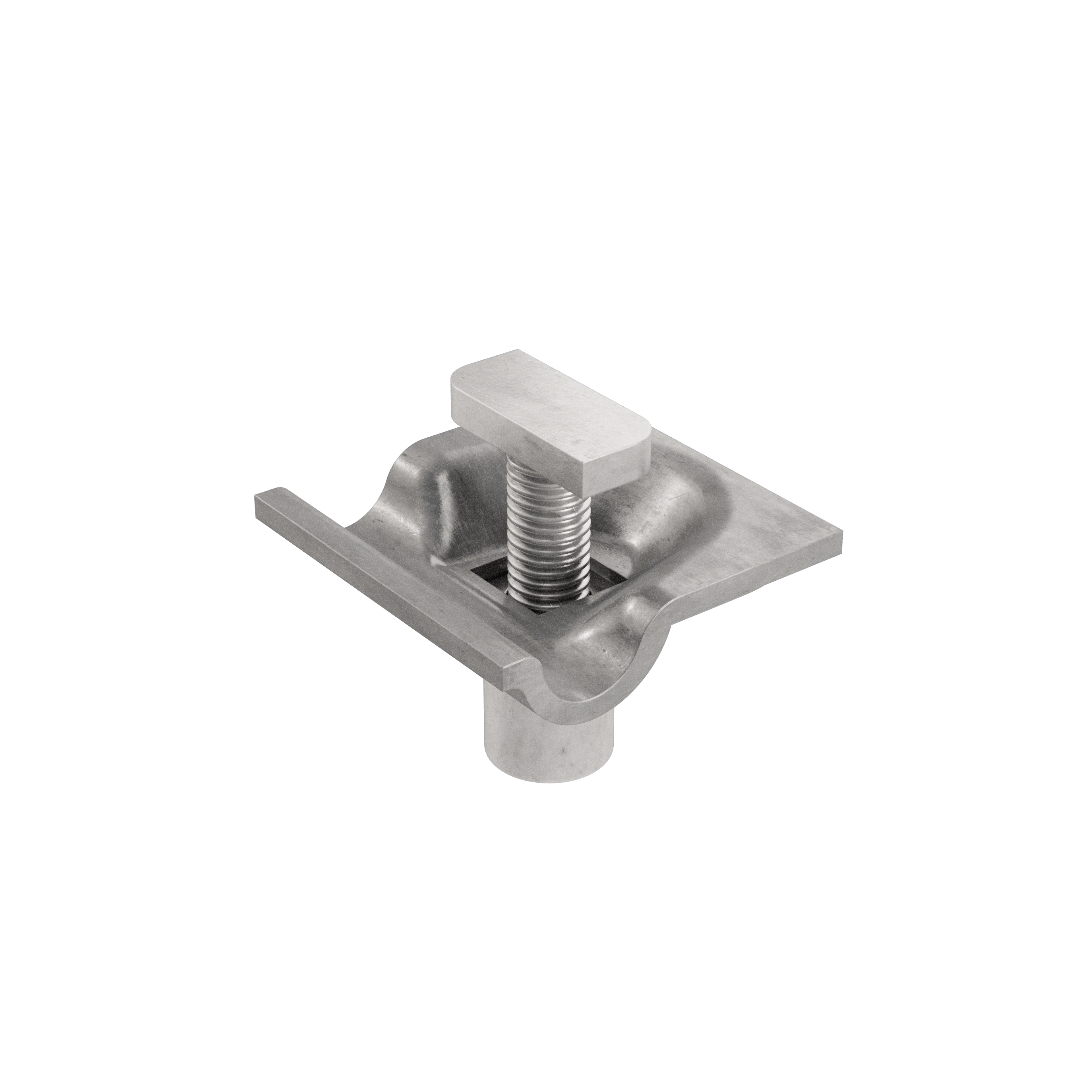

Alumero wire clamp 8-10 mm- Art. Nr.: 543
