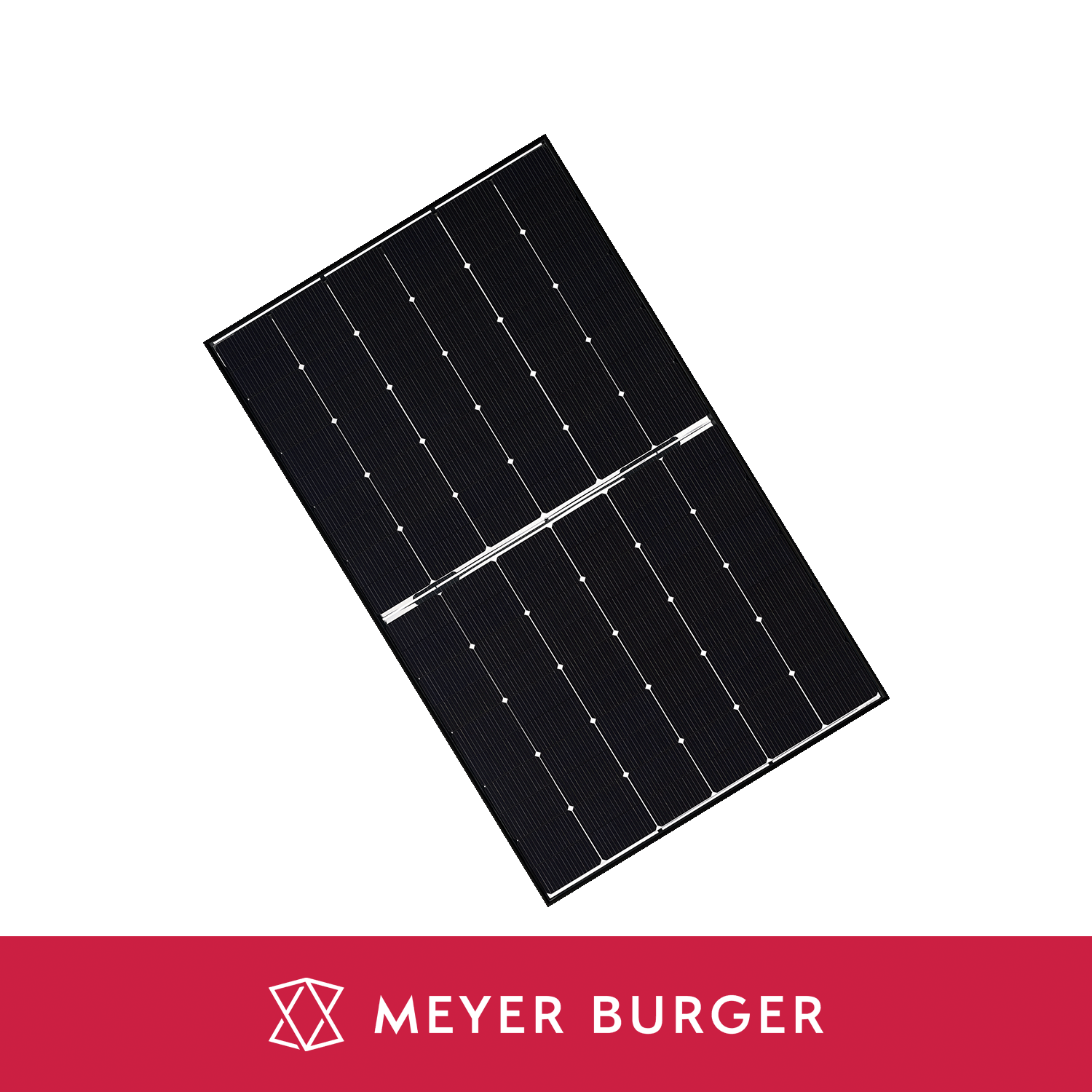

Meyer Burger 385 W, glass/glass, bifacial

Meyer Burger Glass: The bifacial high-performance module made in Germany

Highest quality standards and a sustainable value chain – this is what the swiss company Meyer Burger has built its reputation on. Instead of a backsheet film, the back of the glass-glass module is also made of solar glass. The bifacial cells together with the glass backing also generate energy on the back of the module. The modules are developed in Switzerland and produced in Germany – from the cell to the finished module. And all this with production equipment developed in-house and a high sustainability standard. 

High-performance: heterojunction technology and SmartWire cell technology

The HJT cell combined with the patented SmartWire Connection Technology ensures peak surface efficiencies of up to 218 Wp/m² and efficiencies of up to 21.8 % in the high-performance modules. The combination of HJT and SmartWire Technology promises strong performance even at high temperatures or in unfavorable lighting conditions.  SmartWire Technology protects the modules against microcracks and the 2 mm thick glass on the front and back additionally protects the cells from moisture and other environmental influences. The long service life of the modules is also reflected in the long product and performance warranty of 30 years with a guaranteed residual output of 93.2 %.

Product advantages

• Developed in Switzerland, produced in Germany
• Completely recyclable
• Short transport distances and improved CO2 footprint
• Optimal low-light behaviour
• 30-year product warranty
• 30-year performance warranty

Product features Meyer Burger 385 W, Glass/Glass

• Power: 385 watts
• Efficiency: 21.5%
• Module frame colour: Black
• Backsheet colour: Transparent
• Dimensions: 1722 x 1041 x 35 mm (H/W/D)
• Weight: 24.4 kg
• Connector: MC4-Evo2
• Protection category: IP68
• Power temperature coefficient: -0,259 [%°C]
• Wind load: 2400 Pa
• Snow load: 5400 Pa

About Meyer Burger

Perfect finish, innovative technology and double the power: that's Meyer Burger Glass. Instead of a backsheet film, the back cover of the glass-glass module is also made of solar glass - energy is generated on both the front and back of the module. Thanks to the combination of the latest generation of heterojunction cells and the patented SmartWire Connection Technology for optimum cell interconnection, the particularly compact solar module boasts an efficiency of up to 21.8% and an output of up to 218 Wp/m² – world class! The market-leading bifaciality factor of 90±2 % ensures above-average additional energy yields via the rear side – over a longer period of time and even in unfavorable light conditions and substrates. Thanks to the low temperature coefficient, the module delivers more power than comparable products even when it is particularly hot. At the same time, the solar cells and module are better protected against the effects of microcracks thanks to the design. In addition, the ultra-stable, 2 mm thick solar glass on the front and back is highly effective at keeping out precipitation and wind. Additional reliability is provided by the market-leading product and performance guarantee of 30 years with an unsurpassed residual output of 93.2 %. All Meyer Burger solar cells and modules are developed in Switzerland and manufactured entirely in Germany using proprietary production equipment and in accordance with high sustainability standards.
