The smarter E Europe 2022 highlights

In addition to our news, our manufacturers also attracted visitors to their exhibition stands with new products. Here is an overview:

In the table, we have only summarised the top features of the products. However, there are definitely more exciting details:

With the new HVC series system generation, BYD has once again increased the storage capacity despite the lower overall weight and height of the product. The availability is also supposed to increase due to the use of other components. The capacities range from 7.8 kWh to 70.5 kWh. Due to the IP55 certification, the storage system is also suitable for outdoor installations. The lithium iron phosphate (LFP) technology used is considered a safe cell technology and offers a long durability and high performance. The storage system is compatible with SMA, Fronius, Kostal, Sungrow and GoodWe and can also be used for emergency/back-up power and off-grid projects.

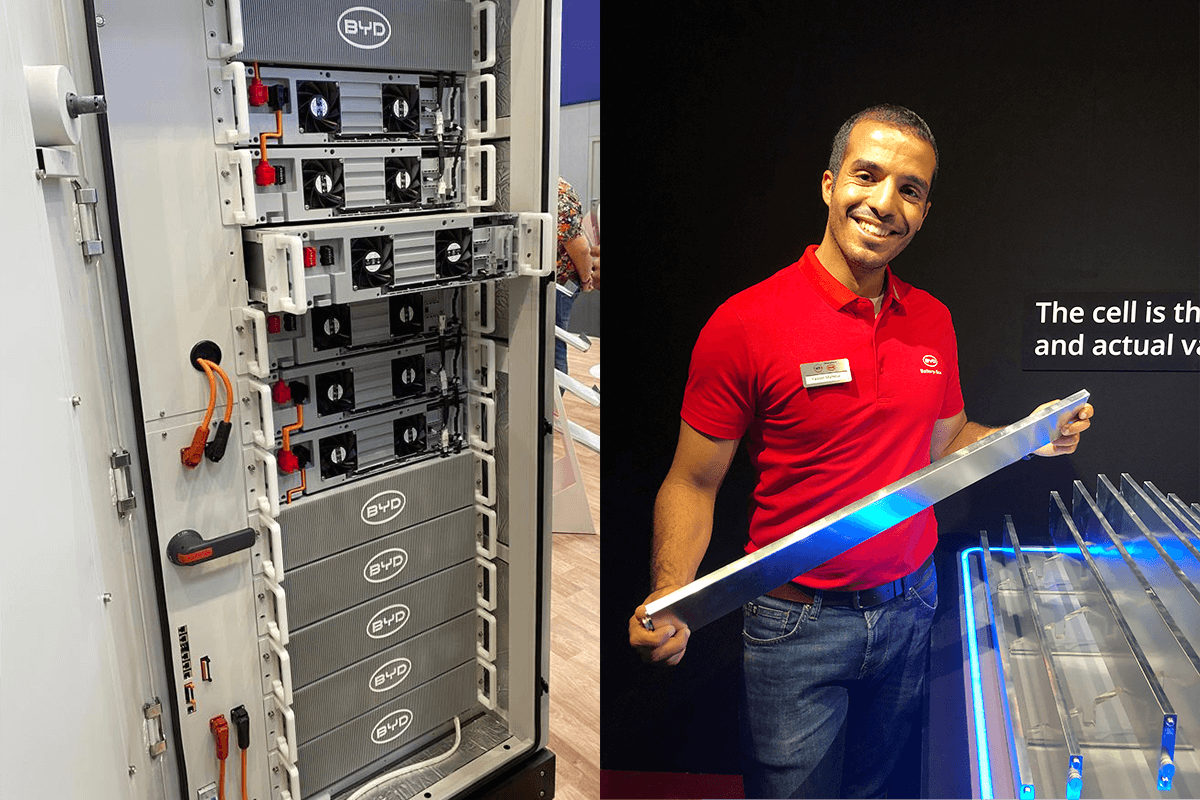

In addition to the HVC series, BYD also presents the Battery-Max Lite, a modular scalable commercial solution for capacities from 30 kWh to 5.76 MWH. As cell technology, BYD relies on the Blade Battery, a type of LFP battery. In this occasion, BYD focused on the safety of the battery. The plug-and-play design makes installation very simple. Open interfaces offer easy system integration. With the Max Lite, self-consumption optimisation, peak shaving and a backup/isolation solution are possible.

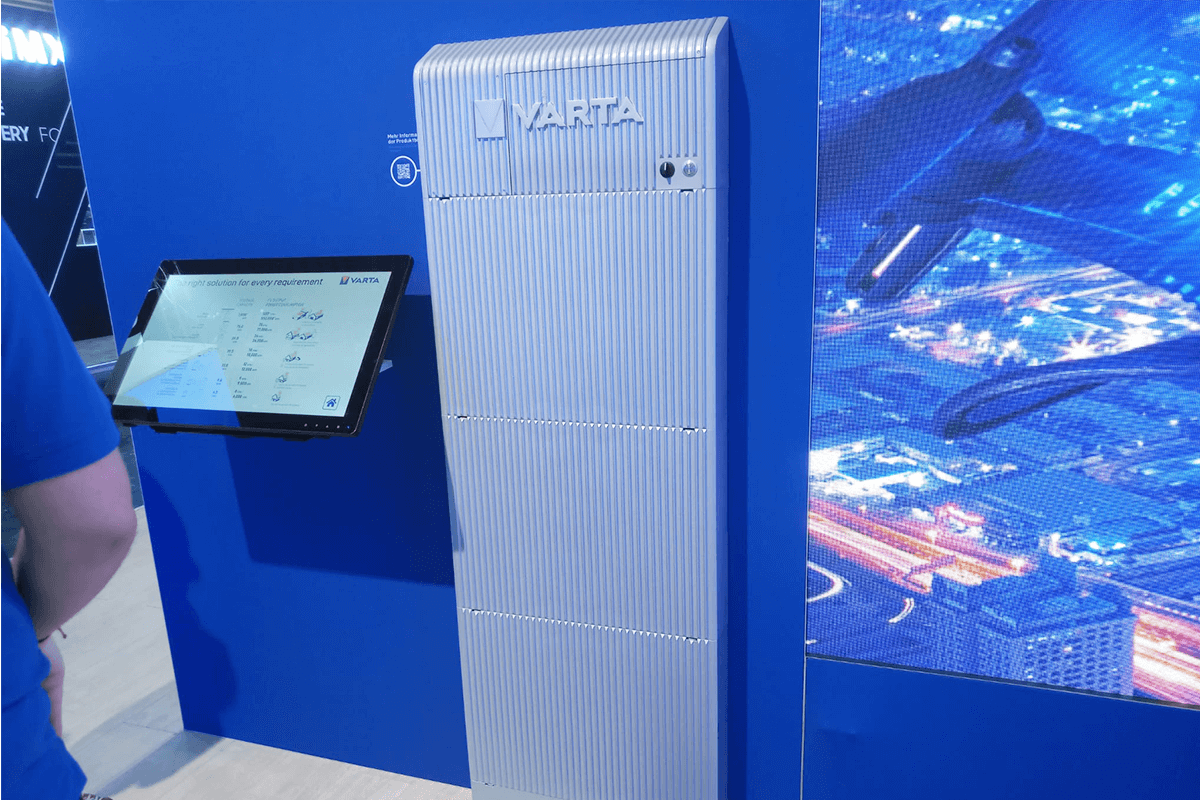

Varta presented a new DC high-voltage system at the exhibition, the Varta.wall. You cannot see the storage system? This is probably due to the slim design. 21,700 round cells (lithium-ion) make the storage unit only 10 cm thick, allowing it to easily disappear behind a door. The capacities are 10/15/20 kWh and can be subsequently expanded thanks to the modular design. A single battery module provides 5 kWh. The Varta.wall will be compatible with the SMA hybrid inverter and the Kostal Plenticore plus. Due to the simple connection system, which does not require external wiring, installation is uncomplicated and takes less than 30 minutes.

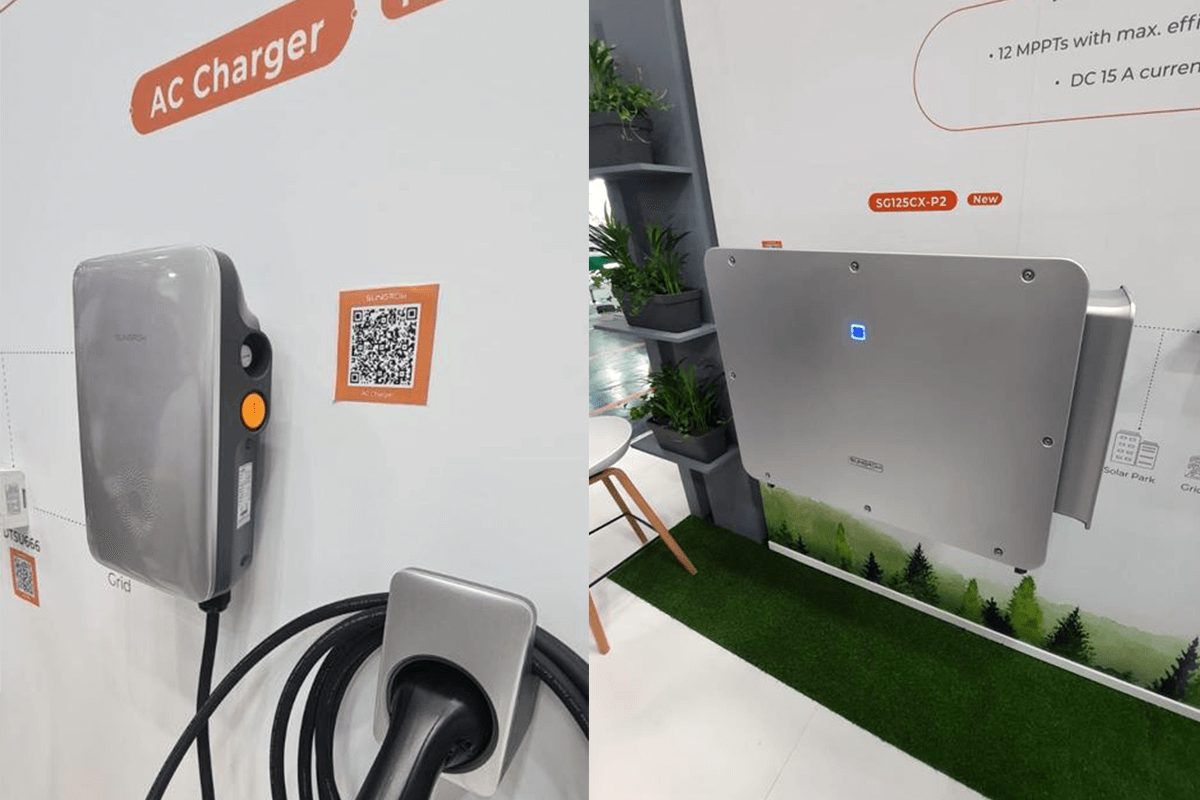

We have also noticed some new developments from Sungrow. With the Sungrow EV-Charger, an AC wallbox has been launched on the market. It brings a charging power of 11 kW and comes with 4 charging modes: from a green charging mode and a maximum of 6 A mains current to a fast charging mode with full power, regardless of the power source. The RFID system protects the charging access.

Sungrow has also launched a new commercial inverter, which replaces the SG110CX. The SG125CX-P2 boasts 12 MPP trackers and a maximum output power of 125 kVA. As usual, the efficiency level is kept in a very high range of max. 98.5 %.

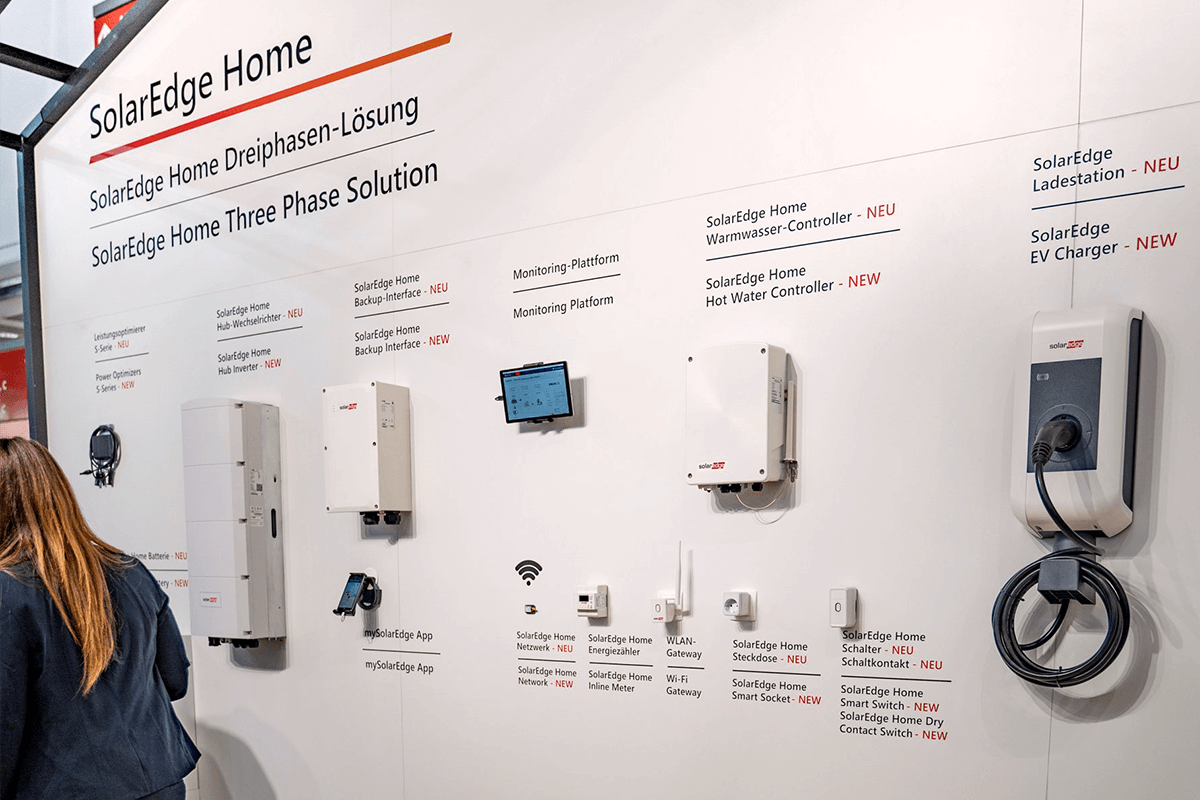

The SolarEdge Home System is the company's response to the sector coupling. This was developed from a single manufacturer: modules, hybrid inverters, wallboxes, storage systems, backup interface and smart energy devices. The almost complete solution for private homes is backup power capable. New products recently added to the portfolio include the SolarEdge Home low-voltage Battery, the SolarEdge Home Hub inverter and the SolarEdge Home Backup Interface. The communication among the components occurs via an integrated Energy Home network, which works cable-free. A monitoring app can be used by PV specialists to monitor the system.

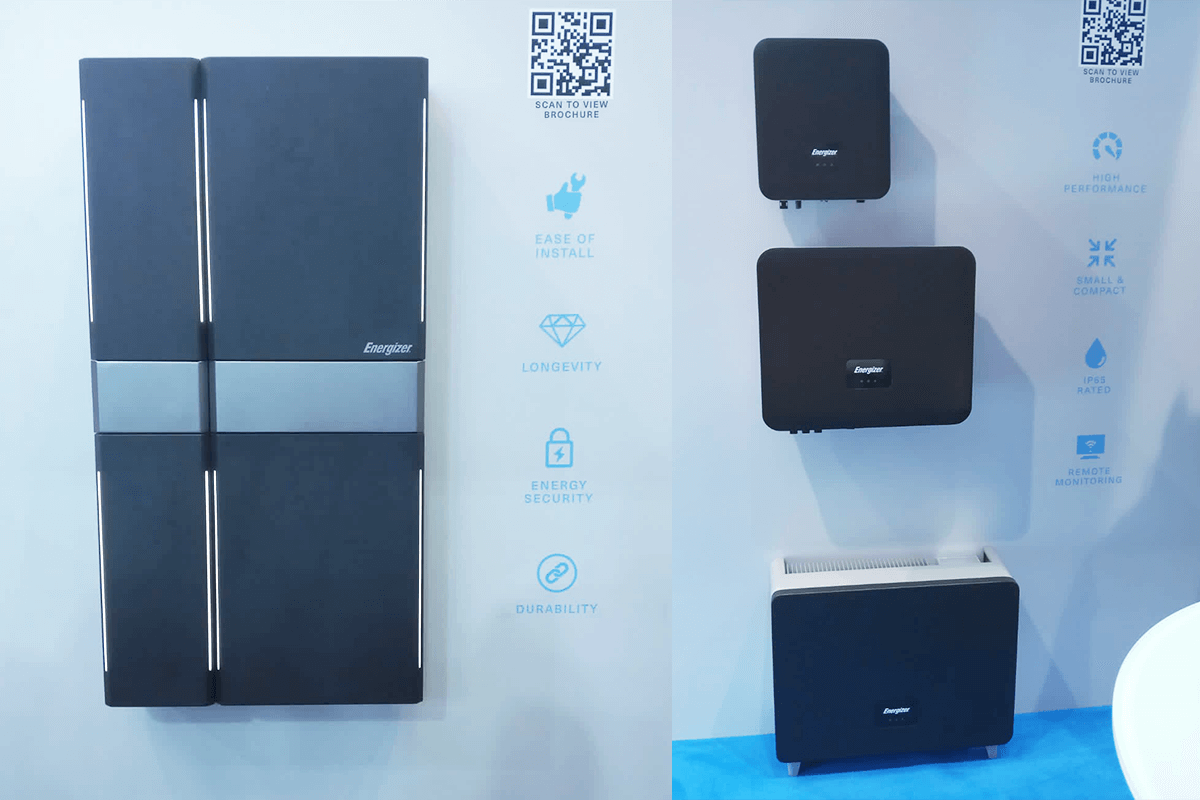

Energizer? Aren't they actually manufacturers of household batteries? Not only! Energizer Solar owns a complete PV portfolio that is now entering the European market. That means modules, batteries, inverters and charging solutions. And not only that, because with the hardcase products you also get energy storage and modules to go. We are now exclusive sales partner for their PV products. The portfolio includes these products, among others:

• Energizer Homepower: All-in-one-system with capacity of 6.1 kWh to 24.4 kWh and a backup power function.
• Energizer Home Hybrid Stackable Battery: High-voltage battery with capacity of 3.97 to 27.8 kWh
• Energizer Force, Force S and Force T Inverter series: 1- to 3-phase inverters
• Energizer Beam Modules: monocrystalline modules with PERC technology, 365 to 550 Wp
• Energizer Wallboxes and Charging stations: AC-wallboxes from 7 kW up to DC-charging stations with 480 kW

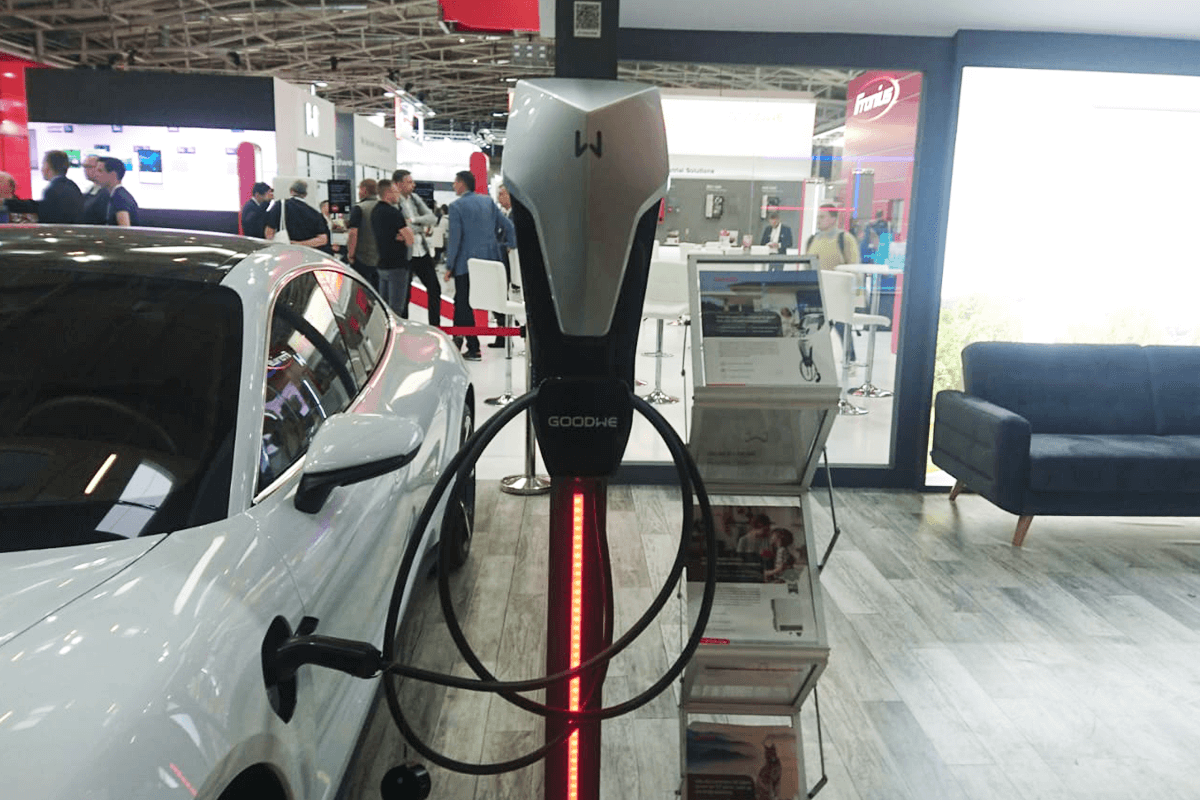

Our manufacturer GoodWe was also present at the trade fair and had something new in their portfolio. We saw the new GoodWe Wallbox, the EV Charger, for the first time. The AC wallbox will be available with 7-, 11- or 22-kW capacity for 1- or 3-phase charging with PV power. You can integrate the wallbox into an energy management system and control it via this system. For larger charging parks, the GoodWe EV Charger is compatible with all common wallboxes from the European market.

In addition to the EV Charger, GoodWe also introduced the new ET series 3-phase hybrid inverters with 15 to 30 kVA and 3 MPP trackers. They have backup power function. In the event of a power failure, the 30 kW variant can then provide 10 kW per phase to continue to supply the house with electricity.

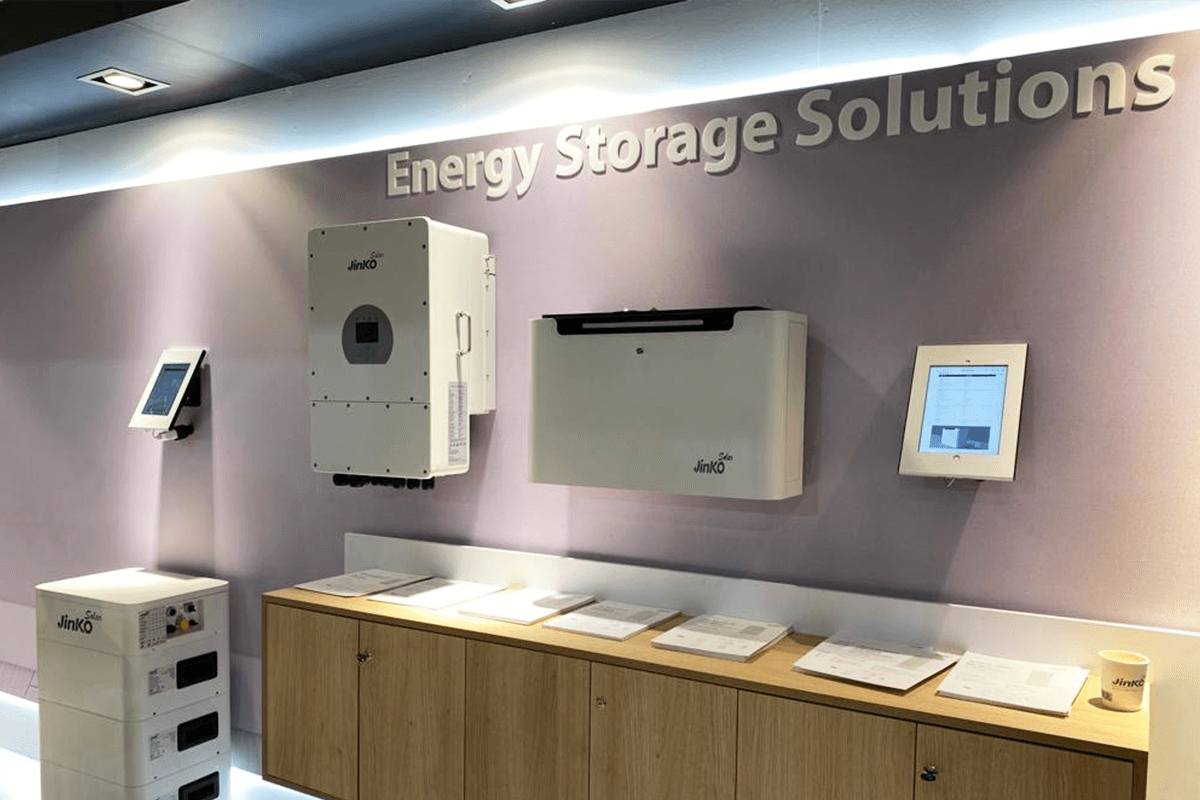

Jinko Solar is expanding its product portfolio with an all-in-one system, a stackable low-voltage and high-voltage storage system and a 1- or 3-phase hybrid inverter. All power storage systems have lithium iron phosphate batteries. The stackable low-voltage storage brings usable capacities from 4.6 to 18.4 kWh. Up to 4 battery modules can be stacked. The 3-phase hybrid inverter with 8, 10 or 12 kVA can build backup power and comes with an AC input for generators or small wind turbines. The all-in-one system is launched as a storage and hybrid inverter combination with 10 kWh. All new Jinko products are available exclusively at Memodo shop.

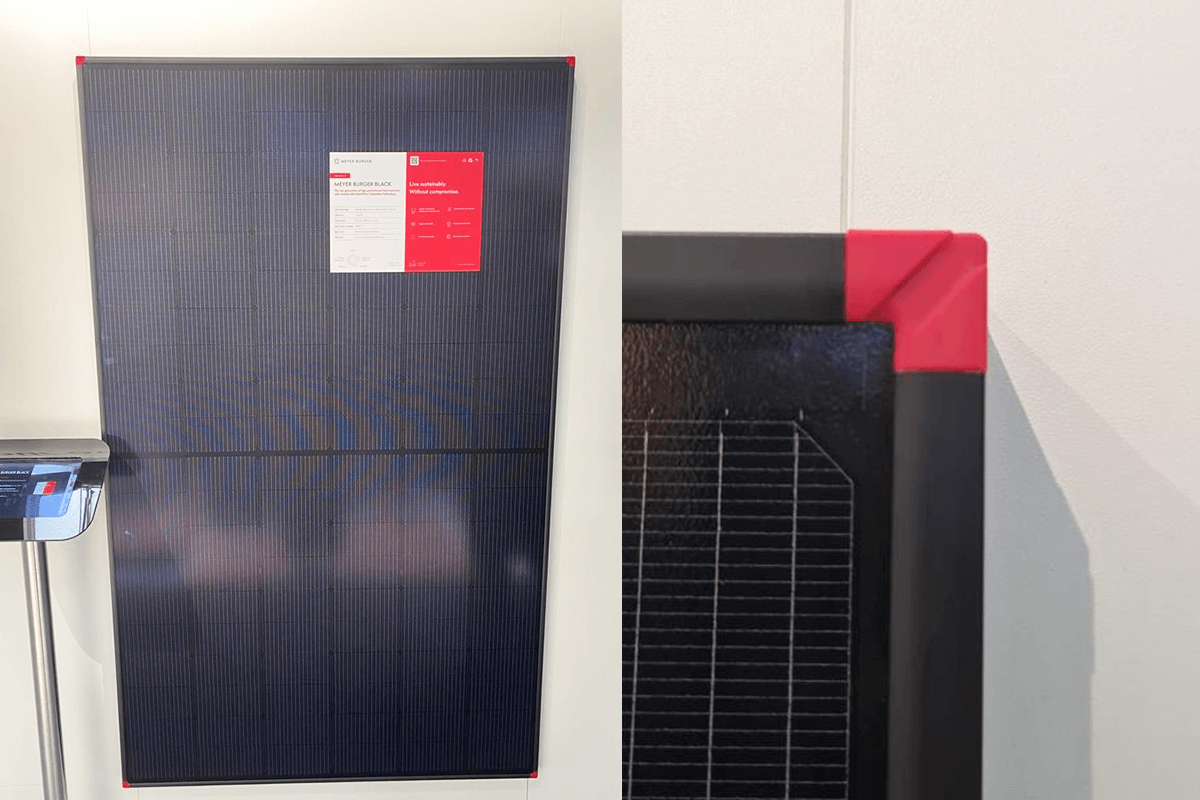

Meyer Burger currently offers a white module, a black module and a glass-glass module. The power classes currently range from 370 to 400 Wp. By the end of this year, Meyer Burger plans to launch the new generation of modules: Meyer Burger White, Meyer Burger Black, Meyer Burger Glass, Meyer Burger White C&I for larger rooftop installations and a module for commercial and industrial installations.

For all these new products, they are further developing the existing cell and are relying on heterojunction technology. However, the arrangement of the cells is now to happen without gaps. Together with the SmartWire interconnection technology, module efficiency values (efficiencies) above 22 % should be possible. Meyer Burger standardises the dimensions to an area of less than 1.8 m². New frame corners improve water drainage from the module and improve the self-cleaning effect. For the Black module, Meyer Burger is thinking of small red corners. We are curious to see them.

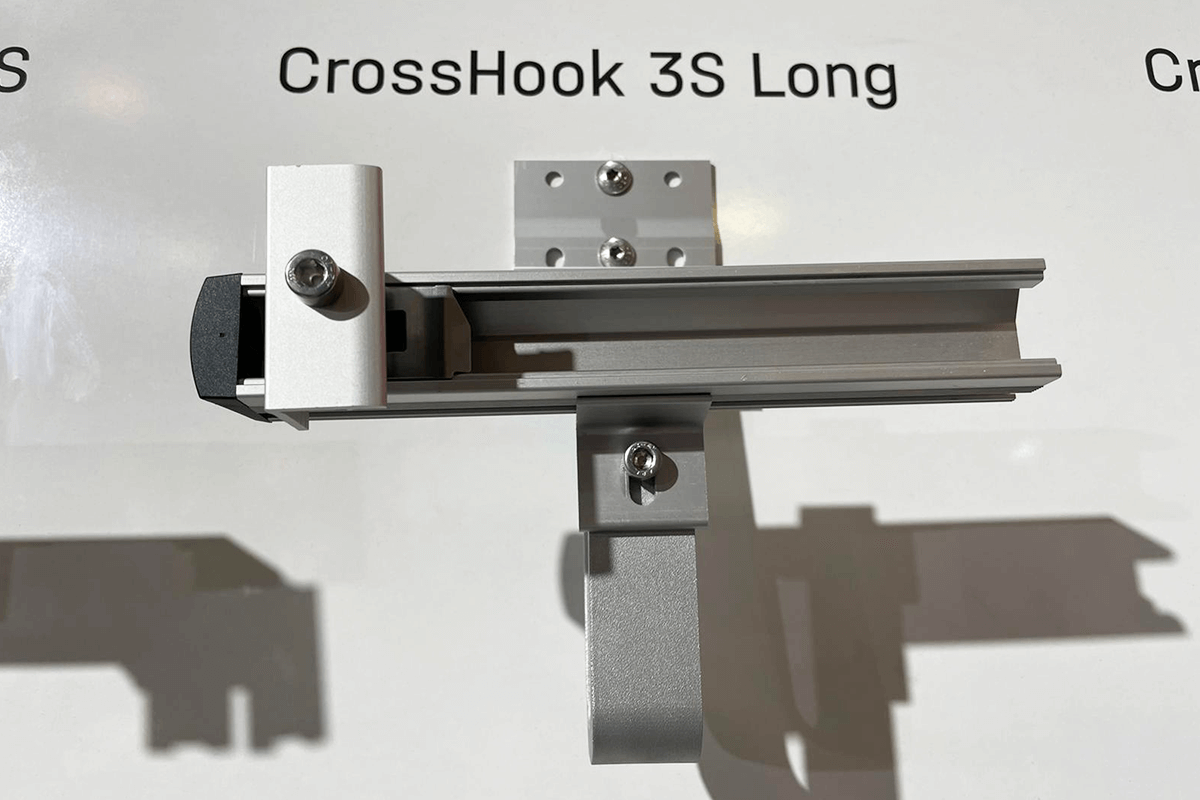

K2 Systems was also in the starting blocks with some new products. A module clamp is coming that works for all pitched roof systems. The new middle and end clamp of K2 Clamp is suitable for tile, trapezium, and corrugated sheet metal as well as folded sheet metal and corrugated fiber cement areas. It is suitable for frame heights of 25-40 mm and comes with the MK2 screw-in mechanism for faster screwing.

All flat roofs can now be equipped with the Dome 6 system in different variants, for example as a roof-parallel 0° system, as a 10° or 15° elevated system, with or without fixed connection, with or without fall protection or with clamping on the long or short module side. In terms of digital products, with the new K2 Community, PV professionals now have a platform for questions and the exchange of knowledge and experience.

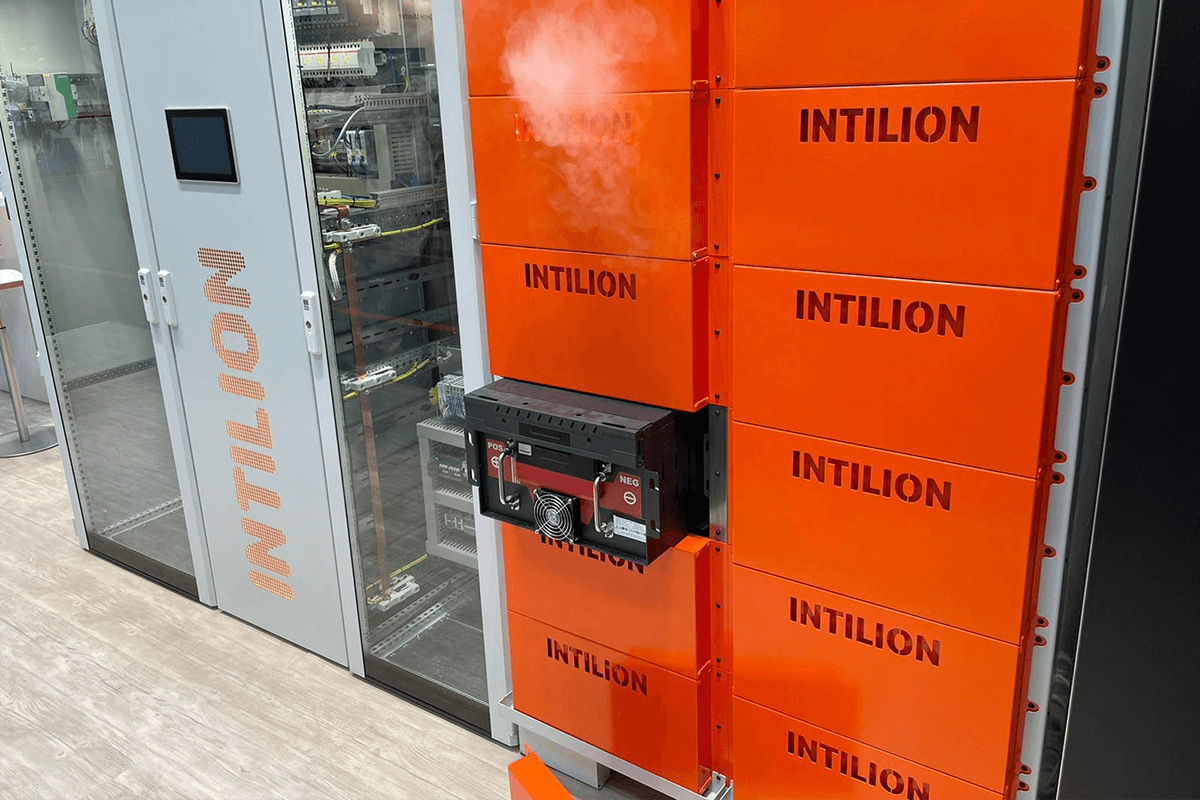

The fire protection concept Fire Limiter & Environmental Protection System (FLEPS) now also applies to the Intilion Scalestac indoor storage system. It prevents a lithium-ion storage unit from bursting into flames and a fire from spreading from one battery module to other modules. A mechanical principle takes effect and gases are discharged in a controlled manner. Thus, in the event of a fire, only one module needs to be replaced. The system can also be retrofitted to existing scalestacs.

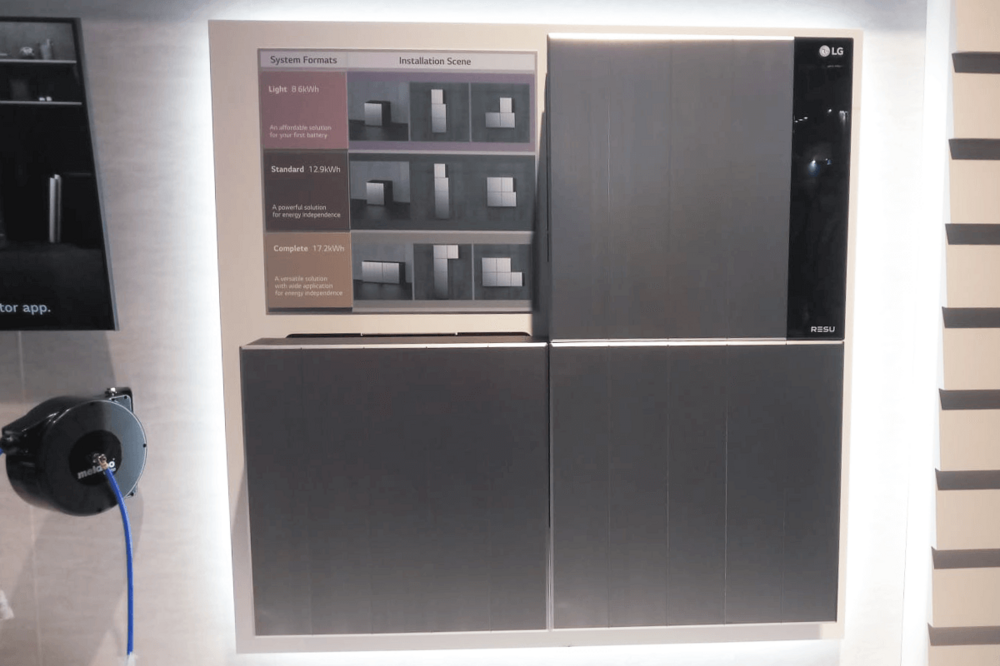

The new LG RESU Flex from the South Korean manufacturer LG Energy Solution is a modular high-voltage battery system and consists of a control unit and up to 4 battery modules, depending on the energy consumption pattern. The usable energy is thus between 8.6 and 17.2 kWh.

The battery modules can stand on the floor and be placed on the wall in different arrangements. Using the Tetris principle, more than 30 different constellations are possible on the wall. The battery can serve 1- and 3-phase devices and has 10-year warranty. The RESU Flex is compatible with inverters from Kostal, Fronius, GoodWe and SMA.

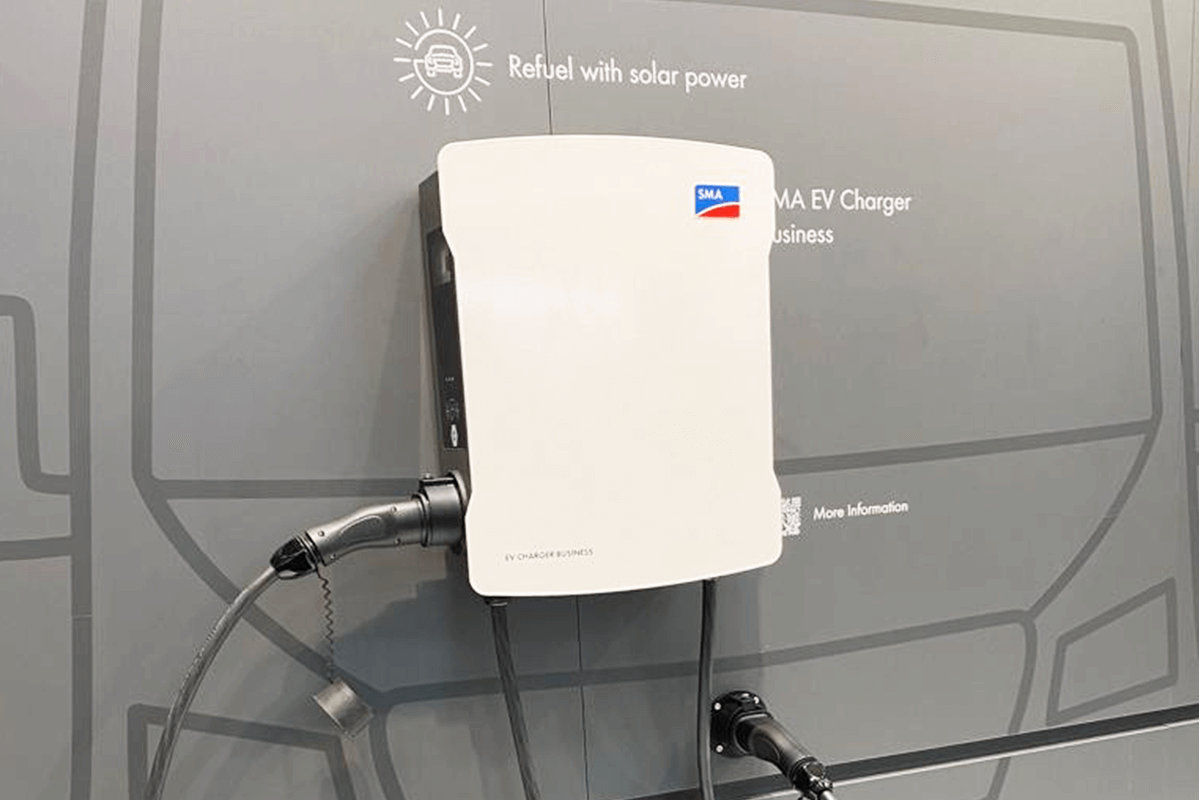

SMA now has the EV Charger Business up its sleeve and with it a solution for implementing commercial charging via individual charging stations or charging parks with many charging stations. Charging is possible with up to 2 x 22 kW. The charging station with 2 charging points, charging cable and type 2 plug also comes with an RFID and OCCP interface. This allows you to integrate it into various backends and billing systems. The EV Charger Business can be used as a free-standing charging station, or it can be hung on the wall.

Solutions for sustainable and secure energy supply have never been as important as they are now. The climate protection targets, sharply rising prices for electricity, oil, gas, and coal, as well as the current geopolitical movements are further accelerating the energy transition. The smarter E Europe 2022 exhibited the new energy world and its technologies, solutions, and business models.

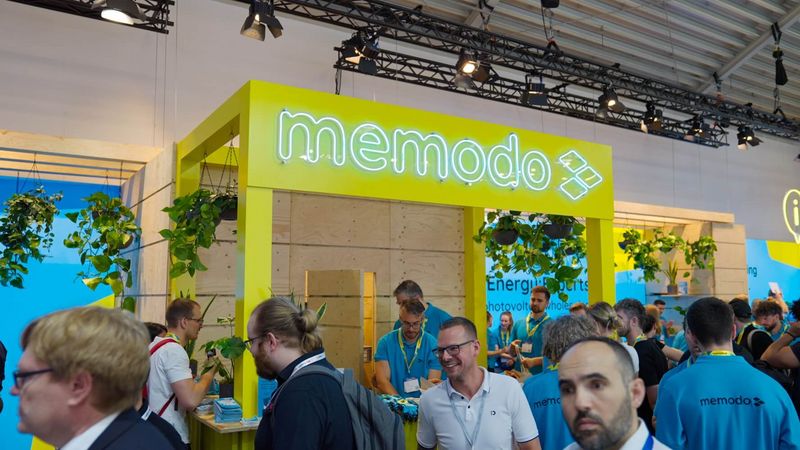

Memodo also had a meeting point and there we informed our customers and the trade fair visitors, about our new brand Peakplan. There was a lot to see in terms of new products. The highlights were the new storage and inverters from Jinko Solar, the Energizer PV products, a new clamp from K2 Systems, new wallboxes from Sungrow and GoodWe and the BYD HVC as well as the BYD commercial solution Max Lite .

• From 11^th to 13^th May 2022, the industry met at ‘The smarter E Europe’ trade fair in Munich, the platform for the new energy world.
• We also showed up at the fair with Memodo meeting point introducing our new Peakplan brand and 2 new exclusive sales partnerships.
• Many new products were also presented at the fair. Some of these include the storage system and inverters from Jinko Solar and also the new BYD battery HVC.
