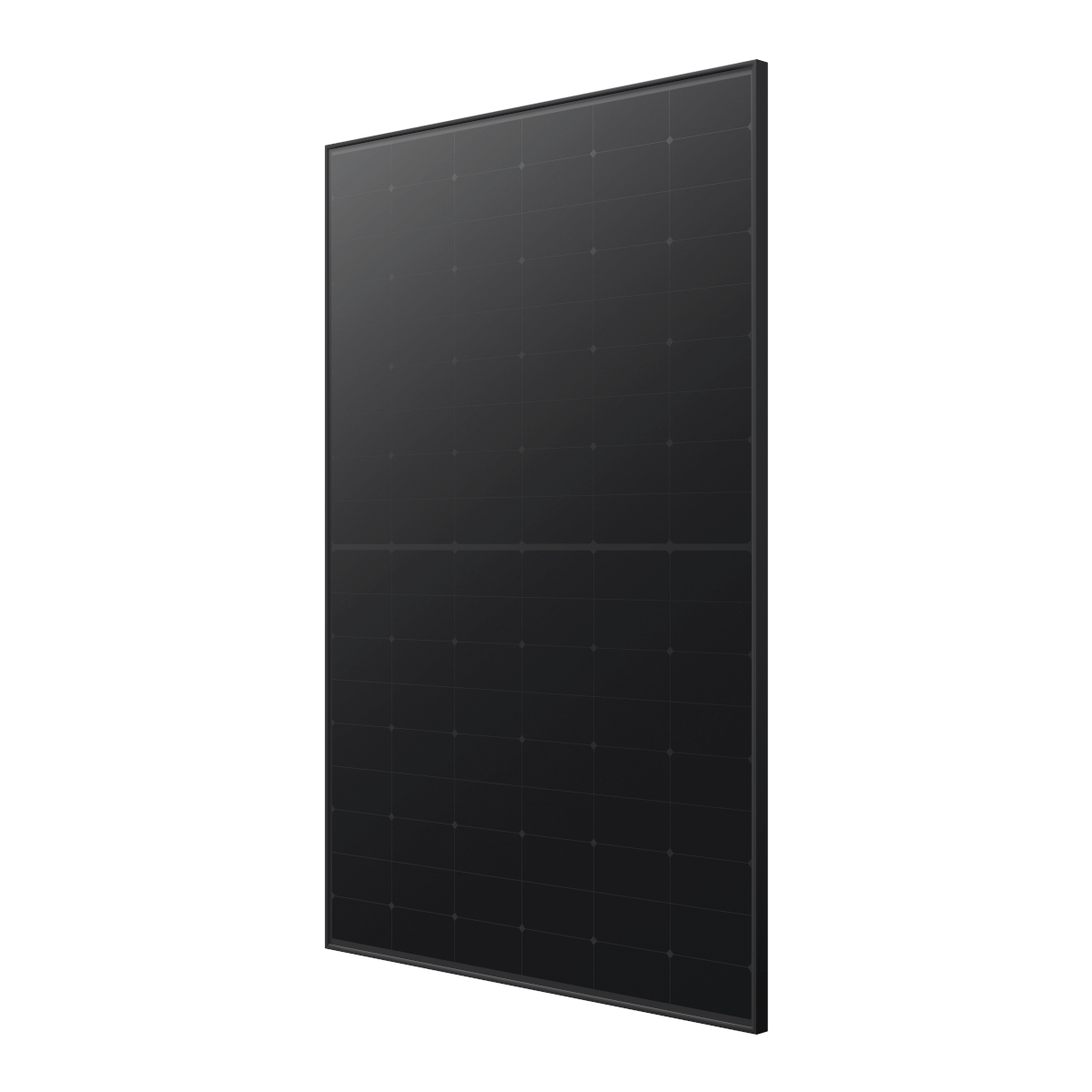

LONGi Hi-MO X6 Explorer LR5-54HTB-435M Full Black
Image may differ from the product.
| Manufacturer Art. No.: | LR5-54HTB-435M |
|---|---|
| Art. Nr.: | 12140 |
| Pieces per package unit: |
|
| Backsheet: | Black |
| Dimensions: | 1722 x 1134 x 30 mm |
| Frame color: | Black |
| Power: | 435 Watt |
| Solar panel type: | Mono solar panels, Project solar panels |
| Technology: | xBC |
| Warranty: | 25 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- % Sale
Available from stock
Product number:
12140
Description
LONGi High-Power Module with 435 W
The LONGi HI-MO 6 Explorer 54HTB-435M solar panel features advanced HPBC cell technology, which places the cell contacts on the rear side, creating a sleek, uniform black finish. With a power output of 435 Wp, the module measures 1722 mm in height and 1134 mm in width, making it an ideal choice for both residential and commercial applications. As one of the leading manufacturers of high-efficiency solar cells and modules, LONGi Solar has focused on monocrystalline technology for over 20 years, securing a strong position in the global market. To ensure fast, solution-oriented support, LONGi Solar operates subsidiaries worldwide, including in Germany.
Product advantages
- Specialised in monocrystalline cell production for over 20 years
- Highest quality standards
- Ideal solution for the project sector
- Long performance guarantee
Product features LONGi HI-MO X6 Explorer LR5-54HTH-435M, black frame
- Power: 435 W
- Open circuit voltage: 39.43 V (STC)
- Short-circuit current: 14.00 A (STC)
- Maximum system voltage: 1,500 V
- 25 A maximum rated fuse current in series
- Black module frame
- Black spaces between cells (white backsheet)
- DC connection cable with 1.2 m length
- DC connector: MC4 EVO2
- Snow load: 5400 Pa
- Wind load: 2400 Pa
- Dimensions: 1722 x 1134 x 30 mm (L x W x H)
- Weight: 20.8 kg
- 25-year product guarantee
- 25-year performance guarantee
