LG THERMA V hot water storage electrical connection kit (230 V)
| Manufacturer Art. No.: | PHLTB |
|---|---|
| Art. Nr.: | 6434 |
| Heating system: | Accessories |
| Dimensions: | 250 x 110 x 170 in mm (HxWxD) |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
6434
Description
LG THERMA V hot water storage electrical connection kit

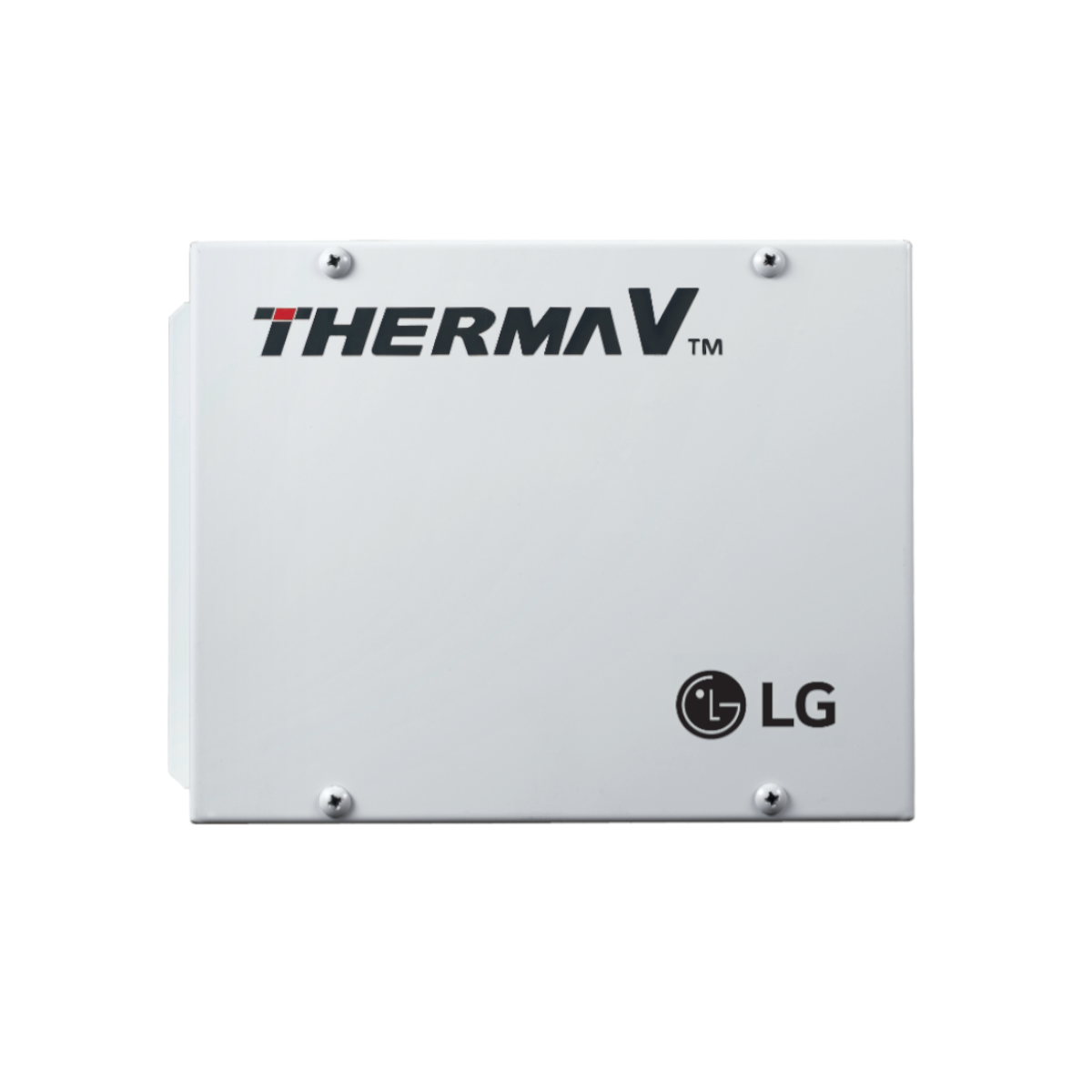

The electrical connection kit enables a 230 V heating element in the hot water storage tank to be controlled by the THERMA V control unit. The kit (consisting of a plastic housing with pre-wired switching relay and a circuit breaker as well as a temperature sensor for the hot water tank) is installed near the THERMA V heat pump. The connection kit requires a 230 V supply line, which also supplies the heating element of the hot water tank with power. It is controlled via a 230 V signal from the THERMA V. The temperature sensor of the hot water tank must be connected to the main board of the THERMA V.
Function: Switching the external heating element on/off via a 230 V signal, e.g. to enable legionella bacteria prevention.
Product features:
- Control of a 230 V heating element in hot water up to 40 A
- Dimensions: 250 x 110 x 170 (L x W x D)
Included in scope of delivery:
- Hot water tank sensor
- Circuit breaker
- Relay
- Multi-cable harness
