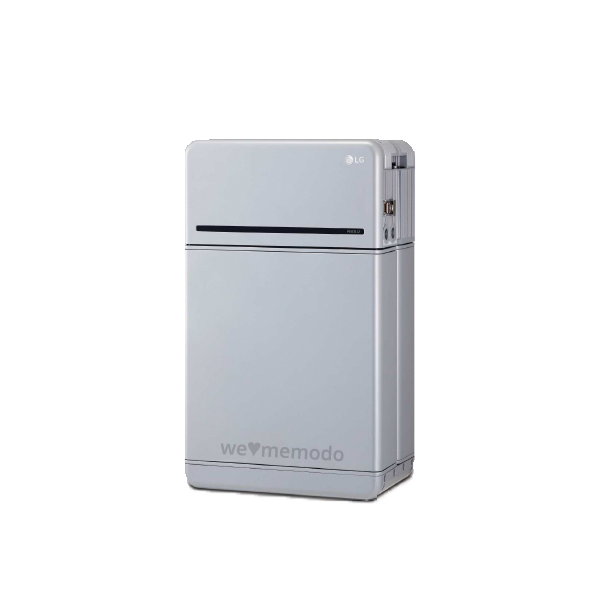

LG RESU 10H Prime
| Type of manufacturer: | RESU10H Prime |
|---|---|
| Manufacturer Art. No.: | EH153064P8S8 |
| Art. Nr.: | 5843 |
| Pieces per package unit: |
|
| Battery type: | High volt lithium NMC |
| Net capacity: | 9.6 kWh |
| Phases: | 1 |
| Solar battery type: | High voltage battery |
| Warranty: | 10 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
5843
Description
Prime time: The new LG RESU 10H Prime high-voltage battery
The high-voltage storage system has been a big trend since 2016. LG presents its first high-voltage battery and hits the spot. A newly developed battery cell allows a particularly high energy density and compact dimensions of the new LG high-voltage series. Due to the parallel connection, the power increases and this results in 10 kW power and 19.2 kWh capacity for 2 x 10H. Especially for single-family homes, this capacity is adequate to keep self-consumption at a high level. Efficiency is over 90 %. The Prime storage units support RS485 and CAN.
Product advantages
- 400V high voltage battery

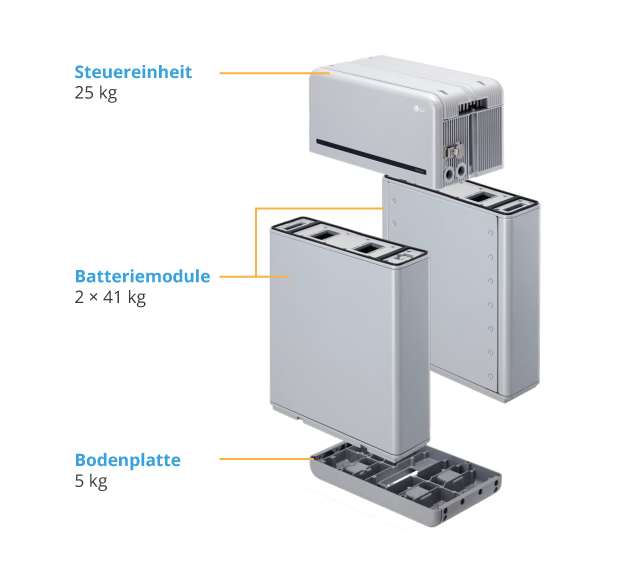

- Modular system design
- RESU monitoring
- Sophisticated service concept
- Firmware update via battery inverter
- Remote battery monitoring
- Scalability up to 2 units
Product features
- 9.6 kWh usable
- Max. Power 5.0 kW
- Communication: RS485 & CAN
- Warranty: 10 years
- Dimensions: 504 x 817 x 295 mm (W x H x D)
- Weight: 111.0 kg
- Wall / floor installation
- Battery body: Aluminium IP55
Can be combined with the following inverters:
- SolarEdge StorEdge single-phase inverter
- SMA Sunny Boy Storage
- Sungrow Hybrid
- GoodWe Hybrid HV ET series
Downloads
Videos
Videos
-
LG RESU Prime Installation Floor StandingThe YouTube video has been blocked due to the cookie settings.
-
Matching accessories
-
- % Sale

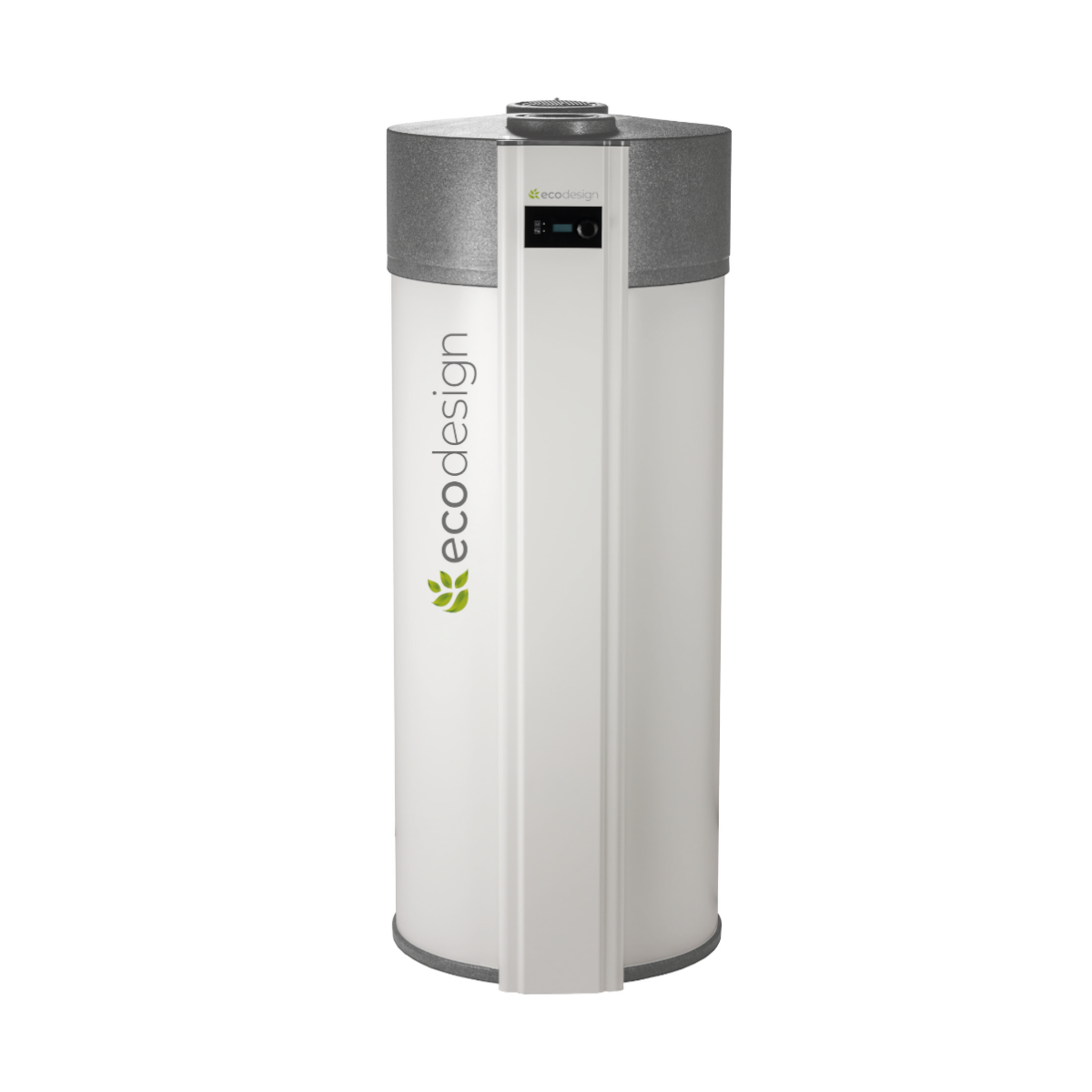

ecodesign service water heat pump ED 300 WT- Art. Nr.: 3975
