LG RESU 10H Prime & SolarEdge StorEdge single-phase inverter SE5000H-RWS00BEO4
| Art. Nr.: | 12944 |
|---|---|
| Battery type: | High volt lithium |
| Inverter: | StorEdge SE5000H-BEO4 |
| Net capacity: | 9.6 kWh |
| Package type: | 1-phase, High voltage battery, Solar battery packages, Solar battery retrofit |
| Phases: | 1 |
| Solar battery: | LG RESU 10H Prime |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Top-Deal
On request
Product number:
12944
Description

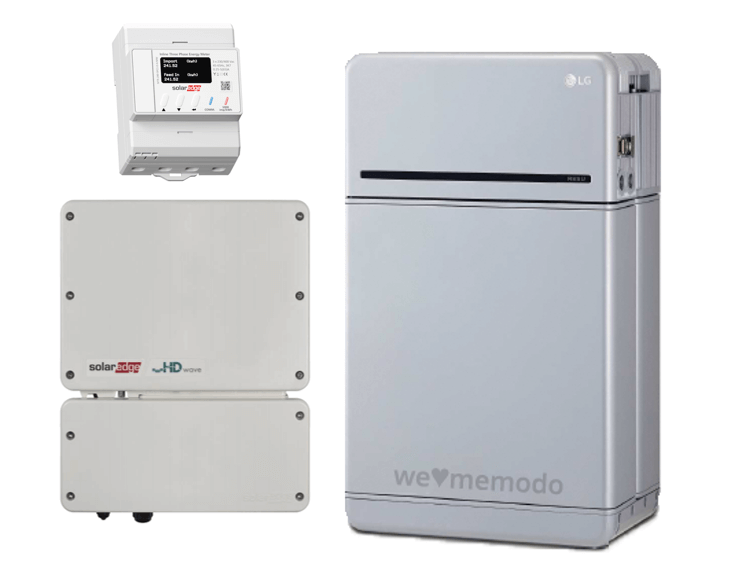

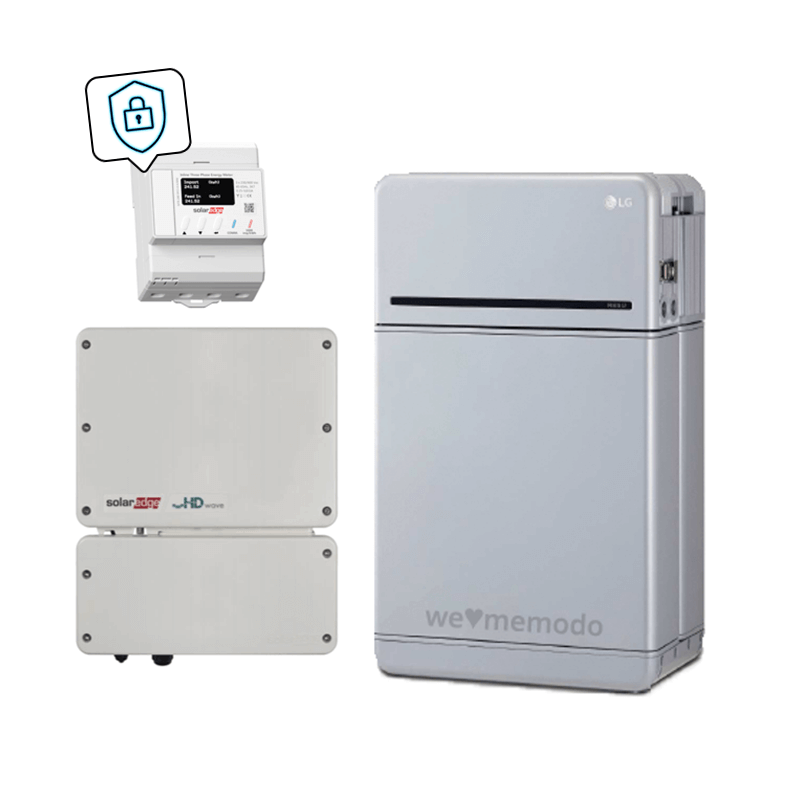

Storage package LG RESU 10H Prime & SolarEdge StorEdge single-phase inverter SE5000H-RWS00BEO4
Warranty extensions can be purchased at https://www.solaredge.com/de/warranty.
The package brings together the powerful LG RESU 10H Prime high-voltage storage system with the innovative SolarEdge StorEdge SE5000H-RWS00BEO4 inverter and a SolarEdge Home energy meter. Ideal for optimising self-consumption and efficient energy storage.
Advantages of the package:
- Modular battery design: Flexible expansion for individual requirements.
- Integrated arc protection: Maximum safety for your PV system.
- Simple installation: Quick start-up via the SolarEdge app and integrated StorEdge interface.
Product features SolarEdge StorEdge SE5000H-RWS00BEO4:
- 4.6 kVA 1-phase power
- 5 kW high-voltage battery connection
- DC or AC system with SolarEdge inverter
- PV input: 2 pairs of MC4 inputs
- Battery input: 1 pair of MC4 inputs
- Ethernet RJ45
- Wi-Fi hotspot for SetAPP
- Protection class: IP65
- Standard warranty: 12 years
- Dimensions: 450 x 370 x 174 mm (H x W x D)
- Weight: 11.4 kg
- Optional: WiFi, ZigBee gateway or GSM
Product features LG RESU 10H Prime:
- Storage capacity: 9.6 kWh usable
- Maximum power: 5.0 kW
- Communication: RS485 & CAN
- Warranty: 10 years upon registration
- Dimensions: 504 x 817 x 295 mm (W x H x D)
- Weight: 111.0 kg
- Mounting: Wall or floor mounting
- Housing: Aluminium housing, protection class IP55
Scope of delivery of the package:
- 1x LG RESU 10H Prime energy storage system
- 1x SolarEdge StorEdge SE5000H-BEO4 inverter
- 1x SolarEdge Home energy meter
