LG RESU 10H Prime & SolarEdge StorEdge single-phase inverter SE4000H-RWS00BEO4

Storage package LG RESU 10H Prime & SolarEdge StorEdge single-phase inverter SE4000H-RWS00BEO4

LG's warranty conditions require installation by a certified specialist and registration in the portal. Get certified by LG online here.

Warranty extensions can be purchased at https://www.solaredge.com/de/warranty.

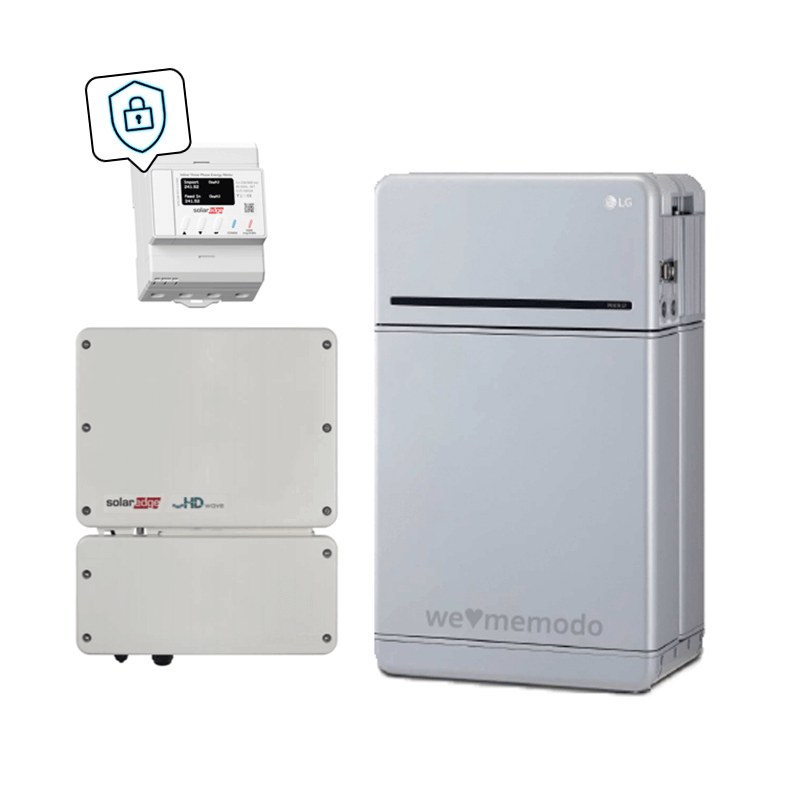

The package brings together the powerful LG RESU 10H Prime high-voltage storage system with the innovative SolarEdge StorEdge SE4000H-RWS00BEO4 inverter and a SolarEdge Home energy meter. Ideal for optimising self-consumption and efficient energy storage.

Advantages of the package:

• Modular battery design: Flexible expansion for individual requirements.
• Integrated arc protection: Maximum safety for your PV system.
• Simple installation: Quick start-up via the SolarEdge app and integrated StorEdge interface.

Product features SolarEdge StorEdge SE4000H-RWS00BEO4:

• 4.0 kVA 1-phase power
• 5 kW high-voltage battery connection
• DC or AC system with SolarEdge inverter
• PV input: 2 pairs of MC4 inputs
• Battery input: 1 pair of MC4 inputs
• Ethernet RJ45
• Wi-Fi hotspot for SetAPP
• Protection class: IP65
• Standard warranty: 12 years
• Dimensions: 450 x 370 x 174 mm (H x W x D)
• Weight: 10 kg
• Optional: WiFi, ZigBee gateway or GSM

 Product features LG RESU 10H Prime:

• Storage capacity: 9.6 kWh usable
• Maximum power: 5.0 kW
• Communication: RS485 & CAN
• Warranty: 10 years upon registration
• Dimensions: 504 x 817 x 295 mm (W x H x D)
• Weight: 111.0 kg
• Mounting: Wall or floor mounting
• Housing: Aluminium housing, protection class IP55

Scope of delivery of the package:

• 1x LG RESU 10H Prime energy storage system
• 1x SolarEdge StorEdge SE4000H-RWS00BEO4 inverter
• 1x SolarEdge Home energy meter
