LG Chem Resu 6.5 with GoodWe Hybrid LV GW3648-EM / 3-phase Smart Meter
| Art. Nr.: | 5166 |
|---|---|
| Battery type: | 48 volt lithium NMC |
| Inverter: | GoodWe Hybrid LV GW3648-EM |
| Net capacity: | 5.9 kWh |
| Package type: | 1-phase, 48 V battery, Solar battery packages |
| Phases: | 1 |
| Solar battery: | LG RESU 6.5 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
On request
Product number:
5166
Description

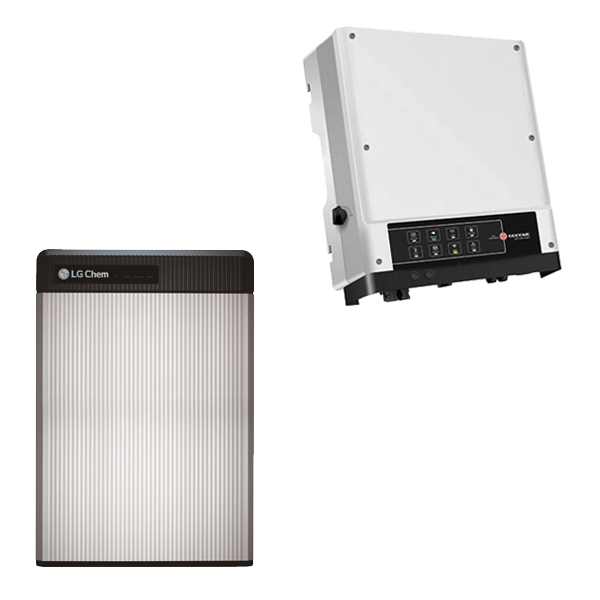

LG Chem Resu 6.5 with GoodWe Hybrid LV GW3648-EM
The visually appealing Resu series from LG Chem offers high energy density in the smallest dimensions. This is a great advantage with ever smaller installations rooms. The proven 48V system can also be expanded with the Resu Plus Box to include a further Resu storage system. In addition to an emergency power supply with UPS function, the compact hybrid system of the EM series from GoodWe also comes with the matching 3-phase smart meter.
Advantages of LG Chem Redu 6.5:
- Small dimensions
- Lightest battery in its performance class
- Can be extended by a second battery module
- Firmware update via SD card
- Aluminium housing IP55
Product features of LG Chem Resu 6.5:
- 5.9 kWh available
- Max. power: 4.2 kW
- 10-year battery warranty
- Dimensions: 452 x 654 x 120 mm (WxHxD)
- Weight: 52 kg
Product features of GoodWe Hybrid LV GW3648-EM:
- 3.68 kVA power, 1-phase
- 5.0 kW emergency power via separate output
- 2 MPP trackers, 280-500 V DC
- Max. charge current 50 A DC
- WLAN + Web server integrated
- 3-phase Smart Meter included
- Dimensions: 347 x 432 x 175 mm (WxHxD)
- Protection type: IP65
- Weight: 17 kg
Package contents:
- GoodWe Hybrid LV GW3648-EM
- LG Chem RESU 6.5
- HIS battery cable for LG Chem 50 mm², 2 m
- LG Chem Resu data cable
Downloads
Downloads
Videos
Videos
-
GoodWe EM SeriesThe YouTube video has been blocked due to the cookie settings.
-
Matching accessories
-
Enwitec overvoltage protection DC type II, 2 MPPT, terminals- Art. Nr.: 3689
On request{ "id": "6fbb257652325116bcf3f46ce3c348db", "item_brand": "", "item_name": "Enwitec overvoltage protection DC type II, 2 MPPT, terminals", "item_id": "3689", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6fbb257652325116bcf3f46ce3c348db" } } -
Phoenix Contact DC overvoltage box, type I + II, 2 MPP- Art. Nr.: 2789
Available from stock{ "id": "e86cbf09264454c18f9f032f8a80eb81", "item_brand": "", "item_name": "Phoenix Contact DC overvoltage box, type I + II, 2 MPP", "item_id": "2789", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e86cbf09264454c18f9f032f8a80eb81" } } -
Phoenix Contact surge arrester AC type II- Type of manufacturer: VAL-SEC-T2_3S_350/40-FM
- Art. Nr.: 2944
Available from stock{ "id": "711bf9f20aee5536ac3646cba606a9ff", "item_brand": "", "item_name": "Phoenix Contact surge arrester AC type II", "item_id": "2944", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "711bf9f20aee5536ac3646cba606a9ff" } } -

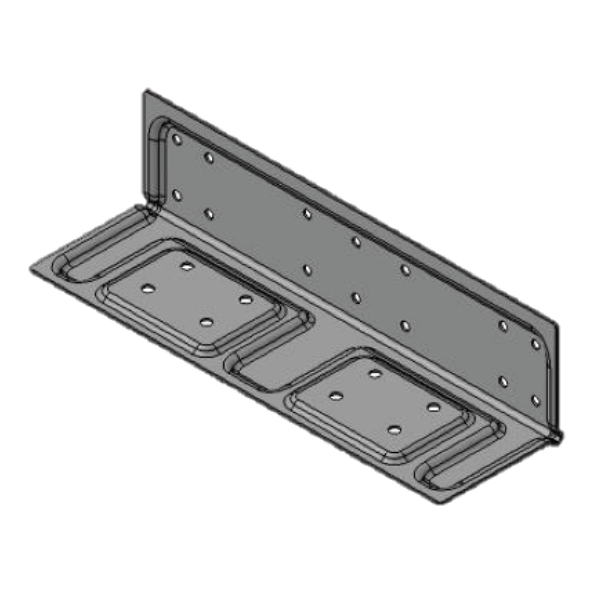

LG Chem RESU wall mount 3.3 / 6.5- Art. Nr.: 2777
