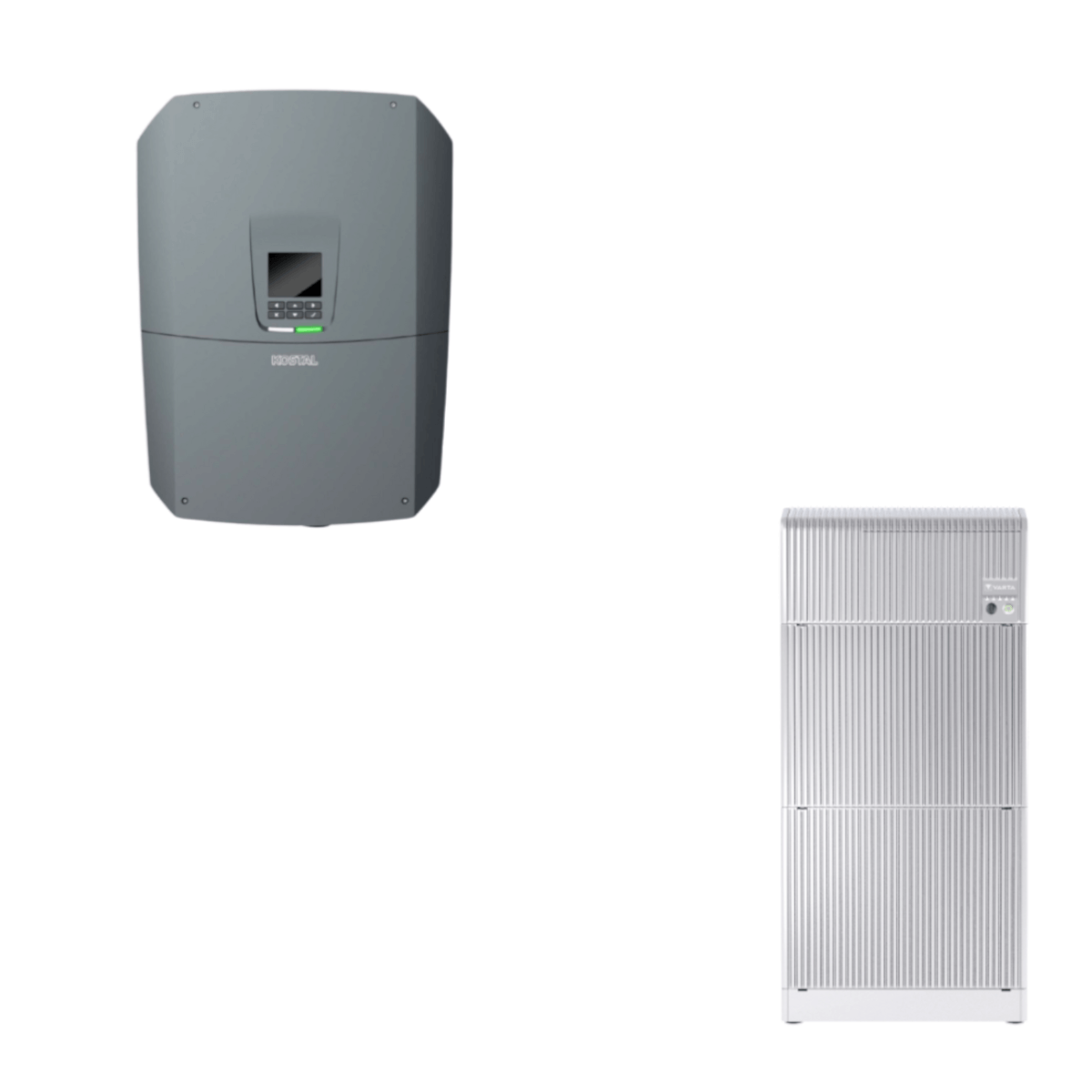

Kostal Plenticore plus G3 S 4-7 kW and VARTA.wall 10 kWh
| Art. Nr.: | 12916 |
|---|---|
| Battery type: | High volt lithium |
| Inverter: | Kostal Plenticore plus G3 S 4-7 kW |
| Package type: | 3-phase, High voltage battery |
| Phases: | 3 |
| Solar battery: | VARTA.wall 10 kWh |
| WEEE-Number: |
|
- New
Kostal Plenticore plus G3 S 4-7 kW and VARTA.wall 10 kWh
The Kostal Plenticore G3 offers maximum flexibility and smart upgrades. Thanks to the Plenticoins currency, you can increase the output from 4 kW to 5.5 kW or 5.5 kW to 7 kW. With 3 MPP trackers, an integrated data logger and four digital switching outputs, the hybrid inverter controls your self-consumption intelligently. The Kostal G3 Backup Switch ensures a three-phase emergency power supply – reliably even during power outages.
The VARTA.wall is an innovative, modular DC high-voltage storage system of the latest generation. With an installation depth of just 10 cm, it is one of the slimmest battery storage systems on the market. Thanks to the modular design, you can choose from three power classes: 10, 15 or 20 kWh – perfectly tailored to your individual energy needs.
The Kostal Plenticore G3 & VARTA.wall package offers you full control, flexibility and efficiency. Adjust the output, scale the storage system and secure a reliable emergency power supply – for maximum independence and energy efficiency.
Product benefits Kostal Plenticore plus G3 S
- Expandable capacity categories
- Self-learning shade management
- Integrated display, data logger and system monitoring
- Backup current capability with external switching device
- Extended current and voltage range
Product features Kostal Plenticore plus G3 S
- 3-phase mains connection
- 4 kW AC power
- Transformerless concept
- 3 MPP trackers (1 MPPT may be required for battery connection)
- Interfaces: Wi-Fi, 2 x LAN, Modbus RTU
- Dimensions: 561 x 409 x 237 mm (H x W x D)
- Weight: 21.8 kg
- Protection category: IP 65
- 10-year warranty (upon registration with Kostal)
Product features VARTA.wall 10 kWh
- Usable capacity per module: 5 kWh
- Stackable
- Cell chemistry: Lithium-ion
- Cell type: 21700 round cell
- Protection category: IP55
- Operating temperature: -10°C – 50°C
- Interfaces: CAN / RS485 / Ethernet / Wi-Fi
- Warranty: 10 years
- Compatible inverters: SMA, Kostal
Scope of delivery
- 1 x Kostal Plenticore plus G3 S
- 2 x VARTA.wall battery module 5.0 kWh
- 1 x VARTA.wall set of master / base unit
