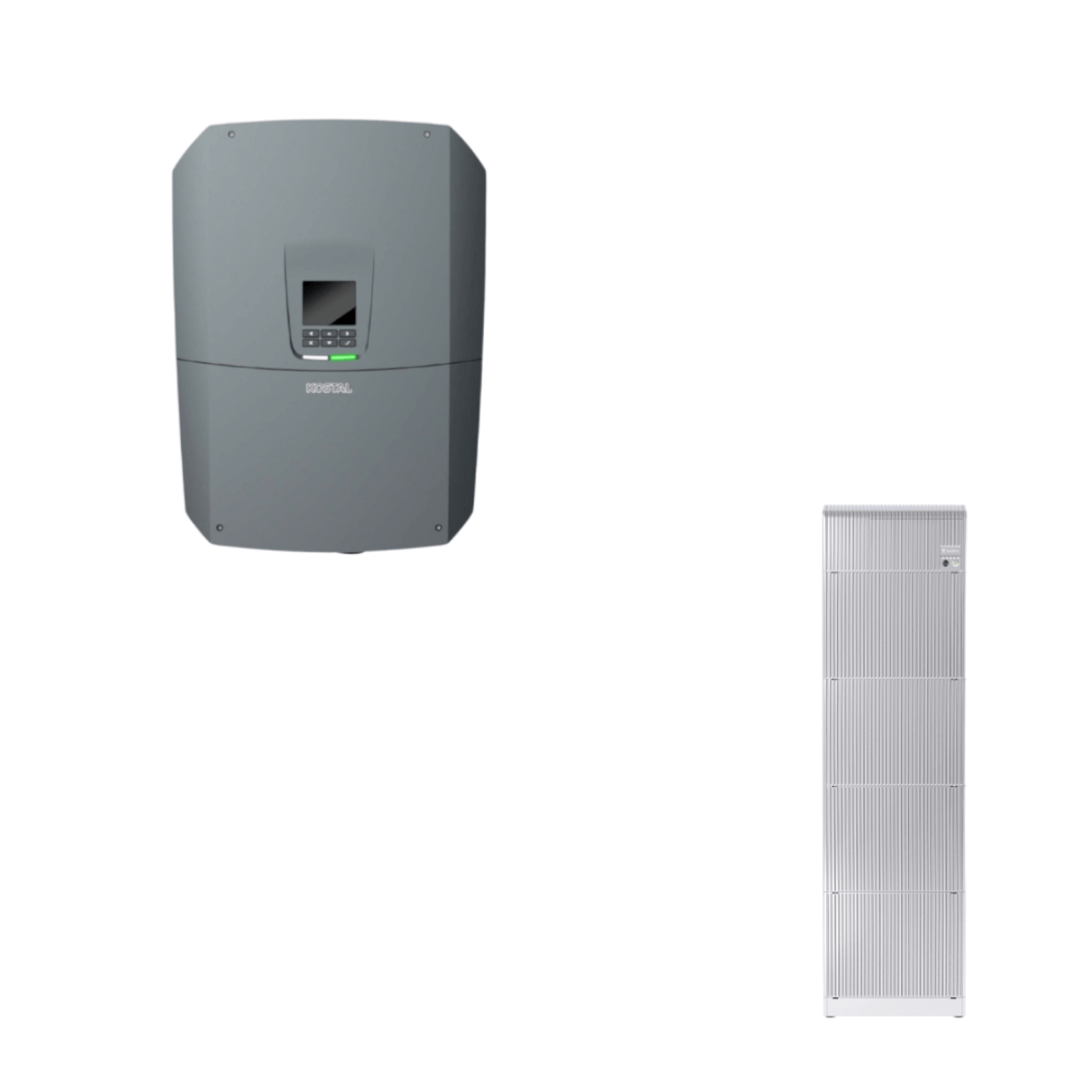

Kostal Plenticore plus G3 L 15-20 kW and VARTA.wall 15 kWh

Kostal Plenticore plus G3 L 15-20 kW and VARTA.wall 20 kWh

The Kostal Plenticore L G3 allows a powerful expansion via Plenticoins – from 8.5 kW to 10 kW and further to 12.5 kW. With 3 MPP trackers, an integrated data logger and four digital switching outputs, the G3 intelligently controls your self-consumption. G3 is SG-Ready compatible and offers a three-phase emergency power supply with the Kostal G3 Backup Switch.

The VARTA.wall complements the system as a compact high-voltage storage system with a depth of just 10 cm. Its modular storage capacity of 10, 15 or 20 kWh adapts flexibly to your energy requirements. The space-saving design enables easy integration – even in confined spaces.

The Kostal Plenticore L G3 & VARTA.wall package combines performance, flexibility and security. Expand the output, scale the storage system and secure a reliable energy supply – for maximum independence.

Product benefits Kostal Plenticore plus G3 L

• Expandable capacity categories
• Self-learning shade management
• Integrated display, data logger and system monitoring
• Backup current capability with external switching device
• Extended current and voltage range

Product features Kostal Plenticore plus G3 L

• 3-phase mains connection
• 15 kW AC power
• 3 MPP trackers (1 MPPT may be required for battery connection)
• Interfaces: Wi-Fi, 2 x LAN, Modbus RTU
• Dimensions: 561 x 409 x 237 mm (H x W x D)
• Weight: 24.3 kg
• Protection category: IP 65
• 10-year warranty (upon registration with Kostal)

Product features VARTA.wall 20 kWh

• Usable capacity per module: 5 kWh
• Stackable
• Cell chemistry: Lithium-ion
• Cell type: 21700 round cell
• Protection category: IP55
• Operating temperature: -10°C – 50°C
• Interfaces: CAN / RS485 / Ethernet / Wi-Fi
• Warranty: 10 years
• Compatible inverters: SMA, Kostal


Scope of delivery

• 1 x Kostal Plenticore plus G3 L
• 4 x VARTA.wall battery module 5.0 kWh
• 1 x VARTA.wall set of master / base unit
