Kostal Piko CI 30
| Manufacturer Art. No.: | 10534223 |
|---|---|
| Art. Nr.: | 5668 |
| Pieces per package unit: |
|
| AC power: | 30 kW |
| Communication: | Ethernet, RS485, WLAN, GPRS |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 2 |
| MPP voltage range: | 180 - 1000 Volt |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
5668
Description
Black Power with the Kostal Piko CI 30 for commercial projects

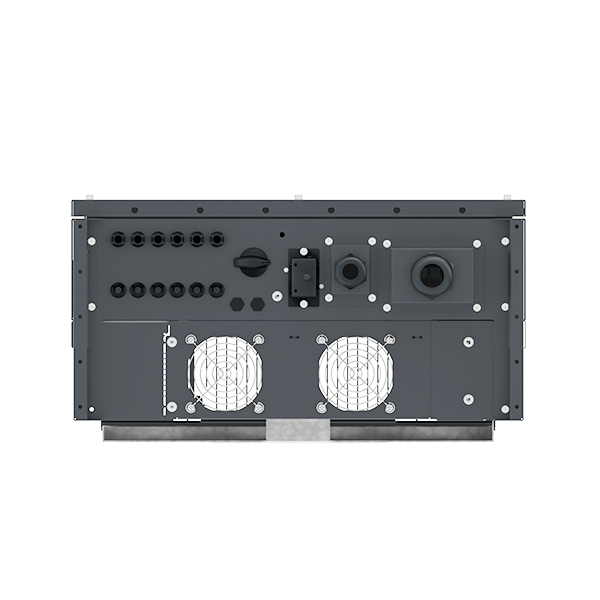

Kostal presents its new Piko CI in three power versions: 30, 50 and 60 kW. The inverter is certified for use in the low-voltage range, 400 V. The connection area is clearly laid out. The Kostal Piko CI 30 has 6 DC inputs for the PV string connection. No string collection box is required for installation, which simplifies installation and results in cost savings. In addition to the overvoltage protection with type 2 for the AC and DC side, the Kostal Smart AC Switch is also integrated as standard. This means that no external coupling switch is required. Integrated data logger, web server and connection to the Kostal Solar Portal can be used free of charge with the CI 30, 50 and 60 kW.
Advantages of Kostal CI
- Complete communication package as standard
- Increased safety and efficiency
- Overvoltage protection DC/AC type 2
- 4-wire AC connection
- Integrated shade management
- Single strand monitoring
- Zero feed can be implemented
- PV over-occupancy of 150%
- 5 year warranty after registration with Kostal
Product features
- 3-phase mains supply
- 30.0 kW AC power
- Transformerless concept
- 2 MPP trackers
- 6 DC inputs
- MPP working voltage range: 180 - 960 V
- IP 65
- Ambient temperature: -25°C to +60°C
- Weight: 40.0 kg
- Dimensions: 470/555/270 mm (H/W/D)
-
