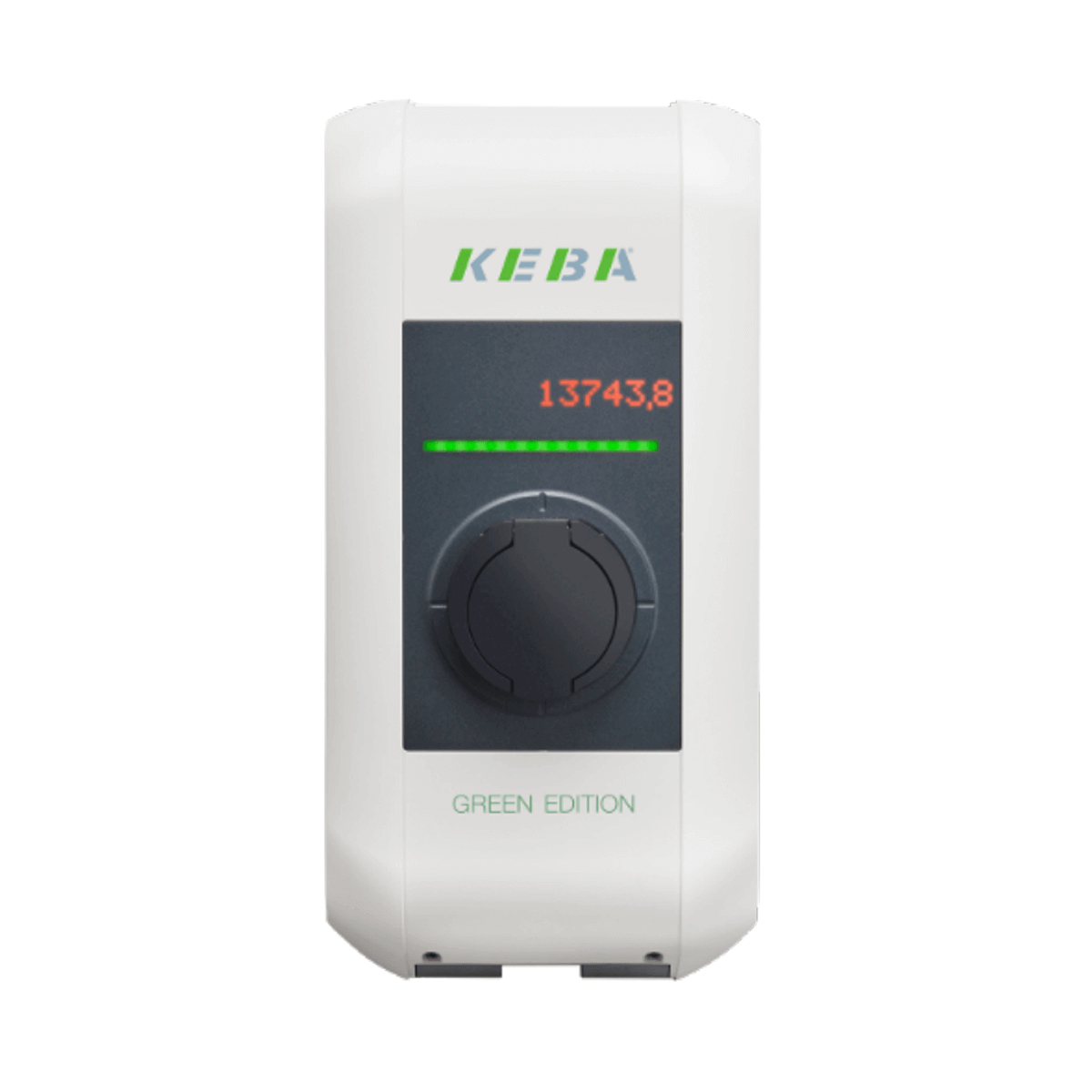

KEBA KeContact P30 X-Series Green Edition incl. MID meter, PnC, socket

KEBA
  • KEBA X-Series Green Edition Buchse
  • KEBA X-Series Green Edition Buchse
Manufacturer Art. No.: 128.827
Art. Nr.: 10643
Pieces per package unit:
  • per carton
  • per pallet
AC phases: 3
Access control: RFID
BMVI förderfähig: No
Charging port: Socket
Electric charging system: Commercial (semi-public), Private, Wallbox
Energy meter: MID compliant meter
KfW (441) förderfähig: Yes
Number of charging points: 1
Power: 22 kilowatt
Surplus charging: Yes
WEEE-Number:
  • DE70686010
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 10643
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 10643
  • datamints-memodo.product-detail.recommended-accessories
    • reev Connect Setup-Kit mit SIM-Karte
      reev Connect setup kit with SIM card
      • Art. Nr.: 10138
      • Reev
      Available from stock
      { "id": "577feeadaa065f369a67083c123db847", "item_brand": "", "item_name": "reev Connect setup kit with SIM card", "item_id": "10138", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "577feeadaa065f369a67083c123db847", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • reev Connect Compact AC Lizenzschlüssel
      reev Connect Compact AC license key
      • Art. Nr.: 10131
      • Reev
      Available from stock
      { "id": "d978b0037e965acba3344f2199dd375a", "item_brand": "", "item_name": "reev Connect Compact AC license key", "item_id": "10131", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d978b0037e965acba3344f2199dd375a", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • reev Connect Pro AC Lizenzschlüssel reev Connect Pro AC Lizenzschlüssel
      reev Connect Pro AC license key
      • Art. Nr.: 10135
      • Reev
      Available from stock
      { "id": "ea1f539b678b5ba3b14a4a3f77fb442a", "item_brand": "", "item_name": "reev Connect Pro AC license key", "item_id": "10135", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ea1f539b678b5ba3b14a4a3f77fb442a", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
Description

Smart networking, communication and control with the KeContact P30 X-Series Green Edition including MID meter, Plug & Charge Ready (ISO15118)

The CO2-neutral KEBA KeContact P30 X-Series Green Edition incl. MID meter and socket has intelligent interfaces for communication with smart home devices. Thanks to the integrated MID meter, you can also charge and bill company cars at home. The wallbox is hub/satellite capable and acts as a hub and can therefore be connected to up to 15 C-Series. This enables local load management.

In addition, the P30 X series is now also ready for the Plug&Charge function (ISO15118) in terms of hardware. This will allow electric cars to be automatically activated at the wallbox in the future. In line with the motto: plug in and start charging immediately. However, it is important that this function must also be supported by the electric car.

PV surplus charging is only possible with the KeContact E10 Smart Energy Meter (item no. 10762).

Automatic phase switching only possible with the KeContact S10 phase switch (item no. 10763).

Product advantages

  • Ready for plug & charge (ISO15118)
  • Indoor and outdoor installation
  • OCPP 1.5/1.6
  • Suitable for private and semi-public areas
  • Incl. monitoring, load management and billing
  • Smart Home via User Data Protocol (UDP) or Modbus TCP
  • Integrated MID energy meter
  • DC fault current detection
  • Hub/satellite communication
  • Offline logging of charging sessions (up to 3 months)
  • House connection monitoring with external electricity meter

Product features KEBA KeContact P30 X-Series Green Edition incl. MID meter, PnC, socket

  • 3-phase mains connection
  • 22 kW charging power
  • Adjustable charging current (10/13/16/20/25/32A)
  • 1- / 3-phase
  • Type 2 socket
  • Access control: RFID
  • Local load management: Hub
  • Dimensions: 516x240x166 mm (HxWxD)
  • Weight: 5 kg
  • IP54

Compatible system integration

  • my-PV
  • Smartfox
  • Solar-Log
  • and many more!
