KBE Solar DB+, 6mm², 500m, red

KBE
  • KBE Solar DB+, 6mm², 500m, rot
  • KBE Solar DB+, 6mm², 500m, rot
Type of manufacturer: H1Z2Z2-K 6,0 rt
Manufacturer Art. No.: 730600015060QURT
Art. Nr.: 11712
Pieces per package unit:
  • per pallet
Accessory type: DC solar cable
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 11712
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 11712
Description

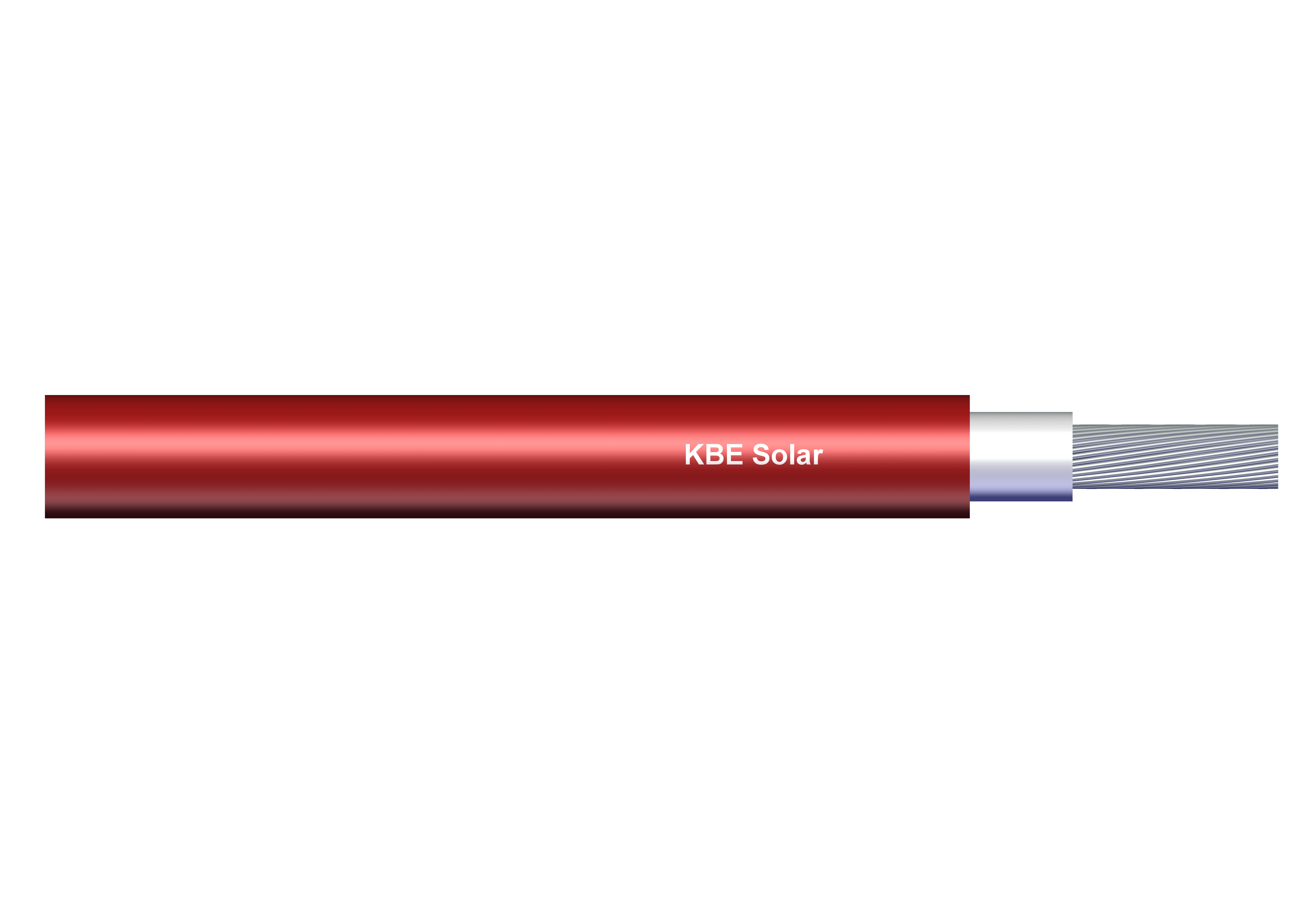

KBE Solar DB+ red, 6 mm2, diameter 6 mm

The KBE Solar DB+ solar cable from KBE Elektrotechnik GmbH is manufactured in Berlin and is perfect for direct current installations. This triple-certified solar cable meets the latest technical requirements and is tested in accordance with the EN 50618, IEC 62930 and TÜV 2 PfG 1169/10.19 standards. With its excellent UV and water resistance as well as high insulation and structural stability, it offers a reliable installation solution. The cables are designed for voltages of up to 1,800 VDC and are ideal for floating PV systems.

Product advantages:

  • Triple TÜV certification guarantees the highest standards.
  • Designed for high voltages up to 1,800 VDC, ideal for powerful systems.
  • High UV and water resistance increases durability under extreme conditions.
  • Can be laid underground thanks to high-quality insulation materials.
  • Optimized for use in floating PV systems (FPV).
  • “Made in Germany” promises quality and reliable production quality.

Technical specifications:

  • Nominal voltage: 1,500 VDC (max. 1,800 VDC)
  • Cross section: 6 mm2
  • Outer diameter: 6 mm
  • Color: red
  • UV resistant
  • Water resistant
  • Insulation material: Cross-linked specialized polyolefin
  • High structural stability
  • Fire classification: Dca in accordance with BauPVO
  • Certificates: EN 50618, IEC 62930, TÜV 2 PfG 1169/10.19
  • Product service life: 25 years according to EN 50618
  • Packaging: 500 m drum
Downloads

  • Matching accessories

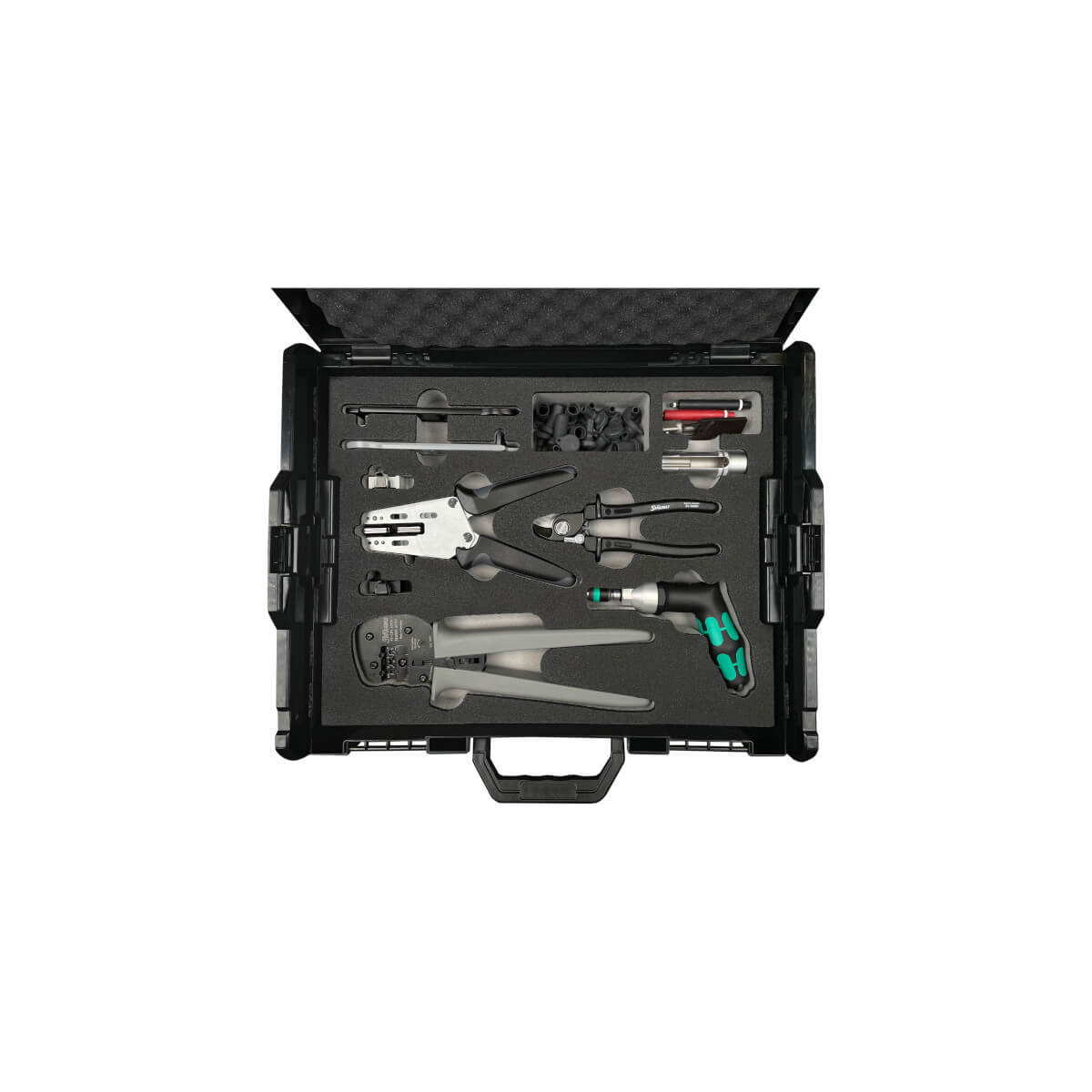

    • Staeubli PV-Installer Tool Case SET
      Stäubli PV-Installer Tool Case SET
      • Type of manufacturer: PV-Installer Tool Case SET
      • Art. Nr.: 9504
      Available from stock
      { "id": "d9bf17a898285fab800f4ac1bdac09d0", "item_brand": "", "item_name": "Stäubli PV-Installer Tool Case SET", "item_id": "9504", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d9bf17a898285fab800f4ac1bdac09d0", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

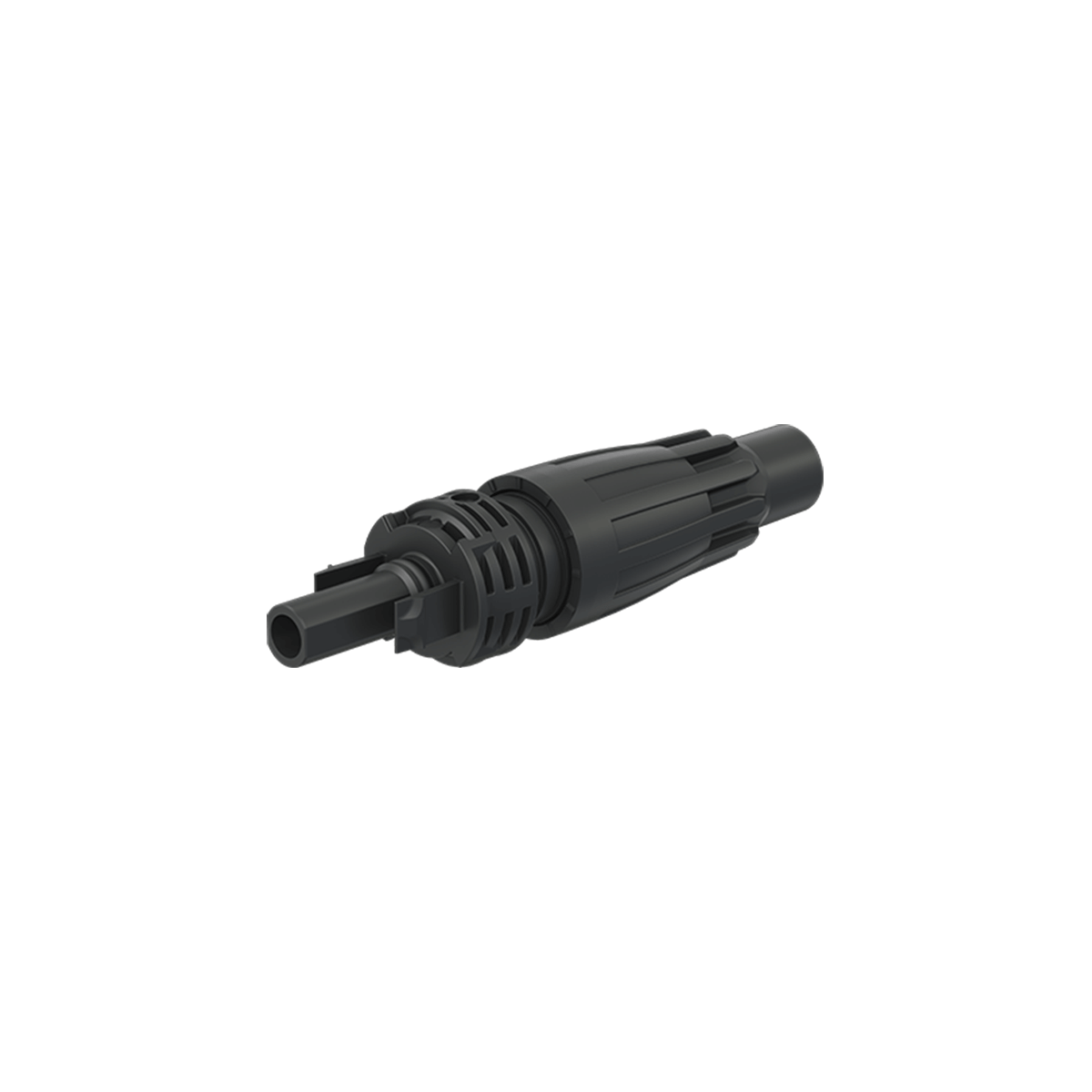

    • Staeubli MC4 Evo ready Stecker
      Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm
      • Type of manufacturer: PV-KST4-EVO READY
      • Art. Nr.: 11665
      Available from stock
      { "id": "0f7f8e594c4f5028adb485c0a7b4ec41", "item_brand": "", "item_name": "Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm", "item_id": "11665", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "10", "shopware_id": "0f7f8e594c4f5028adb485c0a7b4ec41", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

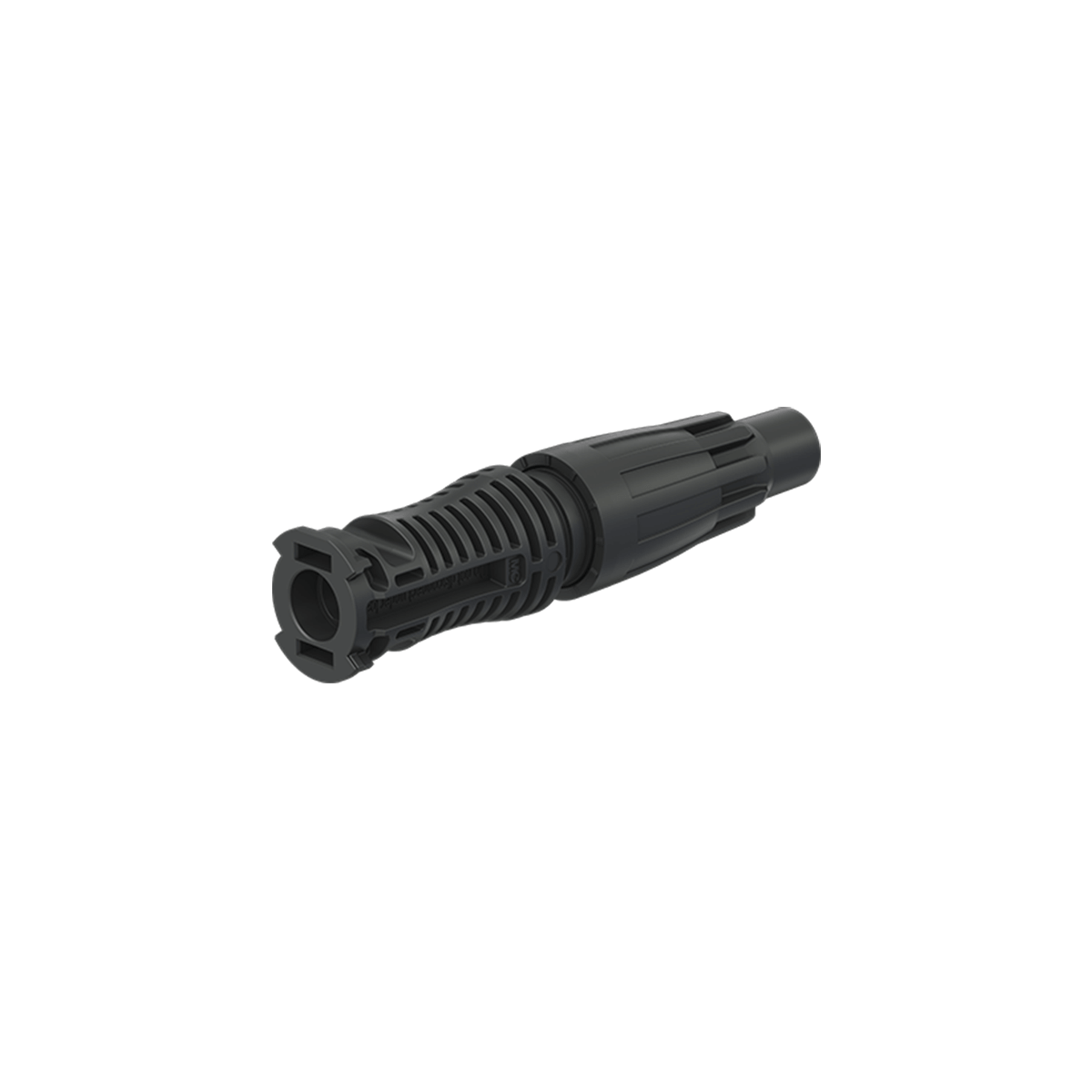

    • Staeubli MC4 Evo ready Buchse
      Stäubli MC4-EVO ready socket 4-6 mm², Da 5.5 – 7.5 mm
      • Type of manufacturer: PV-KBT4-EVO READY
      • Art. Nr.: 11666
      Available from stock
      { "id": "ac218eb566d257998db5928656516c68", "item_brand": "", "item_name": "Stäubli MC4-EVO ready socket 4-6 mm², Da 5.5 – 7.5 mm", "item_id": "11666", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "10", "shopware_id": "ac218eb566d257998db5928656516c68", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

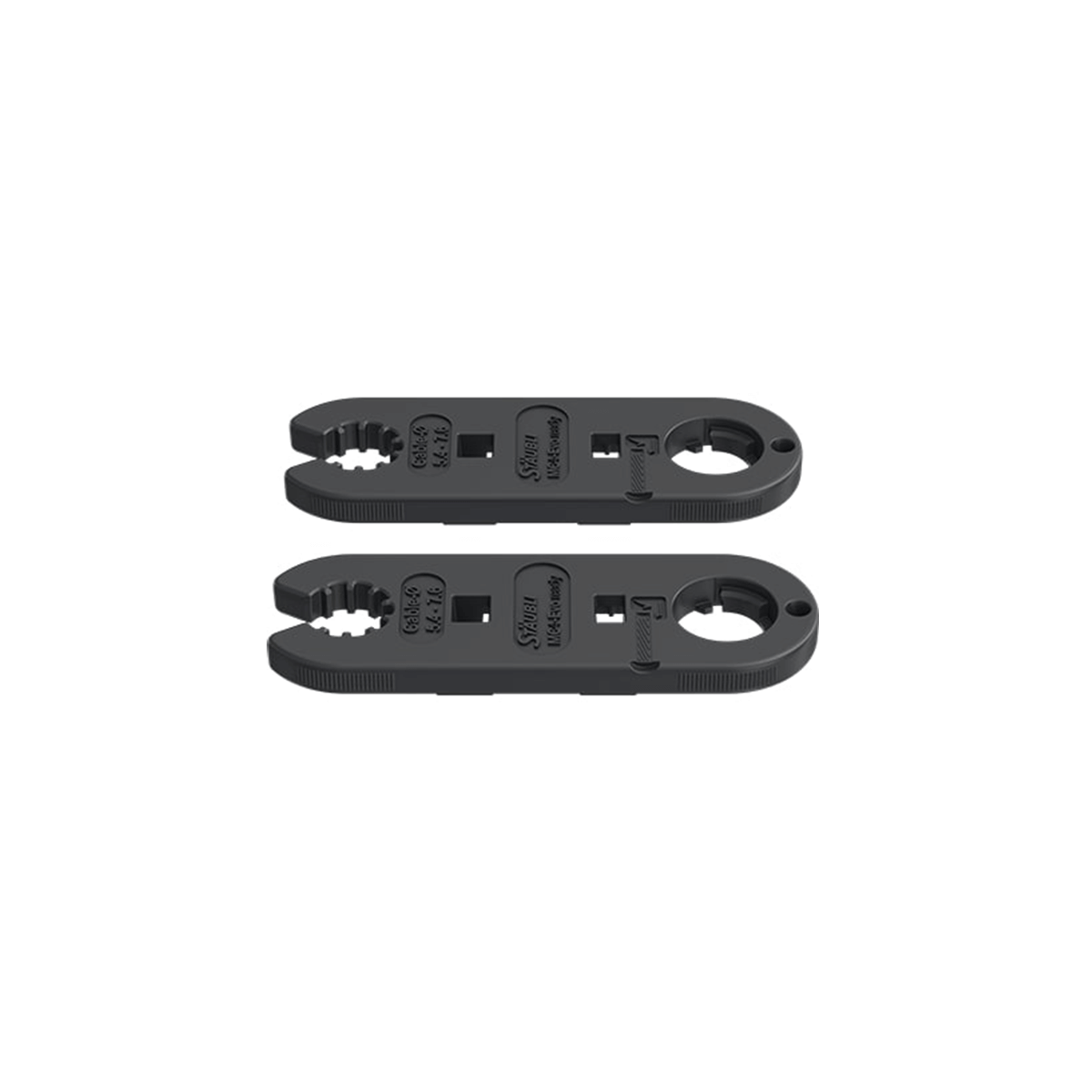

    • Staeubli MC4 Evo ready Montageschluesselset
      Stäubli MC4 EVO ready assembly tool / wrench set
      • Type of manufacturer: MC4-MS-EVO READY
      • Art. Nr.: 11667
      Available from stock
      { "id": "d3a62c977eeb56de9f7da563a059ff77", "item_brand": "", "item_name": "Stäubli MC4 EVO ready assembly tool / wrench set", "item_id": "11667", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d3a62c977eeb56de9f7da563a059ff77", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • Staeubli Buchsenkontakt MC4
      Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm
      • Type of manufacturer: PV-KST4/6I-UR
      • Art. Nr.: 338
      Available from stock
      { "id": "0dae6ec5fad8591a9f118659ff2184db", "item_brand": "", "item_name": "Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm", "item_id": "338", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0dae6ec5fad8591a9f118659ff2184db", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • Staeubli MC4 Stecker
      Stäubli MC4 socket, 4-6 mm² I, diameter 5-6 mm
      • Type of manufacturer: PV-KBT4/6I-UR
      • Art. Nr.: 339
      Available from stock
      { "id": "50777318441e5d52b9e4059410de4900", "item_brand": "", "item_name": "Stäubli MC4 socket, 4-6 mm² I, diameter 5-6 mm", "item_id": "339", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "50777318441e5d52b9e4059410de4900", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

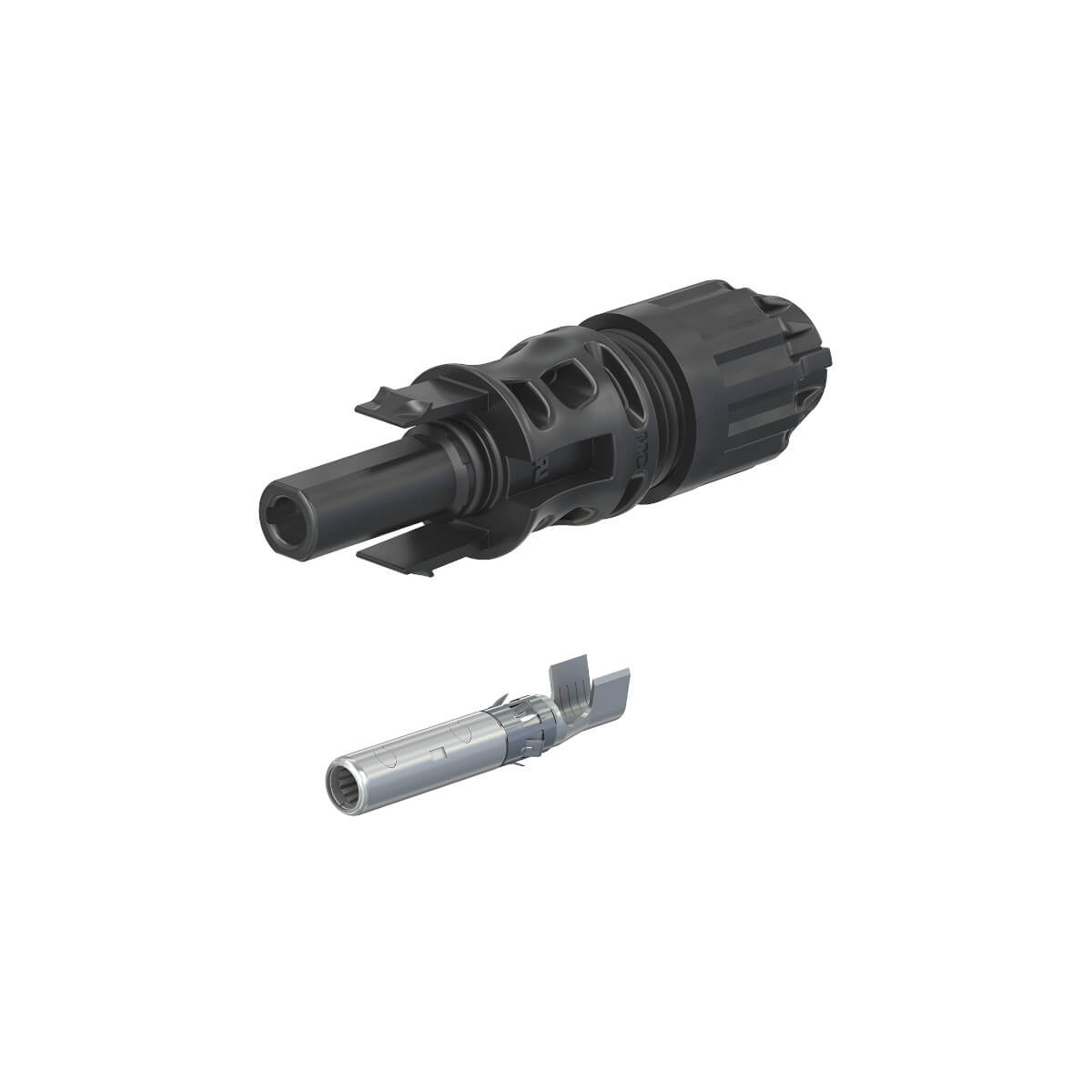

    • Staeubli MC4 Evo2 Stecker 4-6mm
      Stäubli MC4-EVO 2 plug, 4-6 mm², diameter 4.7 - 6.4 mm
      • Type of manufacturer: PV-KST4-EVO 2A/6I
      • Art. Nr.: 8940
      Available from stock
      { "id": "c60db7969d655a62857e35d296007f65", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 plug, 4-6 mm², diameter 4.7 - 6.4 mm", "item_id": "8940", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c60db7969d655a62857e35d296007f65", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

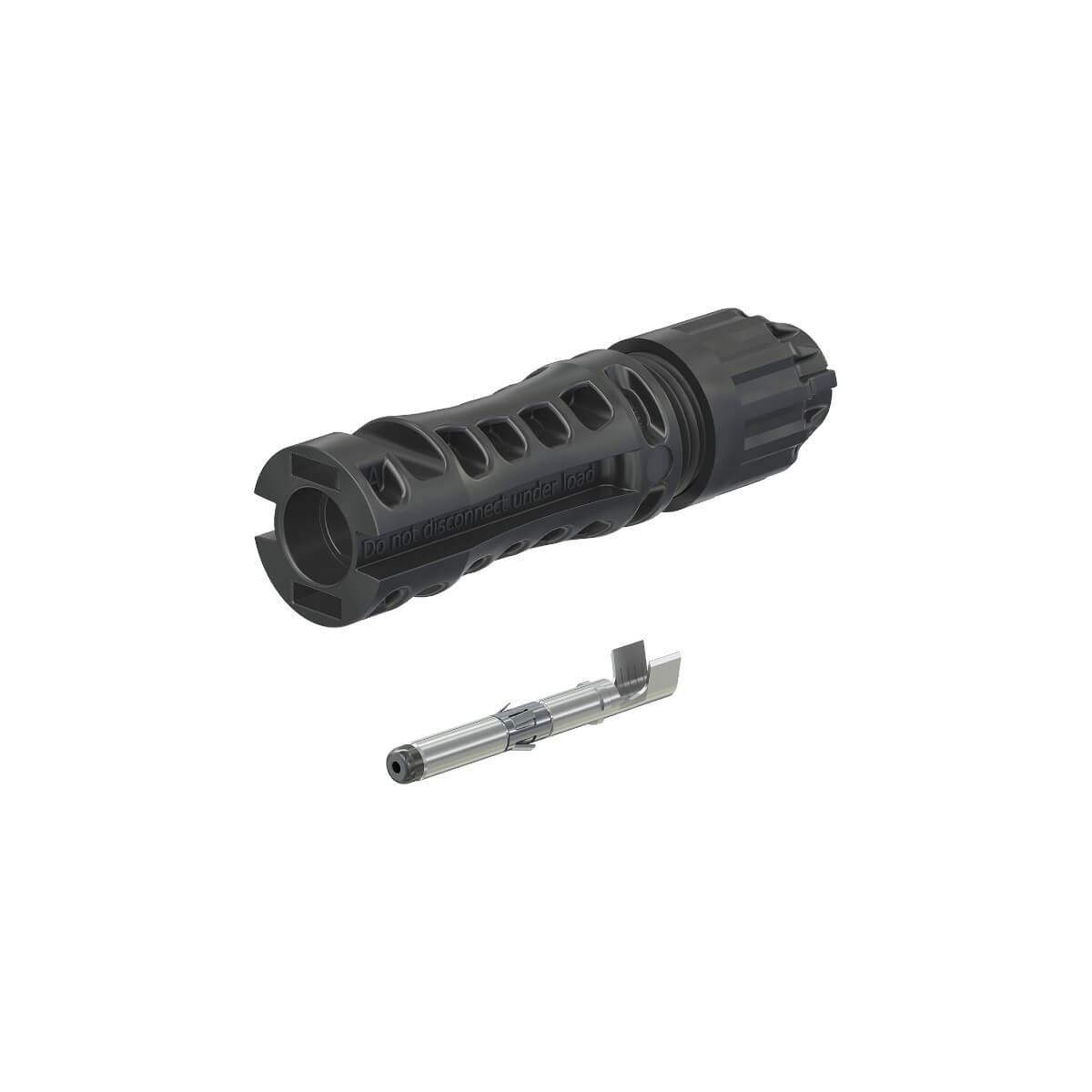

    • Staeubli MC4 EVO 2 Buchse 4-6mm
