KBE Solar DB+, 10 mm², 500m, blue
| Type of manufacturer: | H1Z2Z2-K 10,0 bl |
|---|---|
| Manufacturer Art. No.: | 731000015060QUBL |
| Art. Nr.: | 11725 |
| Pieces per package unit: |
|
| Accessory type: | DC solar cable |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11725
Description

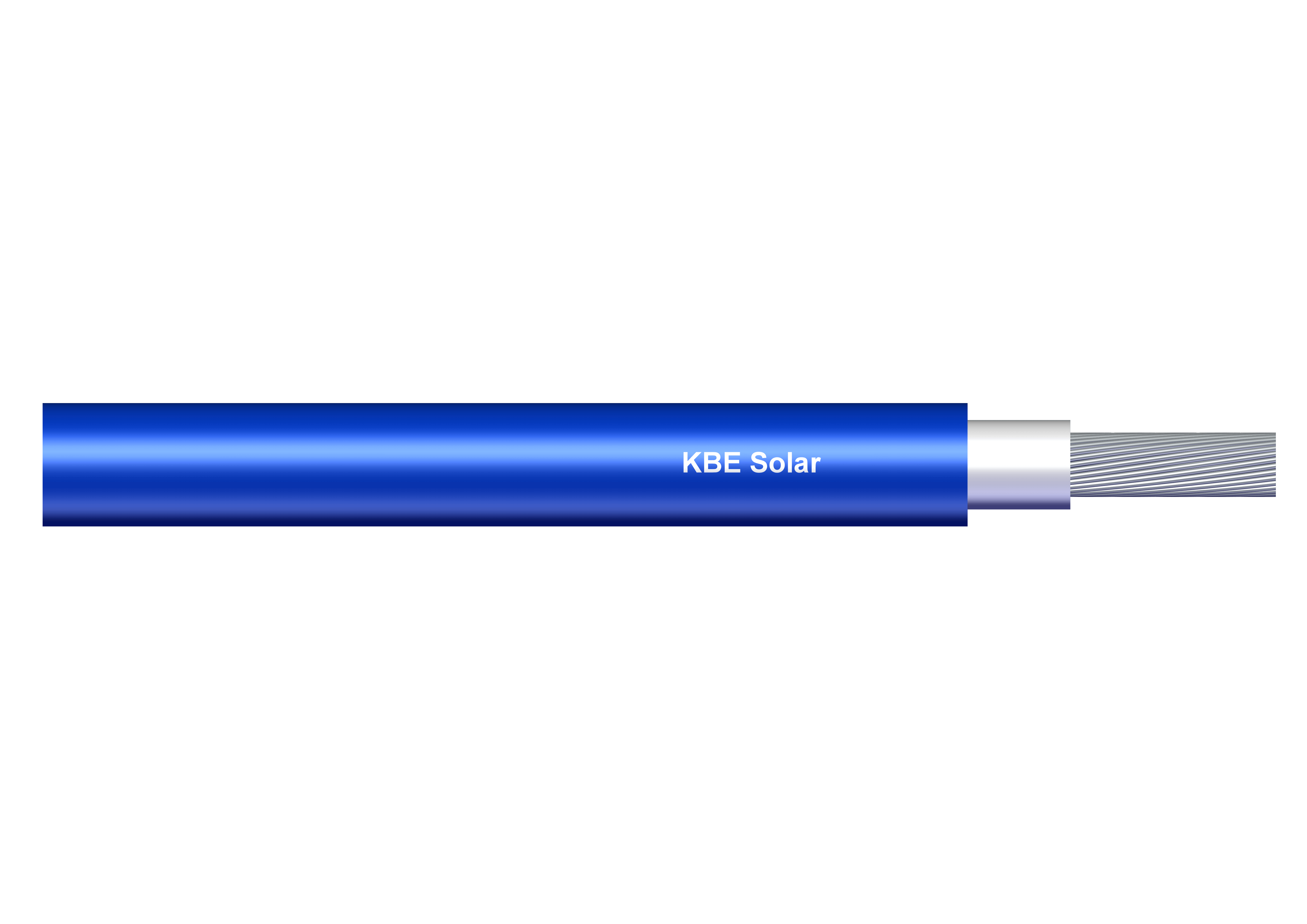

KBE Solar DB+ blue, 10 mm2, diameter 7.1 mm
The KBE Solar DB+ solar cable from KBE Elektrotechnik GmbH is manufactured in Berlin and is perfect for direct current installations. This triple-certified solar cable meets the latest technical requirements and is tested in accordance with the EN 50618, IEC 62930 and TÜV 2 PfG 1169/10.19 standards. With its excellent UV and water resistance as well as high insulation and structural stability, it offers a reliable installation solution. The cables are designed for voltages of up to 1,800 VDC and are ideal for floating PV systems.
Product advantages:
- Triple TÜV certification guarantees the highest standards.
- Designed for high voltages up to 1,800 VDC, ideal for powerful systems.
- High UV and water resistance increases durability under extreme conditions.
- Can be laid underground thanks to high-quality insulation materials.
- Optimized for use in floating PV systems (FPV).
- “Made in Germany” promises quality and reliable production quality.
Technical specifications:
- Nominal voltage: 1,500 VDC (max. 1,800 VDC)
- Cross section: 10 mm2
- Outer diameter: 7.1 mm
- Color: blue
- UV resistant
- Water resistant
- Insulation material: Cross-linked specialized polyolefin
- High structural stability
- Fire classification: Dca in accordance with BauPVO
- Certificates: EN 50618, IEC 62930, TÜV 2 PfG 1169/10.19
- Product service life: 25 years according to EN 50618
- Packaging: 500 m drum
Downloads
Downloads
-
Matching accessories
-

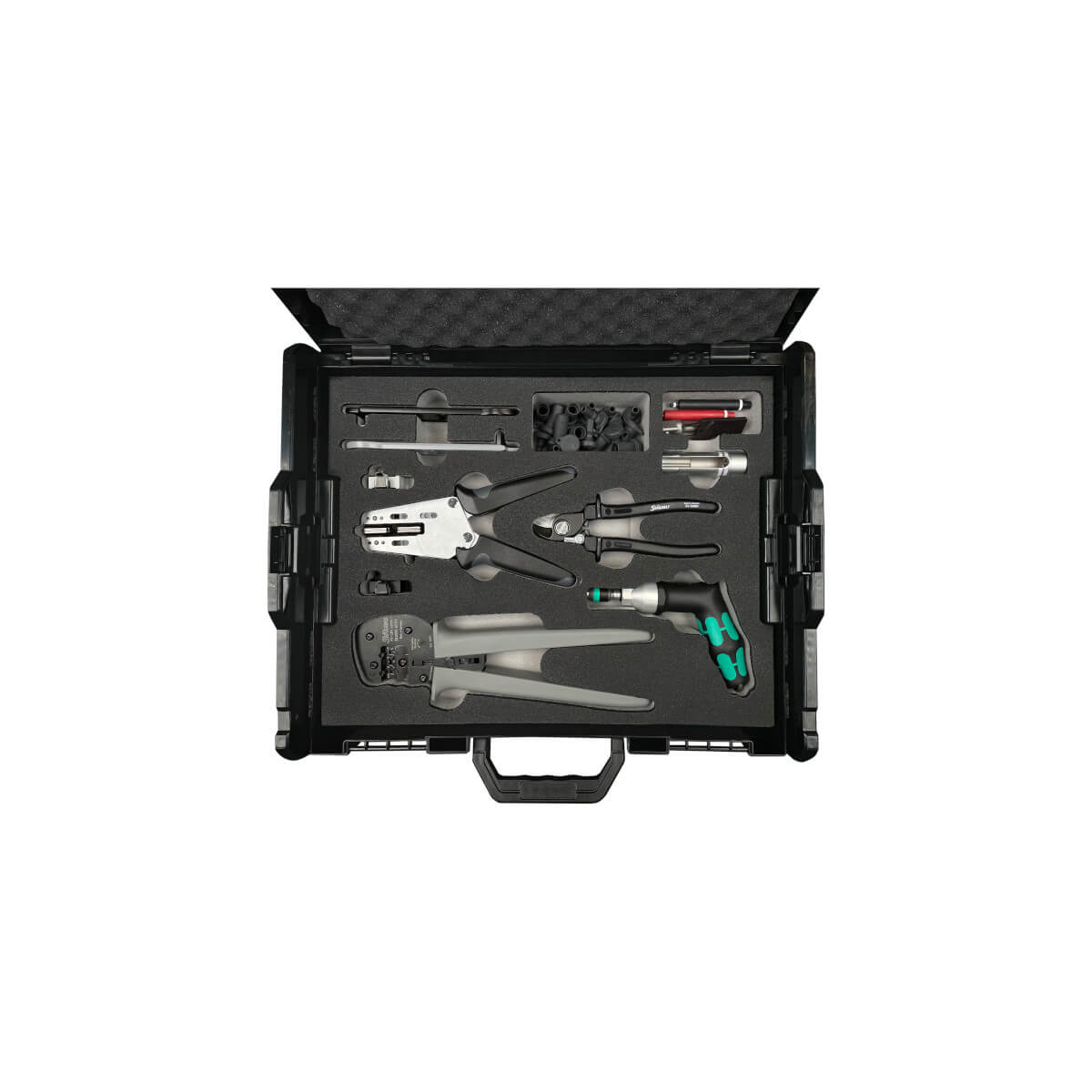

Stäubli PV-Installer Tool Case SET- Type of manufacturer: PV-Installer Tool Case SET
- Art. Nr.: 9504
Available from stock{ "id": "d9bf17a898285fab800f4ac1bdac09d0", "item_brand": "", "item_name": "Stäubli PV-Installer Tool Case SET", "item_id": "9504", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d9bf17a898285fab800f4ac1bdac09d0", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
- Remaining quantity

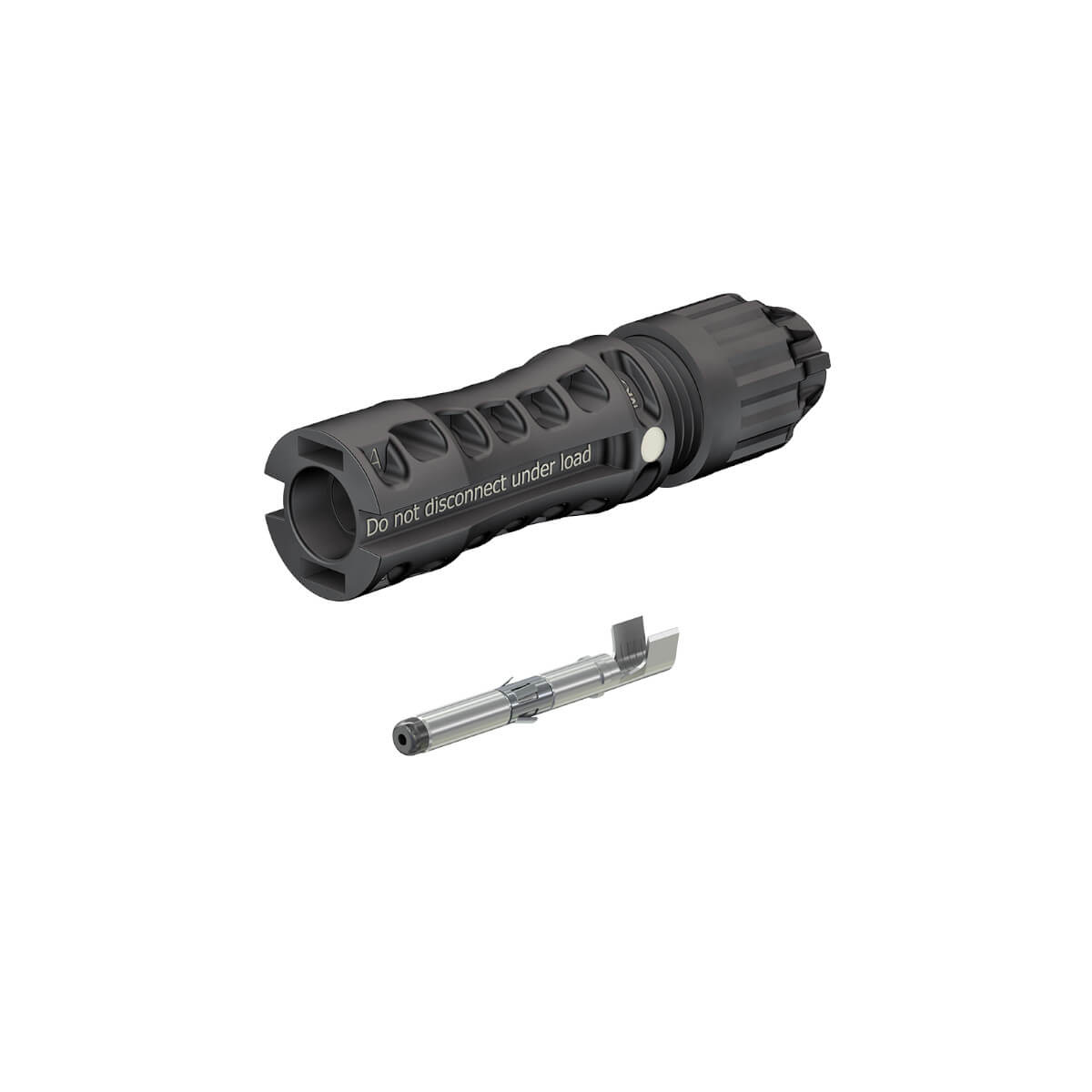

Stäubli MC4-EVO 2 plug, 10 mm², diameter 6.4-8.4 mm- Type of manufacturer: PV-KST4-EVO 2/10II-UR
- Art. Nr.: 6524
Available from stock{ "id": "7085e23f90e250fdbce74183626c2832", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 plug, 10 mm², diameter 6.4-8.4 mm", "item_id": "6524", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7085e23f90e250fdbce74183626c2832", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

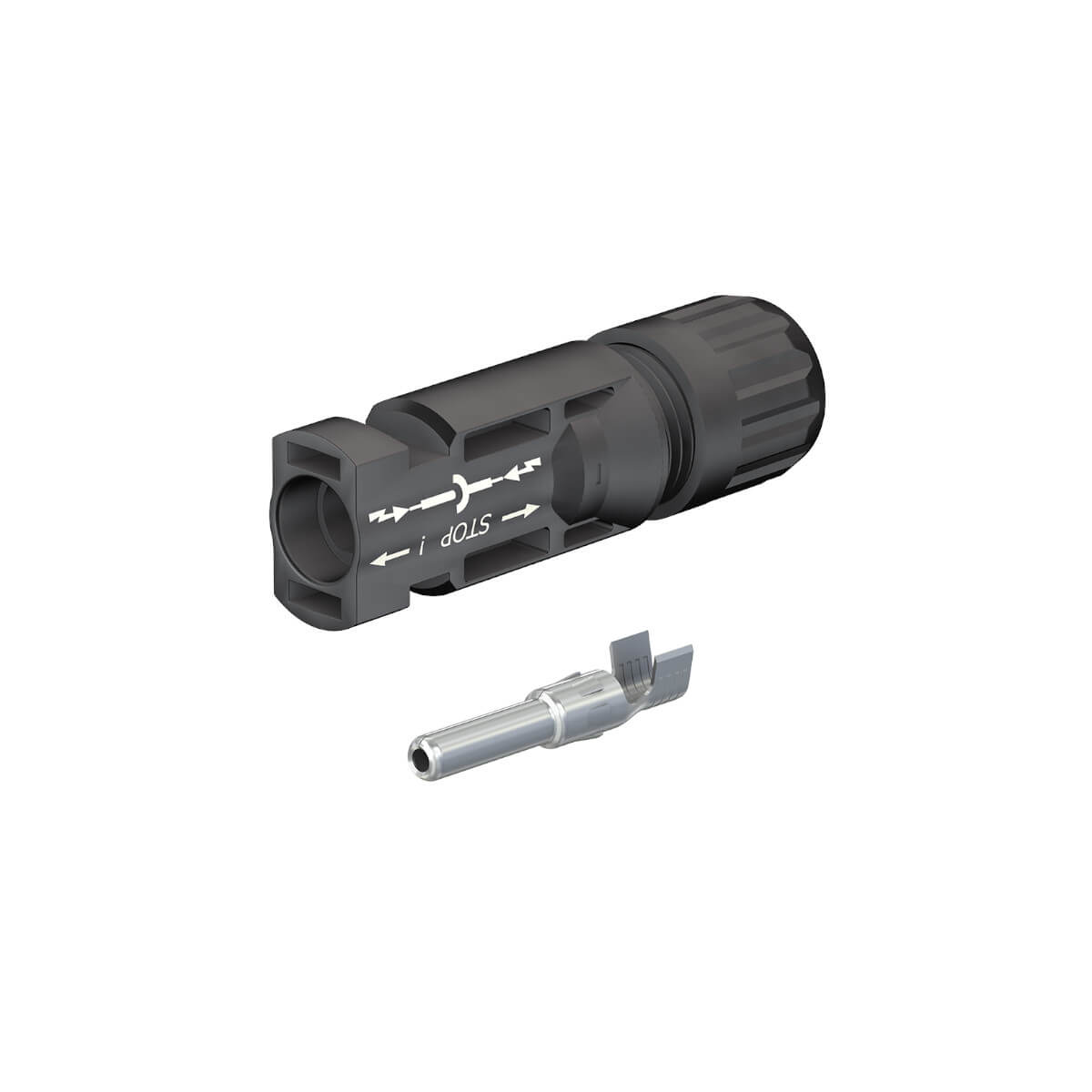

Stäubli MC4 plug, 10 mm² II, diameter 5.9-8.8 mm- Type of manufacturer: PV-KST4/10II
