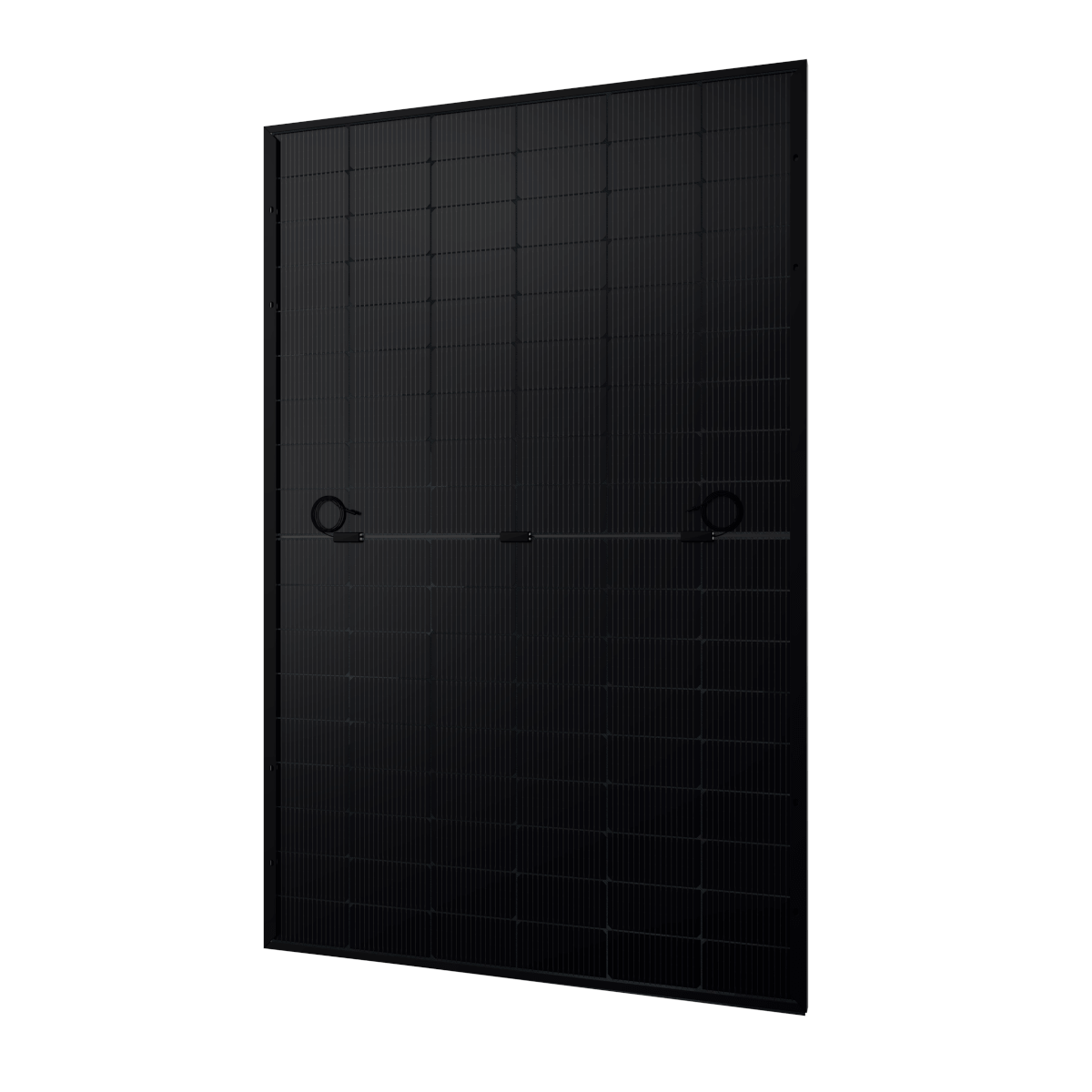

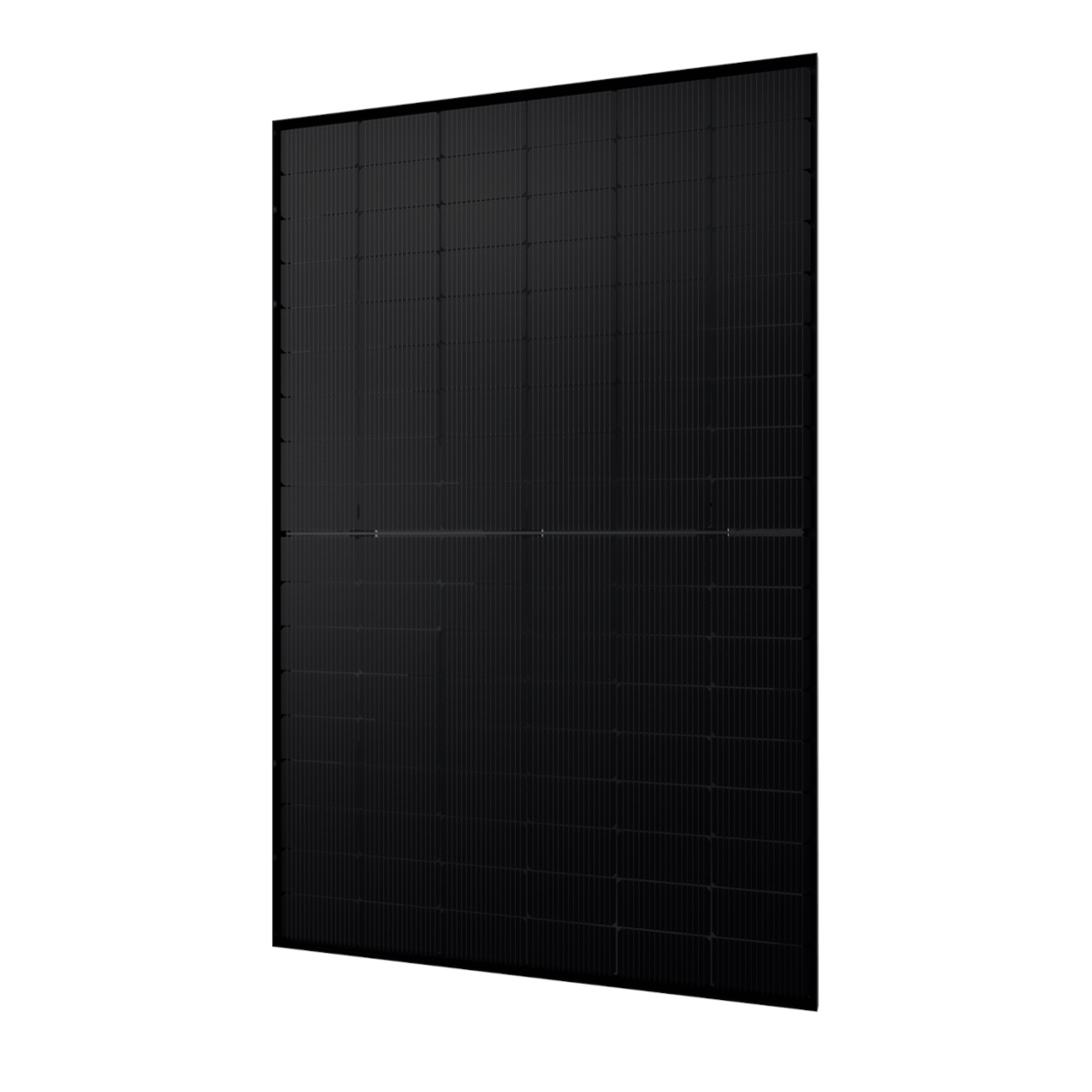

Jolywood 440 W bifacial glass/glass, black
| Manufacturer Art. No.: | JW-HD108N-440W |
|---|---|
| Art. Nr.: | 11460 |
| Pieces per package unit: |
|
| Backsheet: | Transparent |
| Dimensions: | 1722 x 1134 x 30 mm |
| Frame color: | Black |
| Power: | 440 Watt |
| Solar panel type: | BiFacial, Glass-glass solar panels, High performance solar panels, Mono solar panels |
| Technology: | TOPCon |
| Warranty: | 30 years |
| WEEE-Number: |
|
Jolywood 440 W bifacial glass/glass module with attractive design
The bifacial halfcut double glass solar module in the 440 Watt version is built with J-TOPCon cells. The 16 busbar solar cells have a visually appealing design, making them ideal for mounting on private rooftops. In addition to the high efficiency of 22.53% and immunity to the light-induced degradation (LID) effect, the module is extremely powerful and best suited for diffuse sunlight.
The warranty period varies depending on the location of the modules. Warranty for roof systems: 25 years product and 30 years performance warranty. Warranty for ground-mounted systems: 15-year product and 30-year performance warranty.
When processed with Xinyi glass, the module complies with fire protection class A
Powerful due to J-TOPCon cell technology
The N-type cell, unlike the P-type, is doped with phosphorus during manufacture. Due to the use of phosphorus, N-Type cells are not susceptible to the light-induced degradation effect (LID) and show only minimal signs of wear even after years.
The patented J-TOPCon technology offers significantly improved diffuse light properties, higher bifaciality, lower temperature coefficient and reduced degradation.
Product advantages
- 108 mono-crystalline half cells
- 0/+5 W positive power tolerance
- No light induced degradation (LID)
- Optimal low-light performance
- 15 or 25 years product warranty (see note above)
- 30 years linear power warranty
Product features Jolywood 440 W bifacial glass/glass, black
- Power: 440 watts
- Efficiency: 22.53 %
- Module frame color: Black
- Dimensions: 1722 x 1134 x 30 mm
- Weight: 24.5 kg
- Original MC4 connector from Stäubli
- Cable length: 140 cm
- Glass thickness: 2 mm each
- Snow load: 5.400 Pa
- Wind load: 2.400 Pa
- Power temperature coefficient: -0.30 % / °C
About Jolywood
Jolywood Ltd. is a world leader in the production of N-type modules as well as cells and has a module production of 3 GW per year. Jolywood is a tier 1 manufacturer, which indicates strong financial position. The products are very efficient, innovative and have a very good price-performance ratio. The Chinese manufacturer is particularly interesting for commercial projects, as it has a strong and reliable reinsurance partner in Munich RE. First Multi MW PV ground-mounted projects have already been implemented in Germany and in Europe.
-
Matching accessories
-

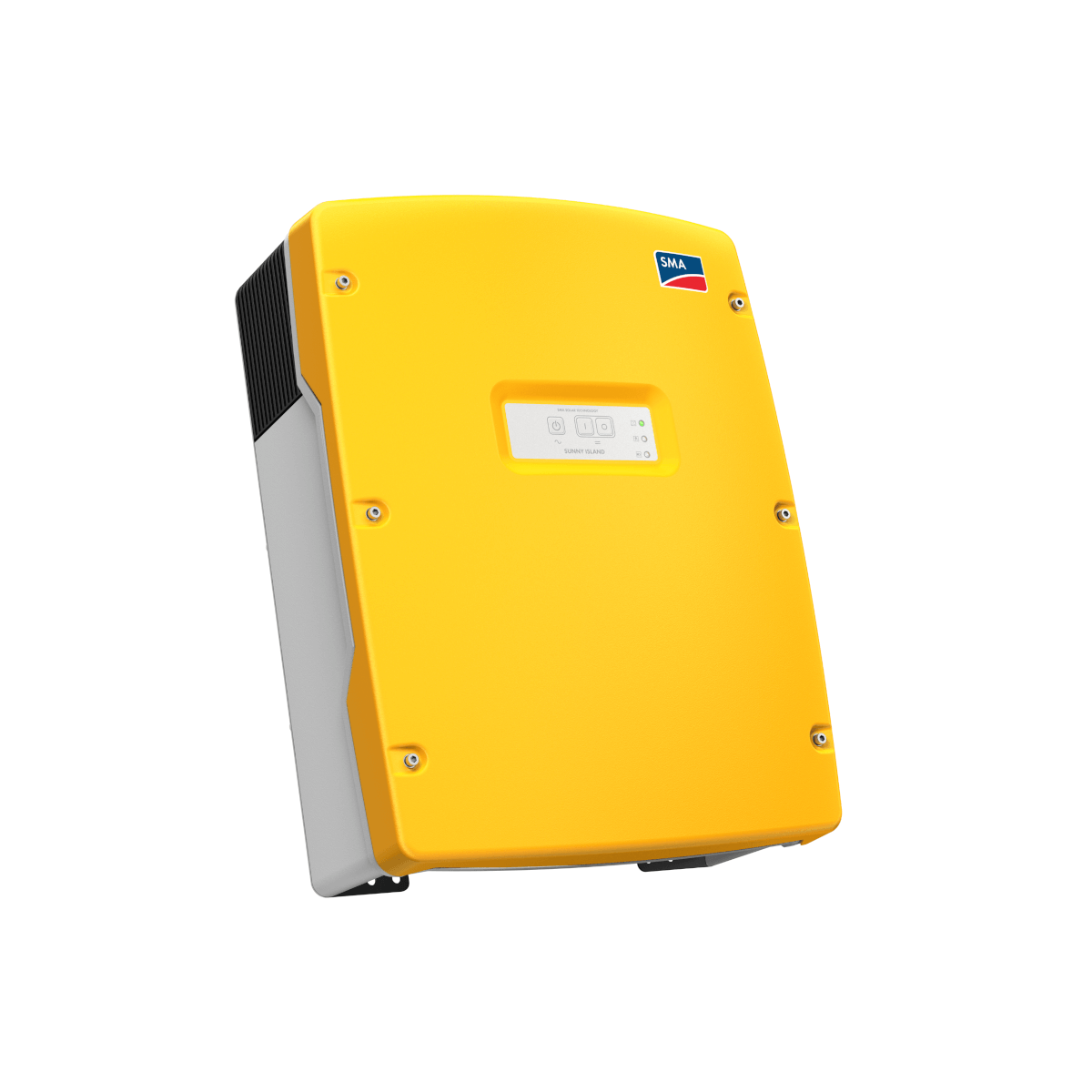

SMA Sunny Island 6.0H-13- Type of manufacturer: SI6.0H-13
