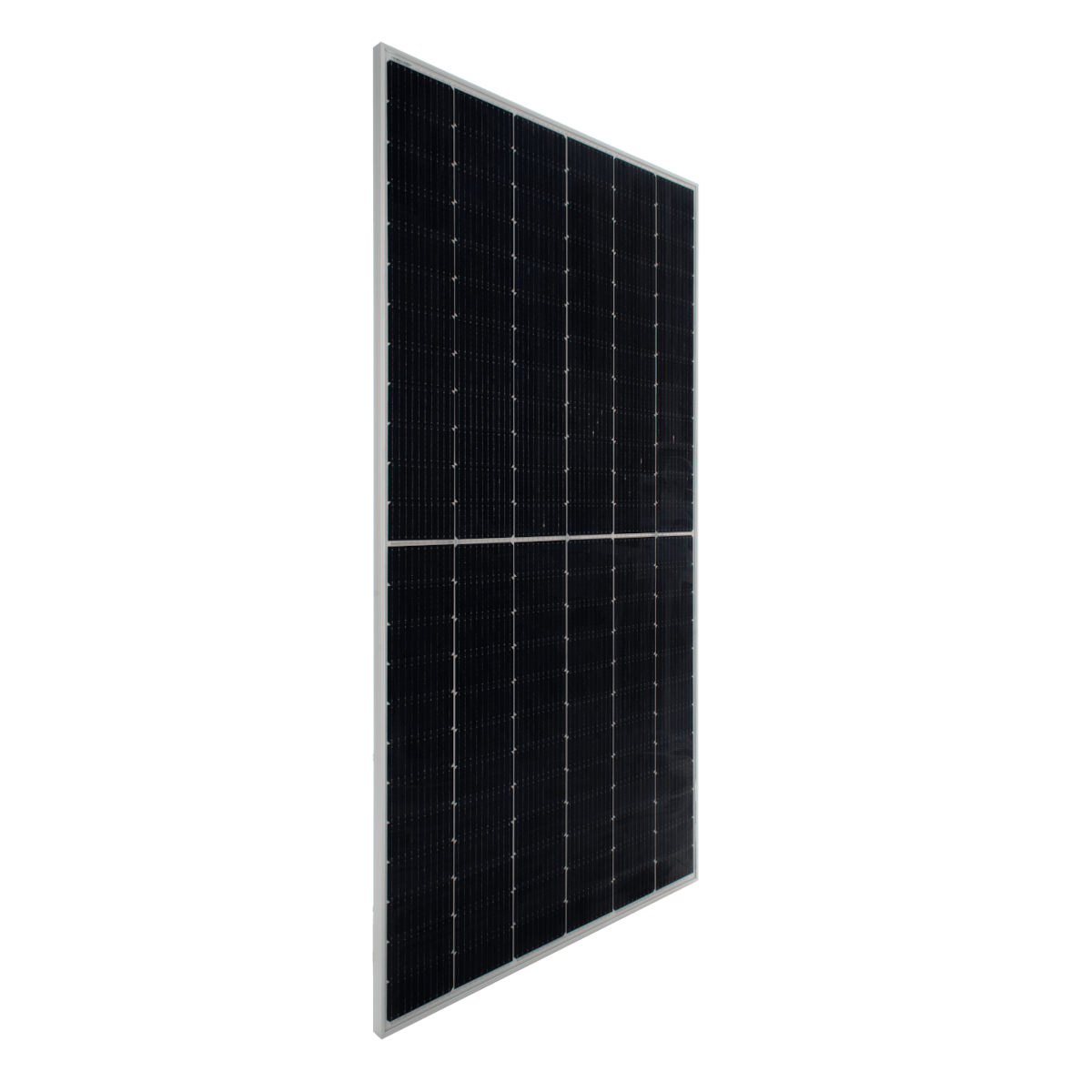

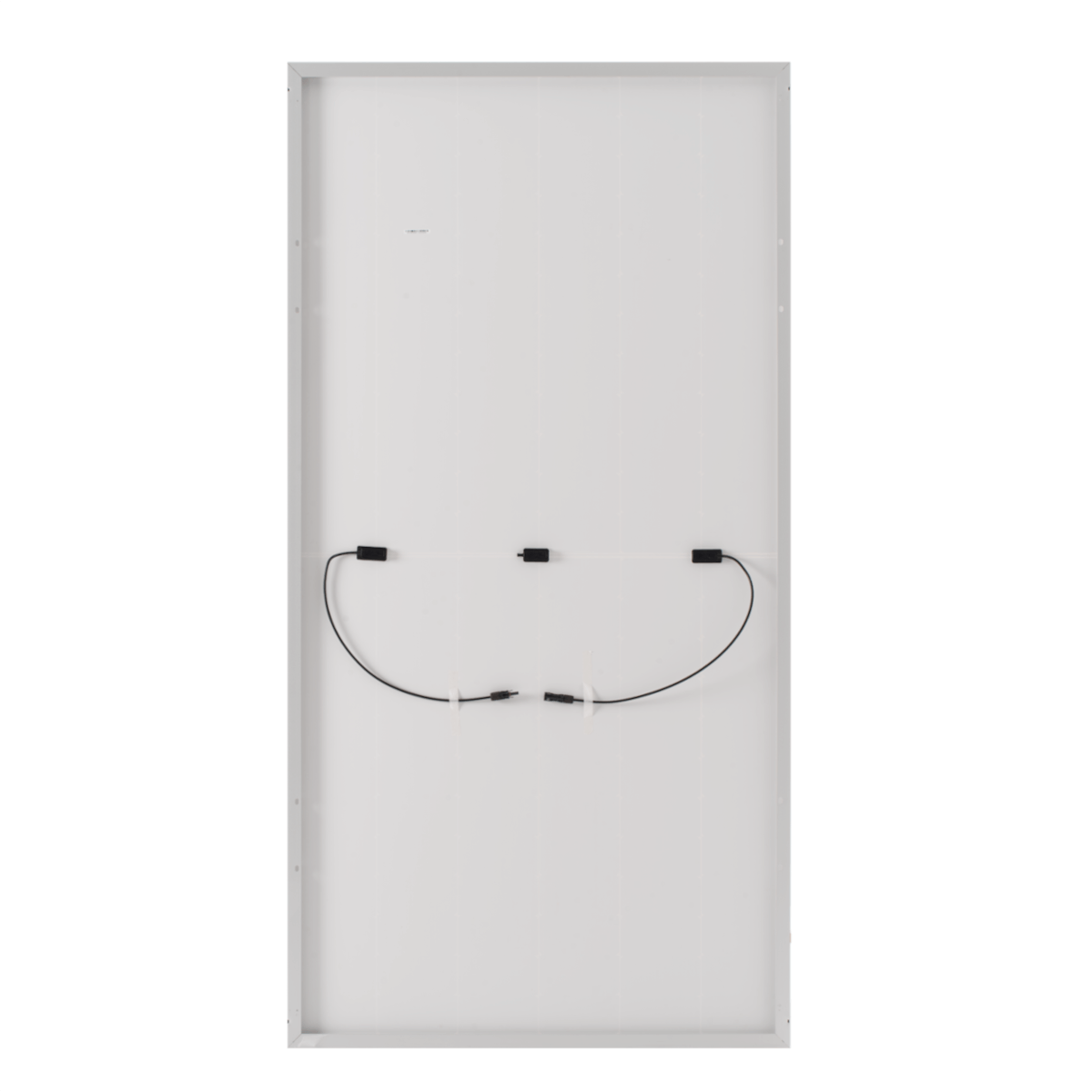

JinkoSolar JKM550M-72HL4-V
| Manufacturer Art. No.: | JKM550M-72HL4-V |
|---|---|
| Art. Nr.: | 9857 |
| Pieces per package unit: |
|
| Backsheet: | White |
| Dimensions: | 2278 x 1134 x 35 mm |
| Frame color: | Silver |
| Glass-glass: | 12 years |
| Power: | 550 Watt |
| Solar panel type: | Mono solar panels, Project solar panels, Solar park modules |
| Technology: | PERC |
| WEEE-Number: |
|
- Project articles
Jinko Tiger Neo P-type with 550 W for open areas
In Germany, the module is only suitable for open areas, since there are no regulatory permits for private homes!
JinkoSolar is a chinese company that was established in 2006 in Shanghai. In addition to the high efficiency of 21.29% and high resistance to extreme conditions, the module with 550 W output is well suited for diffuse sunlight. In addition, the new Tiger Neo P-Type series has an excellent resistance to salt and ammonia, which makes it perfect for roof mounting in areas with extreme weather conditions.
Product advantages
- 144 monocrystalline N-type cells
- 0/+3 % positive power tolerance
- Reduced hot spot loss
- 15 years product warranty
- 30 years linear power warranty
Product features JinkoSolar JKM550M-72HL4-V
- Power: 550 watts
- 1500 V (IEC certified)
- Frame color: Silver
- Efficiency: 21.29 %
- Dimensions: 2278 × 1134 × 35 mm (H x W x D)
- Weight: 28.0 kg
- Cable length: 1.60 m
- Connector type: MC4-EVO2
- Protection category: IP68
- Power temperature coefficient: -0.35% /°C
Module manufacturer JinkoSolar
The current world market leader JinkoSolar has been demonstrating leadership among the big players in the solar industry for many years and has already been able to break several efficiency records. JinkoSolar strives for a sustainable value chain.
Downloads
-
Matching accessories
-
- New

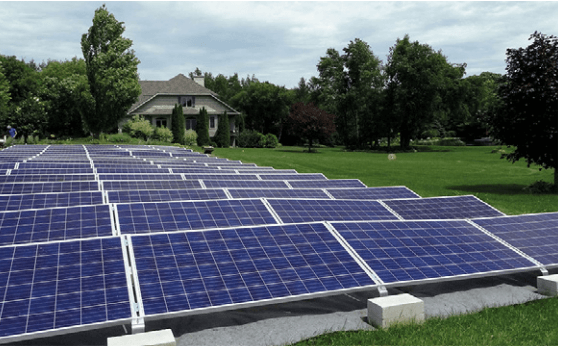

Alumero outdoor mounting system- Art. Nr.: 6208
