Janitza UMG 604 Pro

Janitza
Type of manufacturer: UMG 604-PRO
Manufacturer Art. No.: 5216202
Art. Nr.: 8575
Pieces per package unit:
  • per carton
Accessory type: Data-logger
WEEE-Number:
  • DE66352645
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 8575
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 8575
Description

Janitza Power Quality Analyser UMG 604 Pro

The UMG 604-Pro power analyzer reliably monitors the voltage quality and performs a detailed energy management. Due to the Ethernet port, a connection into the communication structure with a variety of IP protocols is possible. The energy meter can be installed easily and cost-effectively due to the top-hat rail mounting.



Product advantages

  • Easy installation thanks to top-hat rail mounting
  • Fast and reliable communication through connection in existing Ethernet architecture
  • High flexibility through use of open standards
  • Graphic programming possible
  • Large measurement data memory
  • High compatibility

Product features Janitza UMG 604 Pro

  • Supply voltage: 95 V ... 240 V (50/60 Hz) / DC 135 V ... 340 V
  • Power consumption: max. 3.2 W / 9 VA
  • Voltage measurement inputs: 3-phase 4-wire systems (L-N/L-L) max. 277 V / 480 V / 3-phase 3-wire systems (L-L) max. 480 V
  • Current measurement inputs: rated current 5A / rated current 6 A
  • Fuse protection for direct measurement: 6A type B
  • interfaces: S0, digital output, temperature measurement input, RS232 interface, RS485 interface, Profibus interface (option), Ethernet interface
  • Net weight: 350 g
  • Device dimensions: 107.5 mm x 90 mm x 82 mm

  • Matching accessories

    • Strommesswandler Main Image
      Current transducer 100/5 A not calibrated, class 1
      • Art. Nr.: 1300
      Available from stock
      { "id": "0aae2a73f4bf5f9e99a50f09373a2627", "item_brand": "", "item_name": "Current transducer 100/5 A not calibrated, class 1", "item_id": "1300", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0aae2a73f4bf5f9e99a50f09373a2627", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • KDK Strommesswandler Main Image
      Current transducer 150/5 A not calibrated, class 1
      • Art. Nr.: 3741
      Available from stock
      { "id": "43502a6758d35376be941c7af1d7c1d2", "item_brand": "", "item_name": "Current transducer 150/5 A not calibrated, class 1", "item_id": "3741", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "43502a6758d35376be941c7af1d7c1d2", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • KDK Strommesswandler Main Image
      Current transducer 200/5 A not calibrated, class 1
      • Art. Nr.: 1301
      Available from 02.12.2024
      { "id": "679c003c857b5feba3b0ada00d24ad2d", "item_brand": "", "item_name": "Current transducer 200/5 A not calibrated, class 1", "item_id": "1301", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "679c003c857b5feba3b0ada00d24ad2d", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • KDK Strommesswandler Main Image
      Current transducer 250/5 A not calibrated, class 1
      • Art. Nr.: 3742
      Available from stock
      { "id": "c581e3b9ab835ea181e635866e8a259b", "item_brand": "", "item_name": "Current transducer 250/5 A not calibrated, class 1", "item_id": "3742", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c581e3b9ab835ea181e635866e8a259b", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

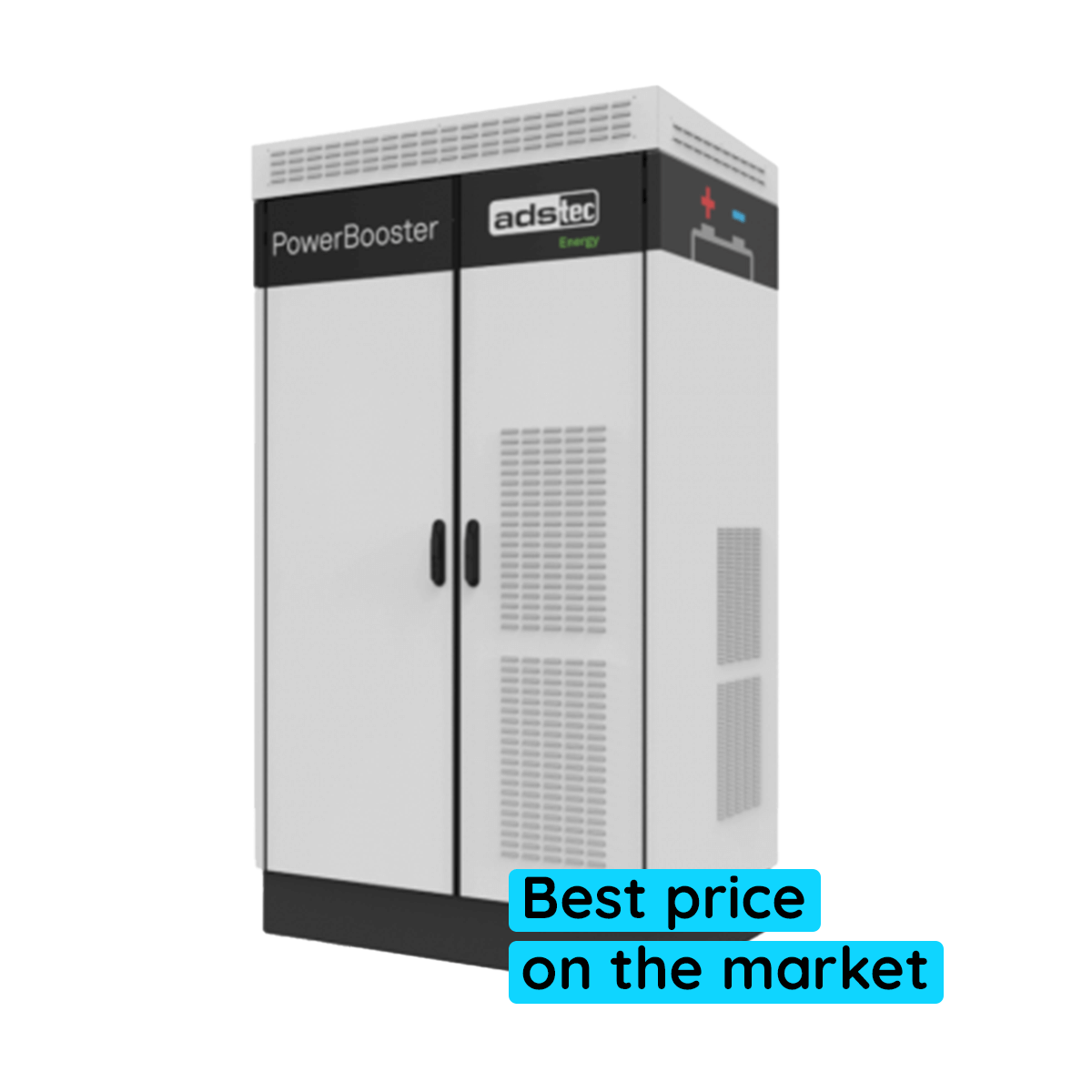

    • ads-tec Power Booster GSS0608
      ADS-TEC Energy PowerBooster GSS0608
      • Art. Nr.: 8353
      Available from 12.12.2024
      { "id": "bf5bc1cda057569aaa3a97fdf54c5006", "item_brand": "", "item_name": "ADS-TEC Energy PowerBooster GSS0608", "item_id": "8353", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "bf5bc1cda057569aaa3a97fdf54c5006", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

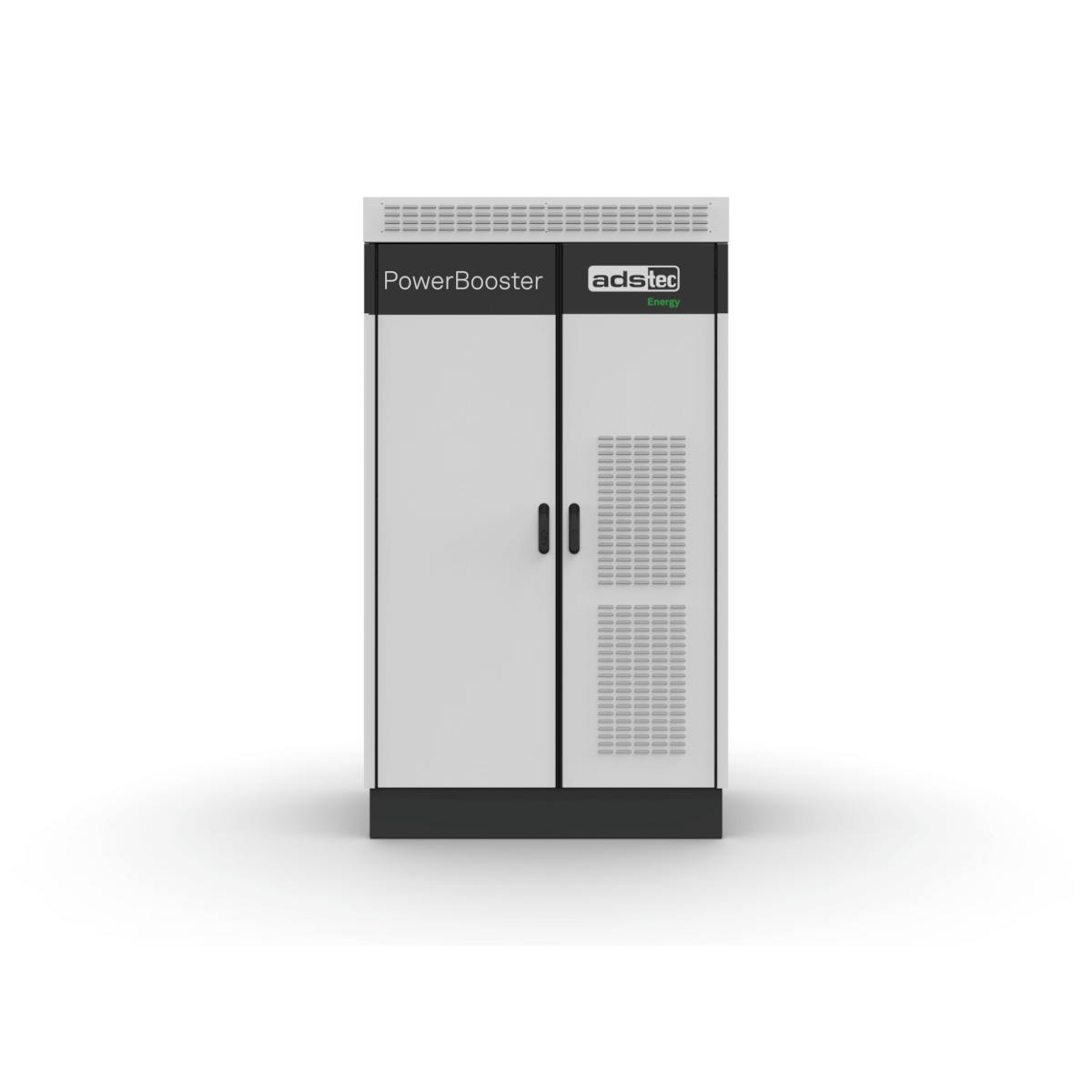

    • ads-tec Power Booster GSS0813
