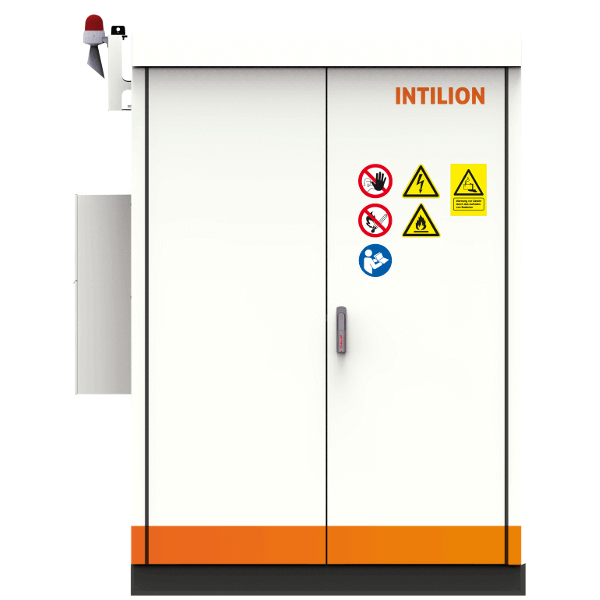

INTILION scalebloc power 50 kW / 73 kWh
| Art. Nr.: | 5949 |
|---|---|
| AC power: | 50 kW |
| Battery type: | High voltage NMC |
| Commercial storage type: | Outdoor use suitable, Peak Shaving, Self-consumption, Time of use |
| Net capacity: | 65,6 kWh |
| Schutzklasse: | IP55 |
| Warranty: | 10 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Project articles
Available from 03.02.2025
Product number:
5949
-
-
{ "id": "ee73b640134057759ed6ee8fc68929ff", "item_brand": "", "item_name": "INTILION EM24 energy meter", "item_id": "7128", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ee73b640134057759ed6ee8fc68929ff", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
INTILION scalebloc power - 25 kW power and 73 kWh capacity
Scalebloc offers an holistic, well-elaborated concept, which includes an inverter, the energy management system and the air-conditioned enclosure. The 73 kWh lithium-ion battery system forms the basis of the storage solution. Being enclosed in special fire protection racks in 19 inch standard, the battery modules are protected against fire and explosion and damage cannot spread. By means of the integrated 50 kVA bi-directional converter, a stable three-phase 400 V grid can always be provided. All components are optimally operated via a self-developed EMS, controlled for the respective application, and the data is provided in the cloud. A complete integration in an outdoor housing, which is specially designed for the scalebloc, rounds off the system solution.
Product advantages:
- Emergency power supply with 33% black start capability
- All-in-one solution with battery, inverter and all peripheral devices
- Outdoor housing allows a location-indipendent installation
- Directly ready-to-connect, as AC-coupled
- Integrated energy management system for direct illustration of various applications
- Compatibility with existing energy management systems
- Increased service life through innovative air-conditioning concept
- Full service availability through cloud connection
- Increased safety level through unique, mechanical fire prevention system
Features INTILION scalebloc power:
- Nominal battery capacity: 73 kWh lithium-ion battery - integrated in fire safety rack
- Usable battery capacity: 65.6 kWh
- Nominal power: 50 kW
- Overload capacity in grid-forming operation: 125% for 10 min, 150% for 1 min
- Smart air-conditioning concept - uniform temperature control of all components
- 19” standard platform - simple spare parts handling and installation
- EMS - possible mapping of applications
- Cloud connection - full service availability and monitoring
- Integrated overvoltage & lightning protection
- Integrated AC fuse
- Backup power supply und stand-alone operation
- Protection class: IP55 - indipendent installation
- Weight: 950 kg
- Dimensions 2.030 mm x 1.618 mm x 1.026 mm (H x W x D)
- Product warranty: 5 years
- Performance guarantee: 10 years
Options EMS:
- Modbus protocol for the integration in a separate EMS
- INTILION EMS incl. EM24 energy meter
- Smart1 EMS incl. energy meter
Optional set-up:
- INTILION training in Paderborn (minimum requirement!)
- INTILION building supervision
- INTILION set-up service
Optional air-conditioner:
- Left air-conditioner
- Right air-conditioner
Optional master/slave:
- INTILION as master
- INTILION as slave
The scalable AC-coupled lithium-ion battery storage system in an air-conditioned outdoor housing from Intilion.
Want more power and capacity?
Up to 16 scaleblocs can be combined into one system via the master/slave function. This allows a maximum capacity of 986.4 kWh.
Larger systems can also be realised, but in this case we reccomend a container solution.
-
