GoodWe Lynx Home F Plus – LX F6.6-H with GoodWe ET Plus 16A – GW5KN-ET
| Art. Nr.: | 9009 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | GW5KN-ET |
| Net capacity: | 6.55 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | LX F6.6-H |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
9009
Description
The GoodWe Lynx Home F Plus – LX F6.6-H with GoodWe ET Plus 16A – GW5KN-ET storage package
With the manufacturer's proprietary comprehensive solution, GoodWe offers the Lynx Home F Plus high-voltage battery together with the 3-phase hybrid inverter of the ET Plus series 16A series. Both systems are coordinated with each other and serve to optimize self-consumption. Working together, they can continue to supply selected loads with power in the event of a grid failure. Other loads such as wallboxes and heat pumps can also be integrated via the potential-free contact in the hybrid inverter.
Package advantages
- 3-phase smart meter already included in the ET Plus Series 16A series
- Capable of emergency power
- High battery safety standard VDE 2510-50
- Integration into the SEMS portal
Product features Lynx Home F Plus – LX F6.6-H
- Usable battery capacity: 6.55 kWh
- Rated voltage: 204.8 V
- Rated charge/discharge power: 5.12 kW
- Rated charge/discharge current: 25 A
- Communication: CAN
- Temperature range: Discharge: -20°C - 50 °C
- Temperature range: Charging: 0°C - 50°C
- No battery upgrade possible for the time being
- Parallel connection of up to 8 towers (up to 131 kWh)
- Dimensions: 625 x 600 x 380 mm (H x B x T)
- Weight of PCU and base: 25 kg / 4 kg
- Weight of a battery module: 43 kg
- Protection category: IP 55

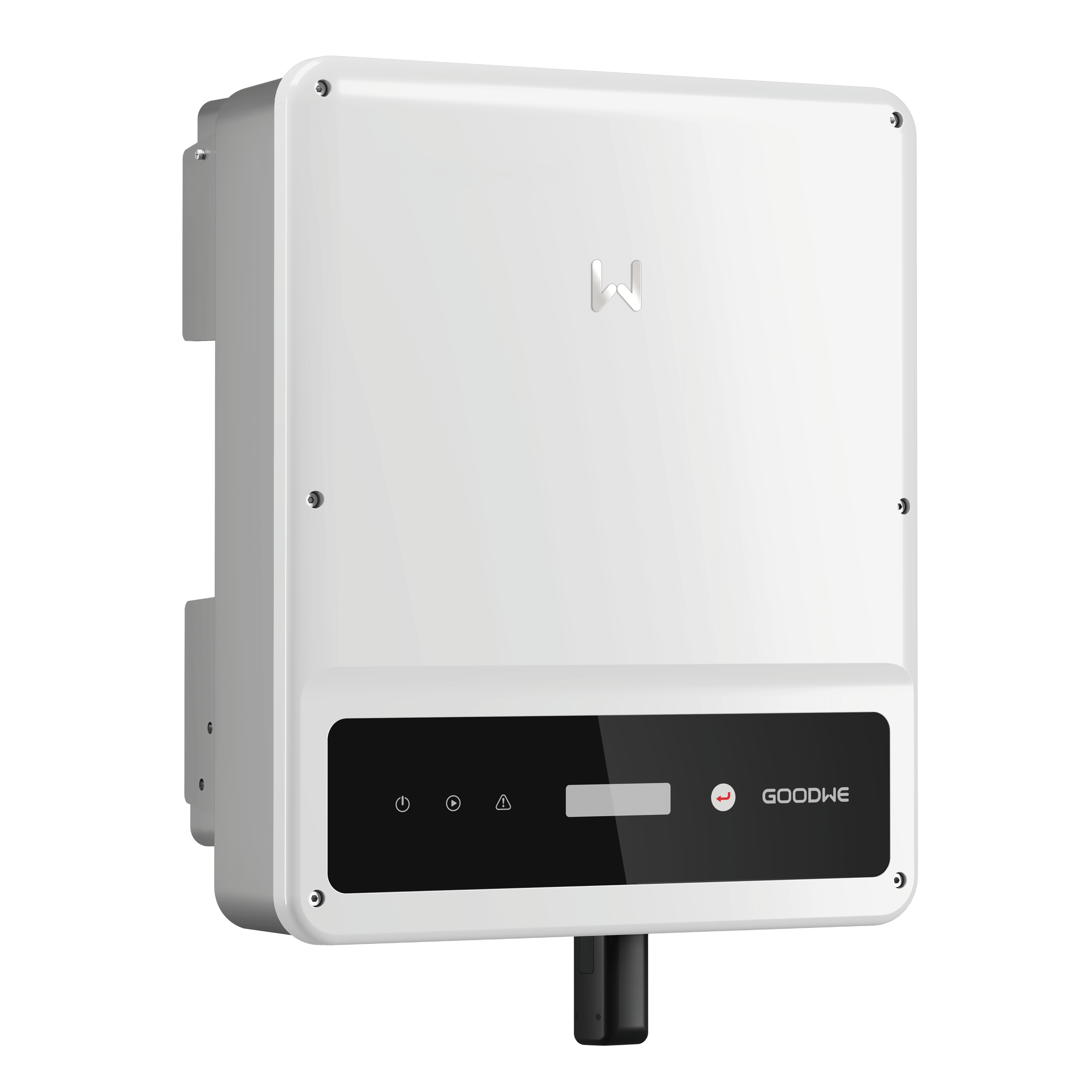

Product features GW5KN-ET
- Mains connection: 3-phase
- AC output: 5.0 kVA
- 5.0 kW emergency power output via separate output
- MPP trackers: 2
- String connections per MPPT: 1
- Max. input current per MPPT: 16 A
- Max. short circuit current per MPPT: 21.2 A
- Communications: RS485, Wi-Fi (optionally LAN)
- Potential-free contact available (programmable via PV-Master APP) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- Wi-Fi module included
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection category: IP66
- Weight: 24.0 kg
Scope of delivery
- Lynx Home F Plus – LX F6.6-H consisting of 1 PCU and 2 battery modules
- GoodWe ET Plus 16A – GW5KN-ET including 3-phase smart meter
