GoodWe Lynx D – battery storage tower 10kWh
| Art. Nr.: | 13061 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Net capacity: | 10 kWh |
| Phases: | 3 |
| Solar battery type: | 3-phase, High voltage battery |
| Warranty: | 10 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from stock
Product number:
13061
-
-
{ "id": "0cc7b5760b7254bd94f2272e7d5f5e4b", "item_brand": "", "item_name": "GoodWe Lynx D wall bracket", "item_id": "12787", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0cc7b5760b7254bd94f2272e7d5f5e4b" } } -
{ "id": "36e89c7e623753aeab1b2e14b45faaa1", "item_brand": "", "item_name": "GoodWe Lynx D base plate", "item_id": "12788", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "36e89c7e623753aeab1b2e14b45faaa1" } }
-
Description

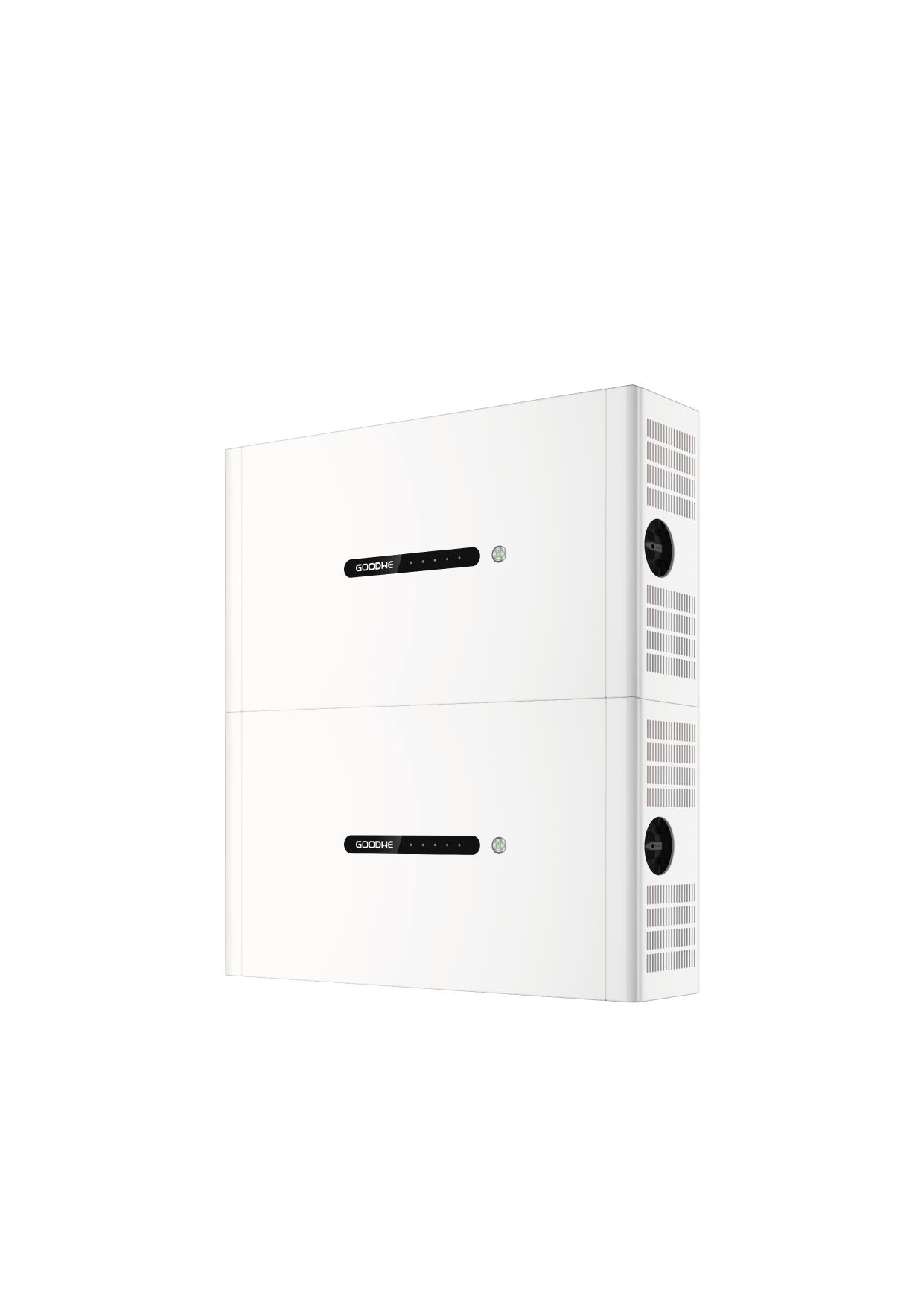

10 kWh Lynx D high-voltage battery storage tower from GoodWe
The mounting system (base plate or wall bracket) is not included with the battery and must be purchased separately!
Item number base plate: 12788
Item number wall bracket: 12787
The Lynx D high-voltage battery storage tower from GoodWe is a stackable, self-recognizing battery storage system. It is easy to install and allows new and old battery modules to be connected for future expansion. The battery tower can be expanded to up to 8 battery modules with a usable storage capacity of up to 40 kWh.
The high-voltage battery tower is compatible with the hybrid inverters of the GoodWe ET and EH series, among others, and represents a complete solution from a single manufacturer.
Product advantages
- Stackable design saves space
- Flexible module expansion – up to 8 stackable modules (40 kWh)
- Simple installation thanks to plug and play connection between the individual battery modules
- Suitable for indoor and outdoor installation
- Integrated display of the charge status
- Includes multi-purpose button (e.g. for displaying error codes)
- Emergency power capability
- DC/DC converter implemented
- 10-year product warranty
Product features GoodWe Lynx D – LX D5.0-10
- Cell type: LiFePO4
- Usable battery capacity: 10 kWh
- Nominal voltage: Charging per battery module: 435 V; Discharging: 380 V
- Nominal charging/discharging power: 6 kW
- Communication: CAN
- Temperature range: Discharging: -20°C – 53 °C
- Temperature range: Charging: 0°C – 53°C
- Battery module retrofit possible
- Dimensions: 760 x 700 x 170 mm (H x W x D)
- Weight: 104 kg
- Protection category: IP 66
- Installation type: Floor-stacked / wall-mounted (base plate / wall bracket must be ordered separately)
Scope of delivery
- 2 x battery storage LX D5.0-10
Compatible with
- GoodWe ET series / ET Plus series and BT series (3-phase)
- GoodWe EH series and BH series (1-phase)
-
