GoodWe Lynx C – LX C138-10
| Art. Nr.: | 9461 |
|---|---|
| Battery type: | High voltage LFP |
| Commercial storage type: | Emergency power capable, Peak Shaving, Self-consumption, Time of use |
| Net capacity: | 138,24 kWh |
| Schutzklasse: | IP20 |
| Warranty: | 10 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from 31.03.2025
Product number:
9461
Description
The GoodWe commercial storage Lynx C – LX C138-10
The GoodWe Lynx C series commercial storage (101-156 kWh) can be used to implement commercial and industrial projects. The high voltage battery is compatible with the 50 kW hybrid inverter of the ETC series and the 50 kW battery inverter of the BTC series. Thus, new and existing PV systems can be upgraded with the commercial storage system. Self-consumption optimization, peak load capping, emergency power supply and Time of Use function are included.
Product advantages
- Compact design for indoor use
- Peak shaving with ETC/BTC
- Emergency power supply with ETC/BTC
- Parallel connection of up to 3 Lynx C system cabinets
- Integration into the SEMS portal
Product features LX C138-10
- Usable battery capacity: 138.24 kWh
- Rated voltage: 576 V
- Rated power: 57.6 kW
- Rated charge/discharge current: 100 A
- Communication: CAN, RS485
- Temperature range: Discharge: -20°C – 50 °C
- Temperature range: charging: 0°C – 45°C
- For the time being no battery module upgrade possible
- Dimensions: 2065 x 1155 x 730 mm (H x W x D)
- Weight of one battery module: 85 kg
- Total weight: 1480 kg
- Protection category: IP 21
- Warranty: 5 years
Scope of delivery
- GoodWe Lynx C – LX C138-10 system rack incl. PCU and accessories
- GoodWe Lynx C – 15x battery modules at 9.21 kWh
Compatible with
- GoodWe ETC hybrid inverter 50 kW
- GoodWe BTC battery inverter 50 kW
-
Matching accessories
-

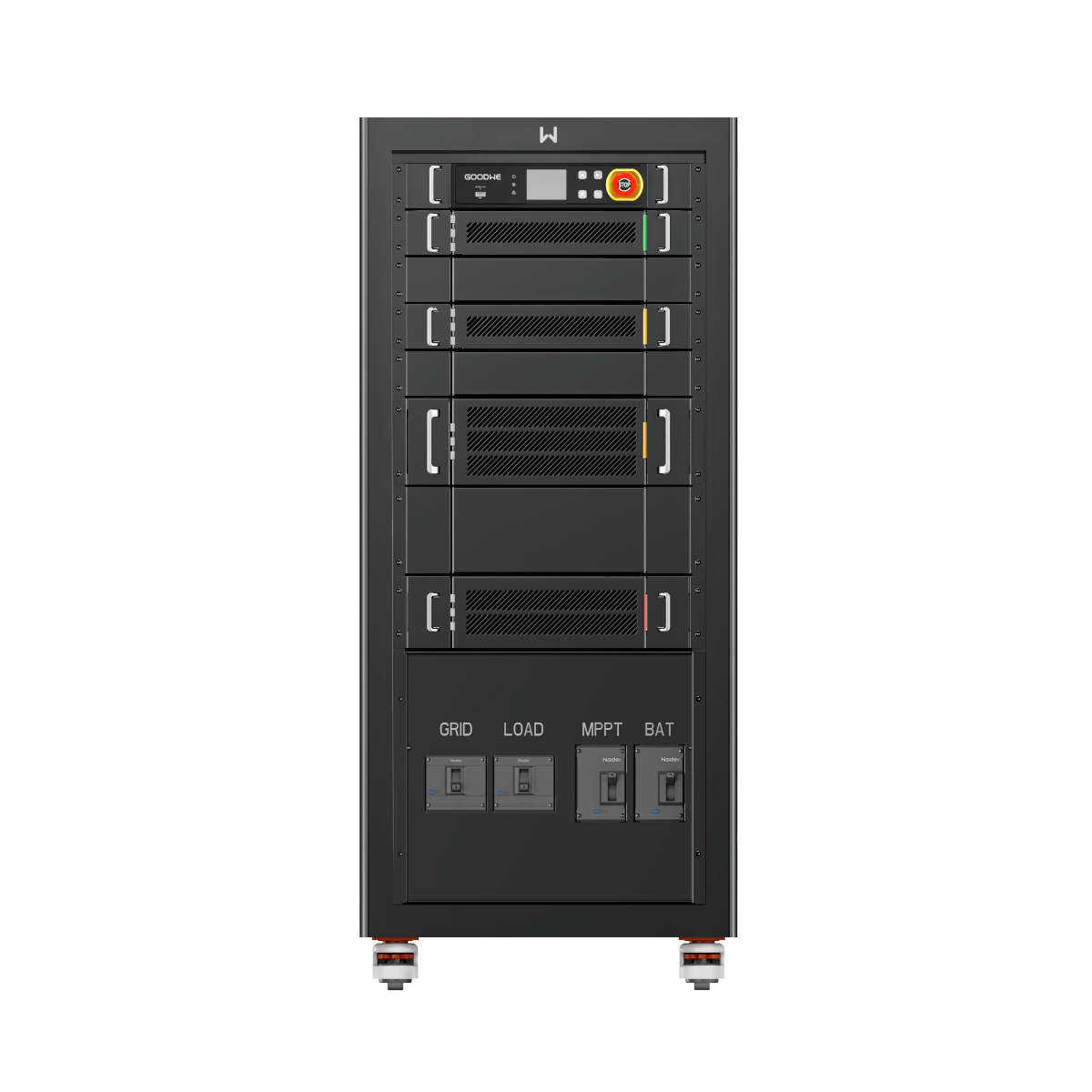

GoodWe ETC – GW50K-ETC- Type of manufacturer: GW50K07-ETC
- Art. Nr.: 9383
Available from 13.03.2025{ "id": "cbae470486b95f5580b1b61a8070b2e5", "item_brand": "", "item_name": "GoodWe ETC – GW50K-ETC", "item_id": "9383", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "cbae470486b95f5580b1b61a8070b2e5", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
GoodWe BTC – GW50K-BTC- Type of manufacturer: GW50K07-BTC
- Art. Nr.: 9385
Available from 28.11.2024{ "id": "26fe74c6435c5e53998aafb1d80387d7", "item_brand": "", "item_name": "GoodWe BTC – GW50K-BTC", "item_id": "9385", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "26fe74c6435c5e53998aafb1d80387d7", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

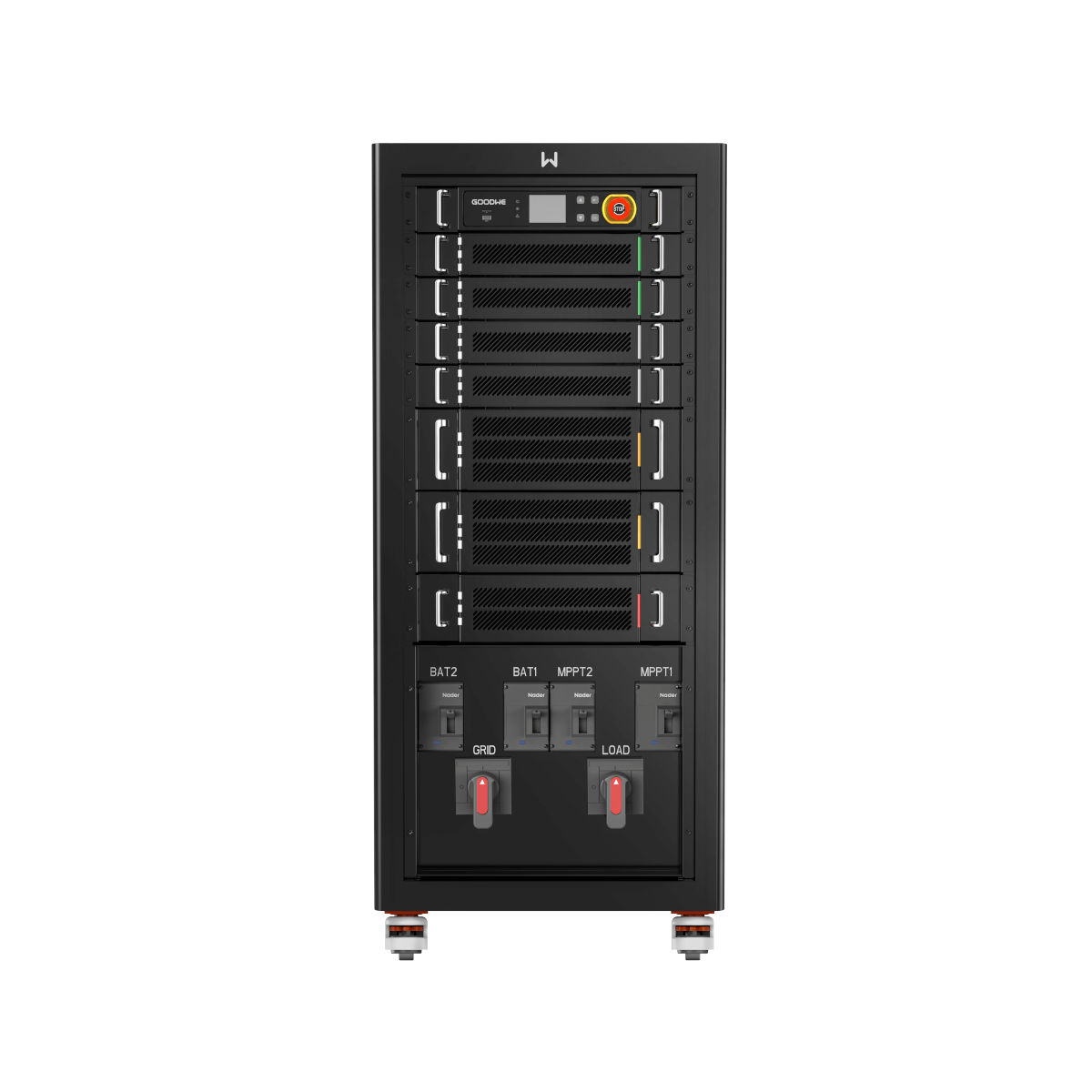

GoodWe ETC – GW100K07-ETC- Type of manufacturer: GW100K07-ETC
