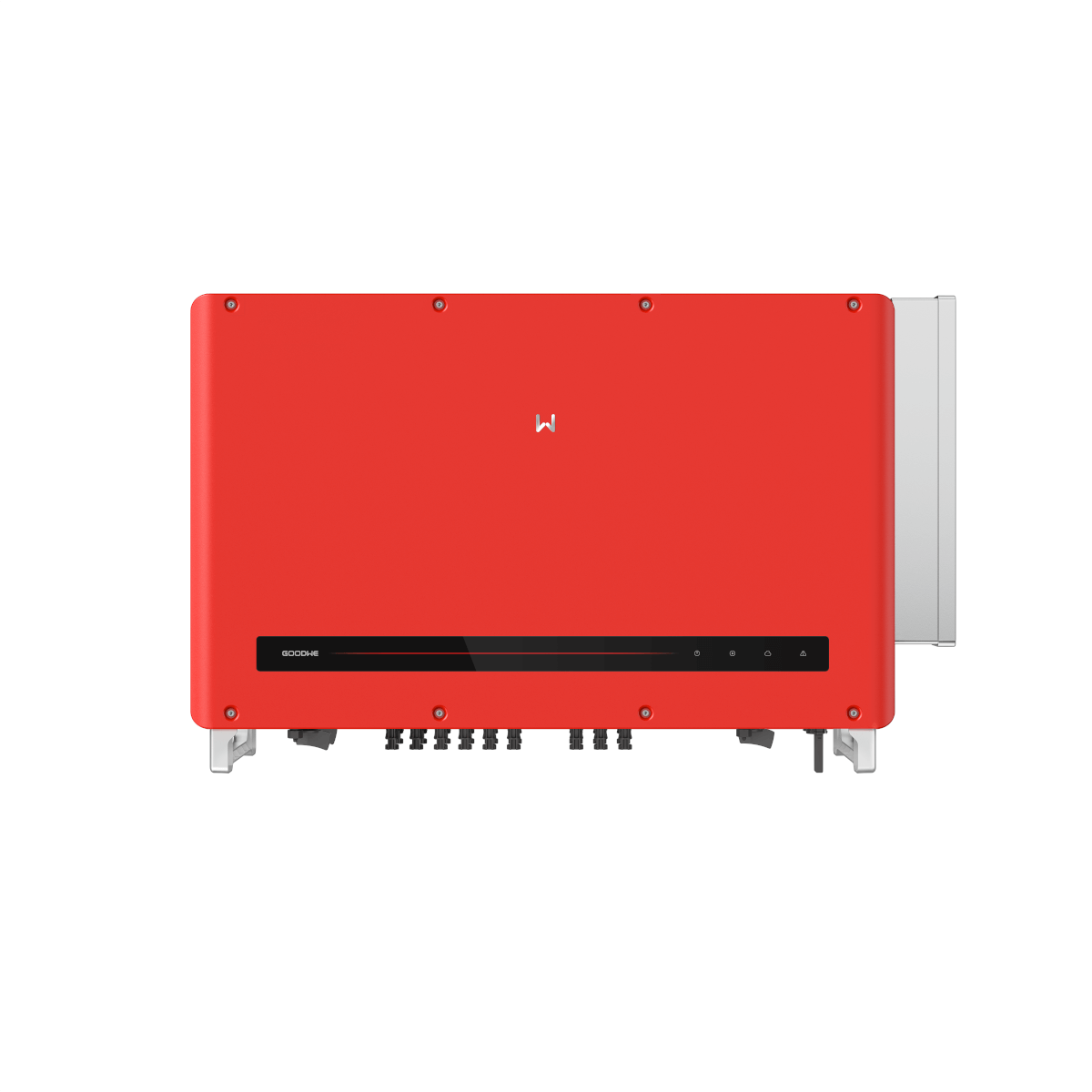

GoodWe HT – GW250K-HT
| Type of manufacturer: | GW250K-HT |
|---|---|
| Manufacturer Art. No.: | - |
| Art. Nr.: | 9324 |
| Pieces per package unit: |
|
| AC power: | 250 kW |
| Communication: | RS485 |
| Inverter type: | Project inverter |
| MPP-Tracker: | 12 |
| MPP voltage range: | 500 - 1500 Volt |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- % Clean Deals
Available from stock
Product number:
9324
Description
GoodWe commercial inverter GW250K-HT from the HT series
Only approved for VDE-AR-N 4110. The inverter requires an 800 V grid!
The commercial inverter GW250K-HT by GoodWe has 12 MPP trackers and is suitable for large PV ground-mounted and rooftop systems. The inverter has IP 66 protection rating and can even operate optimally in harsh conditions. Its high input current makes it compatible with high power modules.
Product advantages
- High input current of 15 A per string
- AC and DC overvoltage protection type 2 integrated
- Corrosion protection class C5
- Wall mount included
- Integration into the SEMS portal
Product features GW250K-HT
- Mains connection: 800 V, 3-phase
- AC power: 250 kVA
- MPPT voltage range from 500 – 1500 V
- MPP trackers: 12
- String connections per MPP tracker: 2
- Max. input current per MPPT: 30 A
- Max. short circuit current per MPPT: 50 A
- Communications: RS485
- Commissioning via included Bluetooth USB stick and SolarGo App
- Dimensions: 678 x 1091 x 341 mm (HxWxD)
- Protection category: IP 66
- Weight: 111 kg
- Warranty: 5 years
Videos
Videos
-
GoodWe GW250K-HT - AC cables wiringThe YouTube video has been blocked due to the cookie settings.
-
