GoodWe ETC – GW50K-ETC
| Type of manufacturer: | GW50K07-ETC |
|---|---|
| Manufacturer Art. No.: | ETC0050-07-00P |
| Art. Nr.: | 9383 |
| Pieces per package unit: |
|
| AC power: | 50 kW |
| Communication: | RS485, WiFi, LAN |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| MPP-Tracker: | 1 |
| MPP voltage range: | 250 - 850 Volt |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from 13.03.2025
Product number:
9383
-
-
{ "id": "2d14ea970aef5016b20229fe1951076e", "item_brand": "", "item_name": "GoodWe Smart Meter GM3000C", "item_id": "9340", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2d14ea970aef5016b20229fe1951076e", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "7f96f27672875de09bf991b653b26066", "item_brand": "", "item_name": "Current transducer 200/5 A, not calibrated, folding", "item_id": "4122", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f96f27672875de09bf991b653b26066", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
Current transducer 250/5 A, not calibrated, folding- Art. Nr.: 4123
- Diverse
Available from 02.12.2024{ "id": "b92e37b743b45fc5918a13d69f610bda", "item_brand": "", "item_name": "Current transducer 250/5 A, not calibrated, folding", "item_id": "4123", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b92e37b743b45fc5918a13d69f610bda", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description

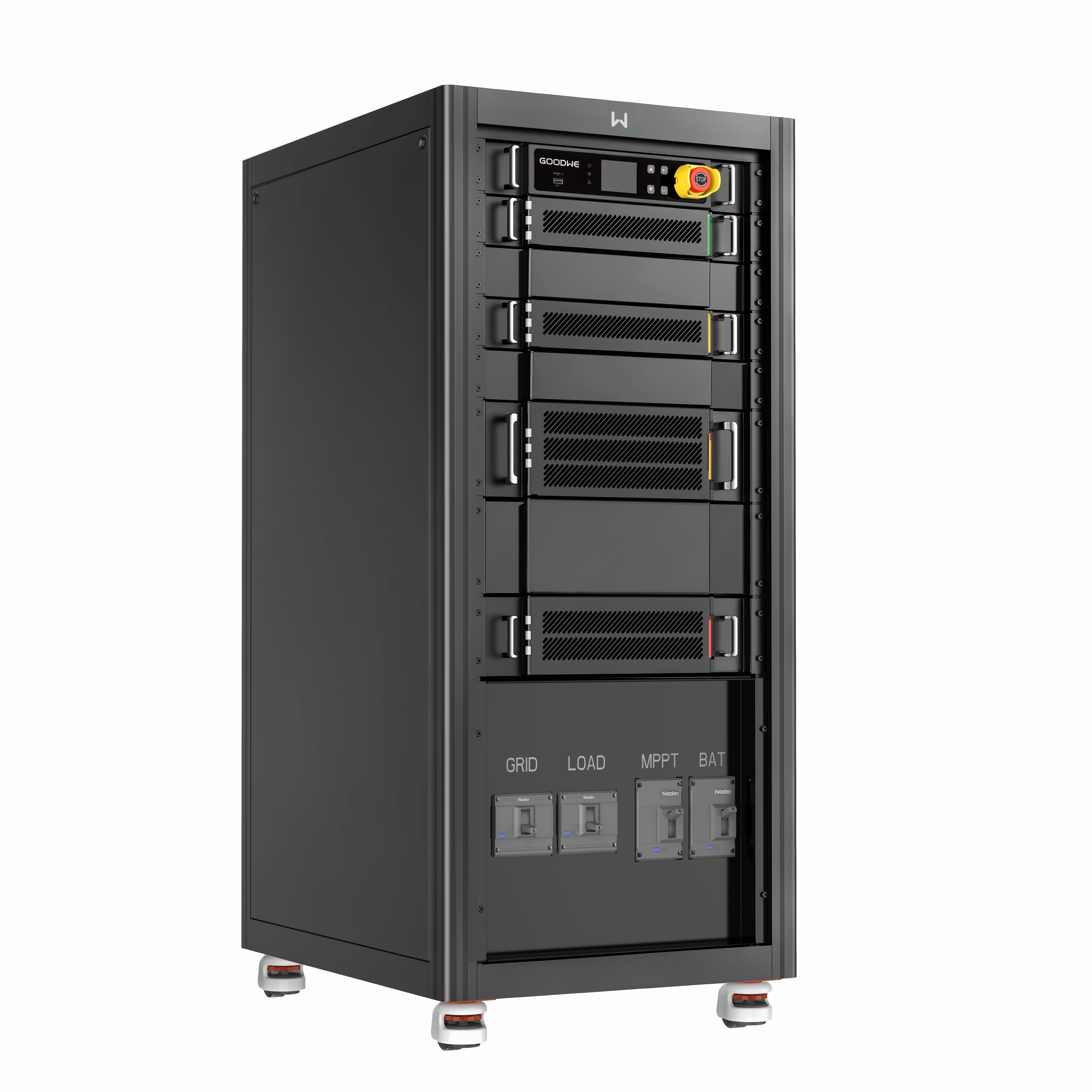

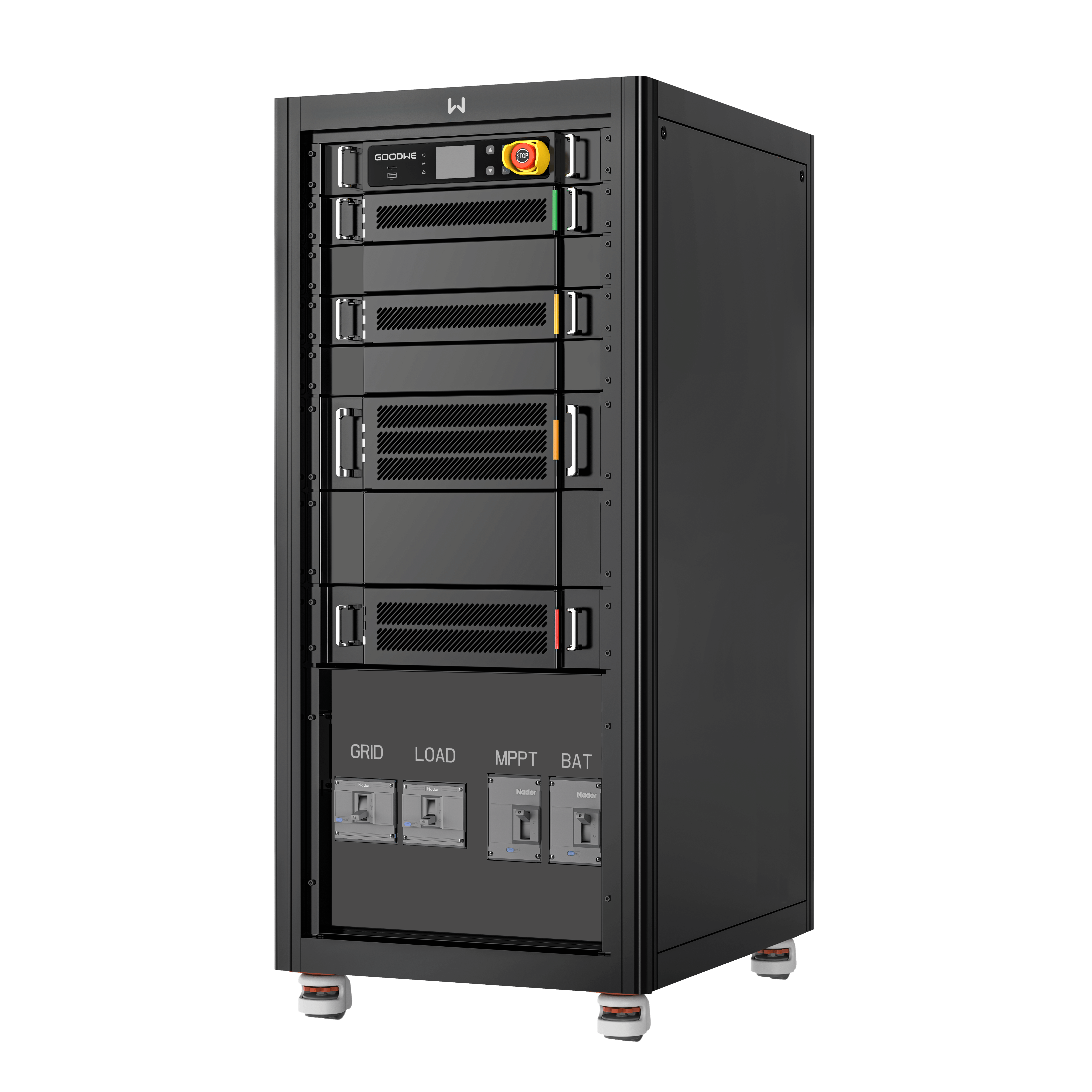

The GoodWe ETC hybrid inverter with 50 kW AC power
The ETC cannot process radio ripple control receiver signals directly. Only remote shutdown with the levels 0 and 100% is possible.
The GM3000C smartmeter is included in the scope of delivery. The 3 corresponding current transformers must be purchased separately.
With the GoodWe hybrid inverter 50 kW and the GoodWe Lynx C battery (101 - 156 kWh), energy storage systems can be implemented in commercial and industrial applications. The hybrid inverter can be connected to an existing or new PV system. The GW50K-ETC has an IP20 protection category and is suitable to be installed indoors. The hybrid inverter has 1 MPPT, allowing up to 8 strings to be connected. The combinable operating functions self-consumption, peak load capping, emergency power function and time of use are included.
Product advantages
- Peak shaving
- AC and DC overvoltage protection type 2 integrated
- Emergency power with 50 kW
- Black start capability
- 3-phase smartmeter GM3000C included in delivery
- Integration into the SEMS portal
Product features GW50K-ETC
- Mains connection: 400 V, 3-phase
- AC power: 50 kVA
- 50.0 kW emergency power output via separate output
- MPP tracker: 1
- String connections per MPPT: 8
- Max. input current per MPPT: 100 A
- Max. short circuit current per MPPT: 125 A
- Communication: RS485, Wi-Fi, LAN
- 3-phase smart meter GM3000C included in scope of delivery
- Commissioning via SolarGo App
- Dimension: 1360 x 585 x 750 mm (H x W x D)
- Protection category: IP 20
- Weight: 142 kg
Battery compatibility
- GoodWe Lynx C (101-156 kWh)
