GoodWe ET 15 - GW15K-ET

GoodWe
  • GoodWe ET 15
  • GoodWe ET 15
Type of manufacturer: GW15K-ET
Manufacturer Art. No.: ETT0015-02-01P
Art. Nr.: 8717
Pieces per package unit:
  • per carton
  • per pallet
  • per container
AC power: 15 kW
Communication: RS485, WiFi, CAN
Inverter type: Asymmetric inverters, Hybrid inverter
MPP-Tracker: 2
MPP voltage range: 200 - 850 Volt
Phases: 3
Warranty: 5 years
WEEE-Number:
  • DE33154372
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 8717
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 8717
  • Tech tip

    A firmware update can be carried out using the ticket system via the GoodWe service. The second way to perform a firmware update is via the integrated Bluetooth function in the inverter. Please note that the Bluetooth function of the inverter cannot be coupled directly with the smartphone. The pairing must be done via the setting in the SolarGo app. Further instructions are available in the download area.


  • Links
    Additional links
Description

GoodWe Hybrid High Voltage GW15K-ET inverter from the ET Series with Emergency Power Output

The purchase of a GoodWe warranty extension is now only possible directly via the GoodWe SEMS portal.

We recommend participation in the GoodWe Plus training. The prerequisite for this is the creation of an installer account in the GoodWe SEMS portal.

The GoodWe ET 15-30 series is designed for large PV projects in the residential sector and for small projects in the commercial sector. The highest inverter output on the AC side is 29.9 kVA. A central mains and system protection is not required. The GoodWe hybrid inverter has an integrated switchover device for backup power. This enables the inverter to continue supplying selected loads with emergency power in the event of a grid failure. The hybrid inverter is black start capable and can recharge with solar power.

Product advantages

  • Integrated switchover device for backup power
  • Black start capability
  • Peak shaving function
  • AC charge-capable
  • DC overvoltage protection type 2 integrated
  • Direct connection to a ripple control receiver
  • AC overvoltage protection

Product features GW15K-ET

  • Mains connection: 3 phase
  • AC power: 15,0 kVA
  • 15.0 kW emergency power through separate outlet
  • MPP tracker: 2
  • String connections per MPPT: 2
  • Max. Input current per MPPT: 30 A
  • Max. Short-circuit current per MPPT: 38 A
  • Battery connection for high-voltage battery (GoodWe, BYD)
  • Communication: RS485, CAN, Wi-Fi, Bluetooth
  • Potential-free contact available (programmable via PV-Master APP) (SG-Ready)
  • 3-phase smart meter included
  • WiFi module included
  • Dimensions: 520 x 660 x 220 mm (HxWxD)
  • Protection class: IP66
  • Weight: 46.0 kg

Battery compatibility

  • GoodWe Lynx Home F, GoodWe Lynx Home F Plus, BYD HVM/HVS

  • Matching accessories

    • GoodWe WiFi+LAN Kit-20
      GoodWe Wi-Fi + LAN Kit-20
      • Type of manufacturer: WLA0000-01-00P
      • Art. Nr.: 11148
      Available from stock
      { "id": "69446bf112025d868c95a5cd102af627", "item_brand": "", "item_name": "GoodWe Wi-Fi + LAN Kit-20", "item_id": "11148", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "69446bf112025d868c95a5cd102af627", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • GoodWe EzLink 3000
      GoodWe EzLink 3000
      • Type of manufacturer: GA10081-99-00P
      • Art. Nr.: 11403
      Ab Lager verfügbar
      { "id": "207f8657a8b4532ebdcc1b364f2fb5d7", "item_brand": "", "item_name": "GoodWe EzLink 3000", "item_id": "11403", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "207f8657a8b4532ebdcc1b364f2fb5d7", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • GoodWe EV Charger
      • % Clean Deals
      GoodWe EV charger 11 kW cable 6 m
      • Type of manufacturer: GW11K-HCA
      • Art. Nr.: 8996
      Available from stock
      { "id": "e79cfc9308c95d039f30e2a30fcbc55d", "item_brand": "", "item_name": "GoodWe EV charger 11 kW cable 6 m", "item_id": "8996", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e79cfc9308c95d039f30e2a30fcbc55d", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • GoodWe EV Charger
      • % Clean Deals
      GoodWe EV charger 22 kW cable 6 m
      • Type of manufacturer: GW22K-HCA
      • Art. Nr.: 8999
      Available from stock
      { "id": "f18e0f5b8d42525aa0671b1b1833c21b", "item_brand": "", "item_name": "GoodWe EV charger 22 kW cable 6 m", "item_id": "8999", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f18e0f5b8d42525aa0671b1b1833c21b", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • Spelsberg Notstrombox STV 502-K Bild

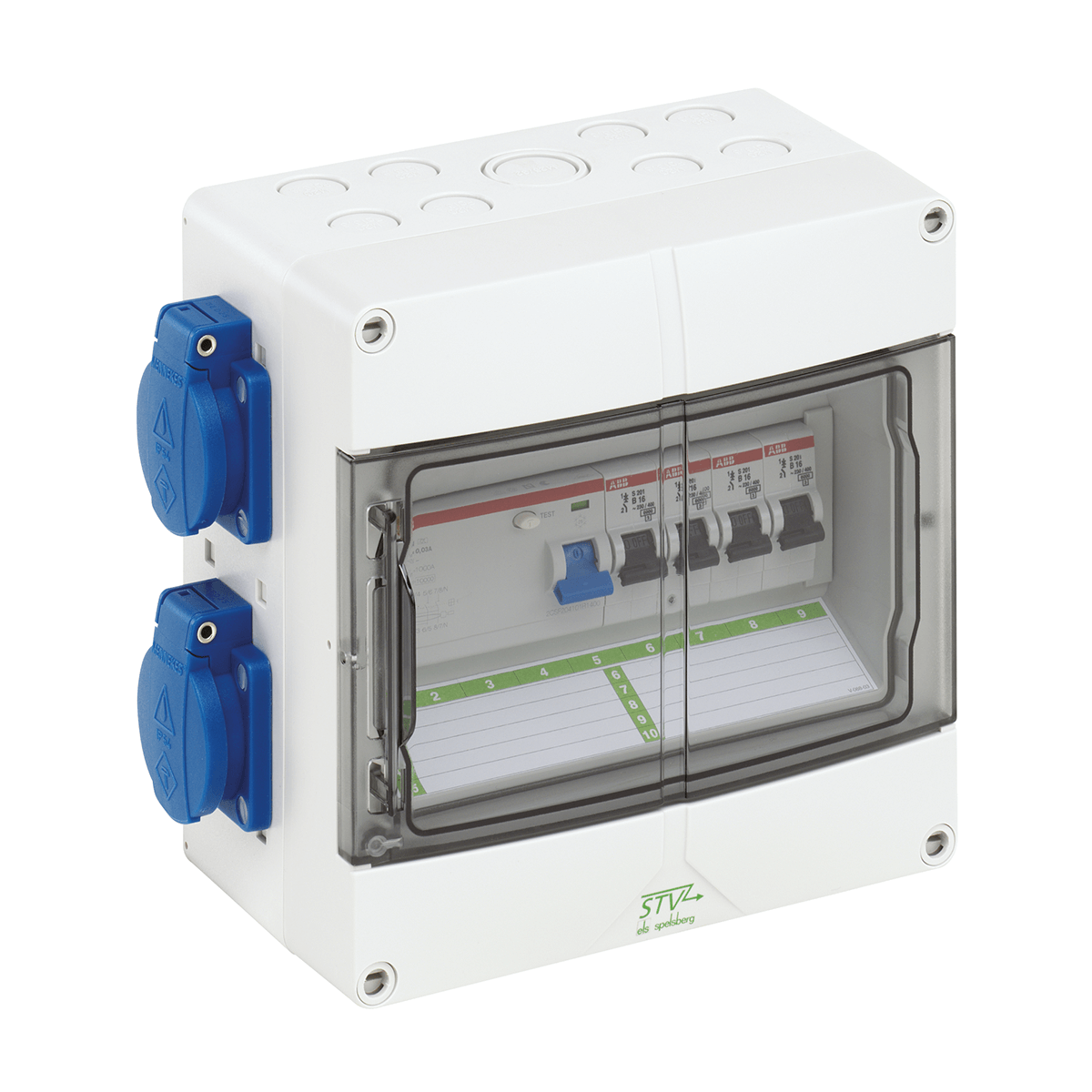

      Spelsberg Backup-Box STV 904-K
