GoodWe BTC – GW50K-BTC
| Type of manufacturer: | GW50K07-BTC |
|---|---|
| Manufacturer Art. No.: | BTN0050-04-00P |
| Art. Nr.: | 9385 |
| Pieces per package unit: |
|
| AC power: | 50 kW |
| Communication: | RS485, WiFi, LAN |
| Inverter type: | Battery inverter |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
9385
-
-
{ "id": "2d14ea970aef5016b20229fe1951076e", "item_brand": "", "item_name": "GoodWe Smart Meter GM3000C", "item_id": "9340", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2d14ea970aef5016b20229fe1951076e" } } -
{ "id": "7f96f27672875de09bf991b653b26066", "item_brand": "", "item_name": "Current transducer 200/5 A, not calibrated, folding", "item_id": "4122", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f96f27672875de09bf991b653b26066" } } -
{ "id": "b92e37b743b45fc5918a13d69f610bda", "item_brand": "", "item_name": "Current transducer 250/5 A, not calibrated, folding", "item_id": "4123", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b92e37b743b45fc5918a13d69f610bda" } }
-
Description

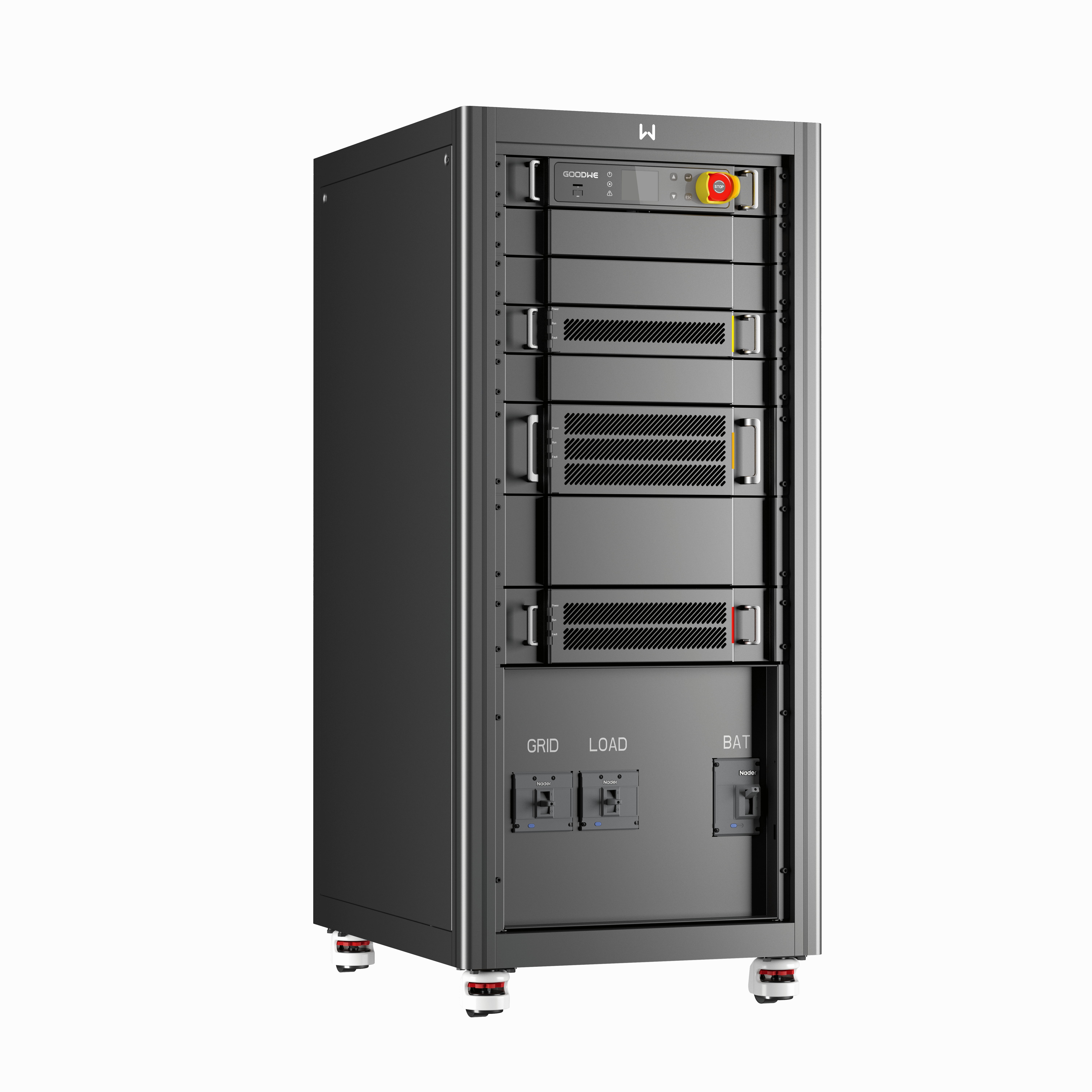

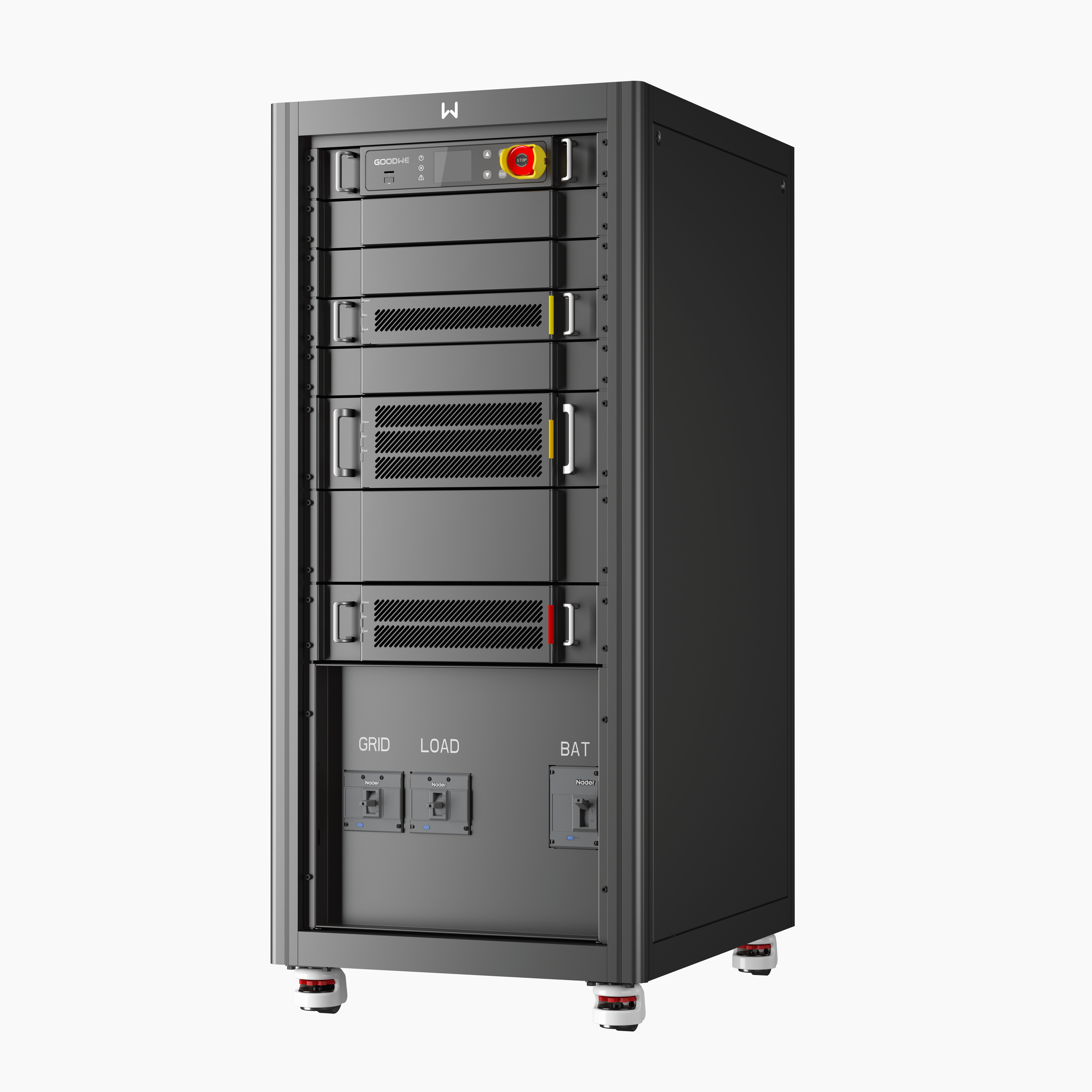

The GoodWe BTC battery inverter with 50 kW AC power
The GM3000C smartmeter is included in the scope of delivery. The 3 corresponding current transformers must be purchased separately.
With the GoodWe battery inverter 50 kW and the GoodWe Lynx C battery (101 - 156 kWh), energy storage systems can be implemented in commercial and industrial applications. The battery inverter can be connected to an existing or new PV system. The GW50K-BTC has an IP20 protection category and is suitable to be installed indoors. The combinable operating functions self-consumption, peak load capping, emergency power function and time of use are included.
Product advantages
- Peak shaving
- AC and DC overvoltage protection type 2 integrated
- Emergency power with 50 kW
- Black start capability
- 3-phase smartmeter GM3000C included in delivery
- Integration into the SEMS portal
Product features GW50K-BTC
- Mains connection: 400 V, 3-phase
- AC power: 50 kVA
- 50.0 kW emergency power output via separate output
- Battery input: 1
- Max. charging current: 100 A
- Max. discharge current: 100 A
- Max. charging power: 50 kW
- Max. discharge power: 55 kW
- Communication: RS485, Wi-Fi, LAN
- 3-phase smart meter GM3000C included in scope of delivery
- Commissioning via SolarGo App
- Dimension: 1360 x 585 x 750 mm (H x W x D)
- Protection category: IP 20
- Weight: 124 kg
Battery compatibility
- GoodWe Lynx C (101-156 kWh)
-
Matching accessories
-
GoodWe Lynx C – LX C101-10- Art. Nr.: 9402
Available from 14.04.2025{ "id": "f5a60f829b16594c9afcbfa5ad947a84", "item_brand": "", "item_name": "GoodWe Lynx C – LX C101-10 ", "item_id": "9402", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f5a60f829b16594c9afcbfa5ad947a84" } } -
GoodWe Lynx C – LX C120-10- Art. Nr.: 9460
Available from 14.04.2025{ "id": "08dc1494630151e888ba1e621f705b86", "item_brand": "", "item_name": "GoodWe Lynx C – LX C120-10", "item_id": "9460", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "08dc1494630151e888ba1e621f705b86" } } -

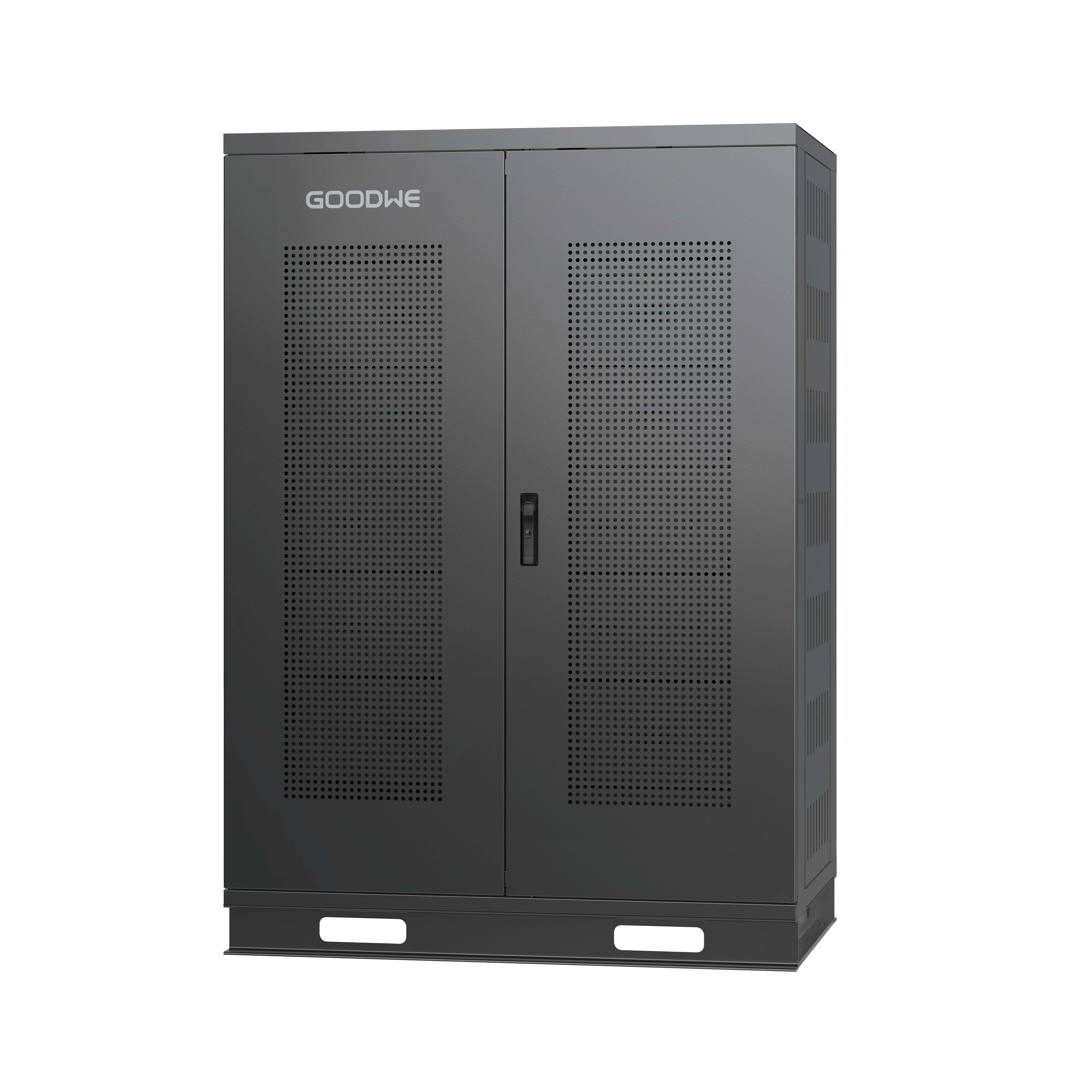

GoodWe Lynx C – LX C138-10- Art. Nr.: 9461
Available from 30.04.2025{ "id": "15a3c81d7b5f59ffaa4800652a6abc76", "item_brand": "", "item_name": "GoodWe Lynx C – LX C138-10", "item_id": "9461", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "15a3c81d7b5f59ffaa4800652a6abc76" } } -
GoodWe Lynx C – LX C156-10- Art. Nr.: 9462
Available from 14.04.2025{ "id": "b60f833a2e615925b80ccc2e523d7bab", "item_brand": "", "item_name": "GoodWe Lynx C – LX C156-10", "item_id": "9462", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b60f833a2e615925b80ccc2e523d7bab" } } -
- % Sale
GoodWe HT – GW100K-HT- Type of manufacturer: GW100K-HT
- Art. Nr.: 6275
Available from stock{ "id": "e801946359bc53769d4125df57119335", "item_brand": "", "item_name": "GoodWe HT – GW100K-HT ", "item_id": "6275", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e801946359bc53769d4125df57119335" } } -
- % Sale

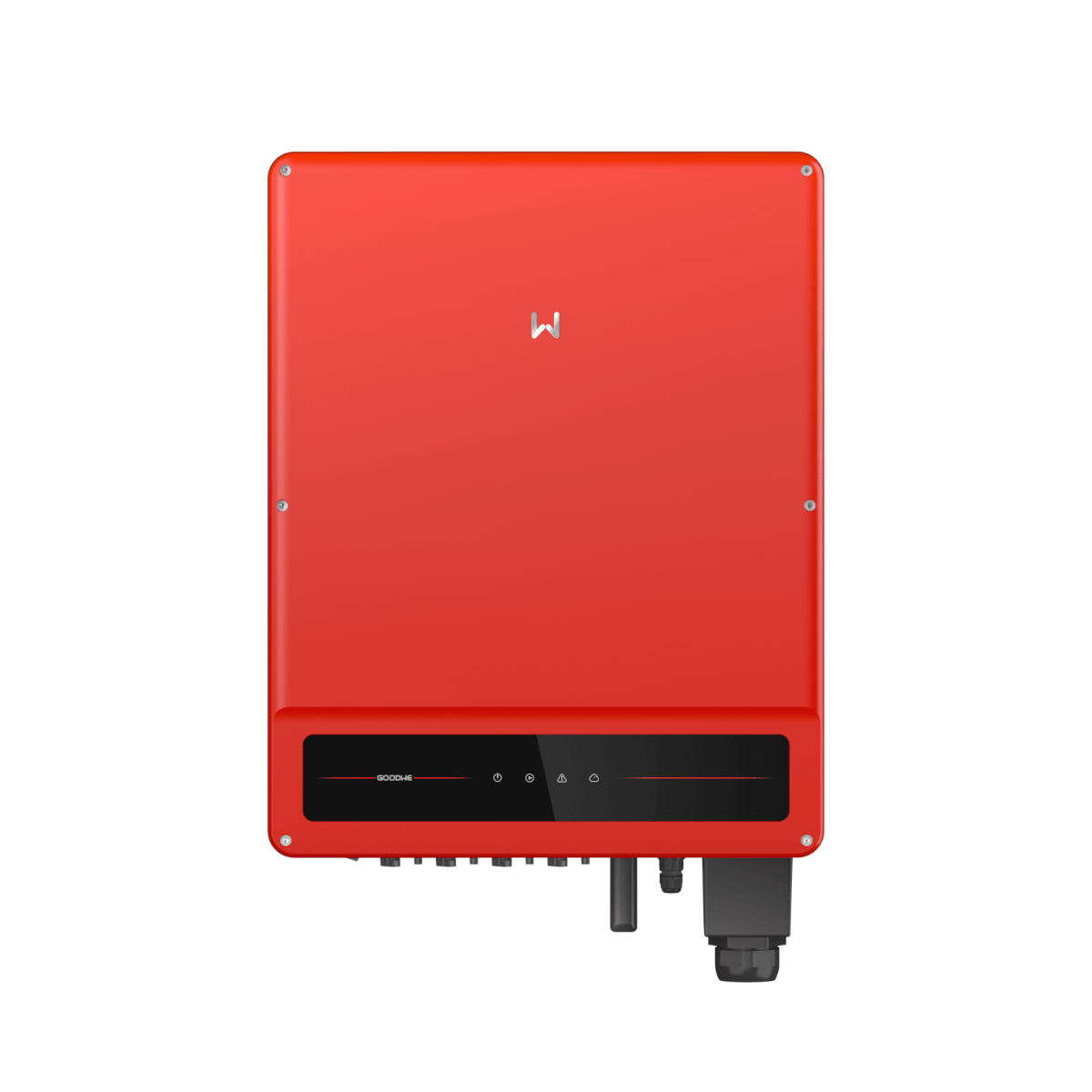

GoodWe SMT – GW50KS-MT- Type of manufacturer: GW50KS-MT
