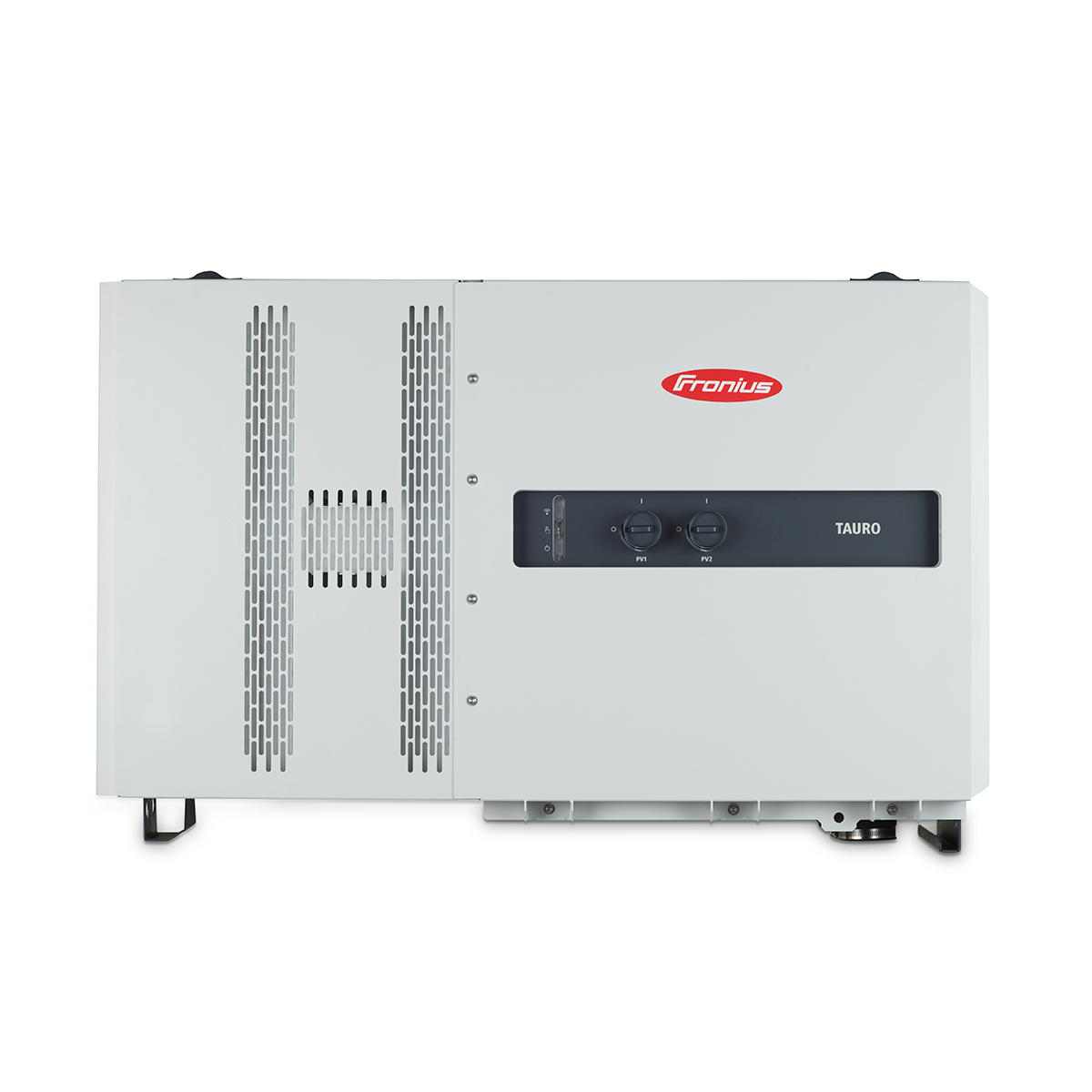

Fronius Tauro ECO 50-3-P
| Type of manufacturer: | Tauro ECO 50-3-P |
|---|---|
| Manufacturer Art. No.: | 4,210,307 |
| Art. Nr.: | 6254 |
| Pieces per package unit: |
|
| AC power: | 50 kW |
| Communication: | Ethernet, WLAN, RS485, Modbus |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 1 |
| MPP voltage range: | 580 - 930 Volt |
| Phases: | 3 |
| Warranty: | 2 years |
| WEEE-Number: |
|
Fronius Tauro ECO 50-3-P with 50 kW – Precombined version
As of January 1, 2023, the purchase of a warranty extension is only possible directly via the Fronius Solarweb webshop.
Fronius launches the Tauro three-phase commercial inverter. There are two system designs. On the one hand, there is the Direct variant, in which the Tauro can be placed decentrally directly on the respective module area. The system design is characterized by short DC cable lengths and longer AC cables. If the Tauro is installed centrally at a short distance from the main AC distribution board, the precombined variant should be used. The central installation system is characterized by a longer DC bus cable. Both variants are ideal for rooftop and ground-mounted systems. They are available with 50 or 100 kW. The Tauro can be installed both horizontally and vertically. In addition, the cooling technology and double-walled front cover allow maximum output to be achieved even in full sunlight.
Product advantages Fronius Tauro ECO 50-3-P
- For centralized system design
- DC connection via cable lug or V terminals or cable gland: 6 x M40
- Cable cross-section DC connection: 25-95 mm²
- Indoor and outdoor installation
- Continues to achieve maximum performance even in direct sunlight
- Integration into the Fronius Solar.Web
- Can be set up vertically or horizontally
- Wall bracket included, floor racks for horizontal installation optional
Product features
- Mains connection: 3-phase
- AC output: 50.0 kVA
- MPP tracker: 1
- Max. short circuit current inverter: 178 A
- Communications: integrated data logger and webserver
- Interfaces: 2 x Ethernet, Wi-Fi, 2 x RS485, 6 x dig. IN/OUT, 6 x dig. IN (RCR), USB
- DC and AC overvoltage protection: type 1 + 2 integrated, type 2 optional
- Active cooling and double-walled front cover
- Dimensions: 755 x 1109 x 346 mm (HxWxD) (without wall bracket)
- Weight: 74.0 kg
- Protection category: IP 65
- Warranty: 2 years (extension to 5 years with online registration)
-
Matching accessories
-

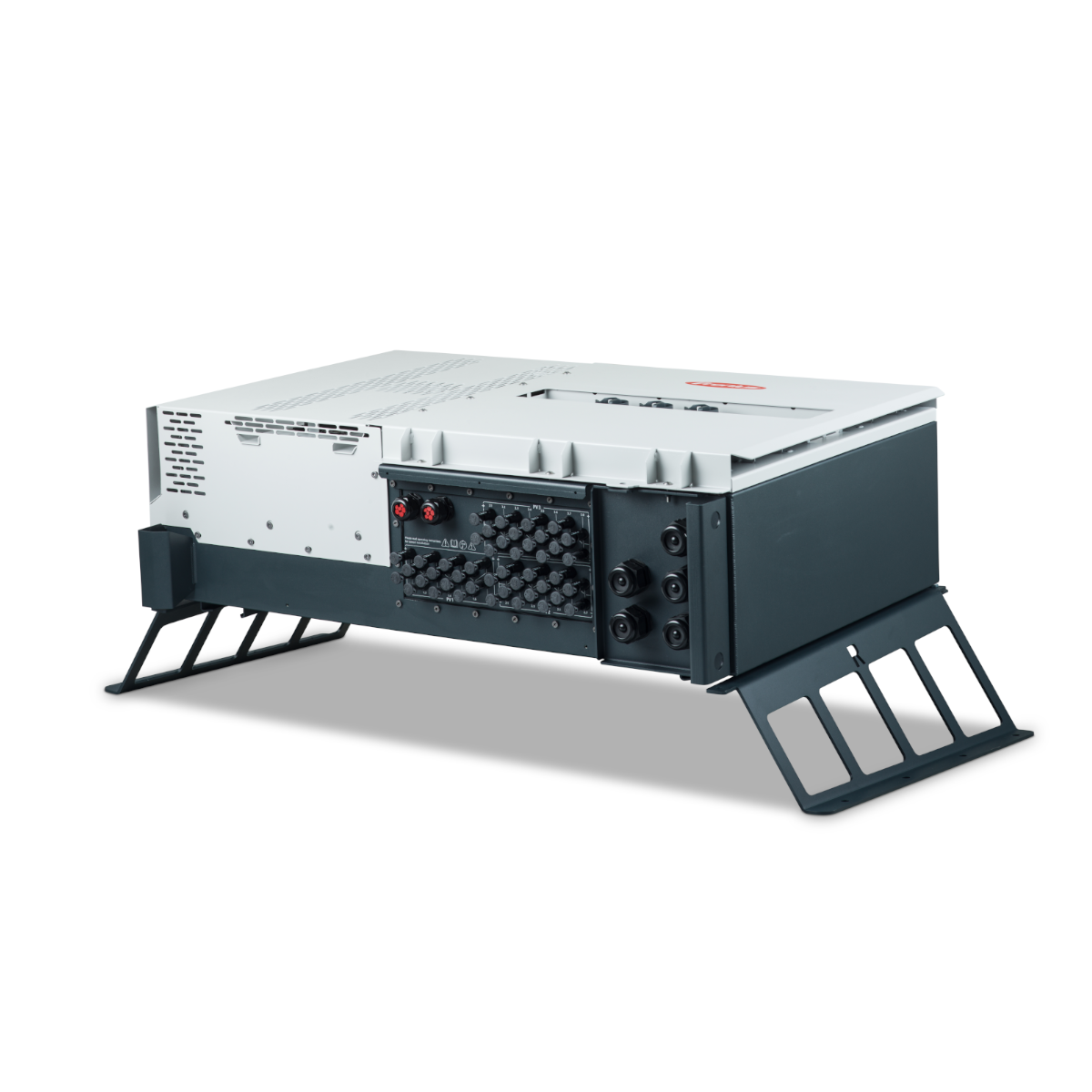

Fronius Tauro floor racks- Art. Nr.: 6494
Available from 02.01.2025{ "id": "eff2f84c24135573b5c17341097e1fc5", "item_brand": "", "item_name": "Fronius Tauro floor racks", "item_id": "6494", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "eff2f84c24135573b5c17341097e1fc5", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

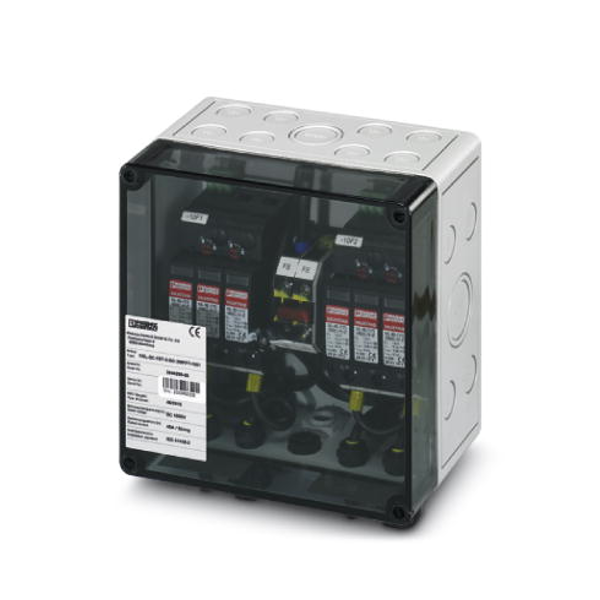

Phoenix Contact DC overvoltage box, type I + II, 2 MPP- Art. Nr.: 2789
