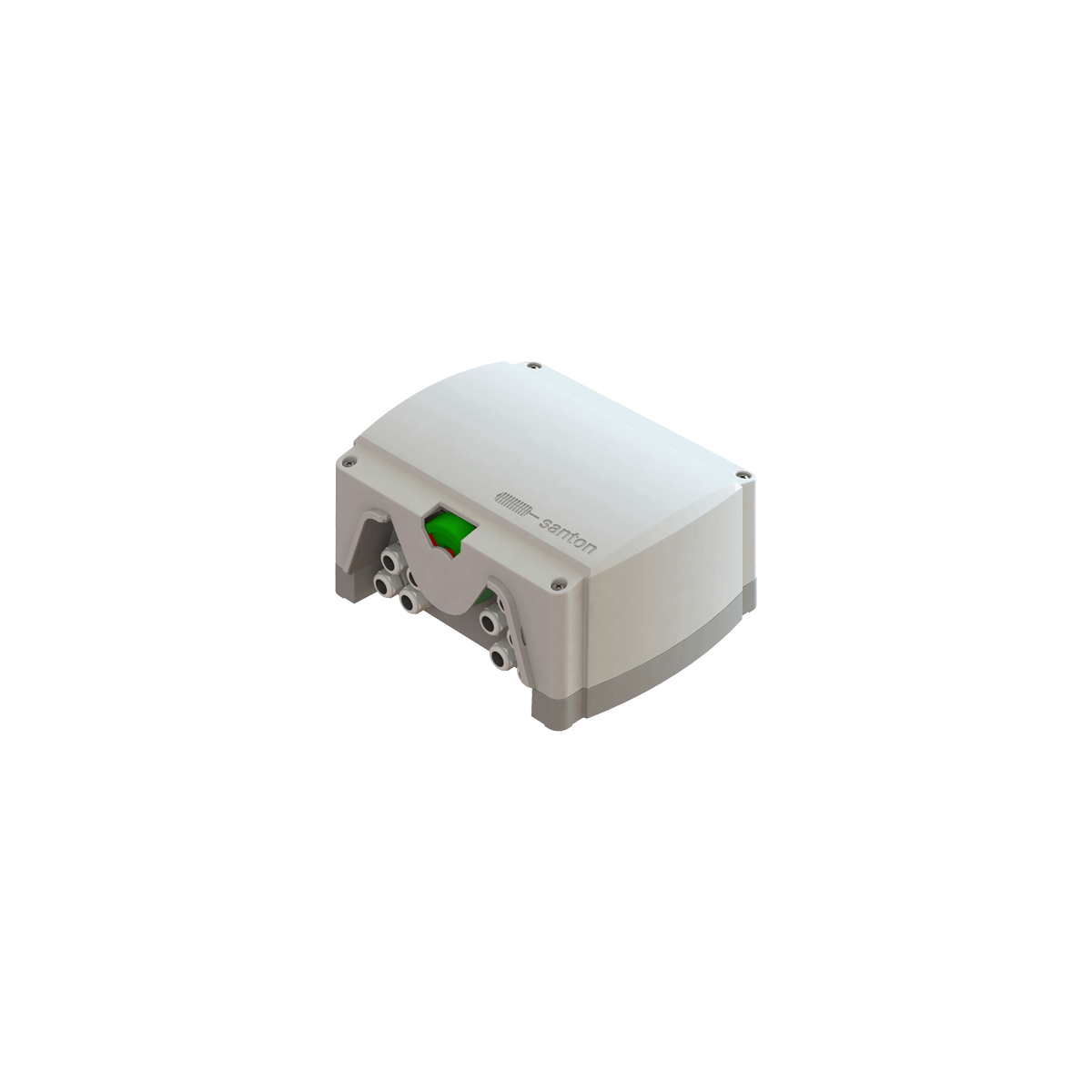

Fire prevention circuit breaker Santon for 2 MPP, 20A, terminals
| Manufacturer Art. No.: | DFS-14-W |
|---|---|
| Art. Nr.: | 3951 |
| Pieces per package unit: |
|
| Accessory type: | Firefighter breaker |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
3951
Description
Safe disconnection of the DC lines with the Santon fire prevention circuit breaker, meets the new standard
Manufacturer's designation: DFS-14-W
The fire prevention circuit breaker from Santon safely disconnects all connected DC lines in case of power failure or remote triggering. Thus, the connection from the switch to the inverter is voltage-free and the firefighters can extinguish fires in this area without danger.
Advantages of Santon fire prevention circuit breaker
- Meets the new standard
- Compact design with IP65
- Switch with motor drive
- Switch-off in case of power failure secured via capacitors
- Automatic connection to the public network on resumption
Product features
- DC voltage of up to 850 V and up to 20 A possible
- DC voltage of up to 1000 V and up to 16 A possible
- Connection for 2 separate strings
- According to application regulation VDE-AR-E 2100-712 (version 2013-05) and OVE (Austrian Electrotechnical Association) Guideline R11-1 (version 2013-03-01)
- Classification according to IEC 60947-1; 3 DC21 based on the switching of plus and minus poles
- Dimensions: 201 x 175 x 105 mm (L x W x H)
