enwitec switchover device switch 3 x SMA Sunny Island Pmax 125 kW
| Type of manufacturer: | 3PH_SMA.SI_BBDAP_125KVA_3PH_INT.HM_DACH_1.0 |
|---|---|
| Manufacturer Art. No.: | 10013762 |
| Art. Nr.: | 3347 |
| Pieces per package unit: |
|
| Accessory type: | Emergency power |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Project articles
On request
Product number:
3347
Description

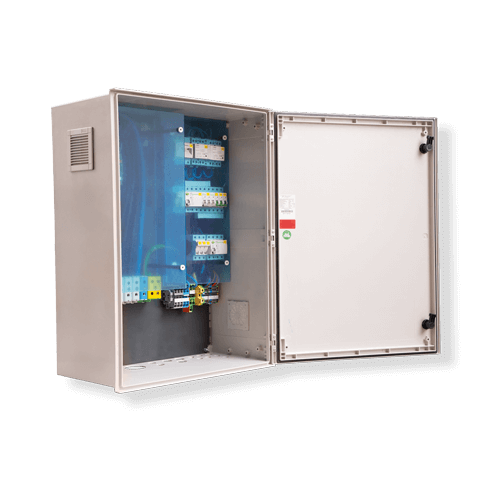

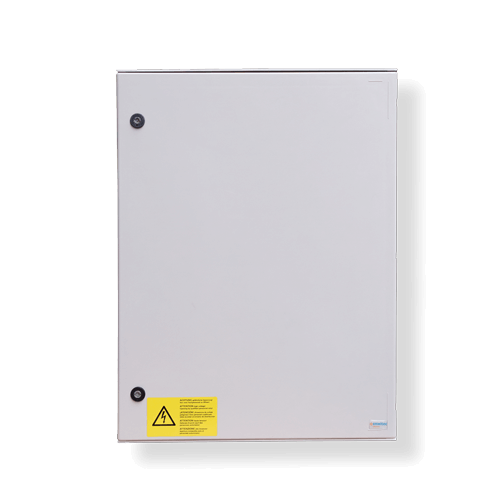

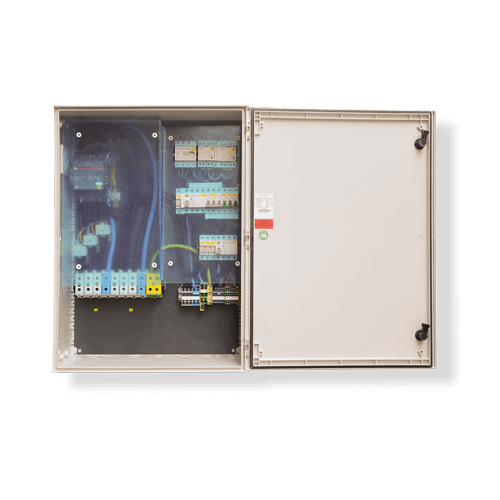

enwitec switchover device for 3 x SMA Sunny Island and up to 125 kW throughput power
A backup power system safely disconnects the connected PV system and load distribution from the public grid in the event of a grid failure and simultaneously provides the customer with a backup power supply.
This option with a continuous power of 125 kW allows three SMA "Sunny Island" battery inverters to be fed into the grid, whereby the grid disconnection is always 3-phase and all-pole. In addition, enwitec develops and produces customer-specific variants with higher power ratings and a wide range of other requirements.
Technical data:
- Battery inverter connection: 3 SMA Sunny Island units
- PV inverter connection: indirect, PV inverters are connected in the house distribution box
- Incl. SMA Home Manager 2.0
- True 120° phase-shifted backup current
- All-pole mains disconnection
- Max. back-up fuse on the mains side: 250 A
- Max. thermal throughput: 125 kW
-
Matching accessories
-

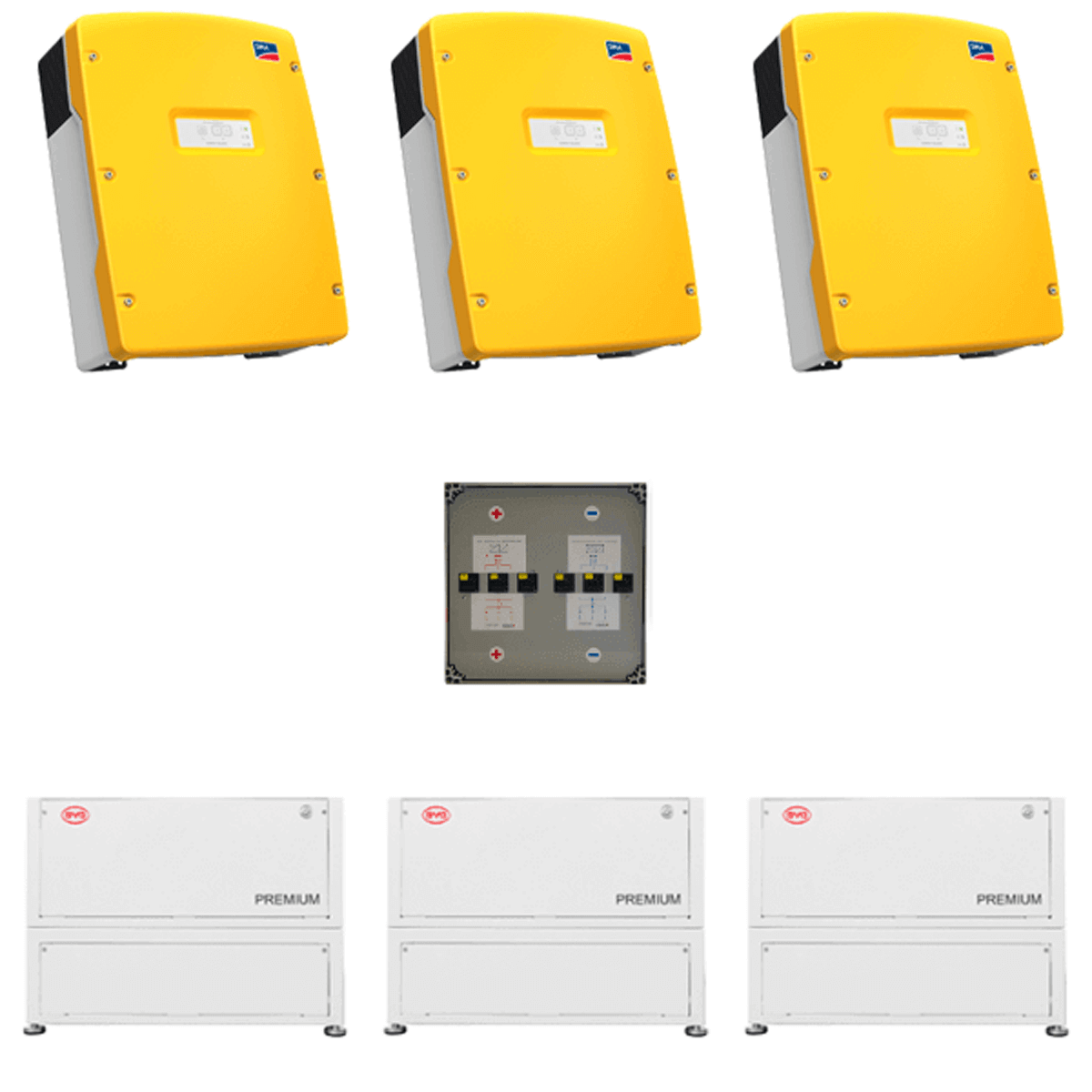

SMA 3-phase package SI 8.0 & BYD LVL 46 kWh- Art. Nr.: 5432
Available from stock{ "id": "7316dc93194a5775a151a5cfa6e0141b", "item_brand": "", "item_name": "SMA 3-phase package SI 8.0 & BYD LVL 46 kWh", "item_id": "5432", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7316dc93194a5775a151a5cfa6e0141b", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
SMA Sunny Island 8.0H-13- Type of manufacturer: SI8.0H-13
- Art. Nr.: 4158
Available from stock{ "id": "4d9b5363d9875330bfd941fe2da4c764", "item_brand": "", "item_name": "SMA Sunny Island 8.0H-13", "item_id": "4158", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "4d9b5363d9875330bfd941fe2da4c764", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
SMA Sunny Island 6.0H-13- Type of manufacturer: SI6.0H-13
- Art. Nr.: 4157
Available from stock{ "id": "14d1cbd85a7a5746af05cabd524eacc1", "item_brand": "", "item_name": "SMA Sunny Island 6.0H-13", "item_id": "4157", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "14d1cbd85a7a5746af05cabd524eacc1", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

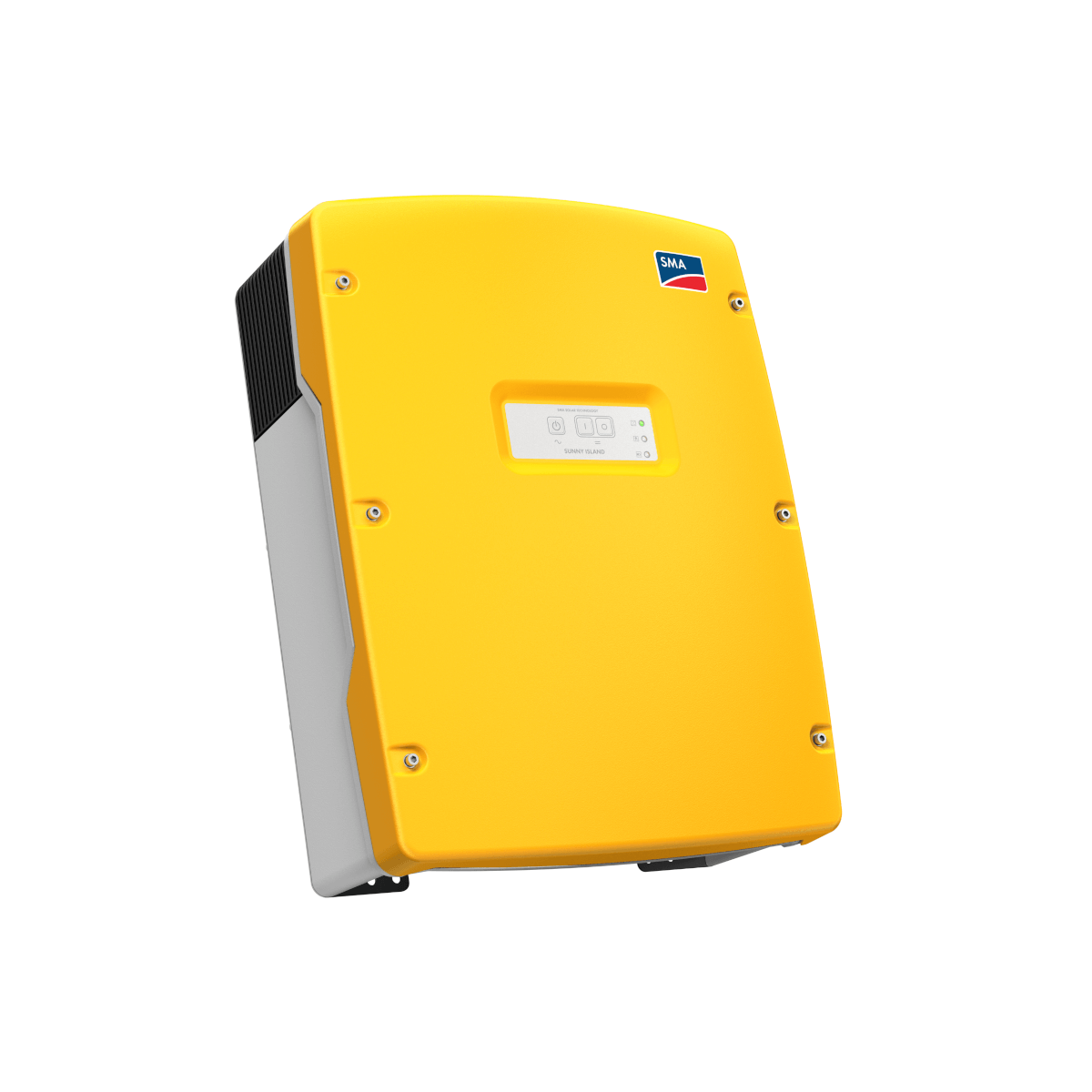

SMA Sunny Island 4.4M-13- Type of manufacturer: SI4.4M-13
