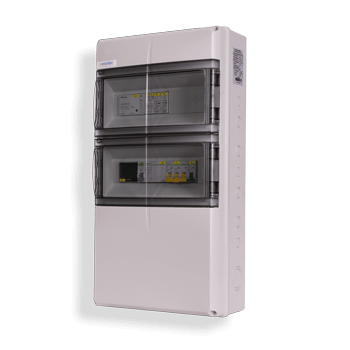

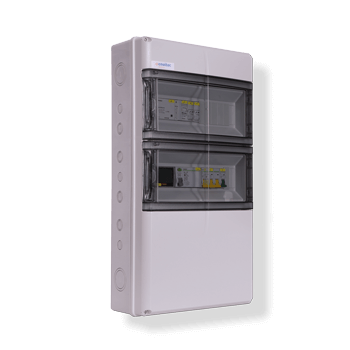

Enwitec switching device Fronius Symo Hybrid / Gen24, including Smart Meter D/A/CH
| Type of manufacturer: | 3PH_FRO_BBDAP_20KW_3PH_1.0 |
|---|---|
| Manufacturer Art. No.: | 10015613 |
| Art. Nr.: | 5811 |
| Pieces per package unit: |
|
| Accessory type: | Emergency power |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
5811
Description
Emergency power by your Fronius Symo Hybrid / Gen24 System
This switching device enables your Fronius Symo Hybrid / Symo Gen24 system to provide a 3-phase backup power supply for specific loads in the event of a power failure. Due to the DC coupling, the modules remain active and can contribute to the supply or storage charging.
Country approval: Germany, Switzerland and Austria (must be coordinated with the responsible utility company). Note: not suitable for Fronius Primo Gen24
Product benefits:
- Completely ready for connection and approved by Fronius
- All-pole mains disconnection
- Fronius Smart Meter TS65A-3 is integrated
- Very quiet, hum-free contactor
- Pre-assembled including all cable glands and installation guide
- Design according to the "Fronius Symo Hybrid / Gen24 - Overview" circuit diagram

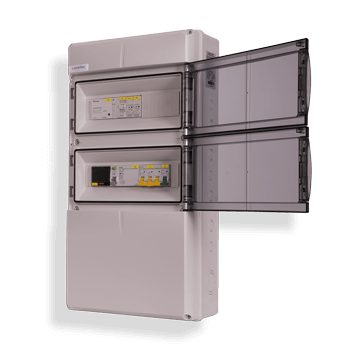

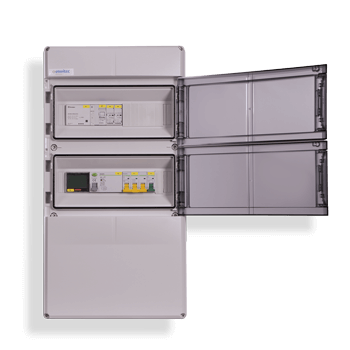

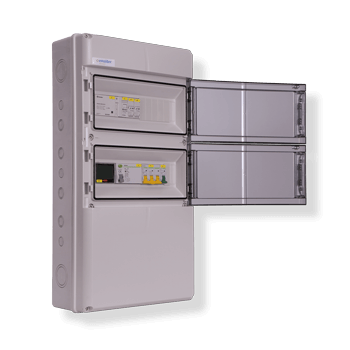

- Protection type IP65 with transparent door
- Max. continuous power up to 20 kW
- Approved for mains type: TN-S, TT, TN(C)-S
- Standard variant for Germany and Switzerland
- You will find here an alternative with additional connection for PV inverters up to 8.2 kVA and up to 20 kVA.
- Manufacturer’s article number: 10015613
Downloads
Downloads
-
Matching accessories
-
- Remaining quantity
Lapp Oelflex AC connection cable, 5x16 mm², 5 m- Type of manufacturer: Lapp ÖLFLEX CLASSIC 100 5G16 Brandklasse Eca
- Art. Nr.: 5203
Available from stock{ "id": "73c38476ef48534098cb546cdd428076", "item_brand": "", "item_name": "Lapp Oelflex AC connection cable, 5x16 mm², 5 m", "item_id": "5203", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "73c38476ef48534098cb546cdd428076", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
- Remaining quantity
Lapp Oelflex AC connection cable, 5x16 mm², 10 m- Type of manufacturer: Lapp ÖLFLEX CLASSIC 100 5G16 Brandklasse Eca
- Art. Nr.: 5204
Available from stock{ "id": "6e947f66298e55479d683716ce523e83", "item_brand": "", "item_name": "Lapp Oelflex AC connection cable, 5x16 mm², 10 m", "item_id": "5204", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6e947f66298e55479d683716ce523e83", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

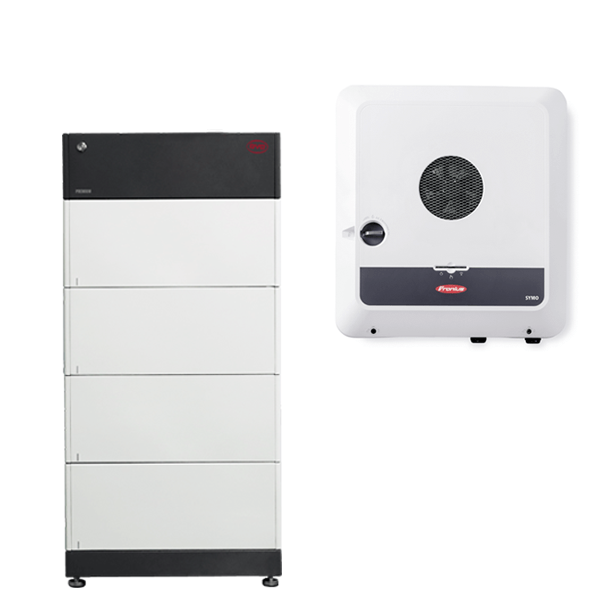

Available from stock{ "id": "305cdde1d0c15493b63ebb98ca6b475d", "item_brand": "", "item_name": "BYD Battery Box Premium HVS 10.2 high-volt with Fronius Symo Gen24 8.0 Plus", "item_id": "4997", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "305cdde1d0c15493b63ebb98ca6b475d", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
