enwitec OVP type I+II for 4 MPP with fire protection switch
| Type of manufacturer: | Santon-1000-4x2R-T50-BC-PES-1.0 |
|---|---|
| Manufacturer Art. No.: | 10012235 |
| Art. Nr.: | 7289 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
7289
Description

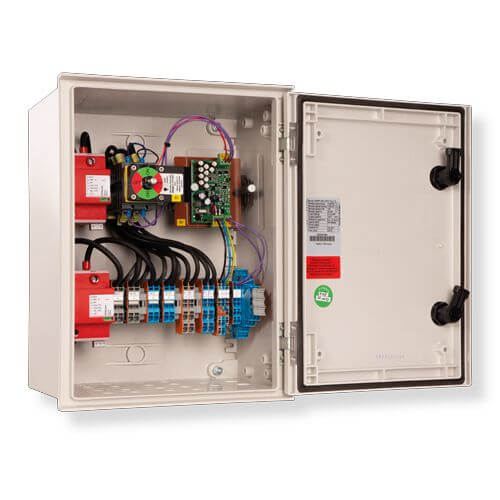

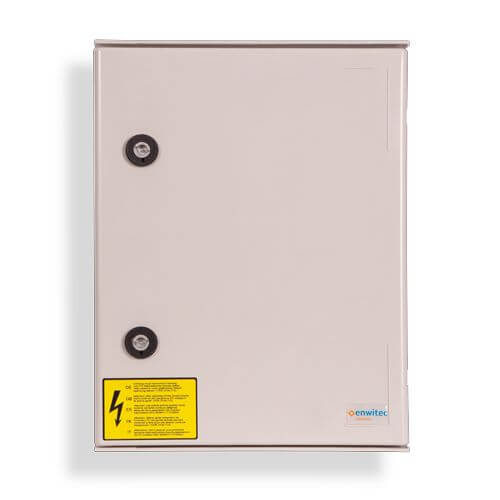

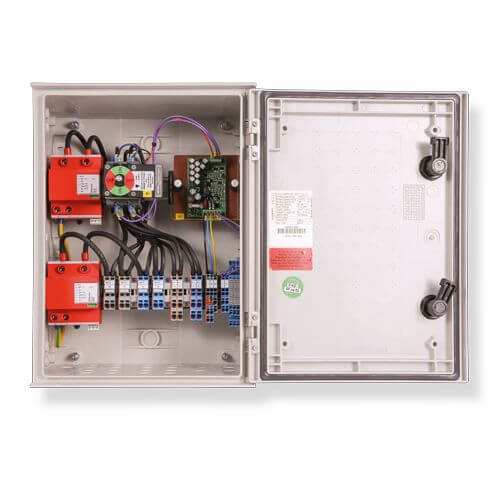

enwitec fire protection switch with integrated overvoltage protection type I+II for 4 MPPT
An additional remote control unit is always required.
You can set up an enwitec fireman's protection system with a generator connection box on the roof (with integrated overvoltage protection), a Remote Control Unit and ideally an E-Stop Switch. The E-Stop Switch is the red emergency stop switch which switches the PV system off. The indicator lights show you whether the system is currently in operation or switched off. You can find a detailed description of the functions in the download area.
Product advantages
- Fireman's protection switch: Santon 8-pole with remote activation
- Automatic switch-off in case of power outages
- Automatic reactivation when grid connection is restored
- With overvoltage protection type I+II
- Ideally with additional emergency stop switch
Product features enwitec fireman's protection switch
- Number of MPP inputs: 4
- PV strings per MPP input: 2
- Fuse per pole: 15 A
- Maximum voltage: 1,000 V
- Overvoltage protection: Type I+II
- Wire end ferrules are required to connect the strings
- Dimensions (WxHxD): 500 x 600 x 230 mm
- Protection class: IP 65
-
Matching accessories
-
Single core H07V-R 16 mm², green-yellow, 100m bundle- Art. Nr.: 5017
Available from stock{ "id": "6c61c14be3325ea693b49651731b04e3", "item_brand": "", "item_name": "Single core H07V-R 16 mm², green-yellow, 100m bundle", "item_id": "5017", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6c61c14be3325ea693b49651731b04e3", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

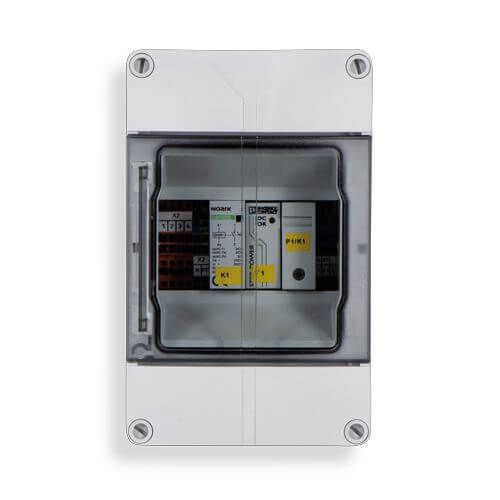

enwitec remote control unit for 1x fireman's protection switch- Type of manufacturer: santon-remote control-1-R
- Art. Nr.: 7284
Available from stock{ "id": "616427e07d9c564a81c6e21f30b78d10", "item_brand": "", "item_name": "enwitec remote control unit for 1x fireman's protection switch", "item_id": "7284", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "616427e07d9c564a81c6e21f30b78d10", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

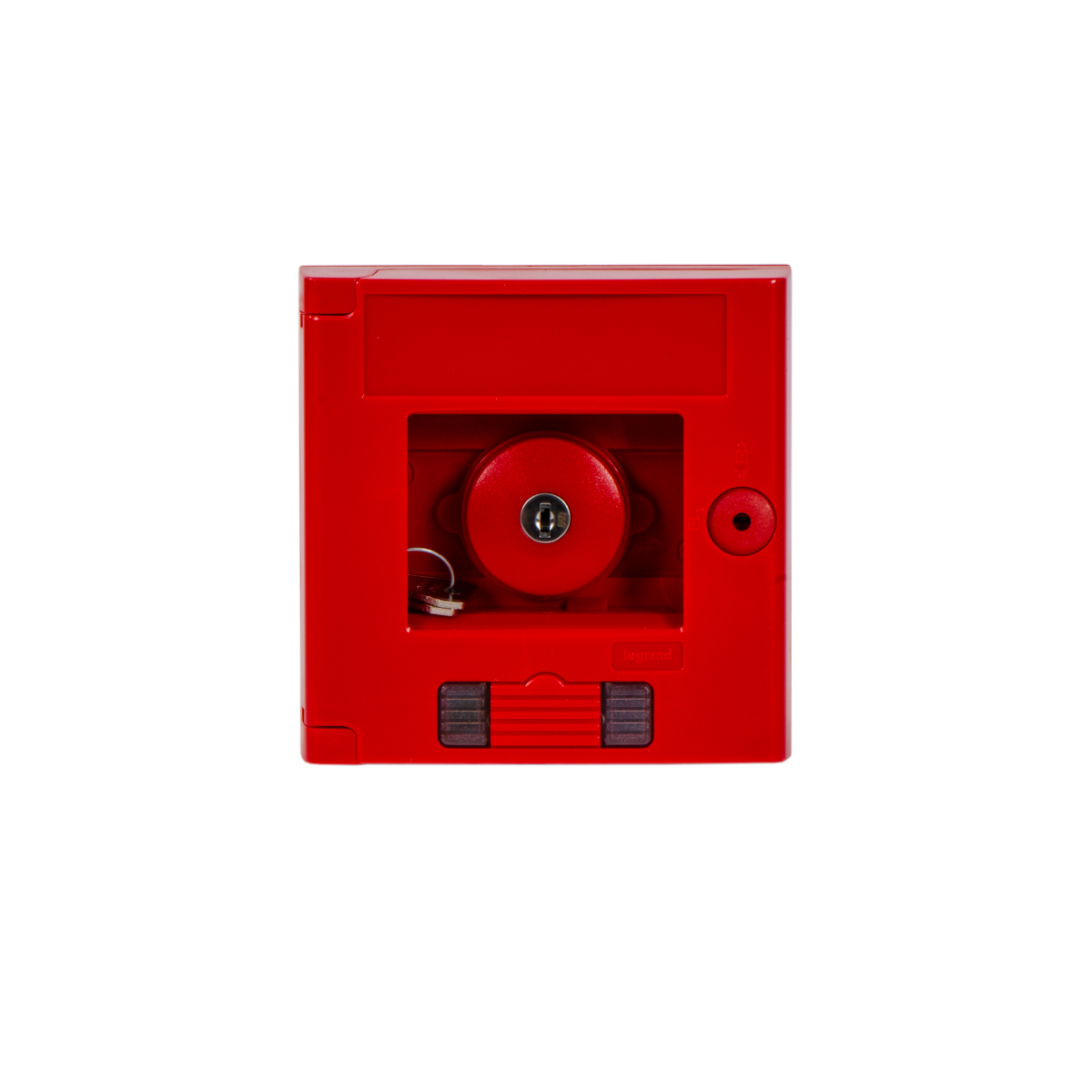

enwitec Emergency stop button for fireman's protection switch- Type of manufacturer: Legrand Sicherheitskasten E-Stop-Switch Aufputz
- Art. Nr.: 7285
Available from stock{ "id": "a892e7bde91d54dda5ee139ee4b7b370", "item_brand": "", "item_name": "enwitec Emergency stop button for fireman's protection switch", "item_id": "7285", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a892e7bde91d54dda5ee139ee4b7b370", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

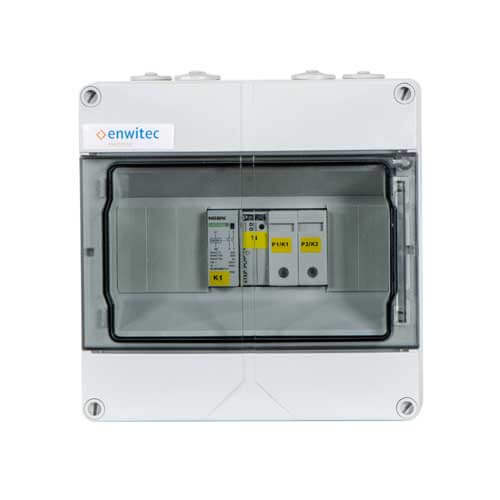

enwitec remote control unit for 2 fireman's protection switches- Type of manufacturer: santon-remote control-2-R
- Art. Nr.: 7291
Available from stock{ "id": "e71235f9417356b78b3488aeb2bbb512", "item_brand": "", "item_name": "enwitec remote control unit for 2 fireman's protection switches", "item_id": "7291", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e71235f9417356b78b3488aeb2bbb512", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

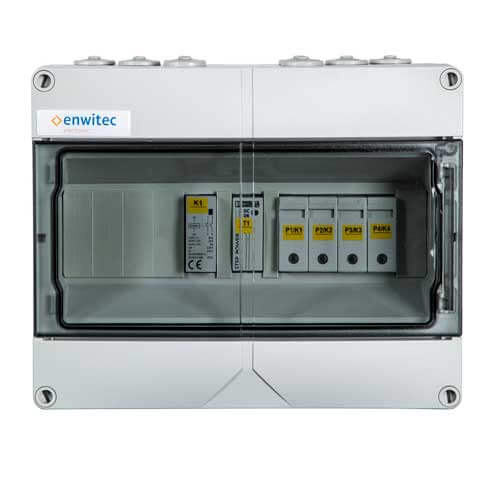

enwitec remote control unit for 4 fireman's protection switches- Type of manufacturer: santon-remote control-4-R
- Art. Nr.: 7292
Available from stock{ "id": "b5443f26f47c5f7cb1af13409b898b7f", "item_brand": "", "item_name": "enwitec remote control unit for 4 fireman's protection switches", "item_id": "7292", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b5443f26f47c5f7cb1af13409b898b7f", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

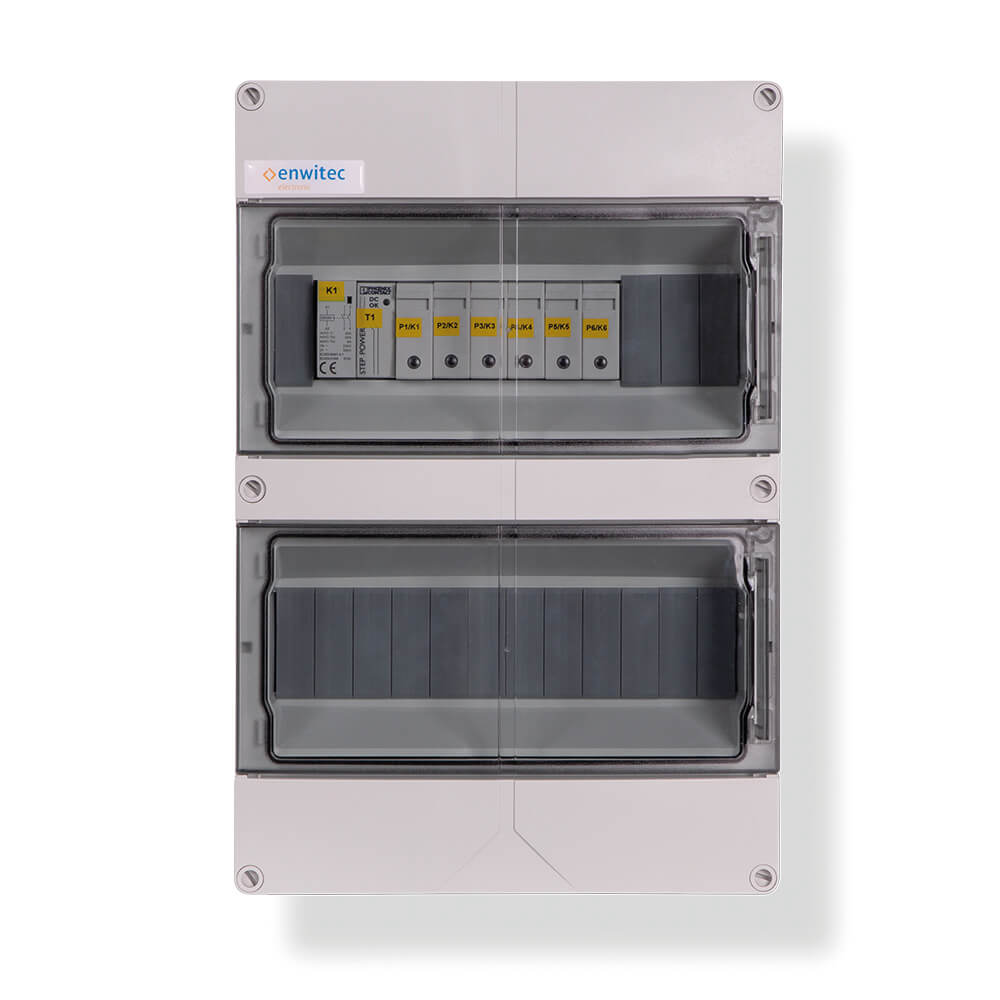

enwitec remote control unit for 6 fireman's protection switches- Type of manufacturer: santon-remote control-6-R
