enwitec overvoltage protection Mersen DC type II, 2 MPPT, terminals
| Manufacturer Art. No.: | 10012755 |
|---|---|
| Art. Nr.: | 4105 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Remaining quantity
Available from stock
Product number:
4105
Description
DC overvoltage protection, type II for 2 MPP (Mersen)
Range of application: Buildings without external lightning protection, in compliance with VDE 0100-443 and 0100-534

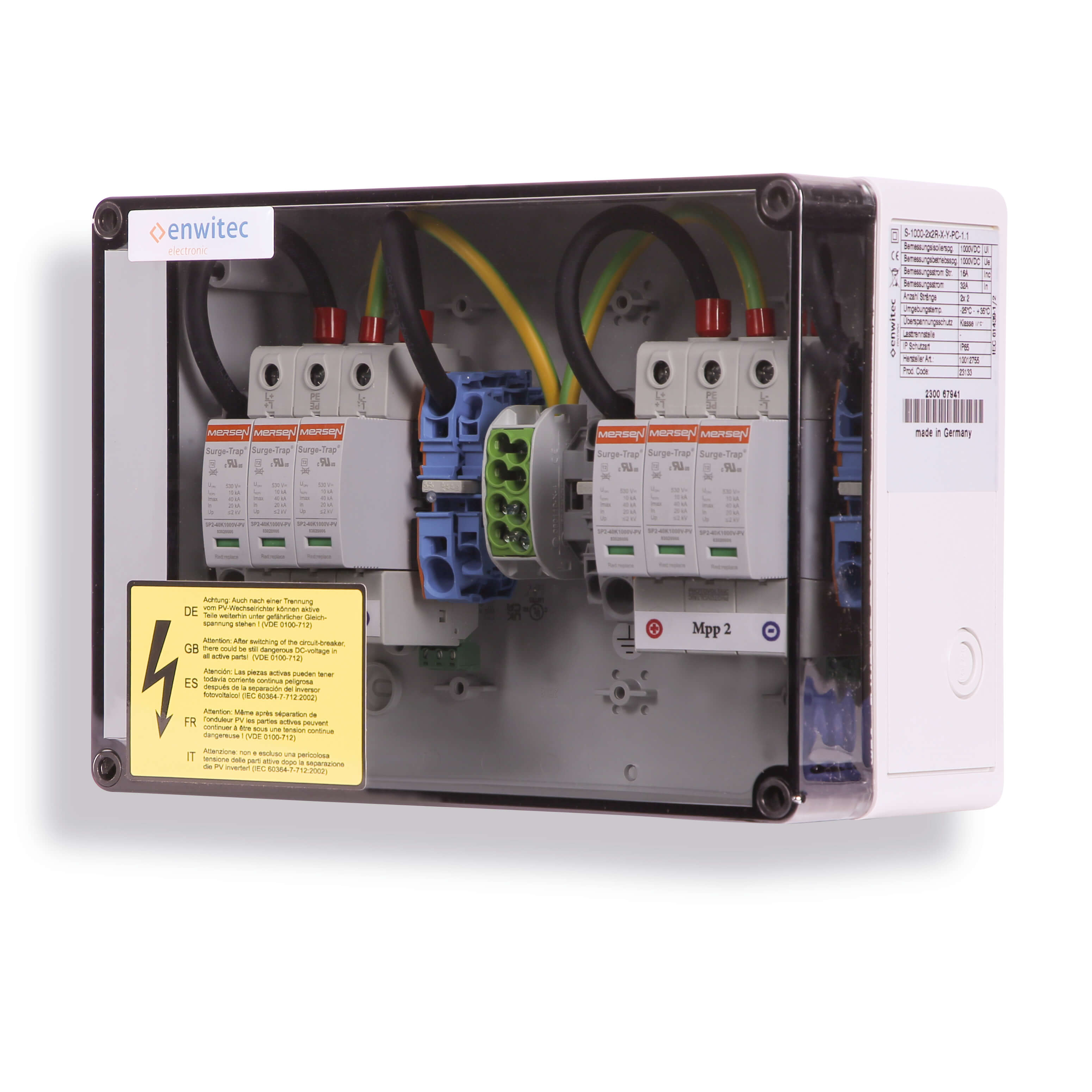

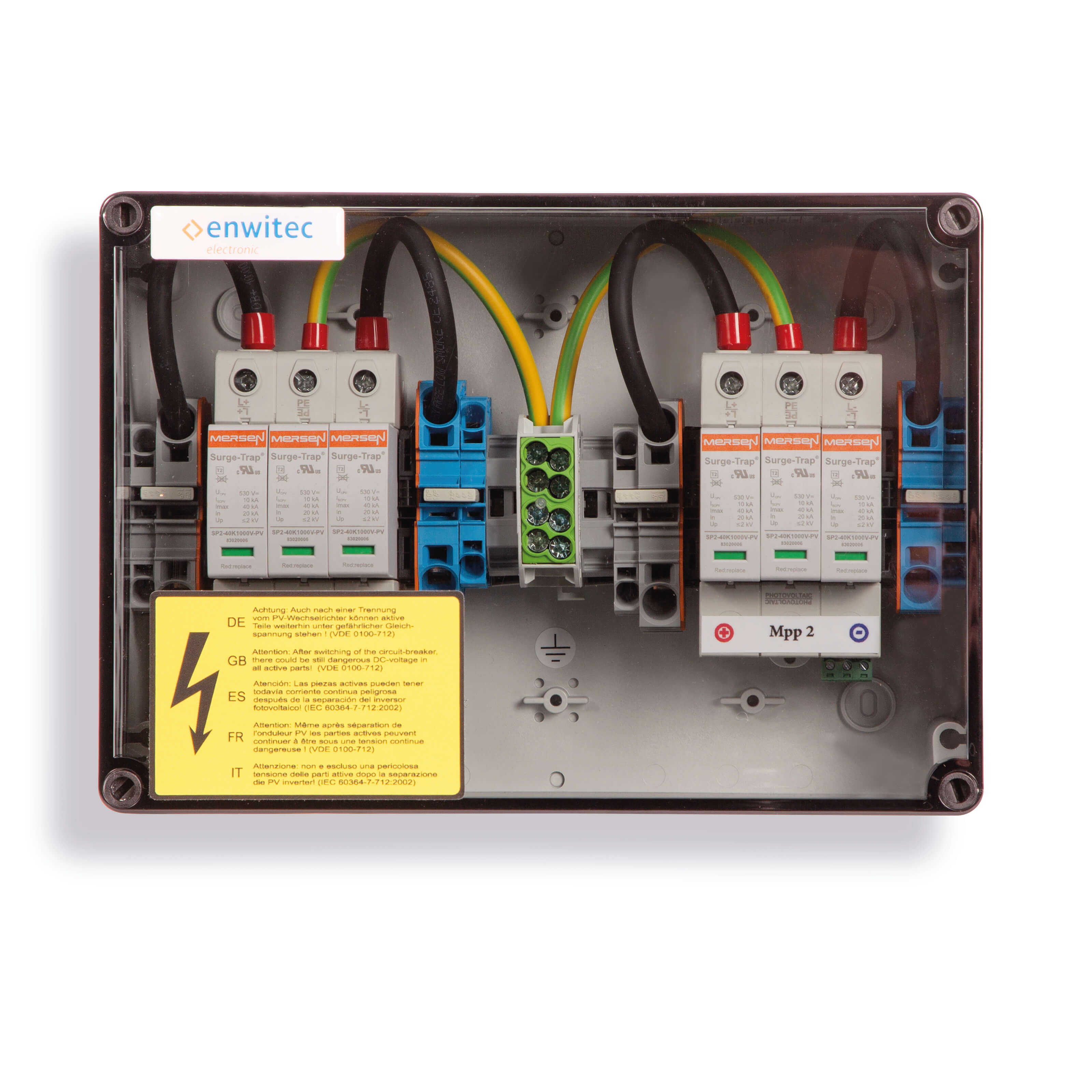

Compact and pre-assembled box with type II surge arresters for the DC side. Suitable for inverters with 2 MPPT up to 1000 V DC voltage. This surge box has 2 input terminals per MPPT with spring loaded terminals per pole and arrester. No wire end ferrules are needed here. This means that the contact area is even larger and the contact resistance is low. The outgoing terminal is screwless as well.
Technical data:
- Type II arrester elements for 2 MPP trackers
- Input: 2 strings per MPPT with terminals 0.5 - 10 mm² Cu-fine stranded without wire end sleeve
- Output: 1 string per MPPT with terminals 0.5 - 25 mm² Cu-fine stranded without wire end sleeve
- Rated insulation voltage: 1000 V
- Design current per string: 20 A
- Protection category: IP65
- Dimensions (WxHxD): 250x180x111 mm
-
