enwitec overvoltage protection DC type II, 2 MPPTs, terminals
| Type of manufacturer: | GAK-S-1100-2x2R-X-Y-PC-1.0_DEHNCube |
|---|---|
| Manufacturer Art. No.: | 10017263 |
| Art. Nr.: | 12526 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from stock
Product number:
12526
Description
enwitec overvoltage protection DC type II, 2 MPPTs, terminals
Successor model to 3689 - enwitec surge protection DC type II, 2 MPPT, terminals (10012861)

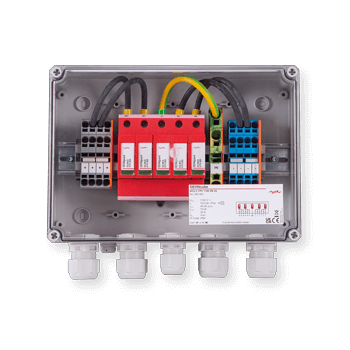

The enwitec Generator Connection Box GAK 2 MPPT type II with terminals offers ideal protection and efficient power distribution for photovoltaic systems. The device enables the connection of two independent MPPT inputs and supports up to four PV strings. With integrated class II overvoltage protection, it ensures safe installation and reliable operation.
Product advantages:
- Protection class II for increased personal protection
- Integrated type II overvoltage protection
- Support for two MPPT inputs
- Robust polycarbonate housing
- Compact and space-saving design
- Number of PV strings: 4 IN / 2 OUT
Technical specifications:
- Rated insulation voltage: 1100 VDC
- Maximum design current: 80 A
- Protection class: IP65
- Operating temperature range: -25°C to +35°C
- Max. permissible continuous voltage: 1100 VDC
- Dimensions (WxHxD): 254 x 180 x 111 mm
- Weight: 1.8 kg
