Enwitec overvoltage protection DC type II, 2 MPPT, terminals
| Manufacturer Art. No.: | 10012861 |
|---|---|
| Art. Nr.: | 3689 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
On request
Product number:
3689
Description
DC overvoltage protection, type II for 2 MPP
Application: according to VDE 0100-443 and 0100-534, buildings without external lightning protection

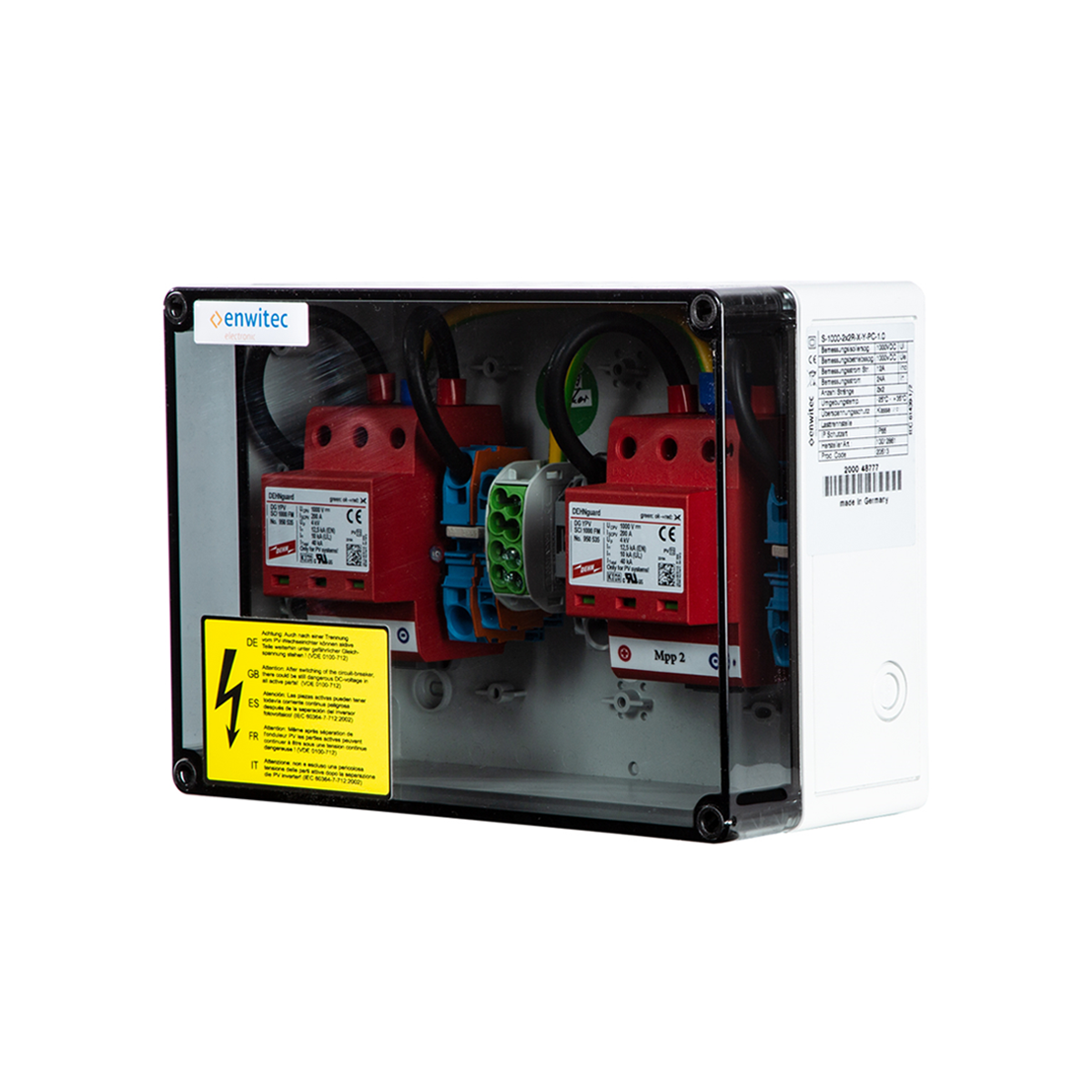

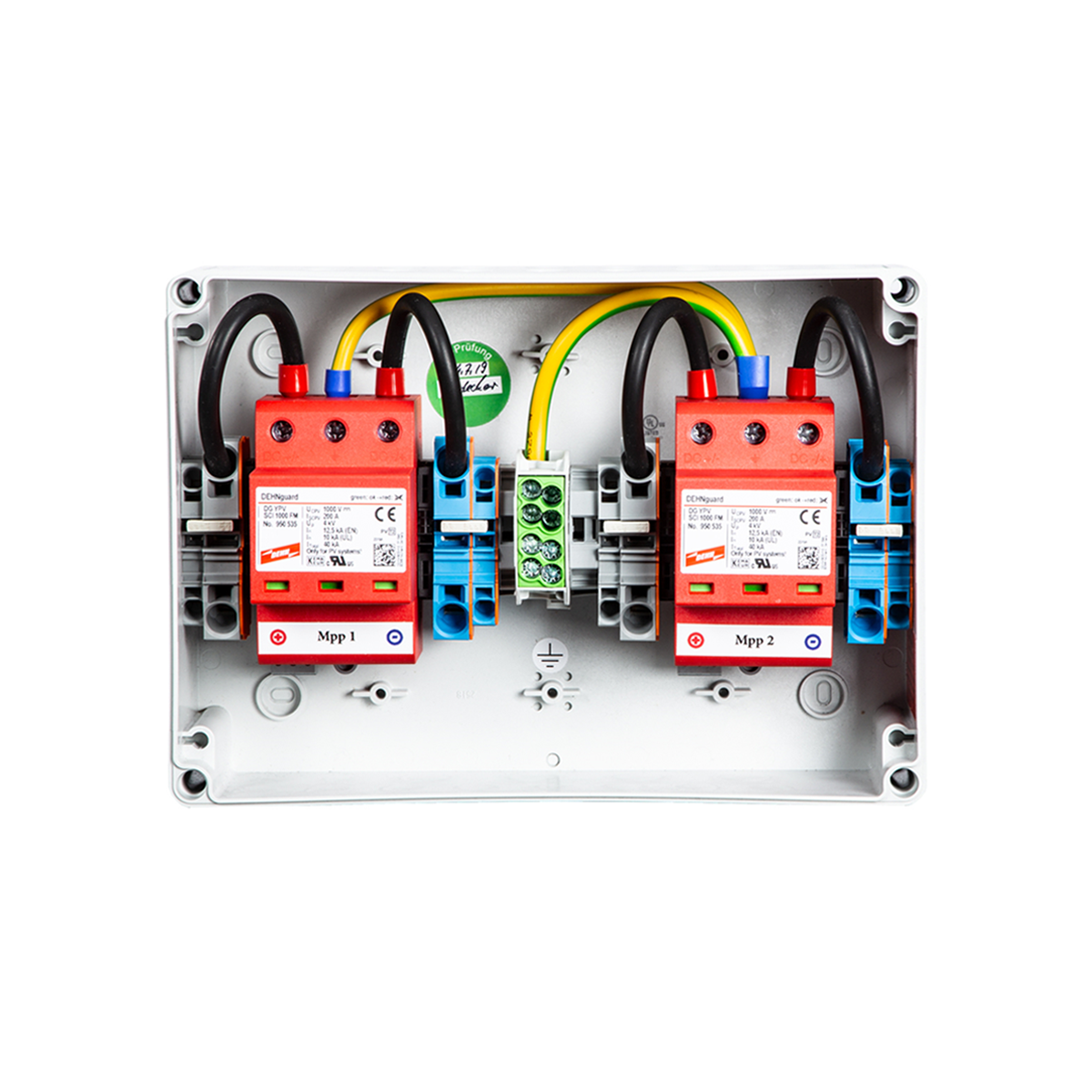

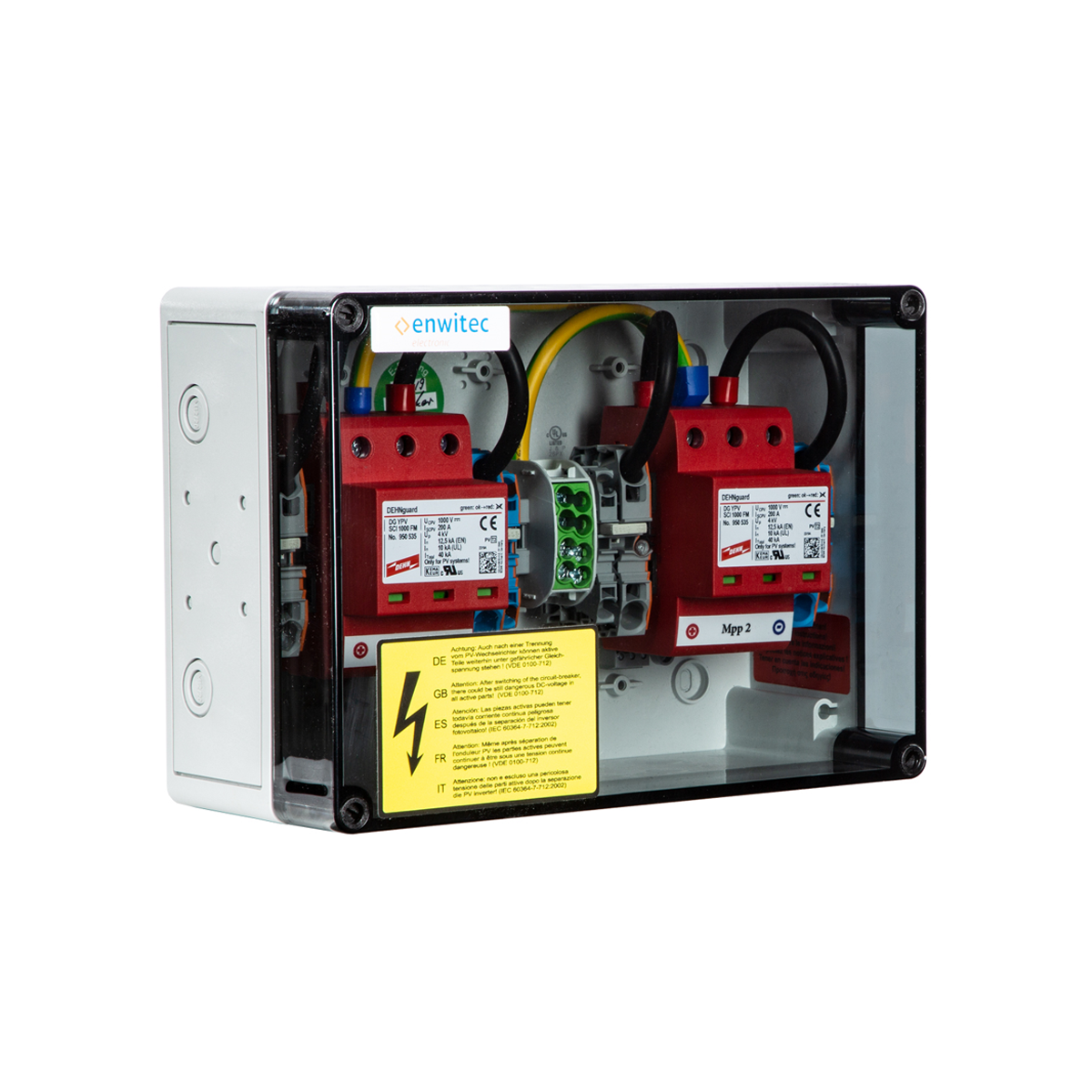

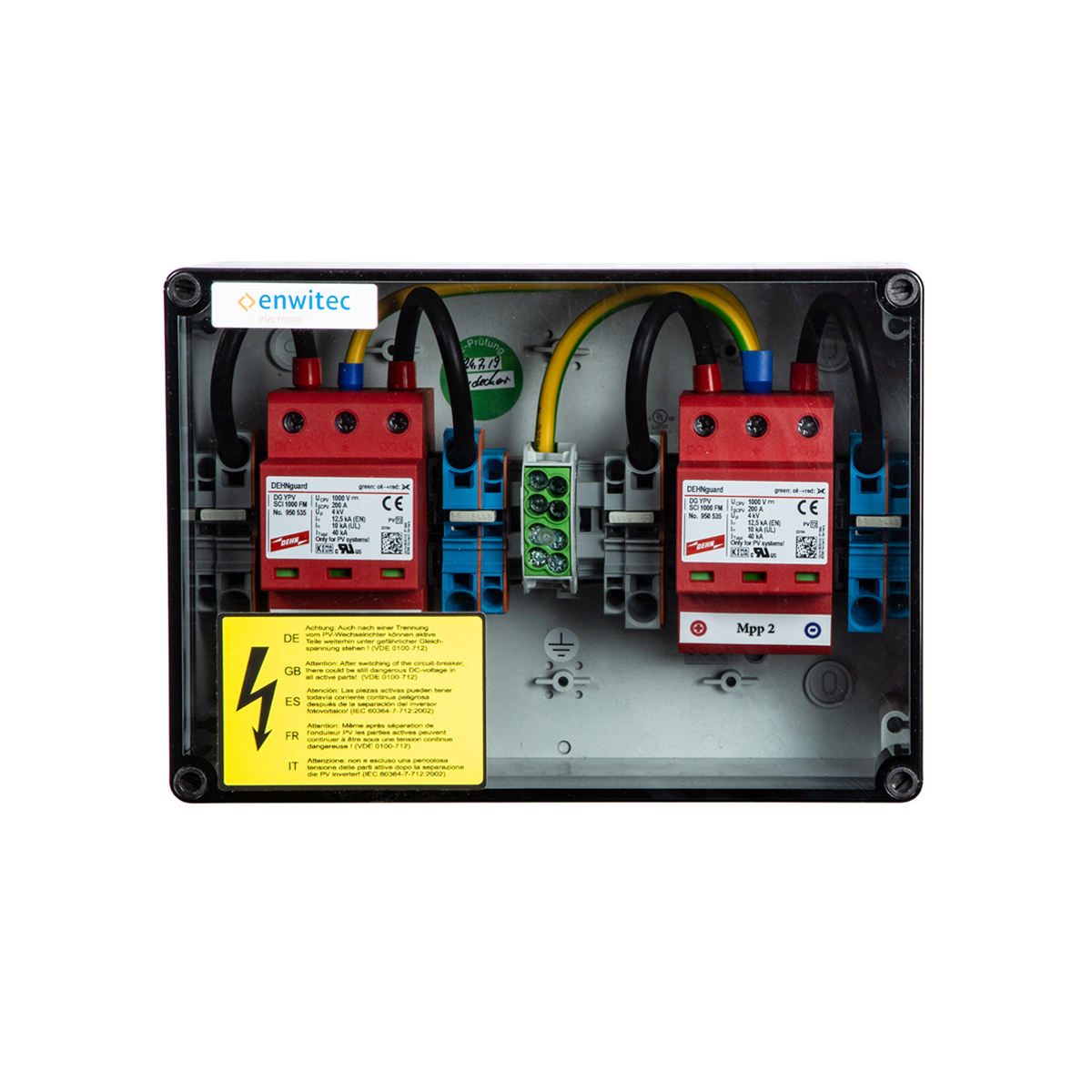

Compact and pre-assembled box with type II surge arresters for the DC side. Suitable for inverters with 2 MPP to 1000 V DC voltage. This overvoltage box has 2 input terminals each with spring-loaded contacts per pole and arrester. Here, no end sleeves are required. As a result, the contact area is even greater and the contact resistance low. The output terminal is also screwless.
Technical specifications:
- Type II arrester elements for 2 MPP trackers
- 2 input terminals each up to 6 mm²
- 1 output terminal each up to 10 mm
- IP65
- 182 x 182 x 71 mm wall mounting
