enwitec overvoltage protection DC type II, 1 MPPT, terminals

Enwitec

Manufacturer Art. No.:	10017264
Art. Nr.:	11651
Pieces per package unit:	per carton per pallet
Accessory type:	Overvoltage protection
WEEE-Number:	DE71566755

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 11651

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 11651

Tech tip

Overvoltage protection on the DC side is only part of the story. With an additional protection box for the AC side, it becomes a complete solution.

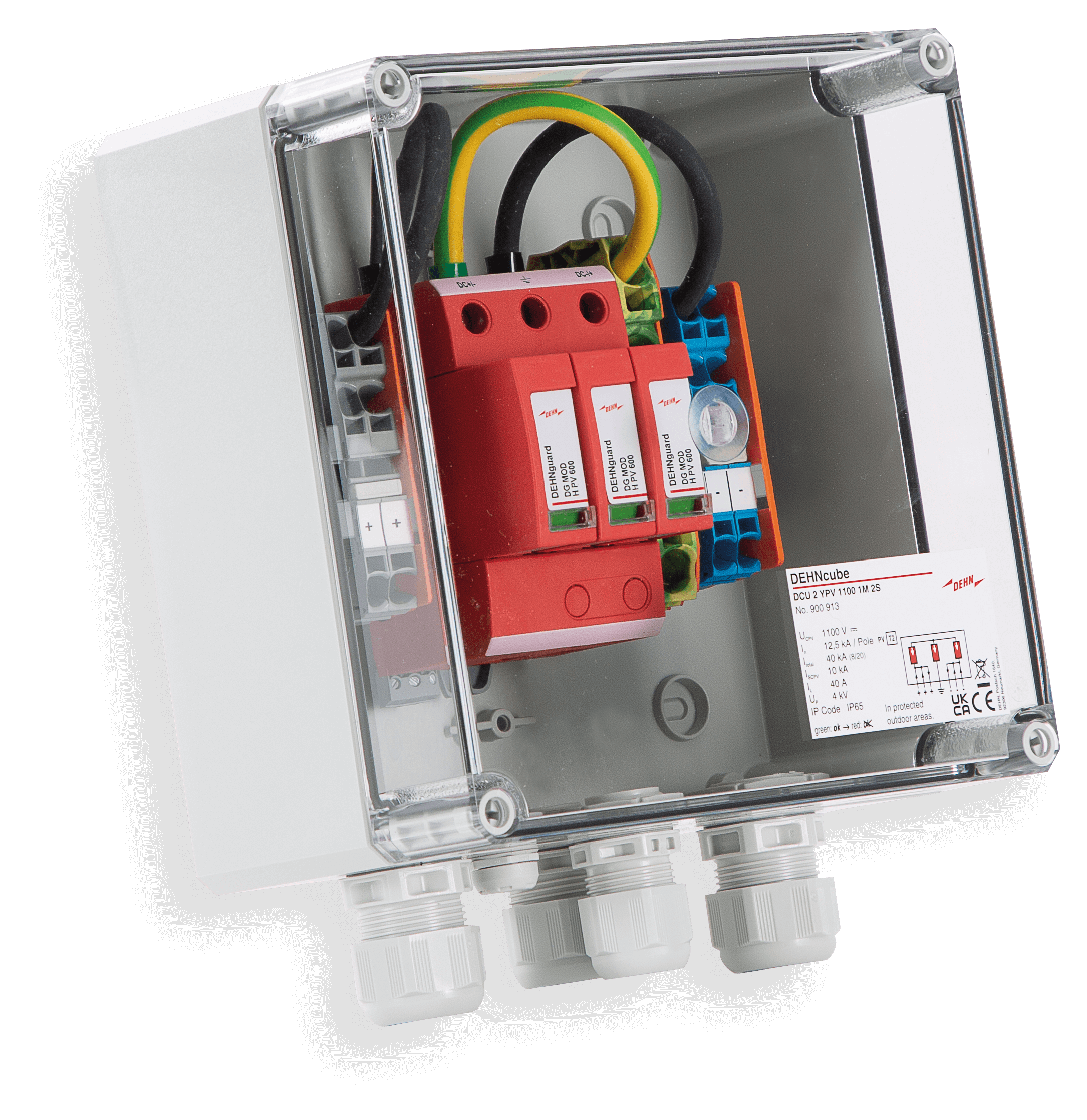

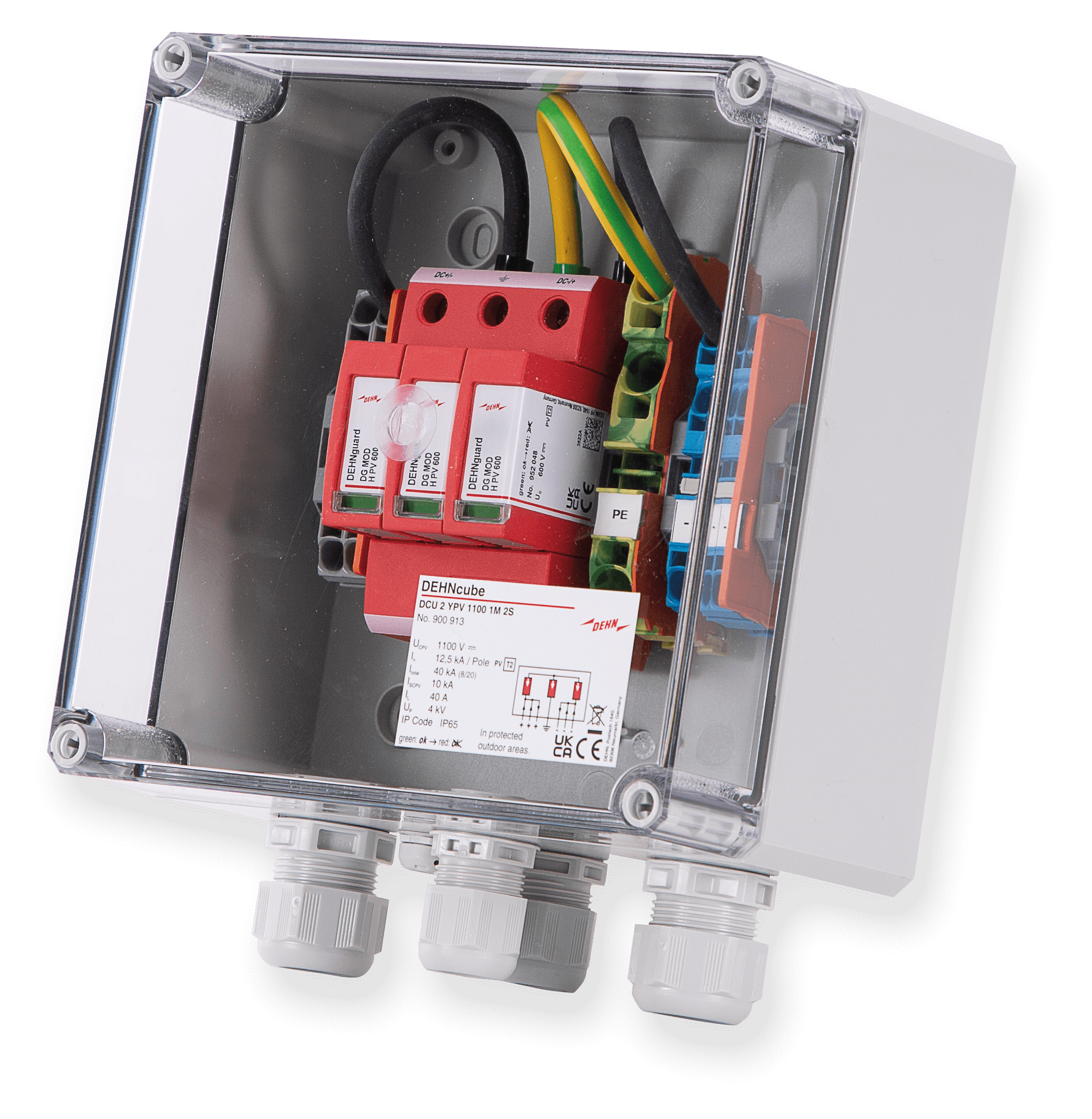

DC overvoltage protection, type II for 1 MPP

Compact and pre-fabricated box with type II surge arrester for the DC side. Suitable for INV with only 1 MPP up to 1100 V DC voltage. This overvoltage box has 2 input terminals each with spring-type terminal contacts per pole and arrester. Here, cable end sleeves are not required. This results in an even larger contact area and low contact resistance. The output terminal is also screwless.

Specifications:

Arrester element of type II for 1 MPP tracker
Input: 2 strings per MPPT with terminals 0.5 – 10 mm² copper fine-stranded without ferrules
Output: 1 string per MPPT with terminals 0.5 – 25 mm² copper fine-stranded without wire end ferrule
Rated insulation voltage: 1100 V
Design current per string: 40 A
Protection category: IP65
Dimensions (WxHxD): 182 x 180 x 111 mm

Downloads

enwitec 10017264 datasheet
