enwitec overvoltage protection DC type I+II, 2 MPPTs, terminals

Type of manufacturer: GAK-enwitec-S-1000-2x2R-X-BC-PC-1.0
Manufacturer Art. No.: 10015829
Art. Nr.: 12525
Accessory type: Overvoltage protection
WEEE-Number:
  • DE71566755
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 12525
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 12525
Description

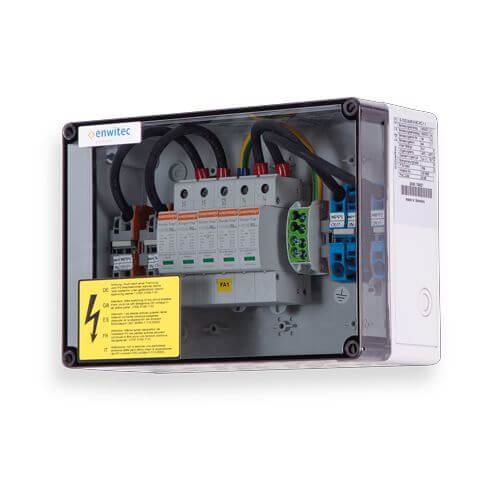

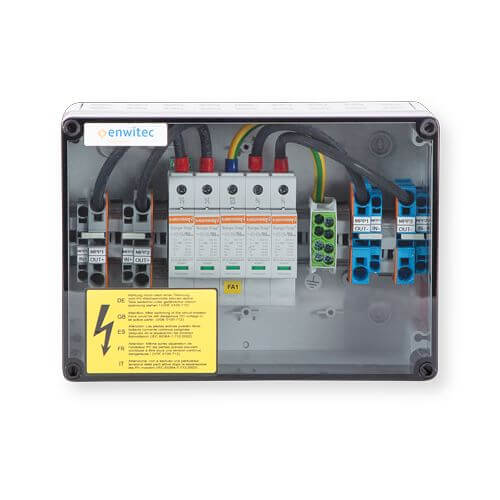

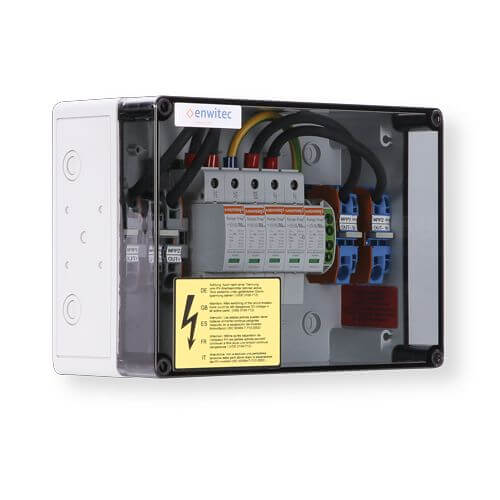

enwitec overvoltage protection DC type I+II, 2 MPPTs, terminals

Successor model to 5938 - enwitec surge protection DC type I+II, 2 MPPT, terminals (10012735)

The enwitec surge protection DC type I+II for 2 MPPT systems offers reliable protection for photovoltaic systems against overvoltage damage that can be caused by lightning strikes or grid malfunctions.

Product advantages:

  • Protection against lightning and overvoltage damage
  • Strings per MPP in input / output: 4 / 2
  • Suitable for photovoltaic systems with 2 MPP trackers
  • Robust, UV-resistant housing
  • Simple wall installation
  • Protection class II and IP65 for outdoor applications

Technical specifications:

  • Art. No.: 10015829
  • Surge protection device: Type I+II according to EN 61643-11
  • Max. Operating voltage: 1000 V DC
  • Rated current: 64 A, design current: 80 A
  • Max. Lightning surge current (10/350): 5 kA
  • Cable entries: M16 cable glands
  • Protection class: IP65
  • Operating temperature: -25°C to +35°C
  • Dimensions (WxHxD): 250 x 175 x 100 mm
enwitec overvoltage protection DC type I+II, 2 MPPTs, terminals
Available from stock
