enwitec fire protection circuit breaker for 6MPP
| Type of manufacturer: | Santon-1000-6x2R-T50-X-PES-1.1 |
|---|---|
| Manufacturer Art. No.: | 10013565 |
| Art. Nr.: | 7550 |
| Pieces per package unit: |
|
| Accessory type: | Firefighter breaker |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from 27.01.2025
Product number:
7550
Description

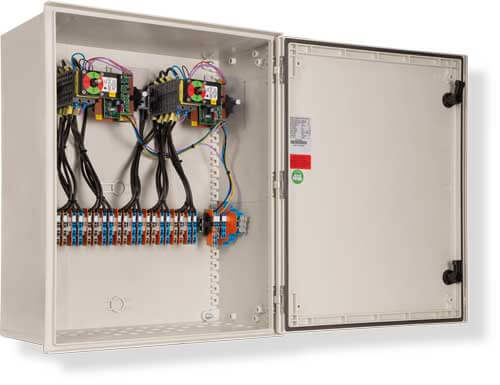

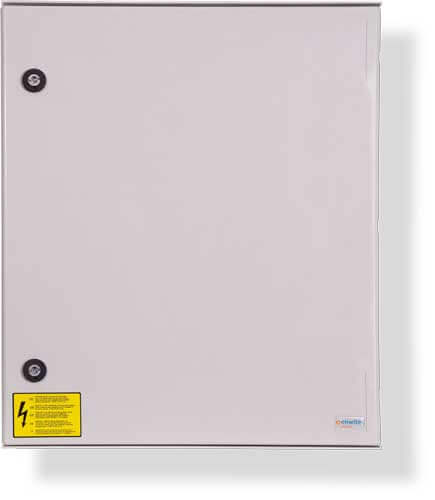

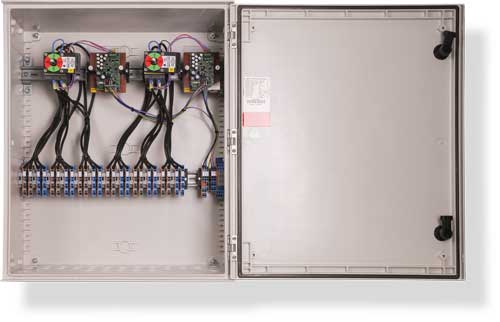

enwitec fire protection circuit breaker for 6 MPPT
An additional remote control unit is always required.
You create the enwitec fire protection system with a generator connection box on the roof (with integrated overvoltage protection), a remote control unit and ideally an E-Stop Switch. The E-Stop Switch is the red emergency stop switch and switches off the PV system. The indicator lights show you whether the system is currently in operation or switched off. You can find a detailed functional description in the downloads.
Product advantages
- Automatic switch-off in the event of a power failure
- Automatic restart when power is restored
- Ideally with additional emergency stop switch
Product features enwitec fire protection circuit breaker
- Number of MPP inputs: 6
- PV strings per MPP input: 2
- Design current per string: 20 A
- Maximum voltage value: 1,000 V
- Overvoltage protection: Type I+II
- Wire end ferrules are required to connect the strings
- Dimensions (WxHxD): 800 x 600 x 230 mm
- Protection cateogry: IP 65
-
