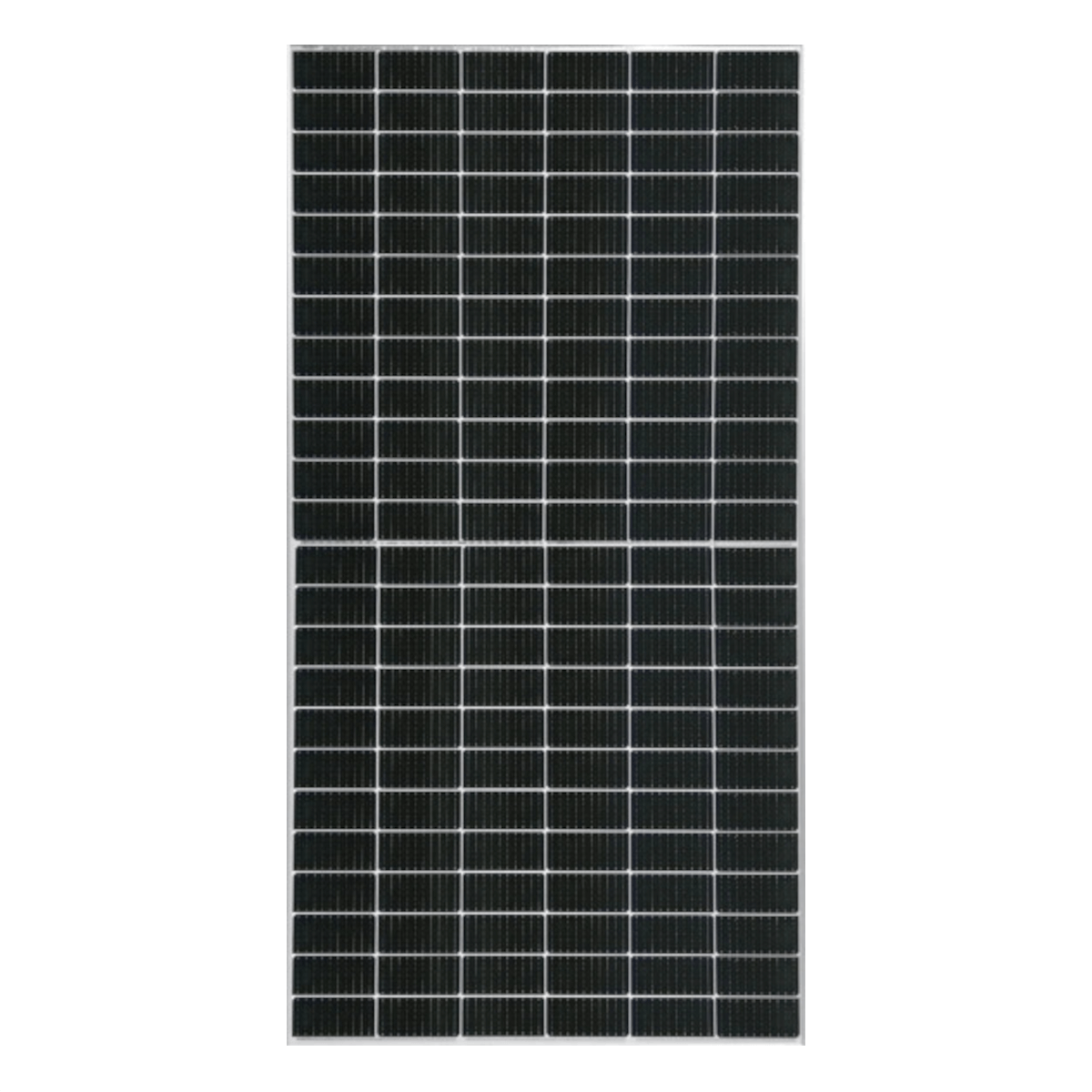

EGing 540W, EG-540M72-HLV, container
Image may differ from the product.
| Manufacturer Art. No.: | EG-540M72-HLV |
|---|---|
| Art. Nr.: | 8048 |
| Pieces per package unit: |
|
| Backsheet: | White |
| Dimensions: | 2278 x 1134 x 35 mm |
| Frame color: | Black |
| Glass-glass: | 12 years |
| Power: | 540 Watt |
| Solar panel type: | High performance solar panels, Project solar panels, Solar park modules |
| Technology: | PERC |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Remaining quantity
Available from stock
Product number:
8048
Description
Powerful and high quality: Monocrystalline 540 W module from EGing (container)
he EGing 540 W module is a half-cut high power module consisting of 144 monocrystalline half cells. The module is optimally adapted to low-light conditions and has an efficiency of 20.90%. Due to a high PID resistance, a performance guarantee of 25 years can be given.
In Germany, the module is only suitable for open spaces, as there are no approvals from building authorities for private homes!
Product advantages
- 144 monocrystalline half cells
- 0/+3 W positive power tolerance
- Optimal low light performance
- Product warranty: 12 years
- Performance warranty: 25 years
Product features EGing 540 W, EG-M72-HLV
- Performance: 540 watts
- Efficiency: 20.90%
- Module frame color: Silver
- Dimensions: 2278 × 1134 × 35 mm
- Weight: 27.0 kg
- Protection category: IP68
- Original MC4 connector from Stäubli
- Snow load: 5,400 Pa
- Wind load: 2,400 Pa
- Cable length: 1.20 m
- Power temperature coefficient: -0.350 % / °C
About EGing
The Chinese manufacturer EGing was founded in 2003, is active internationally and is listed as a Tier 1 manufacturer by Bloomberg. With more than 190 patents and its own research academy, the manufacturer is constantly advancing its products. The production of PV modules is fully automated.
