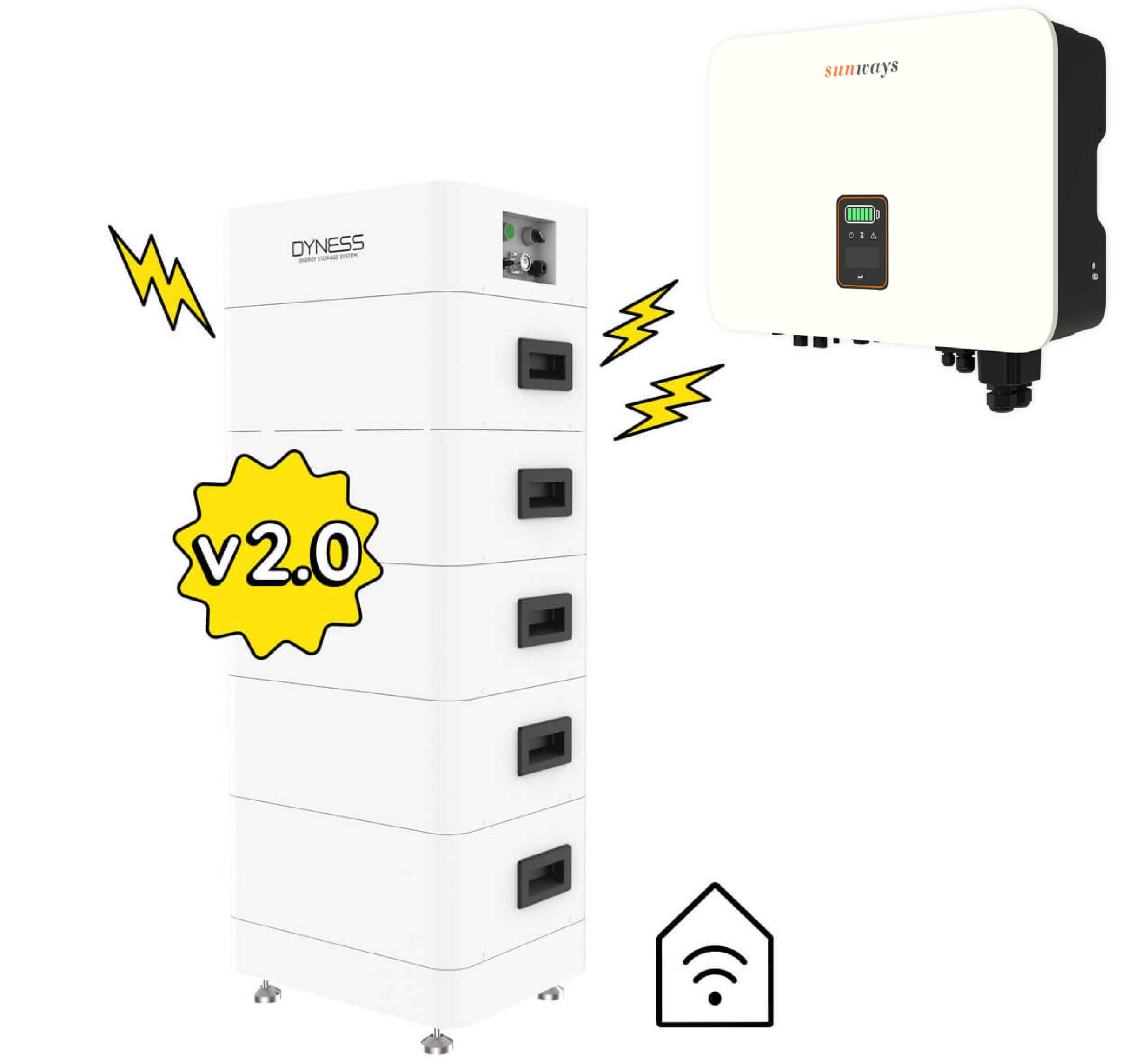

Dyness Tower T17 with Sunways Hybrid STH-10KTL-HT
| Art. Nr.: | 8958 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | Sunways STH-10KTL-HT |
| Net capacity: | 16 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | Dyness Tower T17 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from 08.01.2025
Product number:
8958
Description
The storage package of the Dyness Tower T17 with the Sunways Hybrid STH-10KTL-HT
The package of the Sunways STH-10KTL-HT hybrid inverter and Dyness Tower T17 high voltage battery. The Sunways STH-10KTL-HT Hybrid Inverter has a three-phase Back-Up output that can be overloaded up to twice for 60 seconds. This hybrid has 110% asymmetry in normal operation and can be overloaded up to 125% at the Back-Up output. The Dyness Tower is a range of high-voltage, stackable battery that impress with their easy installation, robust design and modern look.
Dyness Tower T17 Product Features
- Battery capacity: 17.8 kWh
- Usable battery capacity: 16.0 kWh
- Lithium iron phosphate technology (LFP)
- Rated voltage: 480 V
- Charging/discharging current: 22.2 A
- Weight: 228 kg
- Protection rating: IP 54
- Dimensions: 1300x504x380 mm (HxWxD)
STH-10KTL-HT Product Features
- Rated On-Grid Power: 10.0 kVA
- Rated Back-Up Power: 10 kVA
- 2 MPP trackers 200-850 V
- 1 MC4 input on MPPT
- Connection to high voltage battery
- Wifi device
- Smartmeter and CT (90 A)
- Push-in terminals for communication interface simplify installation
- Web server
- Dimensions: 410x550x175 mm
- Protection rating: IP 65
- Weight: 26 kg
The set includes
1x Tower BDU
5x HV9637
1x STH-10KTL-HT
