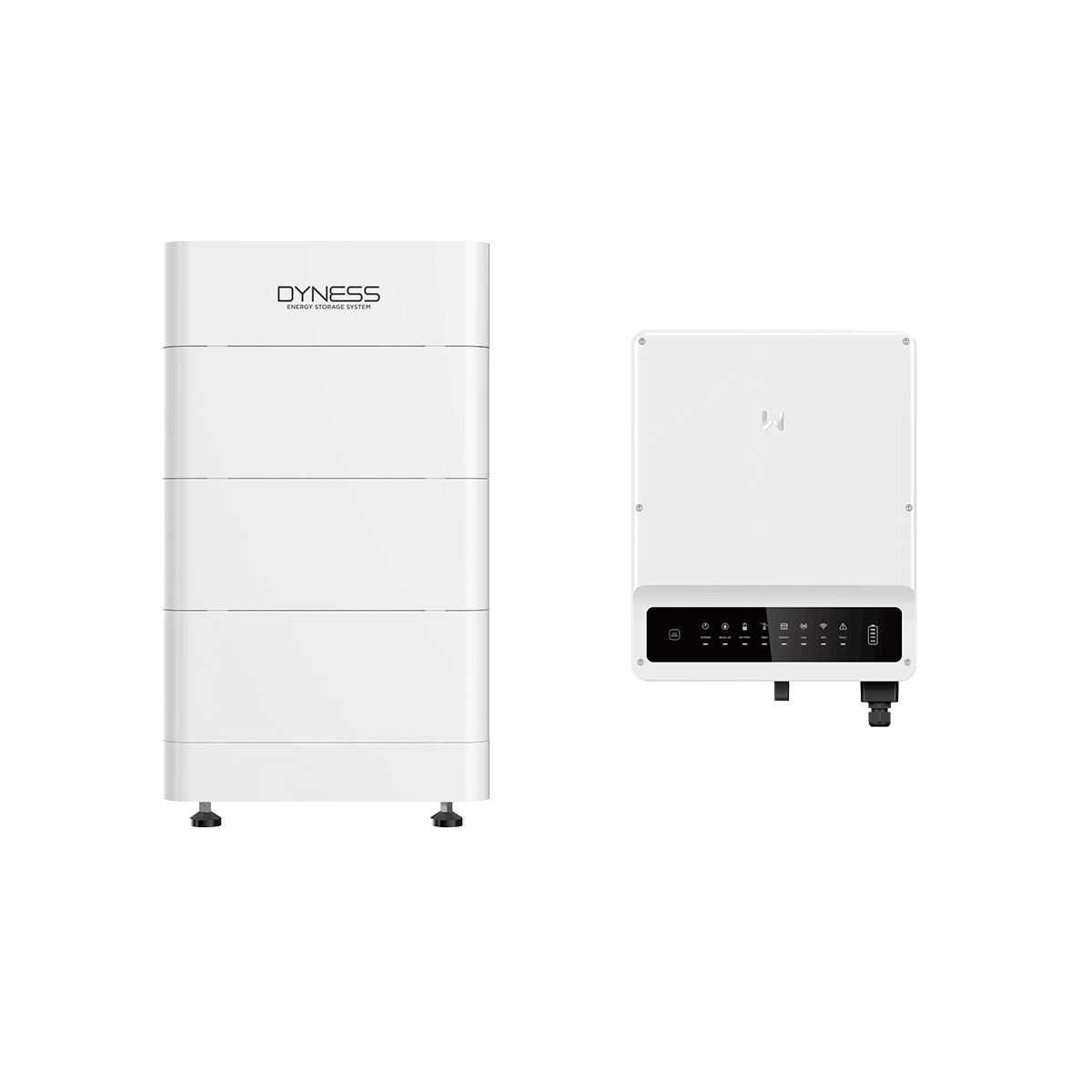

Dyness Tower 2.0 T10 with 10.1 kWh with GoodWe ET Plus 16A – GW10KN-ET
| Art. Nr.: | 12435 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | GoodWe ET Plus 16A - GW10KN-ET |
| Net capacity: | 10.1 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | Dyness Tower 2.0 T10 mit 10,1 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Top-Deal
Available from stock
Product number:
12435
Description
Dyness Tower 2.0 T10 with 10.1 kWh with 13.5 kWh with GoodWe ET Plus 16A – GW10KN-ET storage package
Dyness comes with the stackable high-voltage battery tower 2.0. The battery storage system is available with 2 – 6 battery modules and a usable storage capacity of 6.74 – 20.24 kWh. In combination with the GoodWe hybrid inverter ET Plus, self-consumption can be increased. In combination, they can continue to supply selected consumers with electricity in the event of a power failure. Other consumers such as wallboxes and heat pumps can also be integrated via the potential-free contact in the hybrid inverter.
Product features Dyness Tower 2.0 T10 with 10.1 kWh
- Modular design
- Battery capacity: 10.66 kWh
- DoD: 95%
- Usable battery capacity: 10.1 kWh
- Lithium iron phosphate technology (LFP)
- Nominal voltage: 288 V
- Charge/discharge current: 18.5 A
- Weight: 146 kg
- Warranty: 10 years
- Protection category: IP 54
- Dimensions: 900 x 504 x 380 mm (H/W/D)
Product features GoodWe ET Plus 16A – GW10KN-ET
- Mains connection: 3-phase
- AC power: 10 kVA
- 10.0 kW emergency power via separate output
- MPP trackers: 2
- String connections per MPPT: 1
- Max. input current: 16A
- Max. short circuit current: 21.2 A
- Battery connection for high-voltage battery (BYD, GoodWe, LG)
- Communications: RS485, Wi-Fi (optional LAN)
- Potential-free contact available (programmable via SolarGo app) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- 3-phase smart meter GM3000 included
- Wi-Fi module included
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection class: IP66
- Weight: 24 kg
Scope of delivery
- Dyness Tower 2.0 T10 with 10.1 kWh consisting of 1 BMS and 3 battery modules
- GoodWe ET Plus 16A – GW10KN-ET incl. 3-phase smart meter
