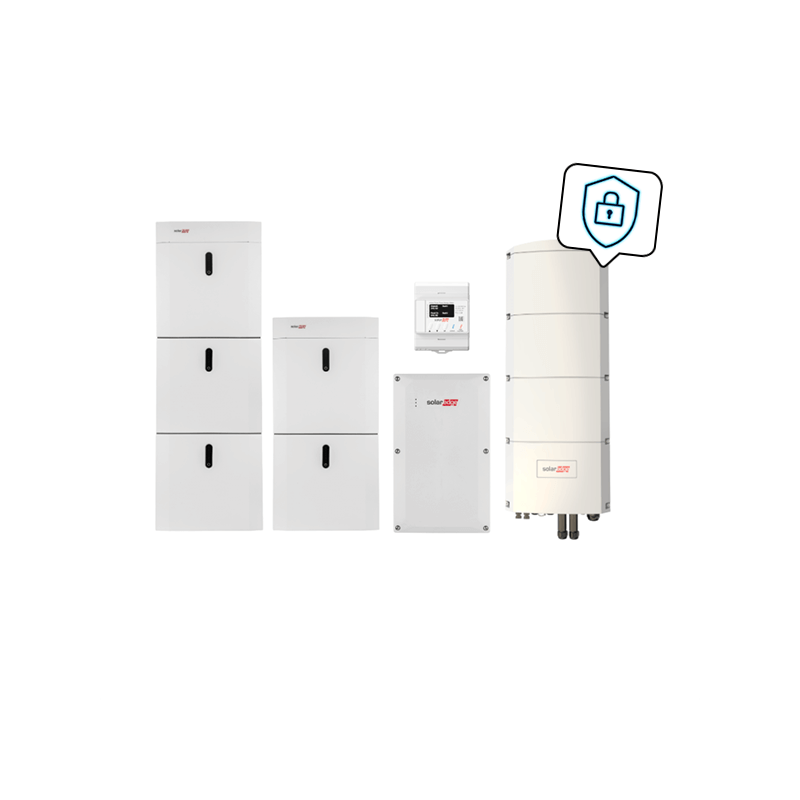

Combi package SolarEdge Home backup power with SE10K-RWB48 and 23 kWh
| Art. Nr.: | 7614 |
|---|---|
| Accessoires: | Backup-Interface inkl. Energiezähler, Verkabelung |
| Battery type: | 48 volt lithium-iron-phosphate |
| Inverter: | SolareEdge Home Hub-Wechselrichter SE10K-RWB48 |
| Net capacity: | 23 kWh |
| Package type: | 3-phase, 48 V battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | SolarEdge Home Batterie-Niedervolt 23 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
7614
-
-
{ "id": "82cd24431425568db25faefa8e897926", "item_brand": "", "item_name": "SolarEdge charging station 22 kW, RFID, MID", "item_id": "6899", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "82cd24431425568db25faefa8e897926" } } -
{ "id": "ae5bf43946db564bb0450b52acbf58b6", "item_brand": "", "item_name": "SolarEdge low voltage home battery base plate", "item_id": "7422", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ae5bf43946db564bb0450b52acbf58b6" } } -
{ "id": "f8a3064463c25c05a9ea73ba934ab18b", "item_brand": "", "item_name": "SolarEdge Home EV Charger 22 kW", "item_id": "6900", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f8a3064463c25c05a9ea73ba934ab18b" } }
-
Description
SolarEdge Home low-voltage battery 23 kWh with SolarEdge Home Hub inverter SE8K-RWB48 and backup interface for backup power
The new low-voltage storage system from SolarEdge is the first three-phase storage system/inverter combination with backup power to come from a single manufacturer.
The advantages of a storage system plus inverter from a single company are clearly the maximum output, maximum efficiency and a knowledgeable contact partner for questions and problems.
The SolarEdge Home low-voltage battery can be varied between one and five battery modules. This means that the net capacity can be selected between 4.6 kWh and 23 kWh.
Online certification training is required to install the Home Battery Low Voltage! → Click here to go to the SolarEdge Academy
Product advantages:
- Customized capacity
- Simple plug & play installation with automatic SetApp configuration
- Scalable between 4.6 & 23 kWh
- Complete set with backup function
Product features SolarEdge Home low-voltage battery:
- Weight per battery module: 54.7 kg
- Communication: RS485 between the modules, CAN bus to inverter
- Floor mounting with wall mounting (not just a wall bracket!)
- Cell chemistry: Lithium ions (lithium iron phosphate)
- IP65
- Dimensions (W x H x D): 540 x 500 x 240 mm
- 10 years of warranty
Product features SolarEdge Home Hub three-phase hybrid inverter SE10K:
- AC rated power: 10 kVA, 3-phase
- Maximum battery charging/discharging power: 5 kW
- DC or AC system with SolarEdge inverter
- PV input: 2 pairs of MC4 inputs
- Battery connection: 1 pair of M8 cable lugs
- Communication: Ethernet RJ45
- Protection category: IP 65
- Standard warranty: 12 years
- Dimensions: 907 x 317 x 192 mm (H x W x D)
- Weight: Gross 40 kg / Net 37 kg
- Integrated SolarEdge Home network
Product features backup interface:
- Automatic switching < 3 seconds
- Backup power for the whole house or selected loads
- Full three-phase backup power solution (and not just a single-phase emergency power socket)
- Integrated SolarEdge Home network
- Integrated SolarEdge Home energy meter (export / import)
- Complete house connections can be fused with up to 3 x 63A (6 – 16mm² connection terminal)
- 230 V
- Three-phase current and phase-shift load up to 3 kVA
- Black start capable
- Dimensions (H x W x D): 390 x 238 x 147 mm
- RS485 communication or home network
- Weight: 5 kg
- Can be used outdoors: IP65
- Controls the disconnection of house loads from the grid to backup mode
Package components:
- SolarEdge Home backup interface item no. 7412 with already integrated SolarEdge Home energy meter item no.: 7066
- SolarEdge Home low-voltage battery 23 kWh item no.: 7512 including all required cables and accessories
- SolarEdge Home Hub inverter 10 kVA item no.: 7410
- 1x connecting cable battery inverter item no.: 7419
