Combi package SolarEdge Home backup power with charging station, SE810K-RWB48 and 23 kWh

Perfect combination: SolarEdge Home high-voltage battery storage with 10 kWh – SolarEdge SE5000H-BEN4 PV inverter and SolarEdge charging station

Certification test required for installers to install SolarEdge Home Battery High Voltage.

SolarEdge Home Battery High Voltage Training Course available on EDGE Academy: ENG, IT, NL, FR, DE, ES

With the SolarEdge Home High-Voltage Battery, SolarEdge delivers the next building block for its complete solution. The high-voltage home battery is compatible with SolarEdge high-voltage inverters with HD-Wave technology. Thanks to the SolarEdge system, you benefit from simple "plug-and-play" installation and only have to contact one specialist when servicing is required. Thanks to the size of just under 10 kWh net capacity, this battery fits into any household and often offers a small reserve to optimize self-consumption for electric charging or a heat pump. For higher consumption, up to 3 batteries can be operated in parallel on one inverter.

Package advantages

• Stylish and compact design
• Simple and quick installation
• Floor or wall mounting of the high-voltage home battery possible
• Storage and inverter from one manufacturer
• Visualization and control of the photovoltaic system via the SolarEdge energy management system

Product features Home high-voltage battery:

• Net capacity: 9.7 kWh (at 100% DoD)
• Gross capacity: 10.3 kWh
• Rated power: 5 kW
• 10 years of warranty
• Compatibility: Single-phase inverters with HD-Wave Technology, StorEdge single-phase inverters with HD-Wave Technology
• Weight: 121 kg
• Dimensions: 790 x 1179 x 250 mm
• Protection category: IP 55
• Mounting: inside or outside possible. Wall mounting with handles or floor mounting with base plate possible (must be ordered separately)

Product features SolarEdge SE5000H-BEN4:

• 4.6 kVA output 1-phase
• 2 pairs of MC4 inputs
• Interfaces: Ethernet RJ45, RS485
• Protection category: IP 65
• Standard warranty: 12 years
• Dimensions: 280 x 370 x 142 mm (H x W x D)
• Weight: 9 kg

Product features SolarEdge Home energy meter:

• High measuring accuracy down to 1% for feed-in/draw-in, production and consumption
• Integrated current transformers
• Supplies meter values to the inverter for feed-in control
• Small, easy and quick to install – fits in any meter box
• Direct connection with up to 65 A per phase possible
• Communication via home network (optional RS485)
• 3 x 230V / 400V
• Line conductor to line conductor 320-460V
• Line conductor to neutral conductor 184-264.5V
• Operating temperature range -40 to +70 Suitable for outdoor installation
• Response time <200 ms
• Dimensions: 72 x 90 x 58 mm (H x W x D)
• Mounting on DIN rail

Product features SolarEdge charging station 22 kW, RFID, MID

• 11 kW charging power preset (setting via DIP switch during installation up to 22 kW possible)
• Wi-Fi
• MID meter
• Fixed charging cable – 6 meters (type 2)
• Compact dimensions: 240 x 142 x 643 mm (W x D x H)
• Weight: 7.80 kg
• Housing color: white
• CE certified IP54, IK08
• 1x RFID card included in scope of delivery
• Integrated RFID reader
• Cable holder included

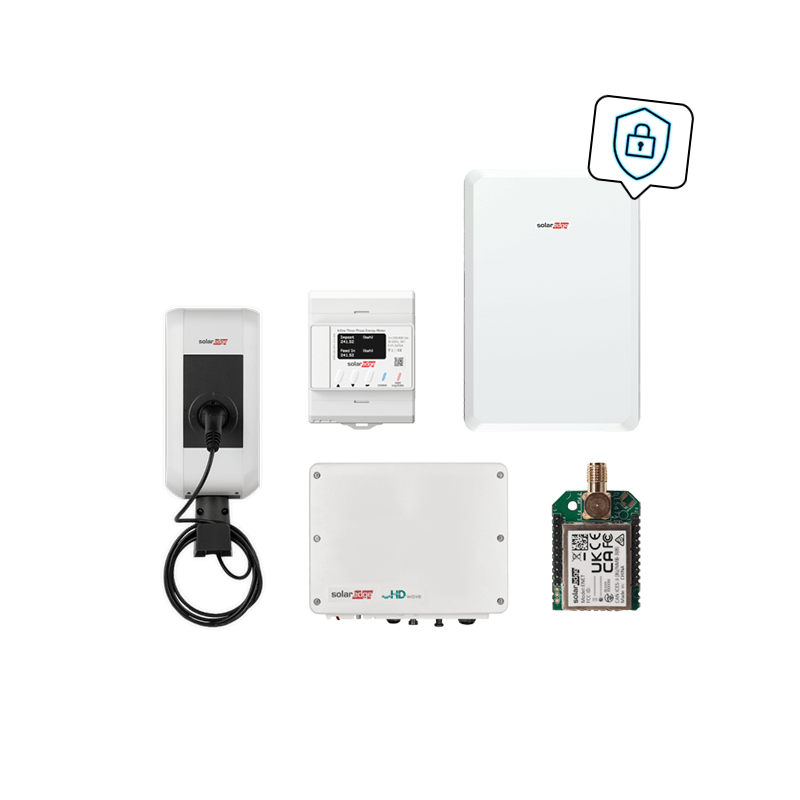

Scope of delivery

• SolarEdge Home high-voltage battery 10 kWh
• SolarEdge SE5000H-BEN4 inverter
• SolarEdge Home energy meter
• SolarEdge Home network plug-in for Home network ready inverter
• SolarEdge charging station 22 kW, RFID, MID item no.: 6899

Conclusion

SolarEdge completes its range with the new battery storage system, the Home Battery high-voltage. Combined with the single-phase HD-Wave inverters and the charging station, this makes for outstanding system performance, as the components are perfectly matched. Communication is handled by the new SolarEdge Home network. In addition, you only need to contact one expert in the event of a service call - in other words, a complete package. In addition to the high-voltage home battery, SolarEdge also offers innovative inverters, modules and power optimizers.
