BYD Battery-Box Premium LVS 24.0 with SolarEdge StorEdge three phase inverter SE10K

SolarEdge StorEdge SE10K three-phase inverter with BYD Battery-Box Premium LVS 24.0

The SolarEdge inverters are only approved with a BYD LVS “tower” – parallel connection is not possible here.

SolarEdge inverters have no MPP tracker and two inputs for the SolarEdge module optimizers. With fixed voltage technology, the SolarEdge inverter always operates in the optimal input voltage range regardless of the module and string count. Performance data from each PV module optimizer is transmitted to the SolarEdge inverter via the string line and can be visualized via the Internet in the SolarEdge Monitoring Portal.

The new inverters do not have a display. Commissioning the inverter is quick and easy with the SolarEdge app on your smartphone.

The integrated 48 V battery connection leaves nothing to be desired! BYD LV or LG Chem batteries are compatible with this system.

Product advantages SolarEdge StorEdge SE10K

• Hybrid inverter for SolarEdge optimizers and 48 V batteries
• DC nominal voltage 750 Vdc
• Very high efficiency of up to 98%
• Fast installation time thanks to integrated StorEdge interface
• Larger battery selection due to 48 V battery voltage
• Lower overall costs thanks to 48 V battery technology

Product features SolarEdge StroEdge SE10K

• 10 kVA power 3-phase
• 5 kW Battery connection 48 V
• DC or AC system with SolarEdge inverter
• 2 pairs of MC4 inputs
• Ethernet RJ45
• Protection category: IP65
• Standard warranty: 12 years
• Dimensions: 853 x 316 x 193 mm (H x W x D)
• Weight: 37 kg

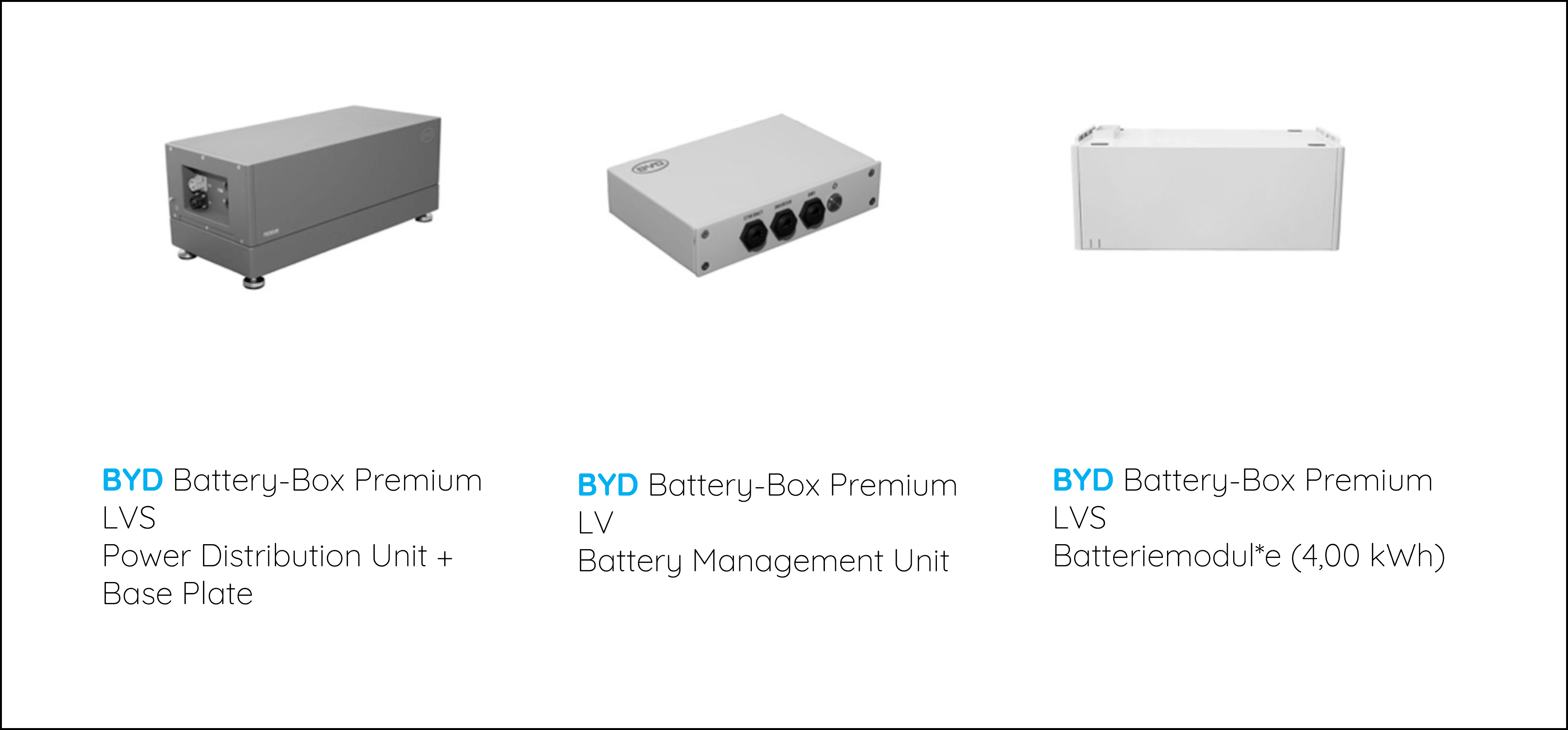

Product advantages Battery-Box Premium LVS 24.0

• Maximum flexibility for all applications with up to 64 modules connected in parallel
• The patented modular plug-in design requires no internal cabling and allows maximum flexibility and ease of use
• Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, service life and performance
• Compatible with leading 1 and 3 phase inverters
• Highest safety standards such as VDE 2510-50

Product features Battery-Box Premium LVS 24.0

• Usable capacity: 24.0 kWh
• Lithium iron phosphate technology (LFP)
• Nominal voltage: 51.2 V
• Max. output current: 250 A
• Peak output current: 360 A für 5 Sekunden
• Dimensions: 1643 x 650 x 298 mm (H x W x D)
• Weight: 289 kg
• Protection category: IP55
• Warranty: 10 years

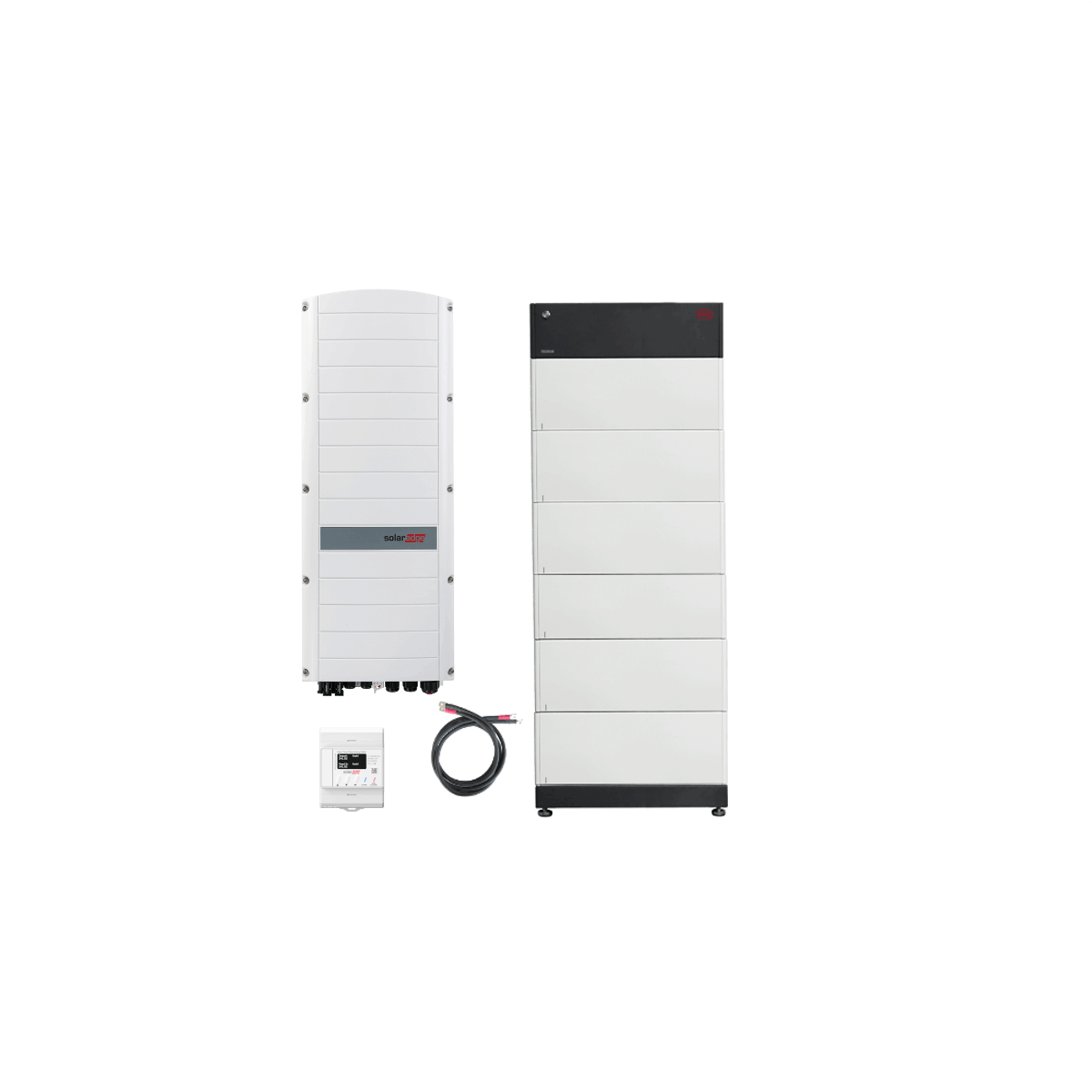

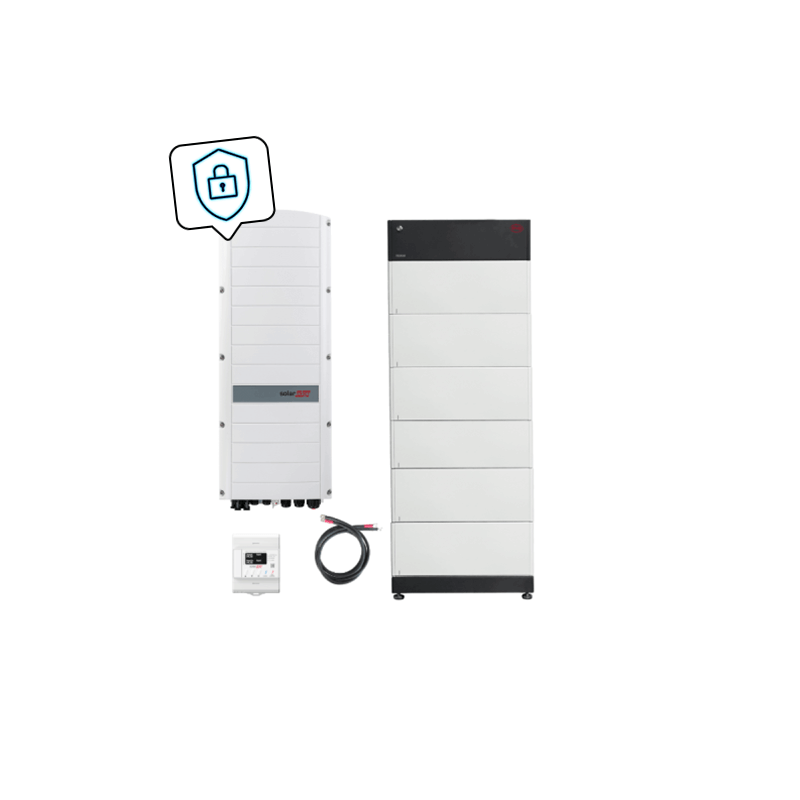

Scope of delivery:

• SolarEdge StorEdge SE10K 3-phase inverter
• SolarEdge inline energy meter
• BYD Battery-Box Premium LVS 24.0
• Battery connection set 35 mm², 2 m
• Patch cable 2 m

SolarEdge StorEdge three-phase inverters can be configured as DC but also as AC systems. This means that even larger systems can be equipped with a three-phase storage system.
