BYD BATTERY BOX PREMIUM LVS 16.0

BYD BATTERY BOX PREMIUM LVS 16.0 - 48 V battery

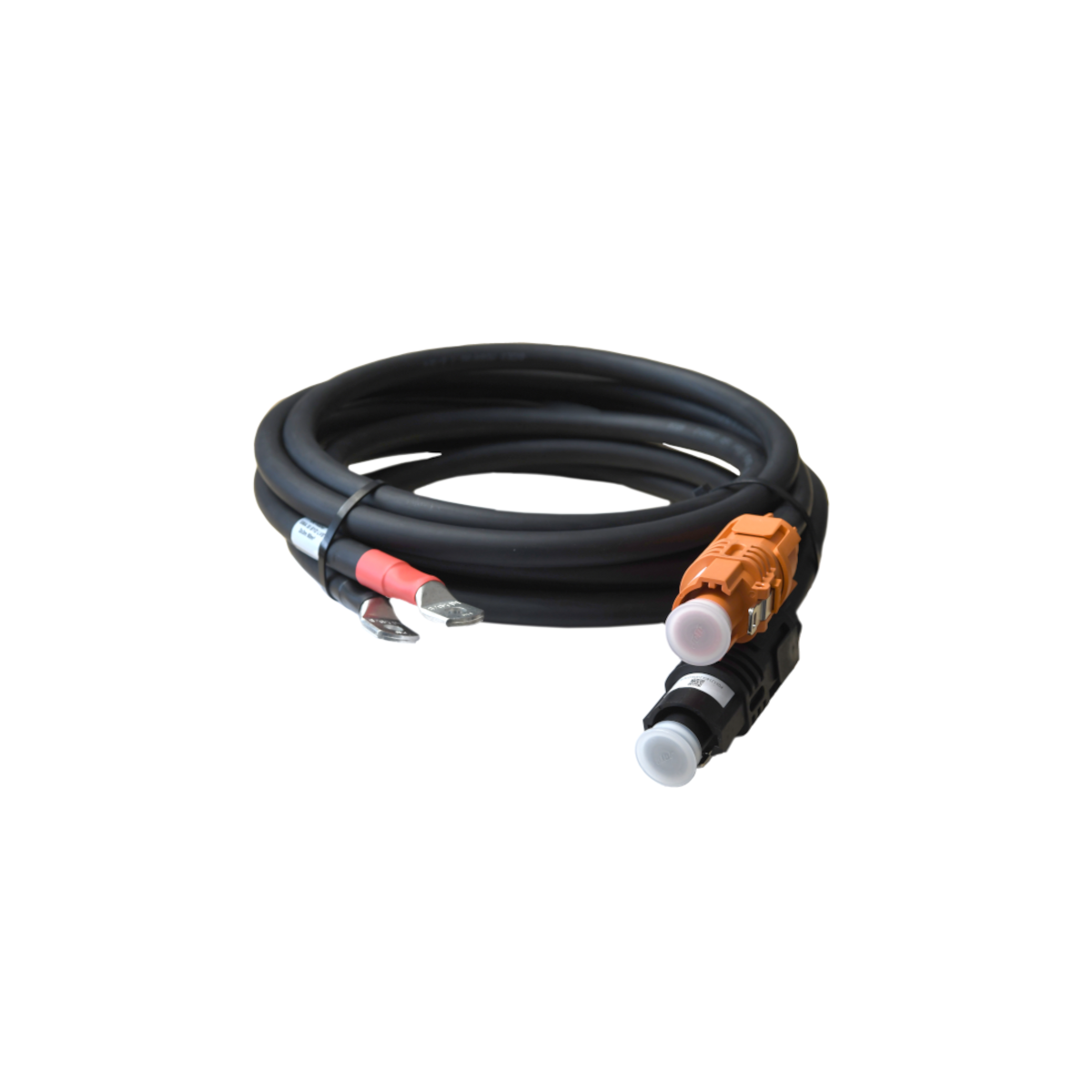

The new system generation is based on the known storage systems and has all previous functions. With the Battery Box Premium LVS, the new series offers almost 10% more capacity with slightly smaller dimensions. A significant reduction in the weight of the BCU (Battery Control Unit) reduces the total weight. Each battery module can now deliver 90 A for 5 seconds, making the new 48 V series suitable for off-grid applications. For commercial use, up to 64 battery modules with a total capacity of 256 kWh can be interconnected to form a system. For quick installation, the new BYD battery also relies on the proven connector system for easy installation without battery cables. Only the BCU must be connected to the inverter via a battery cable. This makes this battery ideally suited for universal use in homes and businesses. Consistent software ensures that the BYD Battery Box Premium LVS remains compatible with SolarEdge, SMA and GoodWe inverters.

Product benefits:

• Maximum flexibility for each application with up to 64 modules in parallel connection
• Patented modular connector design requires no internal cabling and provides maximum flexibility and ease of use
• Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, durability and performance
• Compatible with leading 1 and 3-phase inverters
• Highest safety standards such as VDE 2510-50
• Powerful emergency/standby power and off-grid functionality

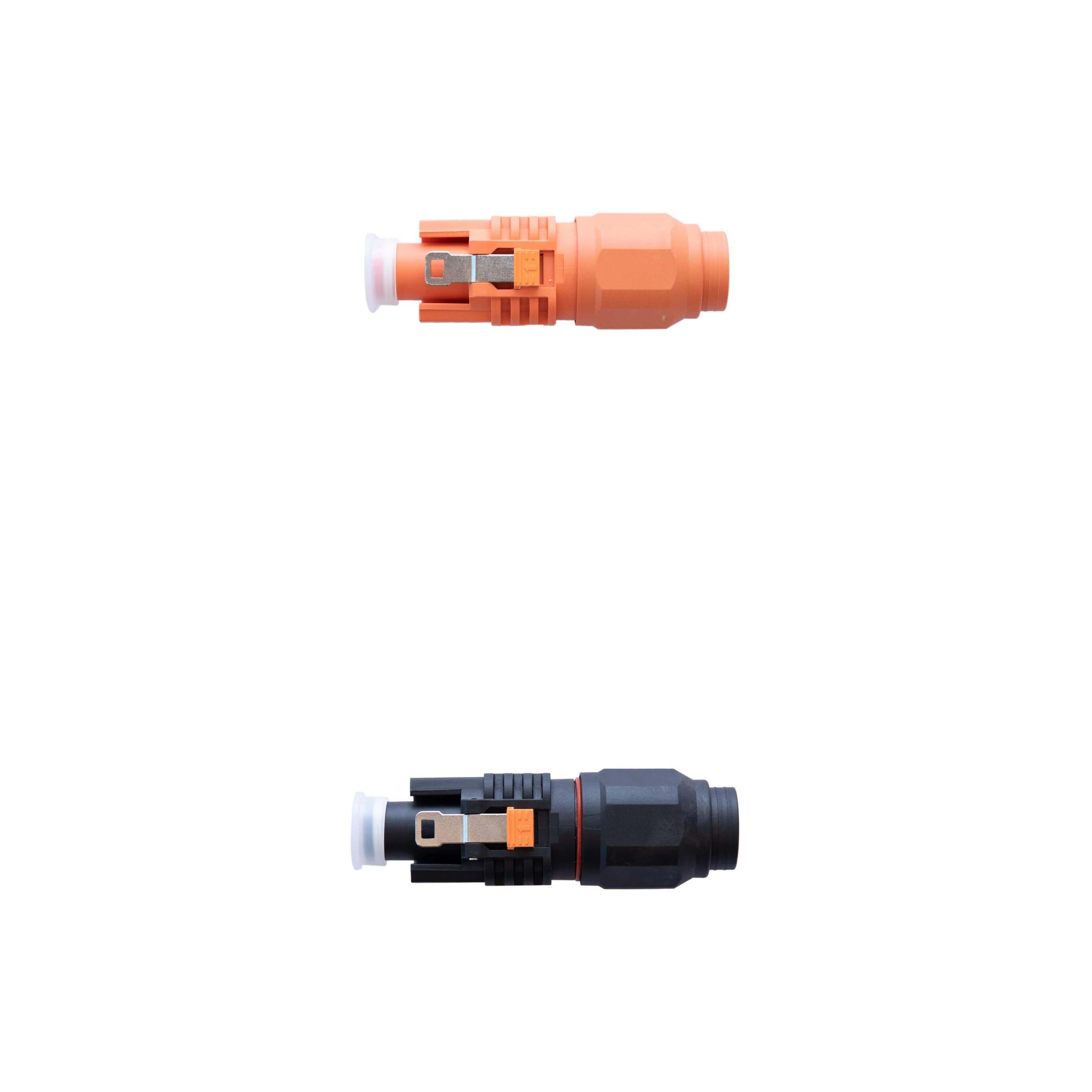

• With the specific BYD connector for the LVS batteries, installation is now even more convenient.

Product features:

• Battery capacity: 16.0 kWh
• Nominal voltage: 51.2 V
• Max. output current: 250 A
• Peak output current: 360 A (5s)
• Weight: 199 kg
• IP protection type: IP 55
• Dimensions (H/W/D): 1177 x 650 x 298 mm
• Cell technology: lithium iron phosphate (LFP)

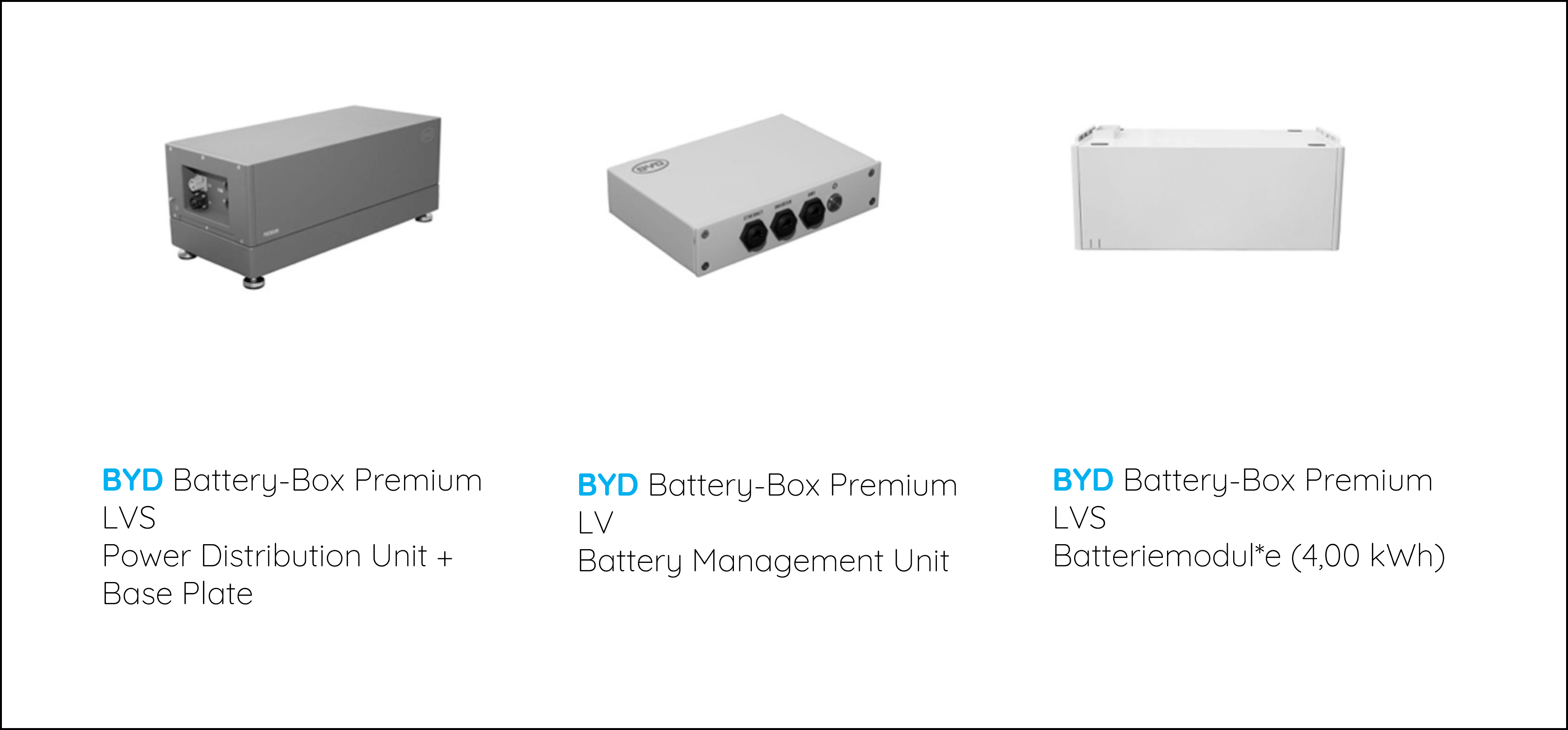

Scope of delivery:

• 1 x BYD BATTERY BOX PREMIUM LVS BMU
• 1 x BYD BATTERY BOX PREMIUM LVS base + cover
• 4 x BYD BATTERY BOX PREMIUM LVS 4.0
