BYD BATTERY-BOX PREMIUM LVS 16.0 with SMA SI 6.0H-13
| Art. Nr.: | 5469 |
|---|---|
| Battery type: | 48 volt lithium-iron-phosphate |
| Inverter: | SMA Sunny Island 6.0H-13 |
| Net capacity: | 16.0 kWh |
| Package type: | 1-phase, 48 V battery, Solar battery packages, Solar battery retrofit |
| Phases: | 1 |
| Solar battery: | BYD Battery-Box Premium LVS 16.0 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
5469
-
-
{ "id": "f851c43d16a85d83b49397b02bf44fe0", "item_brand": "", "item_name": "SMA Sunny Home Manager 2.0", "item_id": "2781", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f851c43d16a85d83b49397b02bf44fe0", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "ca63fe68321f59f38c50f350b50ac08c", "item_brand": "", "item_name": "SMA Energy Meter-20", "item_id": "2837", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ca63fe68321f59f38c50f350b50ac08c", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "7e3b53b70767529294f6604bba8ece68", "item_brand": "", "item_name": "Bat cable 48V network parallel M8-BYD LVS 2.5 m", "item_id": "5415", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7e3b53b70767529294f6604bba8ece68", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "97741011322f5b37bd75edc6d81bba78", "item_brand": "", "item_name": "SMA data manager M", "item_id": "3201", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "97741011322f5b37bd75edc6d81bba78", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description

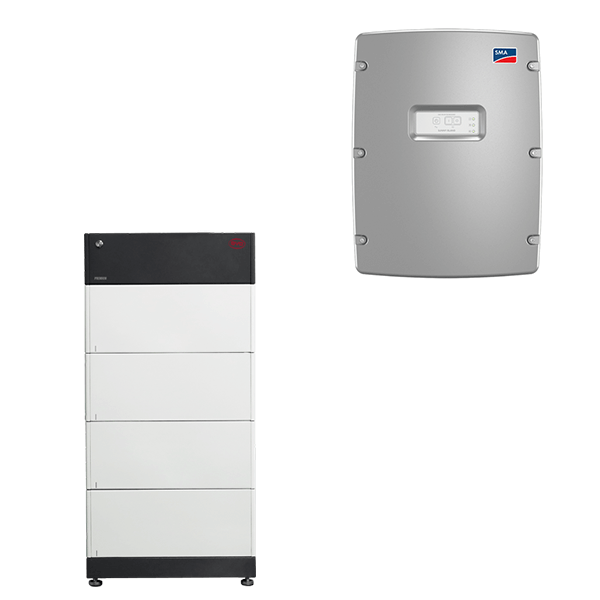

BYD B-Box 16.0 LVS + SMA Sunny Island 6.0H
The release between the Sunny Island and the BYD Battery Box Premium LVS 4.0 - 24.0 has been granted!
The PREMIUM BYD Battery Box LVS for the residential sector combines the proven 48V voltage level with the space-saving, wireless stacking technology. The new system generation is based on the known storage systems and has all previous functions. With the Battery Box Premium LVS, the new series offers 10% more capacity with slightly smaller dimensions. A significant reduction in the weight of the BCU (Battery Control Unit) reduces the total weight.
Advantages of Battery Box LVS:
- Patented modular connector design requires no internal cabling and provides maximum flexibility and ease of use
- Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, durability and performance
- Highest safety standards such as VDE 2510-50
- Powerful emergency/standby power and off-grid functionality
- With the specific BYD connector for the LVS batteries, installation is now even more convenient.
Product features of BYD B-Box LVS:
- Available capacity: 16.0 kWh
- Lithium iron phosphate technology (LFP)
- Nominal voltage: 51.2 V
- Max. output current 250 A
- Peak output current: 360 A for 5 seconds
- Dimensions: 1177 x 650 x 298 mm (H x W x D)
- Weight: 199 kg
- Protection type IP55
- Warranty: 10 years
Advantages of SMA Sunny Island 6.0H:
- Low-volt battery inverter
- A unique product for on-grid, off-grid and backup
- AC system for new installation and retrofitting
- Can also be used flexibly with non-SMA inverters - thanks to an additional SMA Energy Meter
- Quality - Made in Germany
Product features of SMA Sunny Island 6.0H:
- Rated power: 4.6 kW, 1-phase AC
- DC voltage range: 41 V to 63 V
- Max. DC current: 110 A
- WLAN und Speedwire integrated
- Protection type: IP 54
- Weight: 63 kg
- Dimensions: 467 x 612 x 242 mm (W x H x D)
- Product warranty: 10 years
Scope of delivery:
- SMA Sunny Island 6.0H

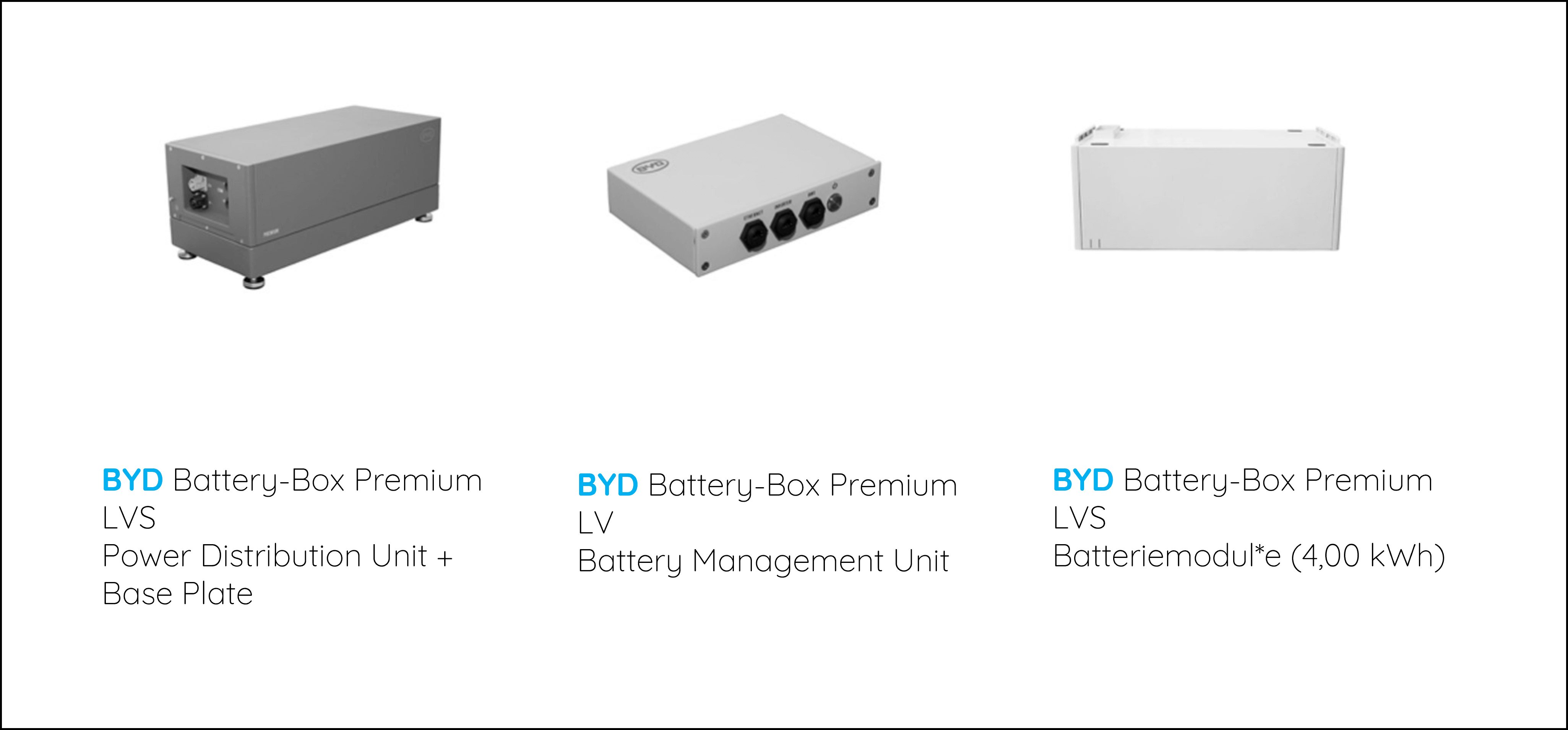

- BYD Battery-Box PREMIUM LVS 16.0
