BYD Battery Box Premium LVS 12.0 with SolarEdge StorEdge three-phase inverter SE5K

SolarEdge StorEdge Three Phase Inverter SE5K with BYD Battery Box Premium LVS 12.0

The SolarEdge inverters are only released with a BYD LVS "tower" – a parallel connection is not possible here.

SolarEdge inverters do not have an MPP tracker, but have two inputs for the SolarEdge module optimizers. With fixed voltage technology, the SolarEdge inverter always operates in the optimal input voltage range, regardless of the number of modules and strings. Performance data from each PV module optimizer is transmitted to the SolarEdge inverter via the strings and can be visualized on the SolarEdge Monitoring Portal over the Internet.

The new inverters are equipped without a display. Commissioning the inverter is quick and easy with the SolarEdge app via smartphone.

With the integrated 48 V battery connection, no wishes will be left unfulfilled! BYD LV or LG Chem batteries are compatible with this system.

Product advantages SolarEdge StorEdge three-phase inverter SE5K:

• Hybrid inverter for SolarEdge optimizers and 48 V batteries
• DC nominal voltage 750 Vdc
• Very high efficiency of up to 98 %
• Fast installation time thanks to integrated StorEdge interface
• Larger choice of batteries due to 48 V battery voltage
• Lower overall costs due to 48 V battery technology

Product features SolarEdge StorEdge three-phase inverter SE5K:

• 5 kVA output 3-phase
• 5 kW battery connection 48 V
• DC or also AC system with SolarEdge inverter
• 2 pairs of MC4 inputs
• Ethernet RJ45
• Protection category: IP65
• Standard warranty: 12 years
• Dimensions: 853 x 316 x 193 mm (H x W x D)
• Weight: 37 kg

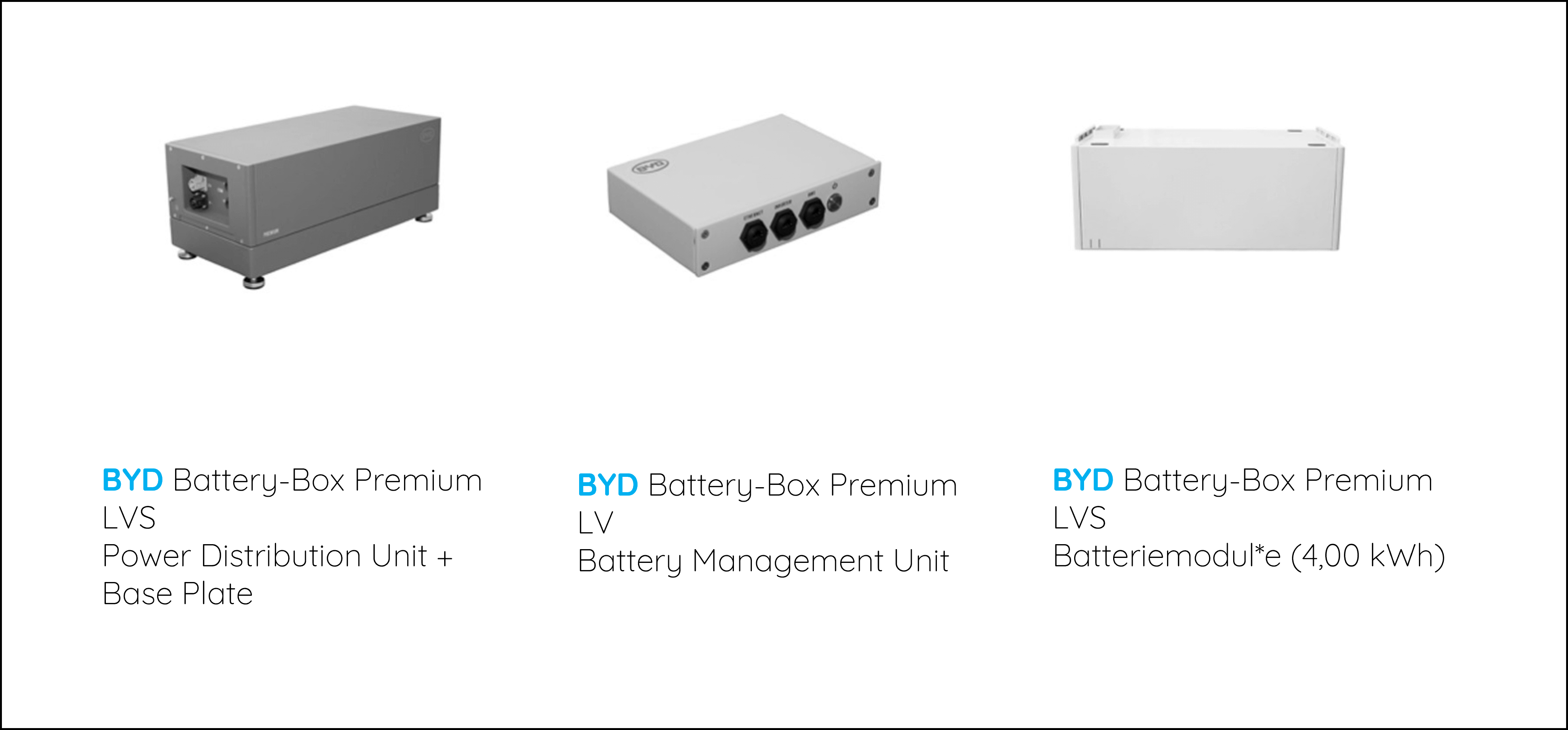

Product advantages BYD Battery Box Premium LVS 12.0:

• Maximum flexibility for any use case with up to 64 modules connected in parallel
• Patented modular plug-in design requires no internal wiring and allows maximum flexibility and user-friendliness
• Cobalt-free lithium iron phosphate (LFP) battery: Maximum safety, lifetime and performance
• Compatible with leading 1- and 3-phase inverters
• Highest safety standards such as VDE 2510-50

Product features BYD Battery Box Premium LVS 12.0:

• Usable capacity: 12.0 kWh
• Lithium iron phosphate technology (LFP)
• Nominal voltage: 51.2 V
• Max. output current 195 A
• Peak output current: 270 A for 5 seconds
• Dimensions: 944 x 650 x 298 mm (H x W x D)
• Weight: 154 kg
• Protection category: IP55
• Warranty: 10 years

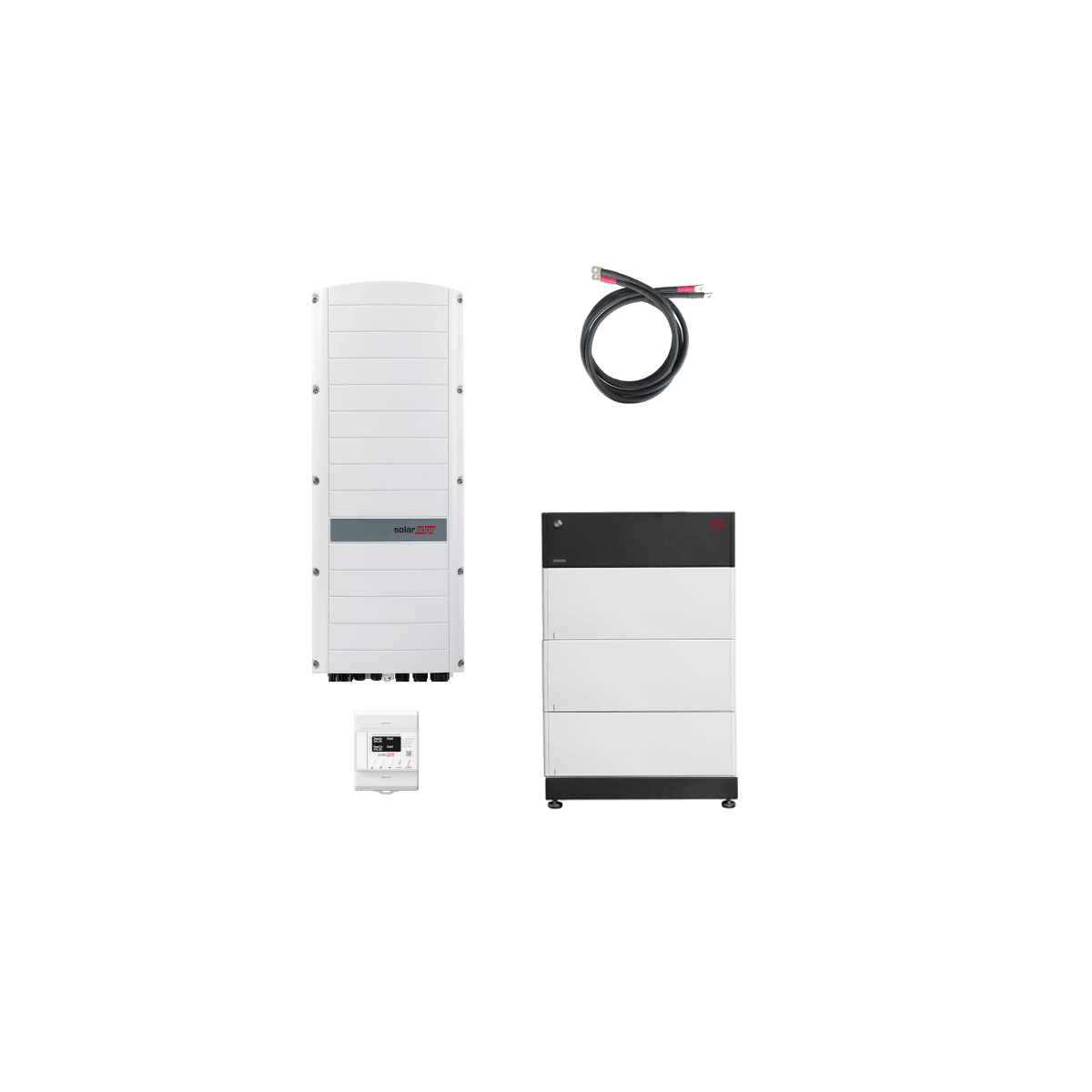

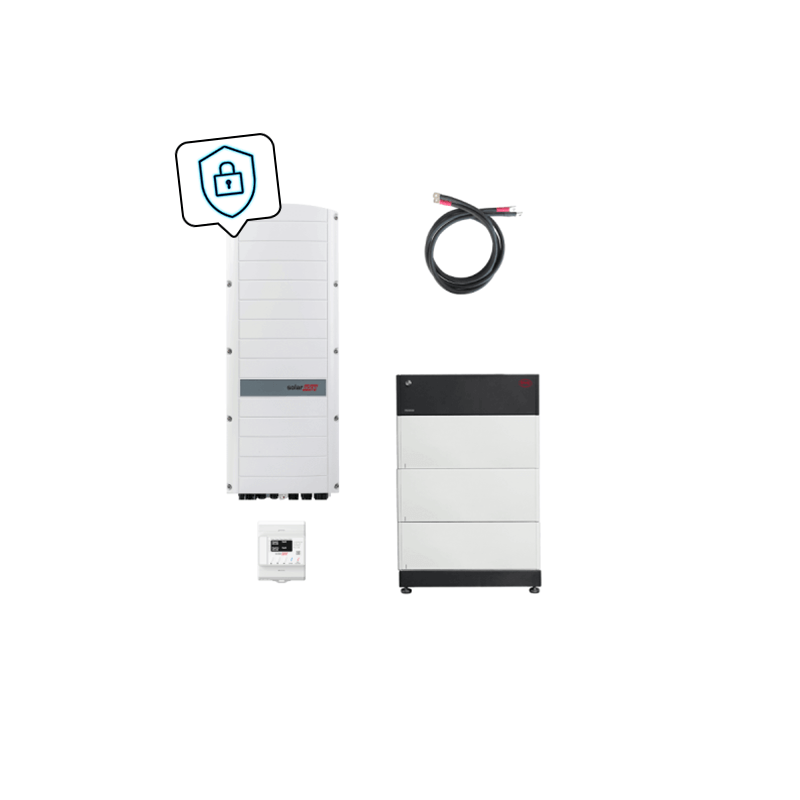

Scope of delivery:

• SolarEdge StorEdge SE5K three-phase inverter
• SolarEdge inline energy meter
• BYD Battery Box premium LVS 12.0
• Battery connection set 35 mm², 2 m
• Patch cable 2 m

SolarEdge StorEdge three-phase inverter can be configured as DC but also as AC system. This allows larger installations to be equipped with a three-phase storage system.
