BYD BATTERY BOX PREMIUM LVL 15.4 with SMA SI 6.0H-13
| Art. Nr.: | 4816 |
|---|---|
| Battery type: | 48 volt lithium-iron-phosphate |
| Inverter: | SMA Sunny Island 6.0H-13 |
| Net capacity: | 15.36 kWh |
| Package type: | 1-phase, 48 V battery, Solar battery packages, Solar battery retrofit |
| Solar battery: | BYD Battery-Box Premium LVL 15.4 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
4816
-
-
{ "id": "f851c43d16a85d83b49397b02bf44fe0", "item_brand": "", "item_name": "SMA Sunny Home Manager 2.0", "item_id": "2781", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f851c43d16a85d83b49397b02bf44fe0", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "ca63fe68321f59f38c50f350b50ac08c", "item_brand": "", "item_name": "SMA Energy Meter-20", "item_id": "2837", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ca63fe68321f59f38c50f350b50ac08c", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "97741011322f5b37bd75edc6d81bba78", "item_brand": "", "item_name": "SMA data manager M", "item_id": "3201", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "97741011322f5b37bd75edc6d81bba78", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description

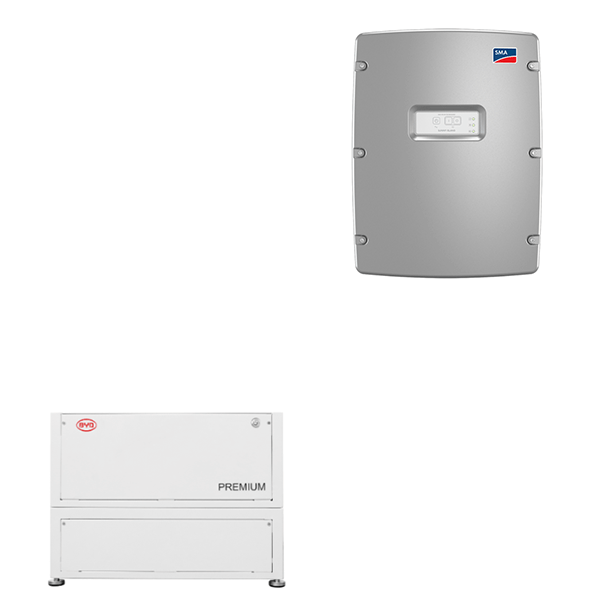

BYD B-Box 15.4 LVL + SMA Sunny Island 6.0H
The inverter manufacturers have not yet given their approval!
The successor of the popular BYD Battery Box Pro 13.8 now gets 15.4 kWh and a weight reduction to 164 kg. The dimensions have also been reduced. Up to 64 battery modules can be connected to a system via a BMU (Battery Management Unit). Thus, the total capacity can be scaled up to 983 kWh! This battery is also prepared for on and off-grid use.
Advantages of Battery Box LVL:
- Maximum flexibility for each application with up to 64 modules in parallel connection
- Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, durability and performance
- Highest safety standards such as VDE 2510-50
- Space-saving due to the option of stacking 2 LVL 15.4 batteries
- Powerful emergency/standby power and off-grid functionality
Product features of BYD B-Box LVL:
- Available capacity: 15.36 kWh
- Lithium iron phosphate technology (LFP)
- Nominal voltage: 51.2 V
- Max. output current 250 A
- Peak output current: 375 A for 5 seconds
- Dimensions: 500 x 575 x 650 mm (H x W x D)
- Weight: 164 kg
- Protection class IP20
- Warranty: 10 years
Advantages of SMA Sunny Island 6.0H:
- Low-volt battery inverter
- A unique product for on-grid, off-grid and backup
- AC system for new installation and retrofitting
- Can also be used flexibly with non-SMA inverters - thanks to an additional SMA Energy Meter
- Quality - Made in Germany
Product features of SMA Sunny Island 6.0H:
- Rated power: 4.6 kW, 1-phase AC
- DC voltage range: 41 V to 63 V
- Max. battery charge current: 110 A
- DC rated discharge current: 103 A
- WLAN und Speedwire integrated
- Protection class: IP 54
- Weight: 63 kg
- Dimensions: 467 x 612 x 242 mm (W x H x D)
- Product warranty: 10 years
Scope of delivery:
- SMA Sunny Island 6.0H
- BYD Battery Box PREMIUM LVL 15.4
- BYD battery cable 70 mm², length of 3 m
