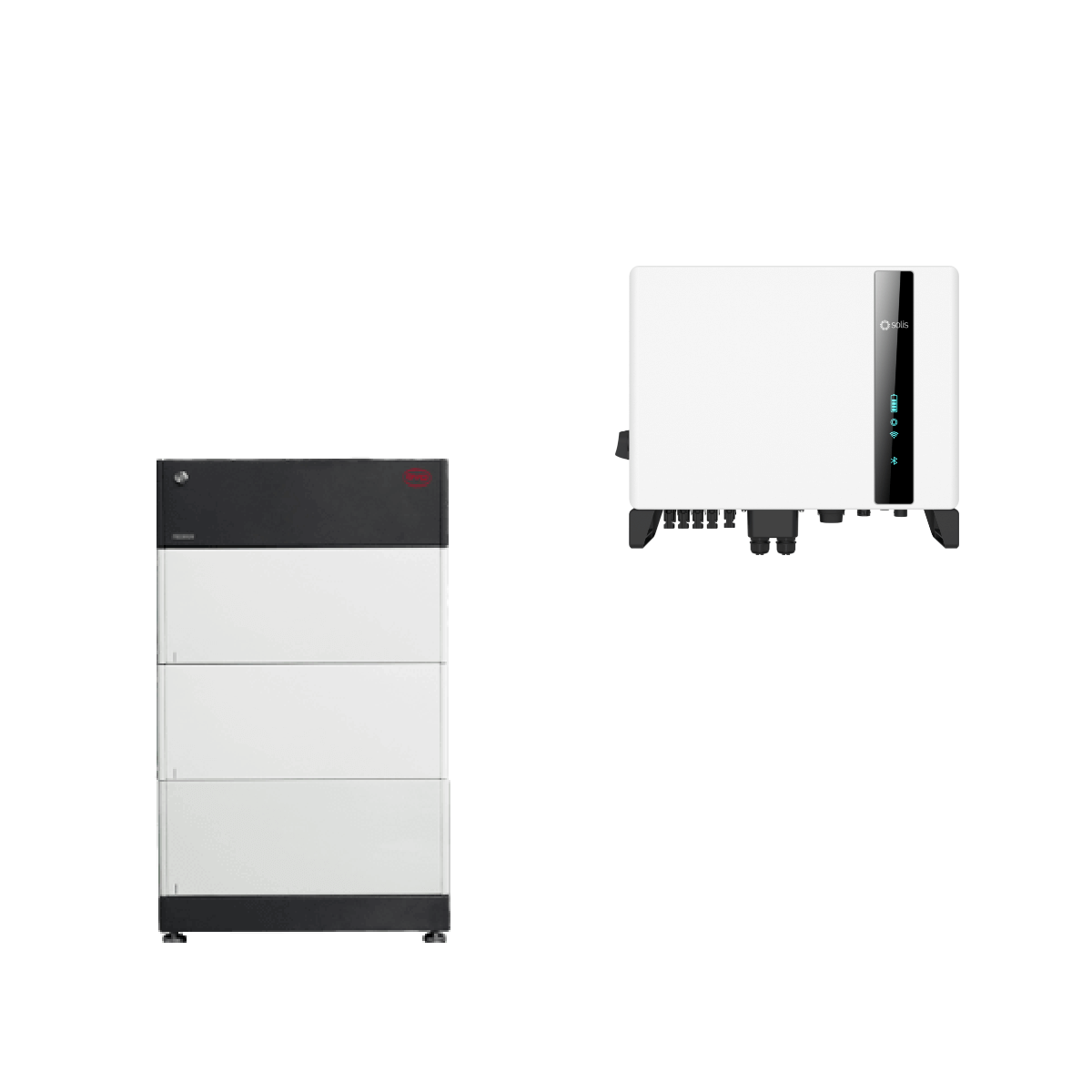

BYD Battery-Box Premium HVS 7.7 with Solis S6 3P-Hybrid – 5 kW

The Solis S6 3P-Hybrid – 5 kW with the BYD Battery-Box Premium HVS 7.7 storage package

Certification for the Solis inverter is expected by the end of 2022 for Austria!

The Solis hybrid inverter offers flexibility in module design with its 3 MPPT. With its high input current, it is compatible with modern high power modules. The Solis Hybrid Inverter has an integrated switching device for backup power. This allows selected loads to continue to be supplied with backup power in the event of a grid failure. The hybrid inverter is capable of solar recharging and black start capability. The usable storage capacity for this storage package is can extended up to 12.8 kWh.

Advantages BYD Battery-Box Premium HVS 7.7

• Usable capacity 7.68 kWh
• The storage package can be expanded up to 12.8 kWh. This requires the BYD HVS battery modules.
• Highest safety standards such as VDE 2510-50
• Patented modular plug-in design requires no internal wiring and allows maximum flexibility and ease of use.
• High performance emergency power functionality



Advantages Solis S6 3P-Hybrid – 5 kW

• Mains connection: 3-phase
• AC power: 5 kVA
• 5.0 kW emergency power via separate output
• MPP tracker: 3 with 1 string output each
• Max. short circuit current per MPPT: 24 A
• Max. input current: 16 A
• Communication: CAN, RS485, Wi-Fi
• Incl. 1 m battery cable with MC4 connectors
• Incl. Wi-Fi module
• 3-phase smart meter with 3 current transformers
• Protection category: IP66
• Dimensions: 496 x 596 x 230 mm (HxWxD)
• Weight: 31.8 kg
• Warranty: 5 years

Scope of delivery

• BYD Battery-Box Premium HVS 7.7
• Solis S6 3P-Hybrid – 5 kW
